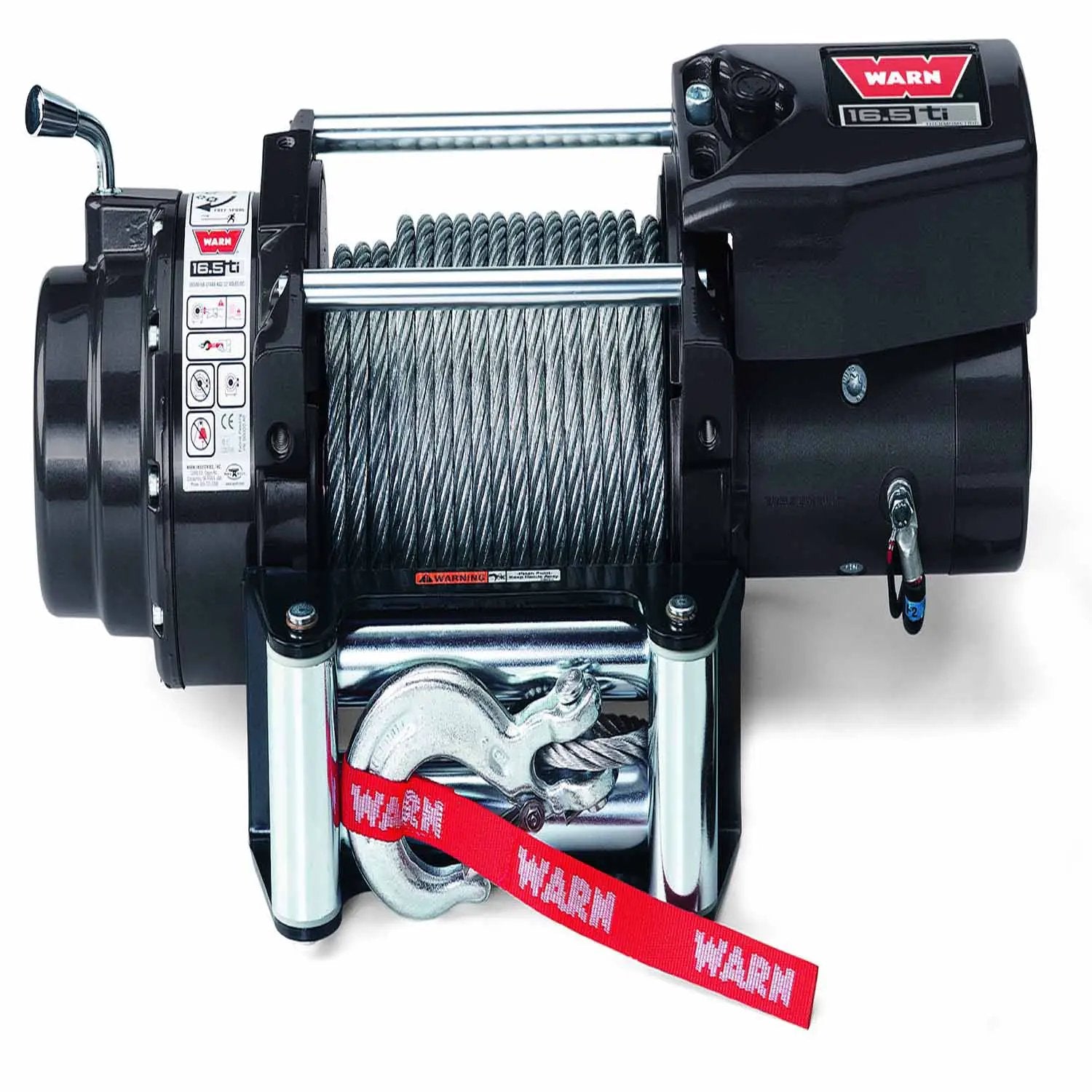

Warn 16.5ti Vehicle Mounted Winch — 16,500 lb Pull, 12V, 90 ft Rope

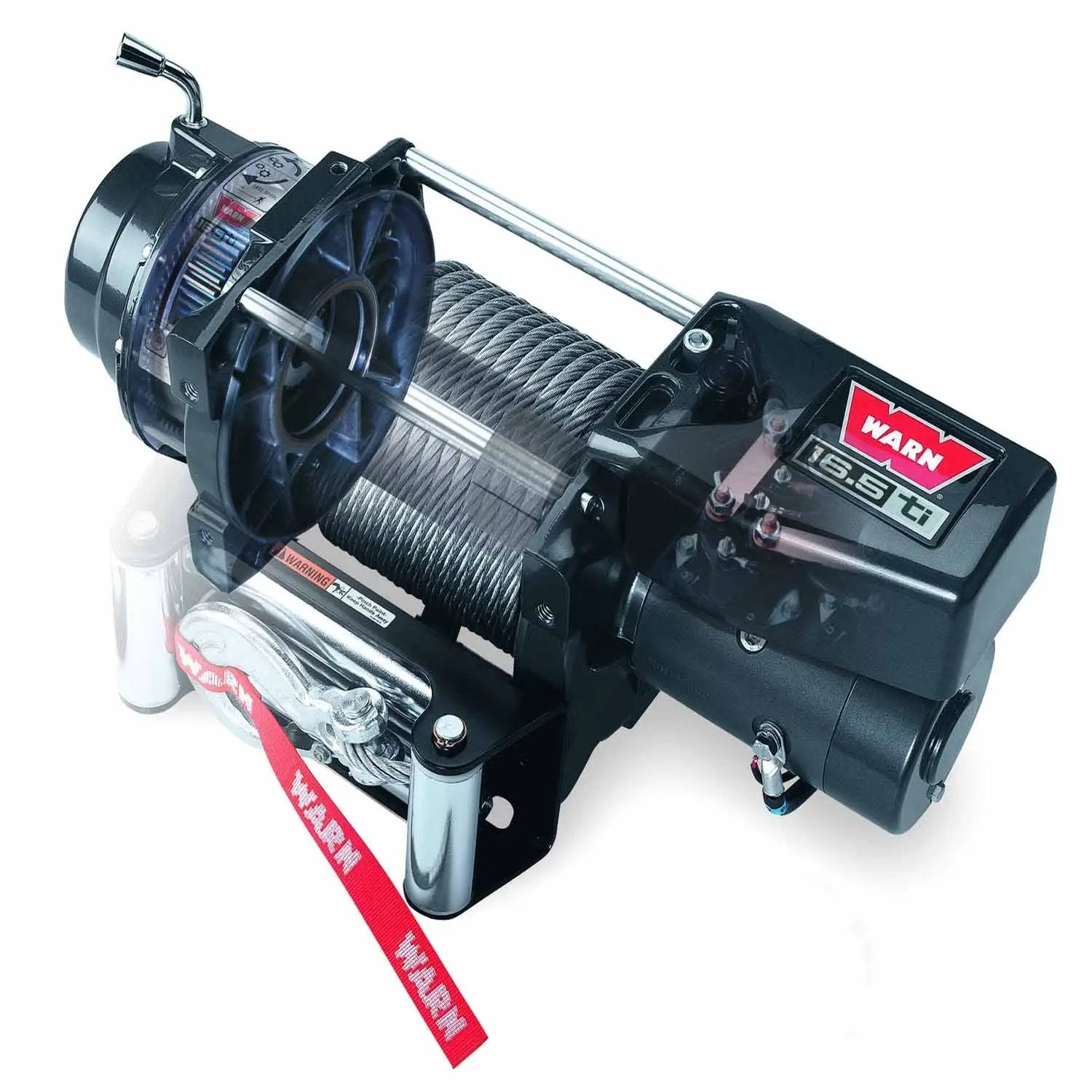

The Warn 16.5ti Vehicle Mounted Winch delivers 16,500 lb of line pull from a 12-volt electric system, designed for big 3/4-ton and 1-ton trucks. This planetary gear drive combines raw pulling power with long-term reliability for the heaviest loads and toughest pulls.

It ships with 90 feet of wire rope wound on a rugged drum, paired with a roller fairlead to minimize rope abrasion and a wired remote for secure, hands-free control during winching. The unit features extreme duty sealing to keep out water and gunk, preserving performance in harsh environments.

Designed, engineered, and assembled in the USA, the 16.5ti is built to withstand demanding work conditions while delivering consistent performance. Installation requires a compatible winch carrier or winch mount on your vehicle.

  • 12-volt electric winch
  • Pull capacity: 16,500 pounds
  • Rope length: 90 feet
  • Drum drive: planetary gear
  • Roller fairlead for rope guidance
  • Wired remote
  • Weight: 136.5 pounds
  • Dimensions: 26.5" L × 10.5" W × 17.0" H
  • Requires winch carrier or winch mount

Features

  • Thermometric indicator (ti) provides motor temperature feedback via LED on remote control
  • Extreme-duty sealing helps protect the winch from the elements
  • keeping reliability in
  • Metal control box for added protection for the electronics
  • Albright contactor control for the ultimate in durability and reliability
  • 90' of durable 7/16" steel rope and a roller fairlead
  • Class-leading cone brake holds the winch's full-rated load
  • Chip-resistant powder-coated finish with primer undercoating for superior corrosion resistance
  • Industry-leading warranty: Limited lifetime (mechanical components)
  • seven year (electrical components)

Specifications

Dimensions

26.5 Inches
Length
10.5 Inches
Width
17 Inches
Height
136.5 lbs
Weight
