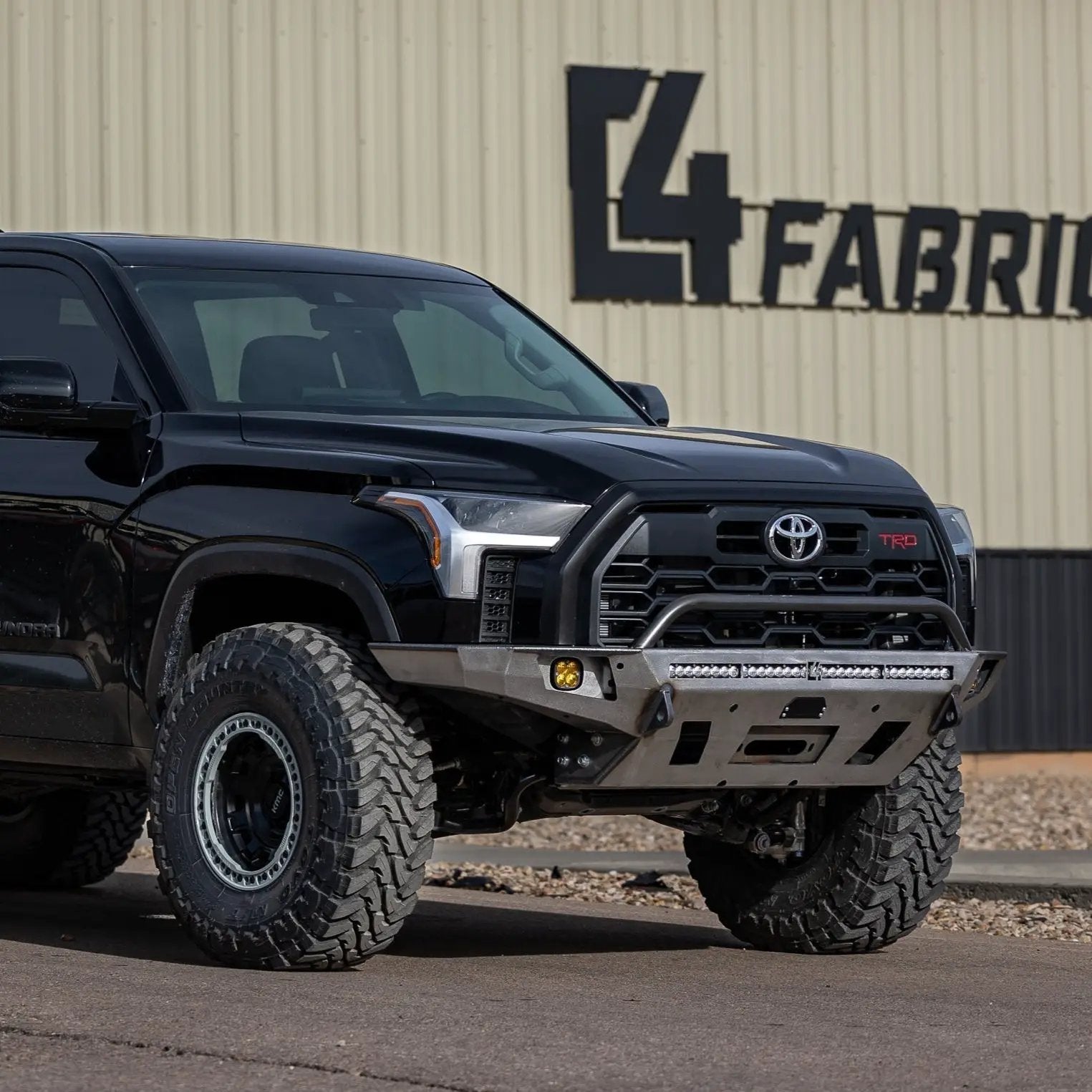

C4 Fabrication Tundra Overland Series Front Bumper / 3rd Gen / 2022+

Introducing the C4 Fabrication Tundra Overland Series Front Bumper for 3rd Gen Toyota trucks (2022+). Built for explorers and everyday drivers alike, this rugged bumper preserves essential safety features while delivering serious off-road protection and practical compatibility with lighting and winch setups.

Key Benefits

• Preserves Toyota Safety Sense (TSS), park sensors, and front-mounted camera functionality. All bull bar options remain compatible with TSS, with clear notes on visual impact for camera visibility.
• Heavy-duty construction using 3/16" laser-cut P&O steel, 1/4" mounting plates, and a 1/4" thick winch plate for solid, reliable protection and mounting versatility.
• Integrated 40" single-row light bar cutouts designed specifically for Baja Designs S8, with standard light cutouts that cannot be removed.
• Designed to fit a single pair of Baja Designs Squadron fog lights; OE fog lights cannot be reused.
• Includes a front skid plate that replaces the factory plastic skid plate for added underbody protection.
• D-Ring anchors: 3/4" thick, fully welded front and back, ready for recovery operations.

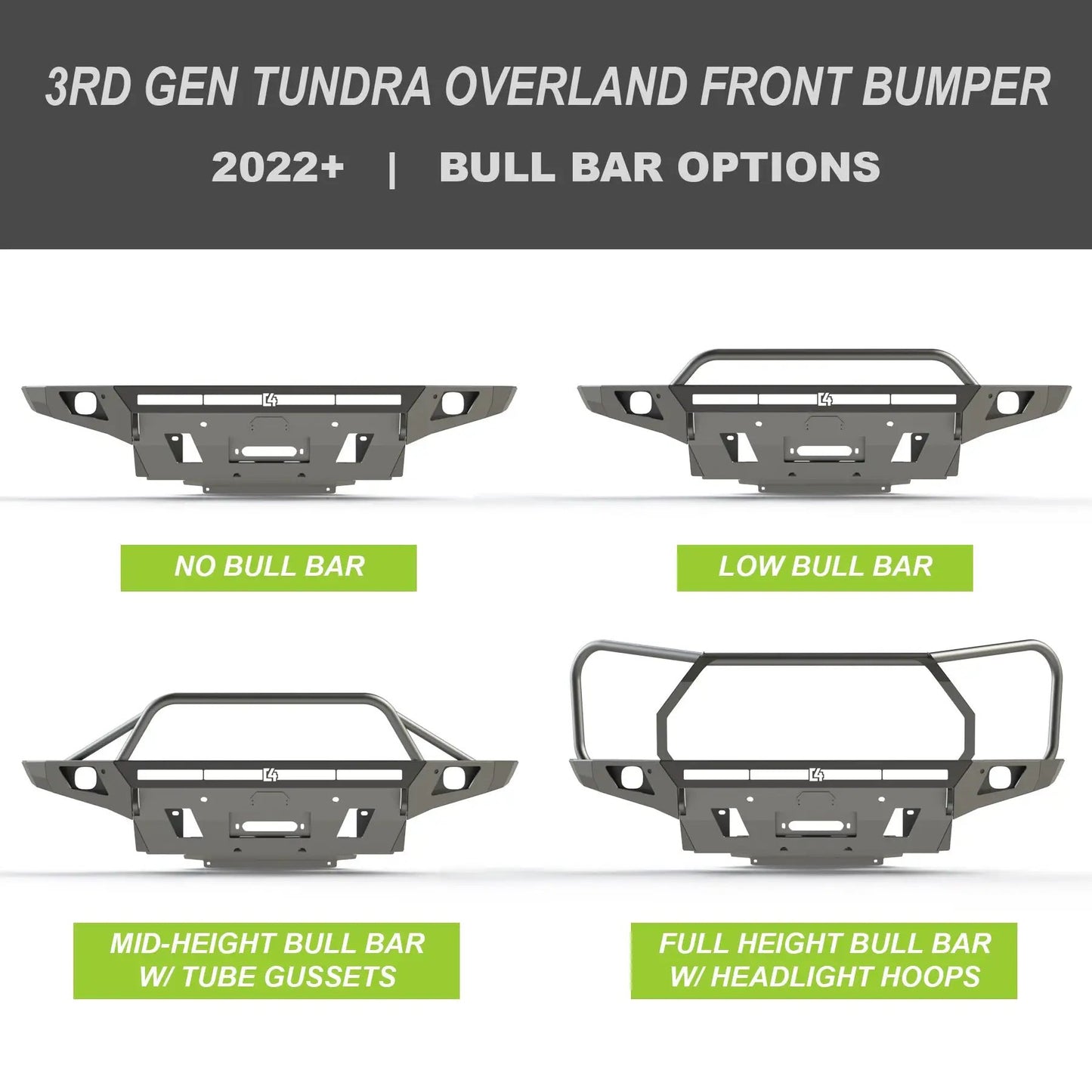

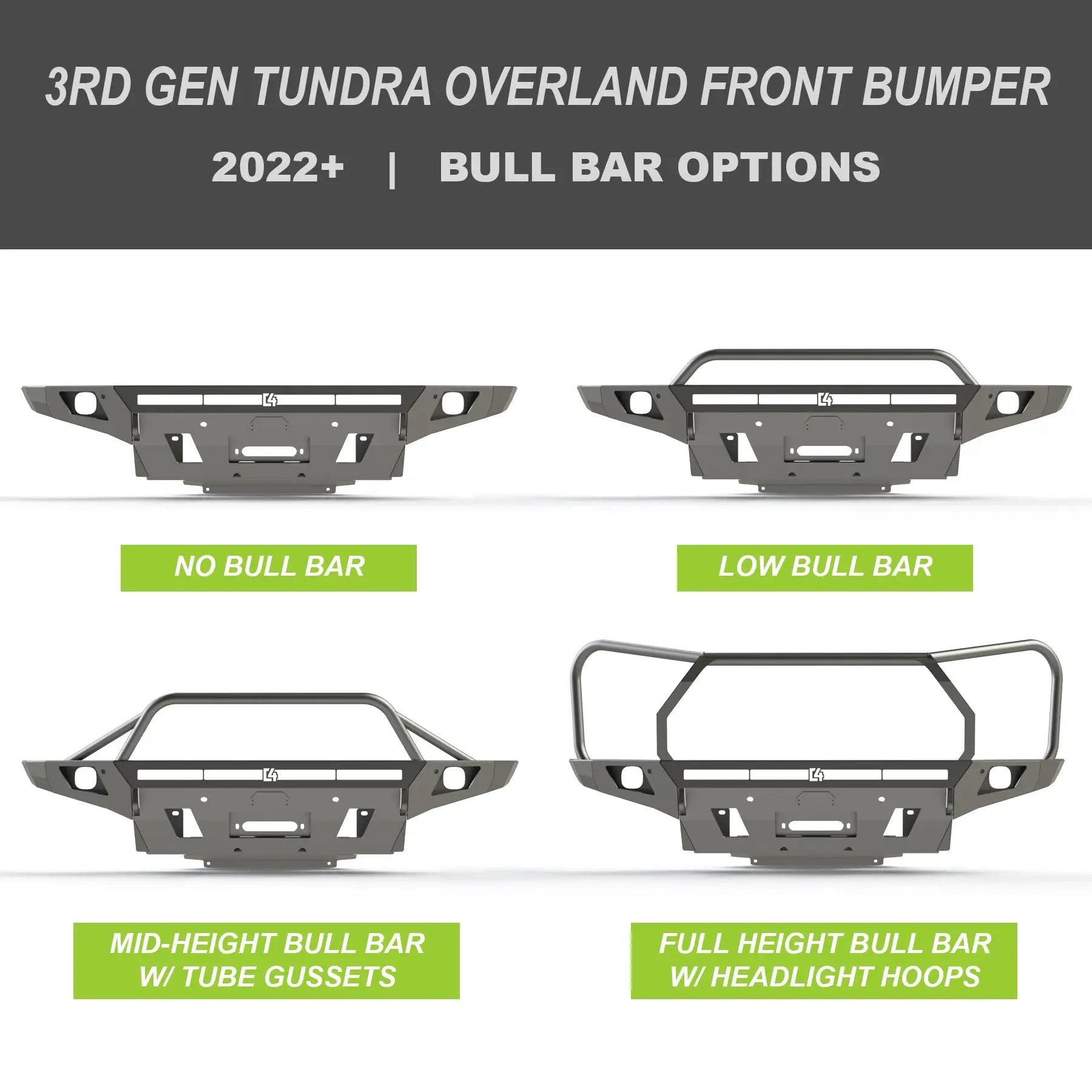

• Lightweight-to-heavyweight range across configurations:
  • 160 lbs (no bar)
  • 168 lbs (low bull bar)
  • 174 lbs (mid-height with gussets)
  • 182 lbs (full bull bar with headlight hoops)
• Bull bar tubing materials:.120" wall, 1 3/4" and 1 1/2" diameter HREW tubing for strength and style.

Winch Compatibility

• Fits most 8,000–12,000 lb winches; verified fitments include WARN VR and ZEON series 10k and 12k.
• Not compatible with Smitty XRC 12k.
• Recommendation: use synthetic rope with a hawse-style fairlead for best fit and operation; some roller fairleads may be too large for the recessed fairlead mounting plate.

Lighting, Fitment, and Modifications

• Designed to accommodate a 40" Baja Designs S8 light bar; all light cutouts are standard and cannot be removed.
• Will fit LP9s on all options except the low bar version; low bar variant will not come pre-drilled for LP9 mounting.
• Requires trimming: plastic bumper panels under the headlights on both sides and trimming the end of the fender flares to install.
• Includes holes to reattach factory fender liners for a clean, integrated appearance.

Safety and Sensor Considerations

• Retains full functionality of Toyota Safety Sense (TSS), park sensors, and front camera; all bull bar options remain compatible with TSS.

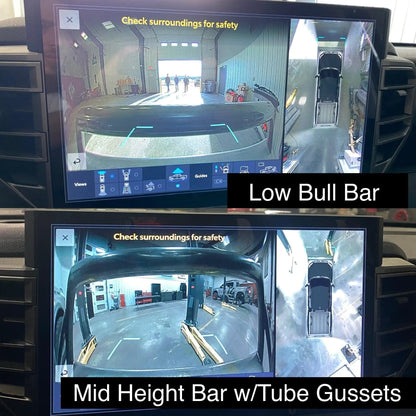

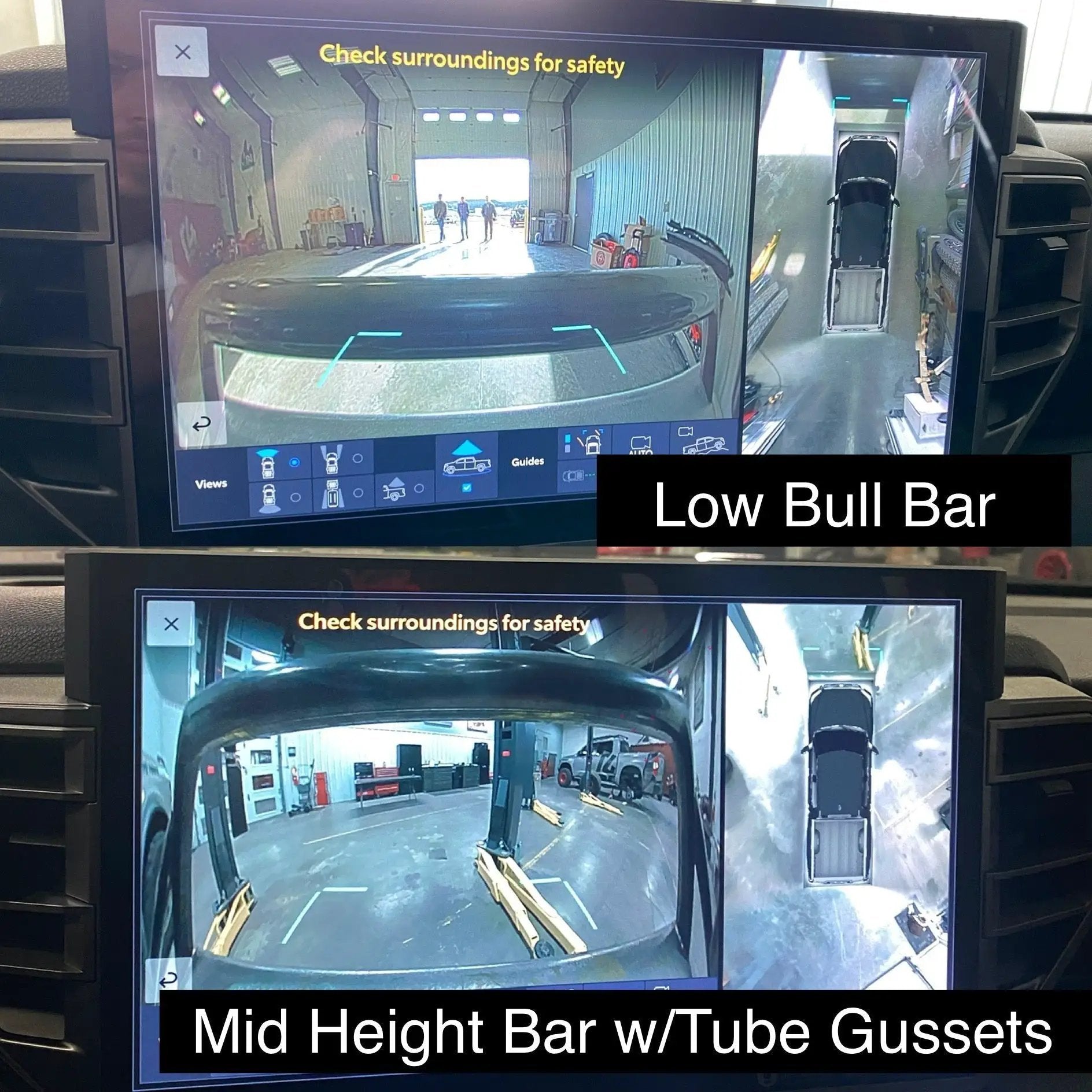

• Low-height and mid-height bars will be visible in the front camera but will not fully obscure the camera view.
• TSS recalibration may be required after installing the aftermarket bumper, especially if sensors are relocated during the install.
• For optimal sensor performance, ensure the vehicle sits level; excessive forward rake can increase sensor sensitivity and cause intermittent alerts. Confirm sensor orientation as per the install video.

Install, Finish, and Maintenance

• Installation video provides detailed, step-by-step guidance for a thorough install process.
• Finish options: powder coat is available; otherwise the bumper will require painting or powder coating prior to installation to prevent rust.
• Includes a front skid plate and designed to work with the existing vehicle mounting points and fender liners for a clean integration.

What’s Included and Not Included

• Includes front skid plate (replaces factory plastic skid plate).
• Body and bumper construction designed to support off-road accessories and recovery gear with robust mounting strength.
• Note: Some components require vehicle modification during installation, including trimming and panel cutting, as detailed in the install video.
