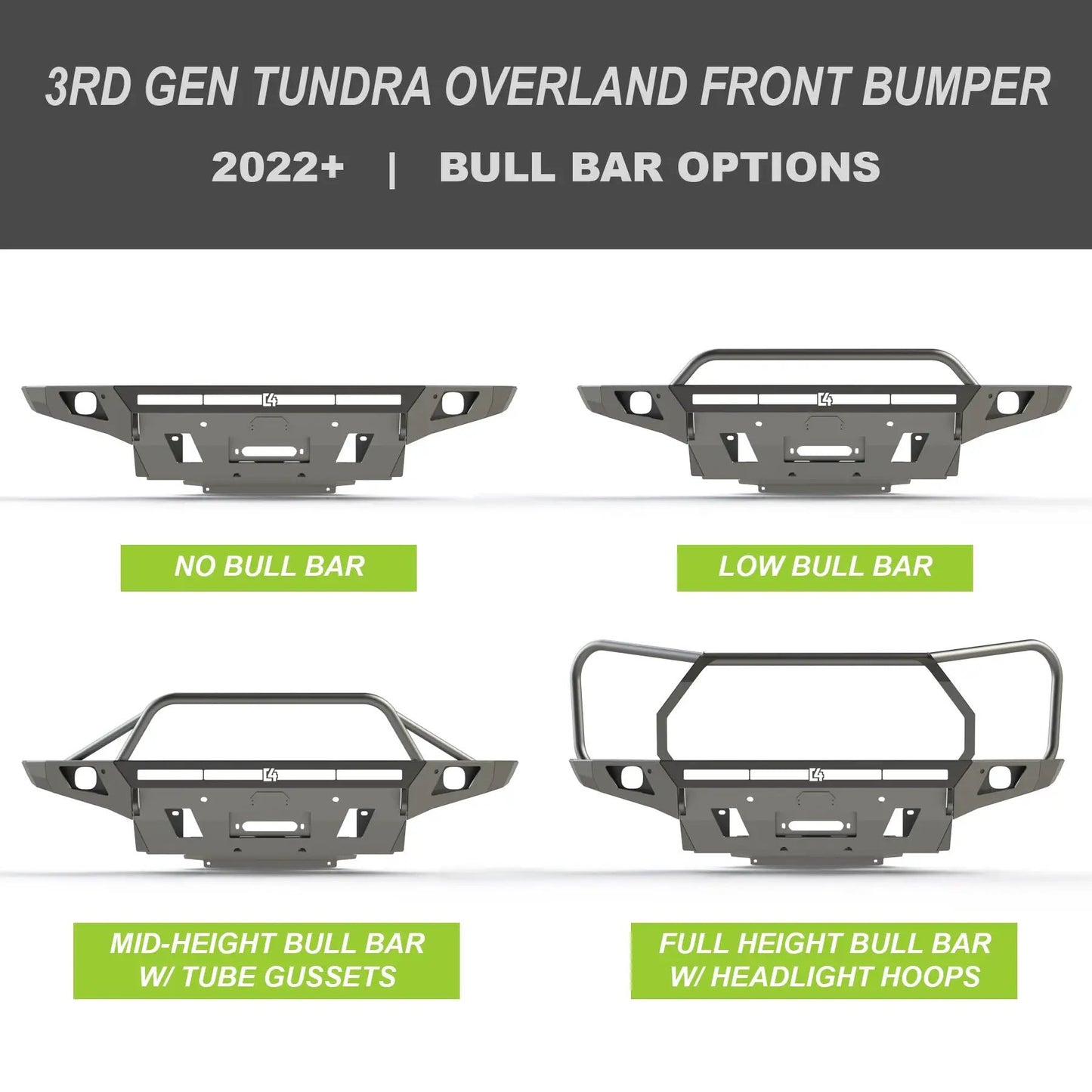

C4 Fabrication Tundra Overland Series Front Bumper / 3rd Gen / 2022+

The C4 Fabrication Tundra Overland Series Front Bumper is a rugged, purpose-built upgrade for 3rd Gen Toyota platforms (2022+). It preserves Toyota Safety Sense, park sensors, and the front-mounted camera while delivering serious off-road protection and accessory mounting capability for overlanders.

Safety System Compatibility

Retains full functionality of the Toyota Safety Sense system, park sensors, and front-mounted camera. All bull bar options are compatible with TSS. Low-Height and Mid-Height bull bars remain visible in the front camera view, but they do not block the full camera view.

Sensor and Calibration Considerations

• TSS recalibration may be required after installing the aftermarket bumper. Some customers have reported TSS re-calibration requests when sensors are moved into the bumper.
• Parking sensors must be oriented correctly per the install video to avoid malfunction. For optimal sensor performance, ensure the vehicle sits level for ideal sensor positioning; excessive forward rake can increase sensor sensitivity.

Lighting, Cutouts, and Fog Light Compatibility

• Designed to fit a 40″ single-row light bar (specifically designed for Baja Designs S8 light bar).
• Light cutouts are a standard feature and cannot be removed.
• Designed to fit one pair of Baja Designs Squadron fog lights; OE fog lights cannot be reused.
• LP9s will fit on all options except the low bar, which will not come pre-drilled.

Installation and Fitment Notes

• Requires cutting the plastic bumper panels under the headlights on each side and trimming the end of the fender flares to install.
• Installation video provides detailed, step-by-step guidance.
• Bumper has holes to reattach factory fender liners and includes a front skid plate that replaces the factory plastic skid plate.

Construction and Weight

• Made from 3/16" laser-cut P&O steel with 1/4" thick mounting plates and 1/4" thick winch plate.
• Bull bar tubing is 0.120" wall with 1 3/4" and 1 1/2" diameter HREW tubing.
• Weight ranges from 160 lbs (no bar) to 182 lbs (full bull bar with headlight hoops), depending on configuration.
• Includes 3/4" thick D-Ring tabs, fully welded at the front and back.

Winch Compatibility

• Fits most 8k–12k winches. Verified fits include WARN VR and ZEON series 10k–12k; does not fit Smitty XRC 12k.
• Recommendation: use synthetic rope and a hawse-style fairlead for best fit and function. Some roller fairleads may be too large for the recessed fairlead mounting plate.

Finish and Rust Prevention

Unless you choose the powder-coated option, the bumper will need to be painted or powder coated prior to installation to prevent rust.

With its robust construction, integrated accessory mounting, and careful preservation of safety systems, this bumper is built to enhance protection and capability for serious overlanding adventures while maintaining essential vehicle sensors and camera functionality.
