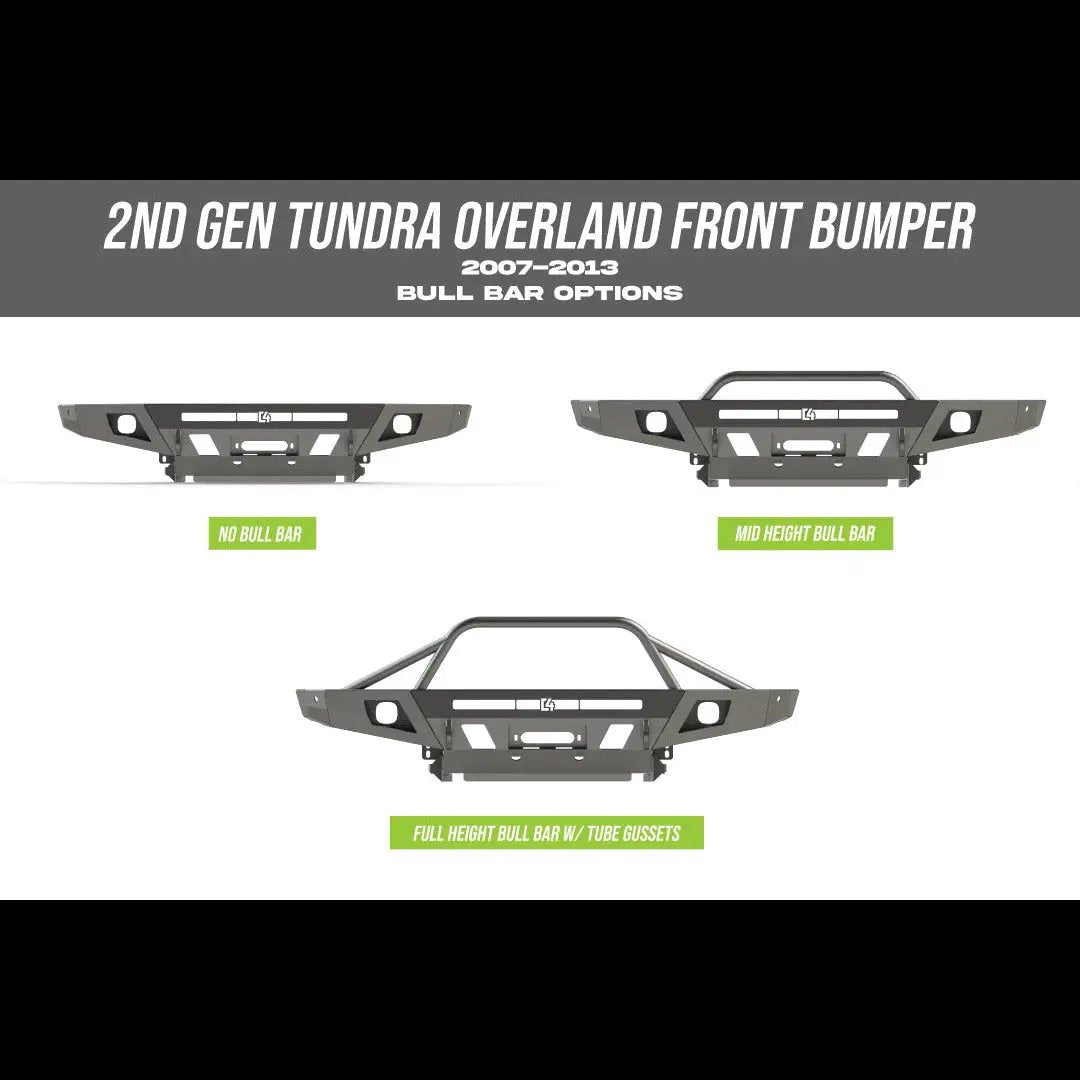

C4 Fabrication Tundra Overland Series Front Bumper / 2nd Gen / 2007-2013

Name: C4 Fabrication Tundra Overland Series Front Bumper / 2nd Gen / 2007-2013
Brand: C4 Fabrication
SKU: 1400-3107-30-NB
Price: 1773.0 USD

Read Product Details

1400-3107-30-NB

In Stock (1 available)

$1,773.00

Secure checkout
SSL encrypted payment
Fast Shipping
2-3 Business days

Description

Designed for the 2nd Gen Toyota Tundra (2007–2013), the C4 Fabrication Tundra Overland Series Front Bumper offers increased clearance for better approach angles and easier fitting of larger tires. Built from rugged 3/16″ laser-cut P&O steel with reinforced mounting and winch support, it delivers serious off-road capability with ready-to-use lighting and sensor accommodations.

Key specifications

Material: 3/16″ laser-cut P&O steel
Mounting plates: 3/8″ thick
Winch plate: 1/4″ thick
D-Ring tabs: 3/4″ thick, fully welded front and back
Bull bar tubing:.120 wall, 1 3/4″ diameter HREW
Weight: 165 lbs without bull bar; 180 lbs with full-height bull bar
Lighting compatibility: designed to fit 30″ single-row light bars (specifically Baja Designs S8); also compatible with Extreme LED 30″ 5D and RIGID 30″ SR series
Winch compatibility: fits most 8k–12k winches; relocation of the electrical control box recommended; integrated control box winches may require trimming of grille support brackets
Factory mounting: pre-drilled for LP9 or LP6 lights on top of the bumper in front of the grille
Sensor compatibility: comes with holes for parking sensors
Skid plate compatibility: works with TRD Pro skid plate and aftermarket skid plates
Finish note: unless you choose the powder-coated option, coating must be applied (paint or powder coat) to prevent rust
Additional fitment notes: some roller fairleads may be too large for the recessed fairlead mounting plate

Installation, fitment, and use

Designed for 2nd Gen Tundra applications; compatible with 2007–2013 models
Designed to fit a 30″ single-row light bar; specific mounting options for Baja Designs S8
Winch compatibility spans ComeUp, Smittybilt X20, Warn Zeon, and VR series; synthetic rope with a hawse-style fairlead is recommended for best fitment
If using an integrated control box winch, plan for possible trimming of grille support brackets
For best long-term protection, apply the powder coating option or paint before installation
Includes parking-sensor mounting provisions for seamless integration with factory sensors

Features

Bumper offers more clearance for better approach angles and makes it easier to fit larger tires.
Bumper is made from 3/16″ laser cut P&O steel with 3/8″ thick mounting plates and 1/4″ thick winch plate.
3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
Bull bar tubing is .120 wall 1 3/4″ diameter HREW tubing.
Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (ComeUp
Smittybilt X20
Warn Zeon and VR...
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
Works with TRD Pro skid plate and aftermarket skid plates.
Comes with holes for parking sensors.
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series
will also fit.
Bumper comes pre-drilled for a pair of LP9 or LP6 lights to mount on top of the bumper in front of the grille. The LP9 lights will work with the full-height bull bar as well as no bull bar.
Weighs 165lbs without bull bar
180lbs with full height bull bar.
Unless you choose our powder coated option
this product will need to be painted or powder coated before installation to prevent rust.
