C4 Fabrication Tundra Hybrid Front Bumper / 2nd Gen / 2014-2021

Name: C4 Fabrication Tundra Hybrid Front Bumper / 2nd Gen / 2014-2021
Brand: C4 Fabrication
SKU: 1400-3214-30-FH-PS-W
Price: 2120.0 USD

Read Product Details

1400-3214-30-FH-PS-W

In Stock (1 available)

$2,120.00

Secure checkout
SSL encrypted payment
Fast Shipping
2-3 Business days

Description

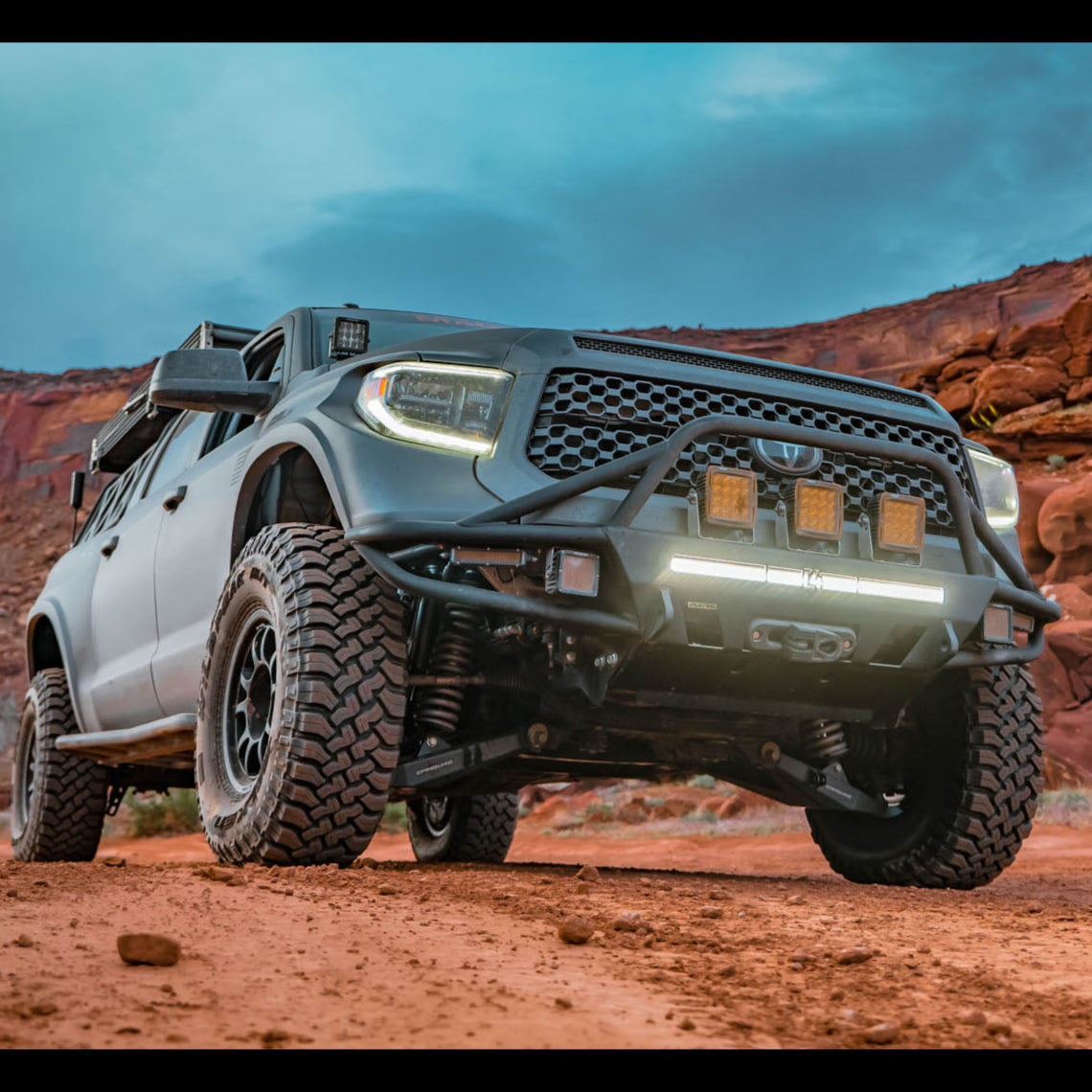

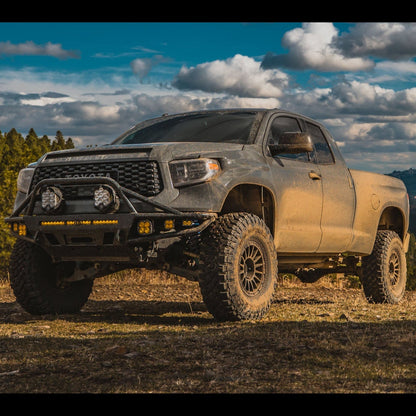

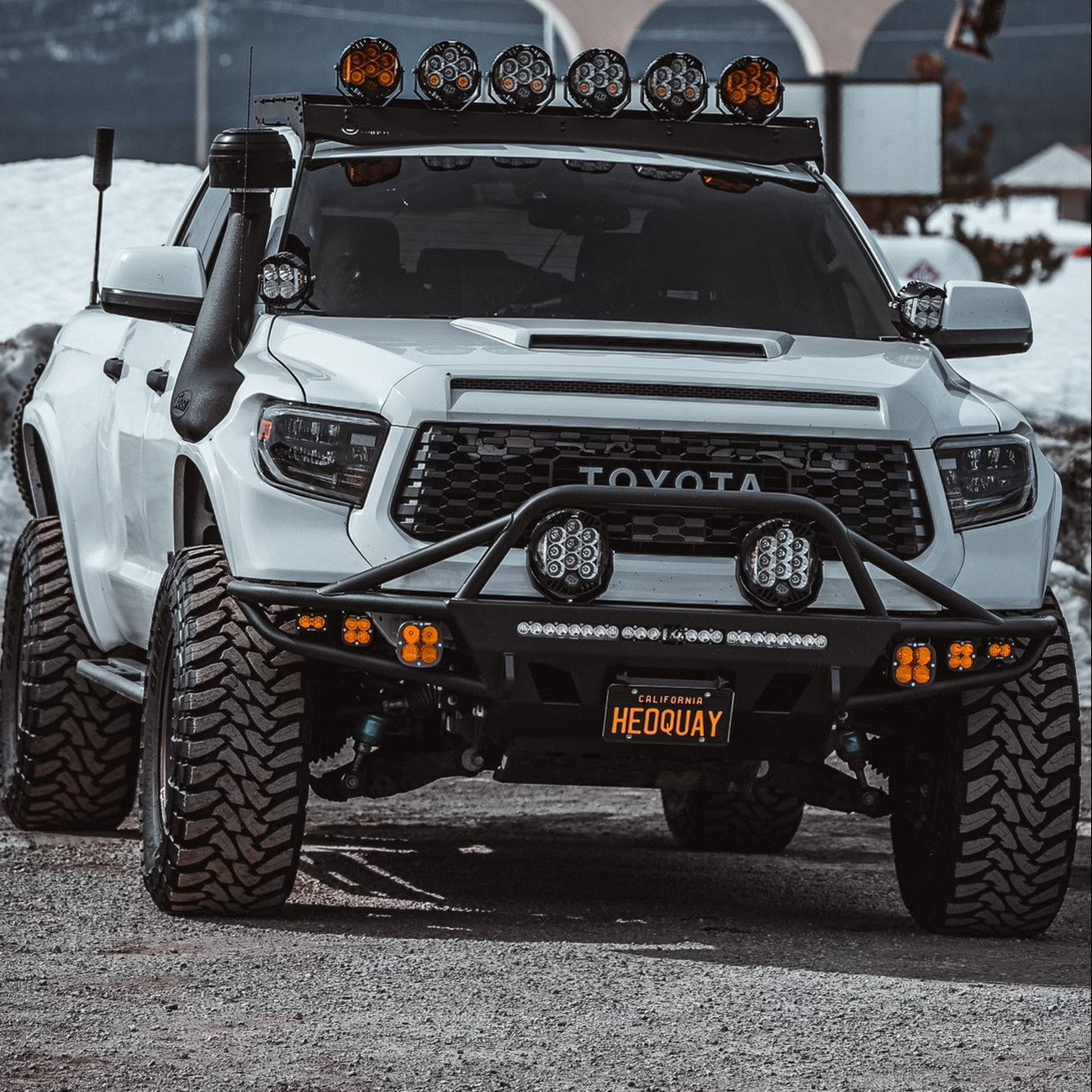

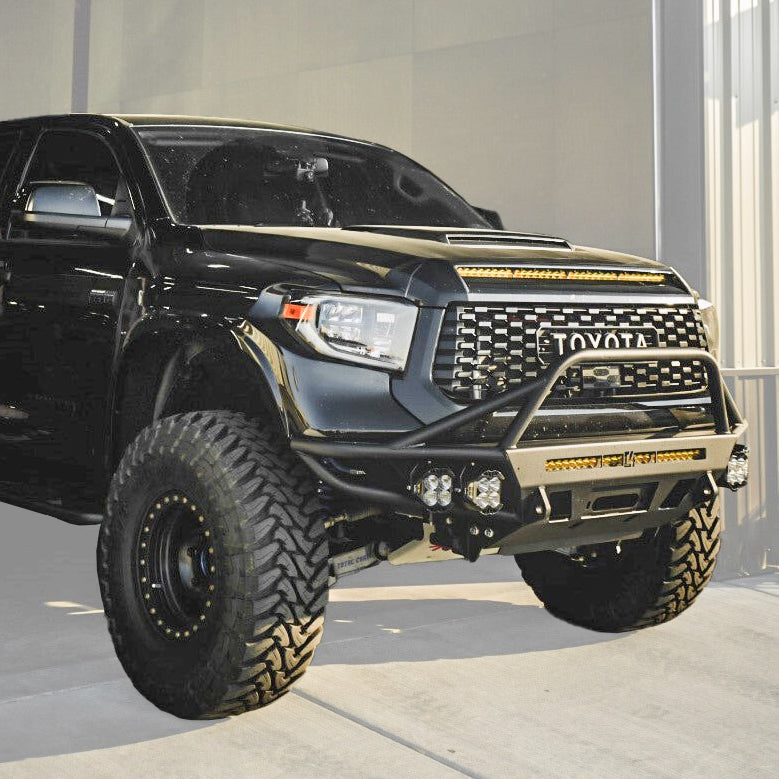

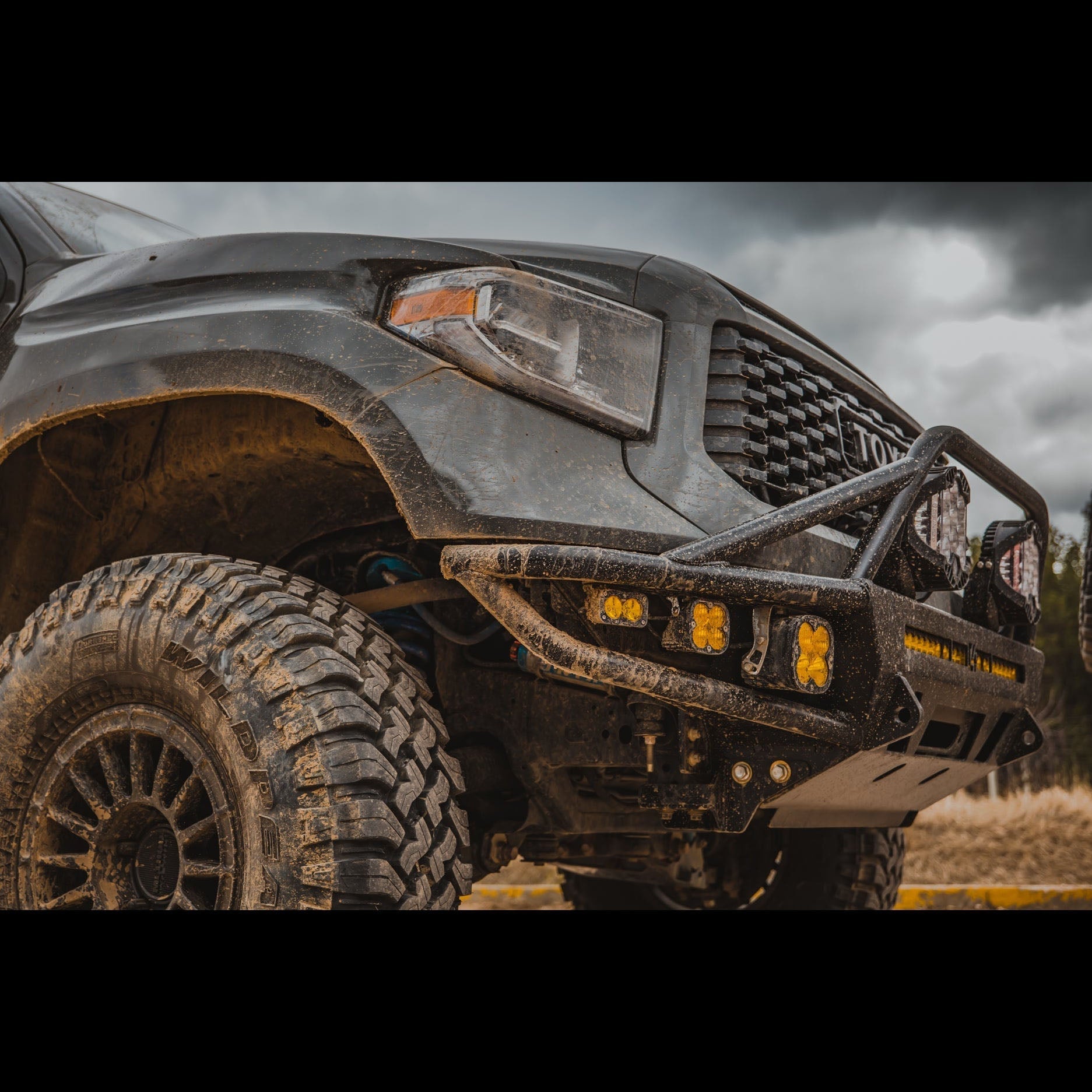

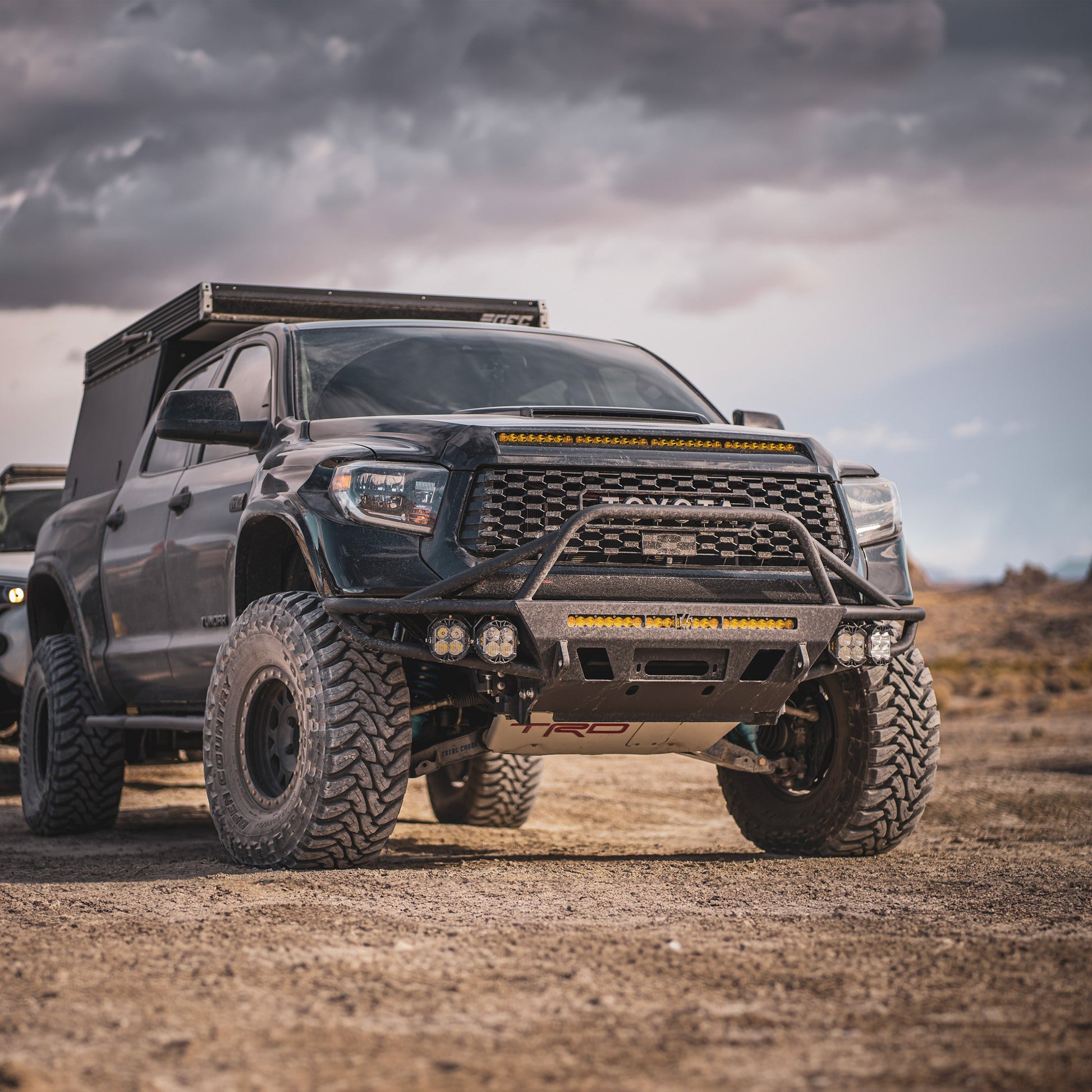

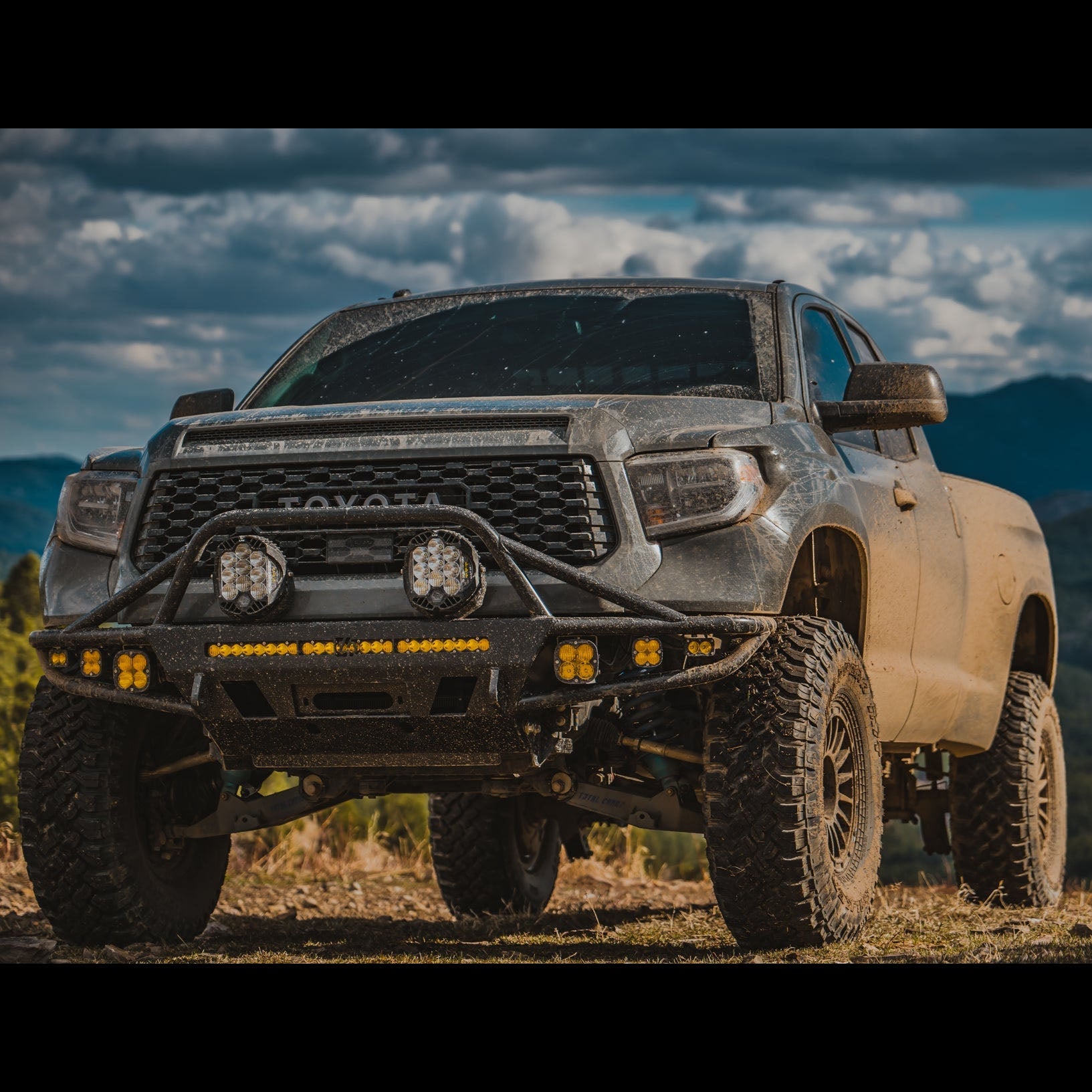

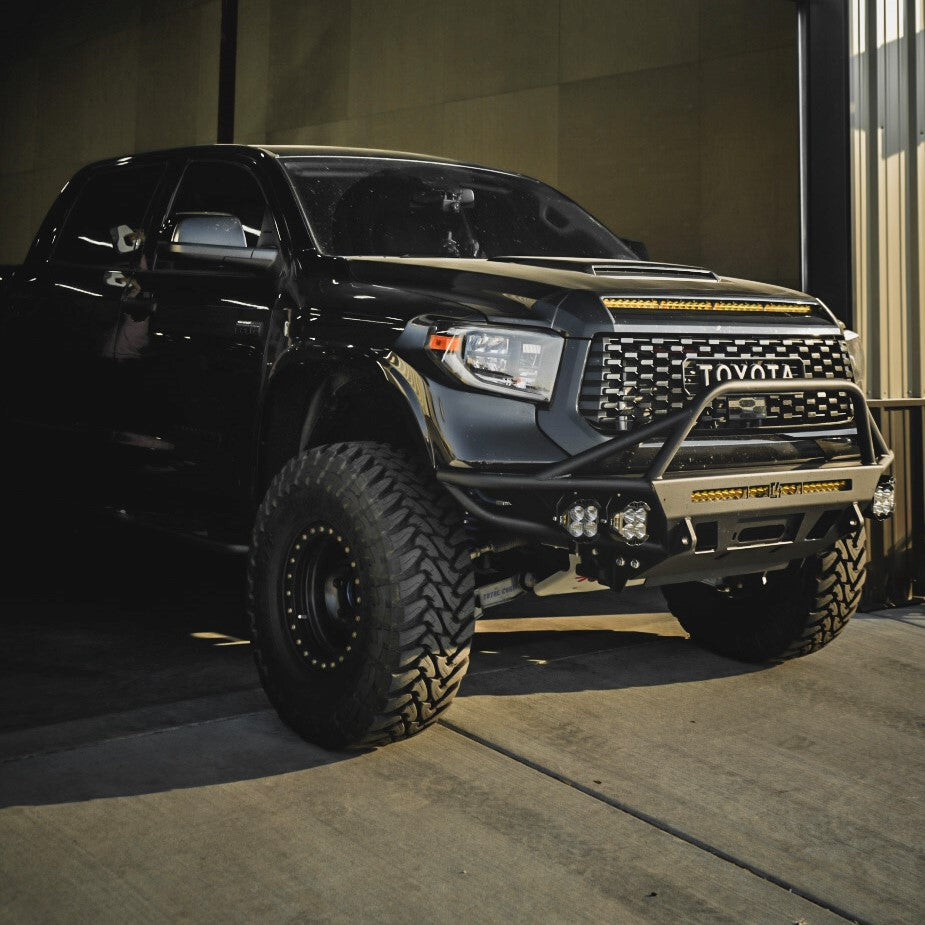

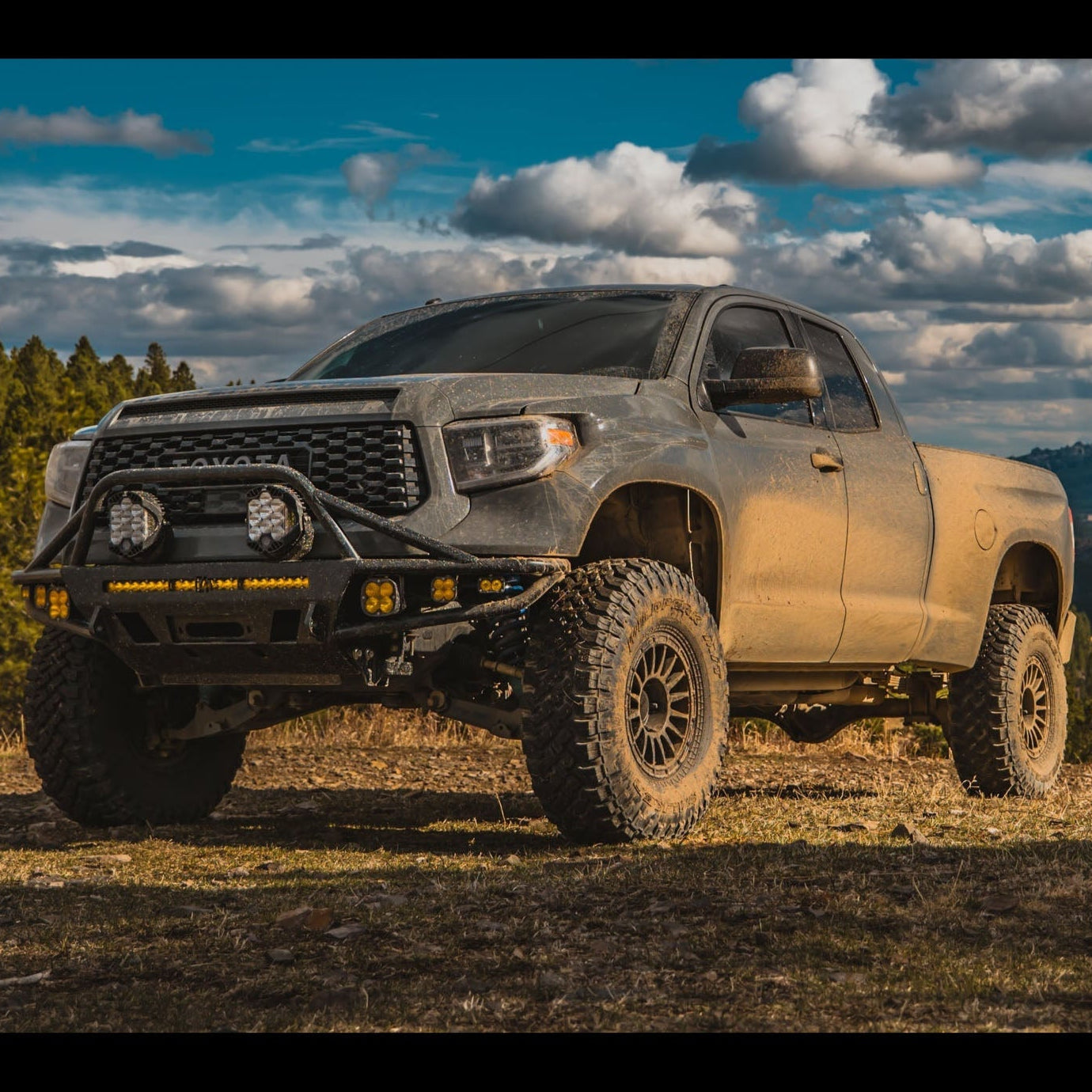

The C4 Fabrication Tundra Hybrid Front Bumper for the 2014–2021 Tundra combines a plate-steel center with round tube sides to deliver a lighter, more aggressive look while unlocking winch mounting, versatile lighting, and fog-light options in the tube area. Built for owners who crave improved approach angles, easier tire clearance, and robust off-road capability without compromising style.

Design and Materials

Center portion: 3/16" laser-cut P&O steel with 3/8" mounting plates and a 1/4" winch mounting plate
Tube sections:.120" wall, 1 3/4" diameter HREW tubing
3/4" thick D-Ring tabs, fully welded front and back
Weight: 150 lbs (without bull bar), 165 lbs (with full-height bull bar)
Direct bolt-on installation — no cutting or modifications required

Winch, Lighting and Accessories

Fits most winches rated 8k–12k; recommended relocation of the electrical control box
Integrated control box winches may require trimming of grille support brackets to fit
Common winches that fit: ComeUp, Smittybilt X20, Warn Zeon, VR series
Pre-drilled for a pair of LP9 or LP6 lights to mount on top of the bumper in front of the grille; LP9 lights work with both full-height and no bull bar
Designed to accommodate 30" single-row light bars (specifically Baja Designs S8); also compatible with Extreme LED 30" 5D and RIGID 30" SR series
Fairlead and rope: supports synthetic rope with hawse-style fairlead for best fit; some roller fairleads may be too large for the recessed fairlead plate

Clearance, Fitment and Skid Compatibility

Increased clearance for improved approach angles and easier fitment of larger tires
Works with TRD Pro skid and aftermarket skids

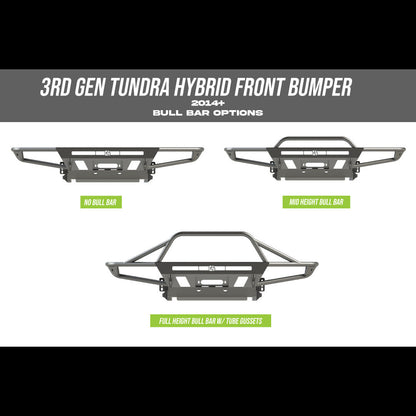

Full-height bull bar compatibility: works with TSS in TRD Pro grilles only; bull bar will block the TSS sensor on regular grilles
Mid-height bull bar compatibility: works with TSS on all models

Compatibility Notes

This listing is for Tundra models with standard width fenders
If you have fiberglass wide fenders, please view the dedicated bumper listing for that configuration

Finish, Maintenance and Installation

Unless you opt for the powder-coated version, the bumper will require painting or powder coating prior to installation to prevent rust
Direct bolt-on application; no cutting or modifications needed when installed on the correct model

Features

The 2014-2021 Tundra Hybrid bumper is a unique combination of a plate steel center with round tube on the sides. This design allows you to achieve a “lighter” look while gaining the ability to mount a winch
LED light bar and multiple combinations of f...
Bumper offers more clearance for better approach angles and makes it easier to fit larger tires.
Center portion is made from 3/16″ laser cut P&O steel with 3/8″ thick mounting plates And 1/4″ winch mounting plate.
3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
Tube portions are .120 wall 1 3/4″ diameter HREW tubing.
Full-height bull bar will work with TSS in TRD Pro grilles only. Bull bar will block the TSS sensor on regular grilles.
Mid-height bull bar works with TSS on all models
Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (ComeUp
Smittybilt X20
Warn Zeon and VR...
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
Bumper works with TRD Pro skid and aftermarket skids.
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series
will also fit.
Bumper comes pre-drilled for a pair of LP9 or LP6 lights to mount on top of the bumper in front of the grille. The LP9 lights will work with the full-height bull bar as well as no bull bar.
Weighs 150lbs without bull bar
165lbs with full height bull bar.
This bumper is a direct bolt on application. No cutting or modifications needed.
Unless you choose our powder coated option
this product will need to be painted or powder coated before installation to prevent rust
Please Note: This listing is for Tundra's with standard width fenders. If you have fiberglass wide fenders
please view this bumper listing instead.
