C4 Fabrication Tundra Hybrid Front Bumper / 2nd Gen / 2014-2021

Name: C4 Fabrication Tundra Hybrid Front Bumper / 2nd Gen / 2014-2021
Brand: C4 Fabrication
SKU: 1400-3214-30-FH-NP-W
Price: 2010.0 USD

Read Product Details

1400-3214-30-FH-NP-W

In Stock (1 available)

$2,010.00

Secure checkout
SSL encrypted payment
Fast Shipping
2-3 Business days

Description

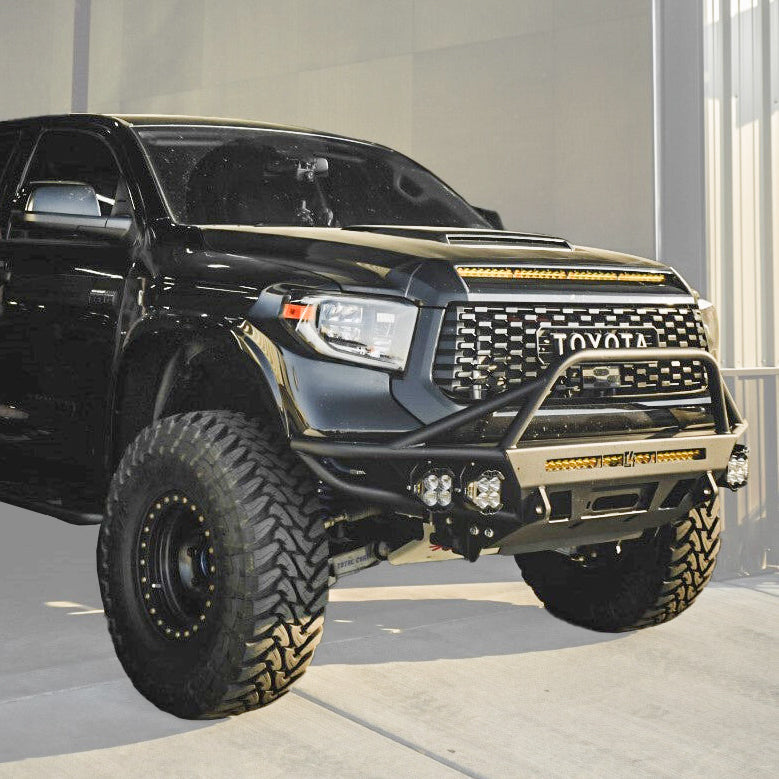

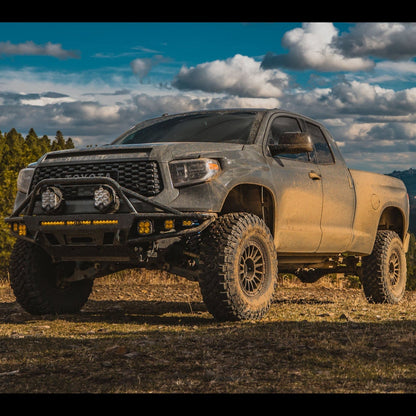

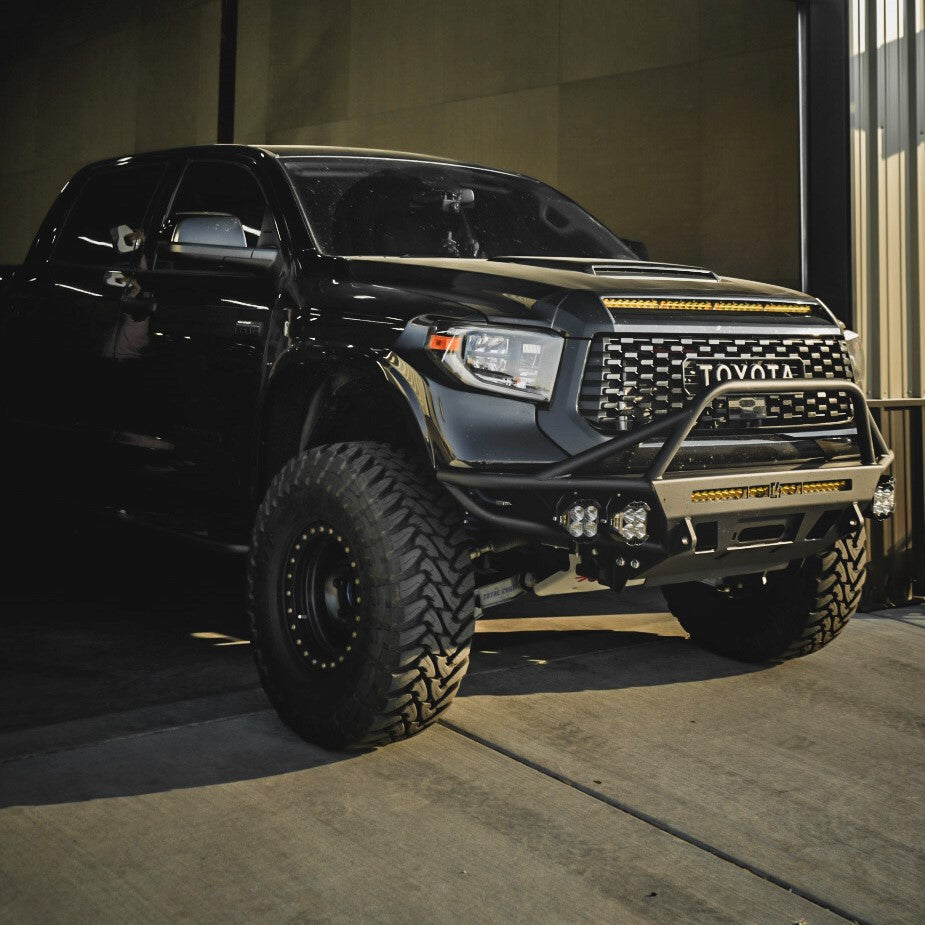

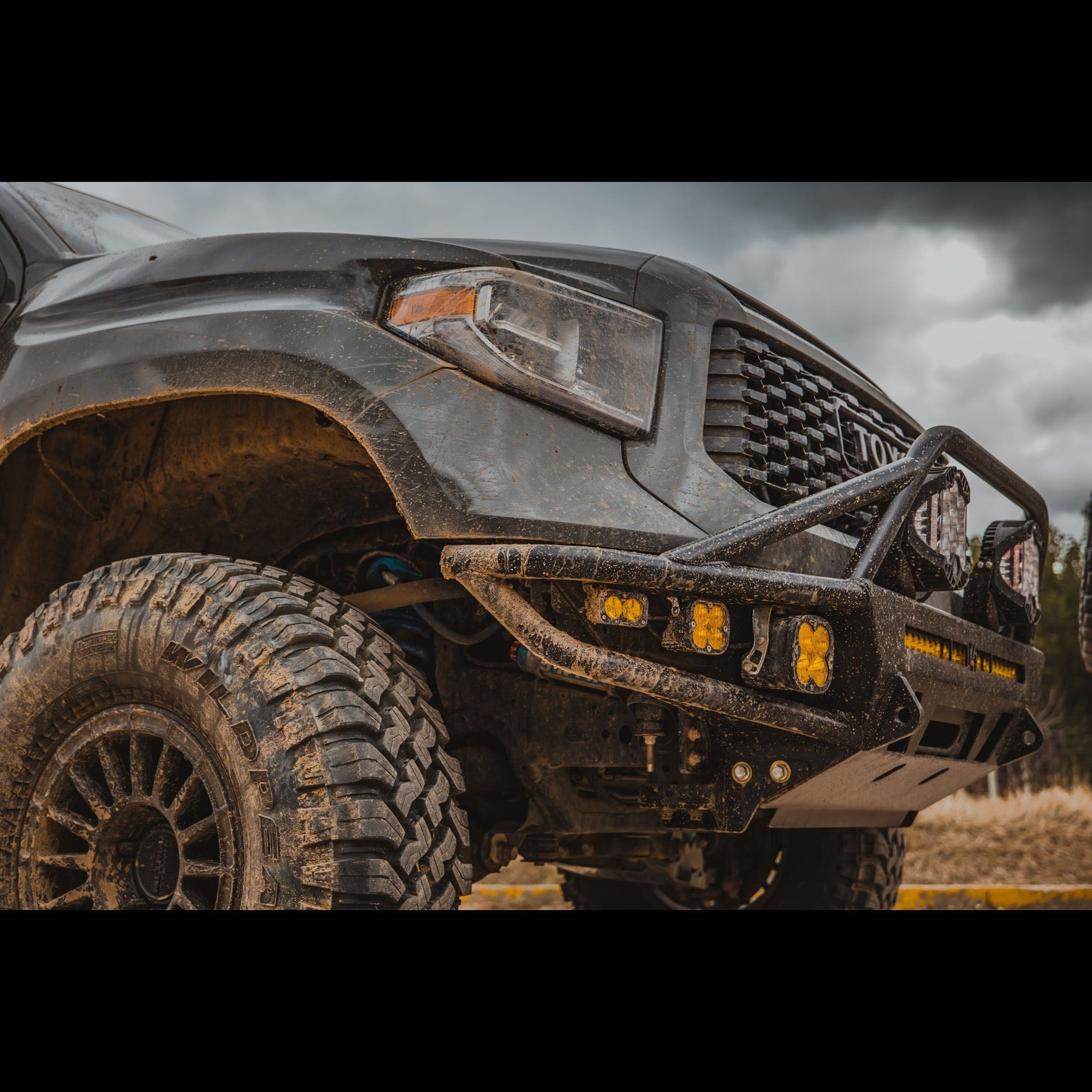

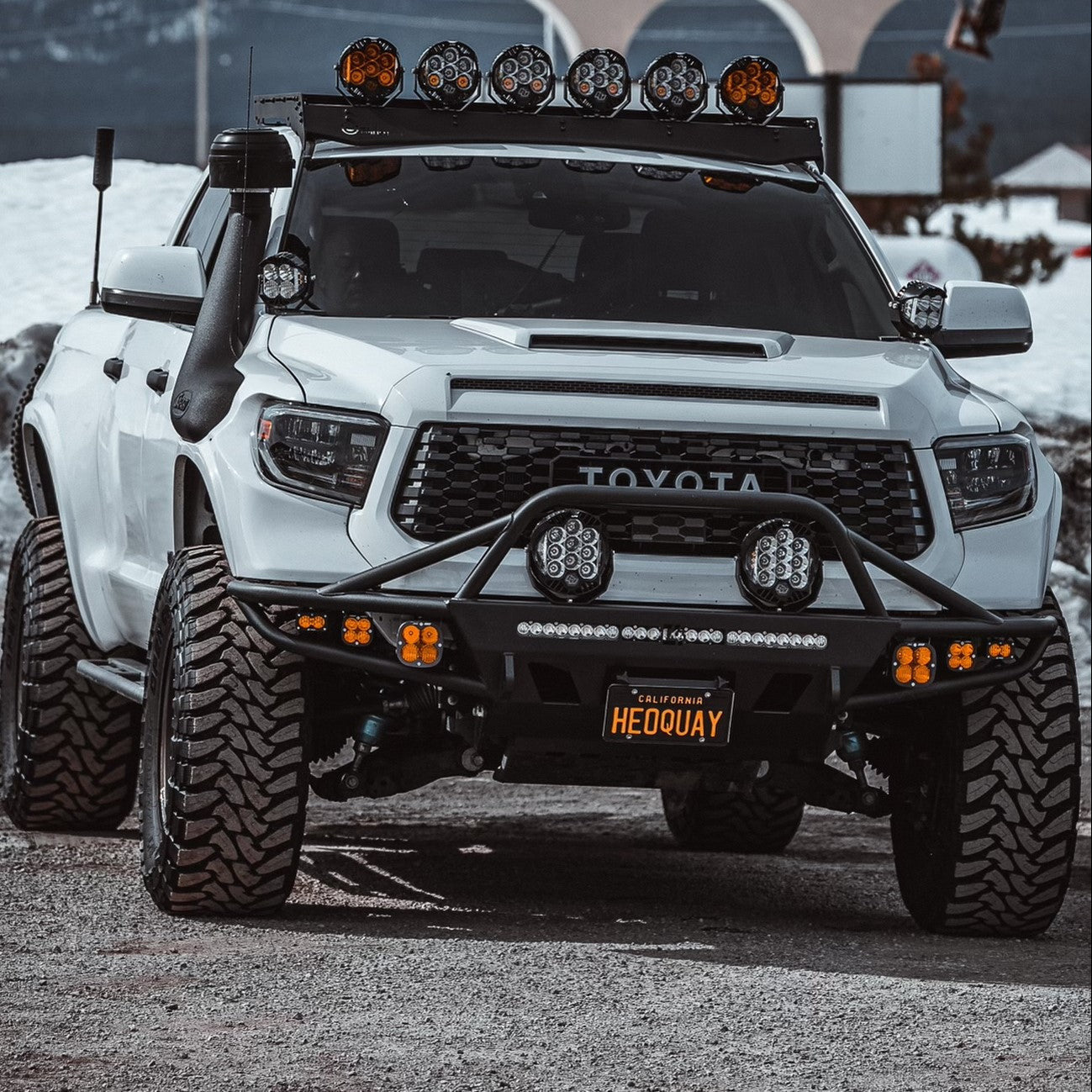

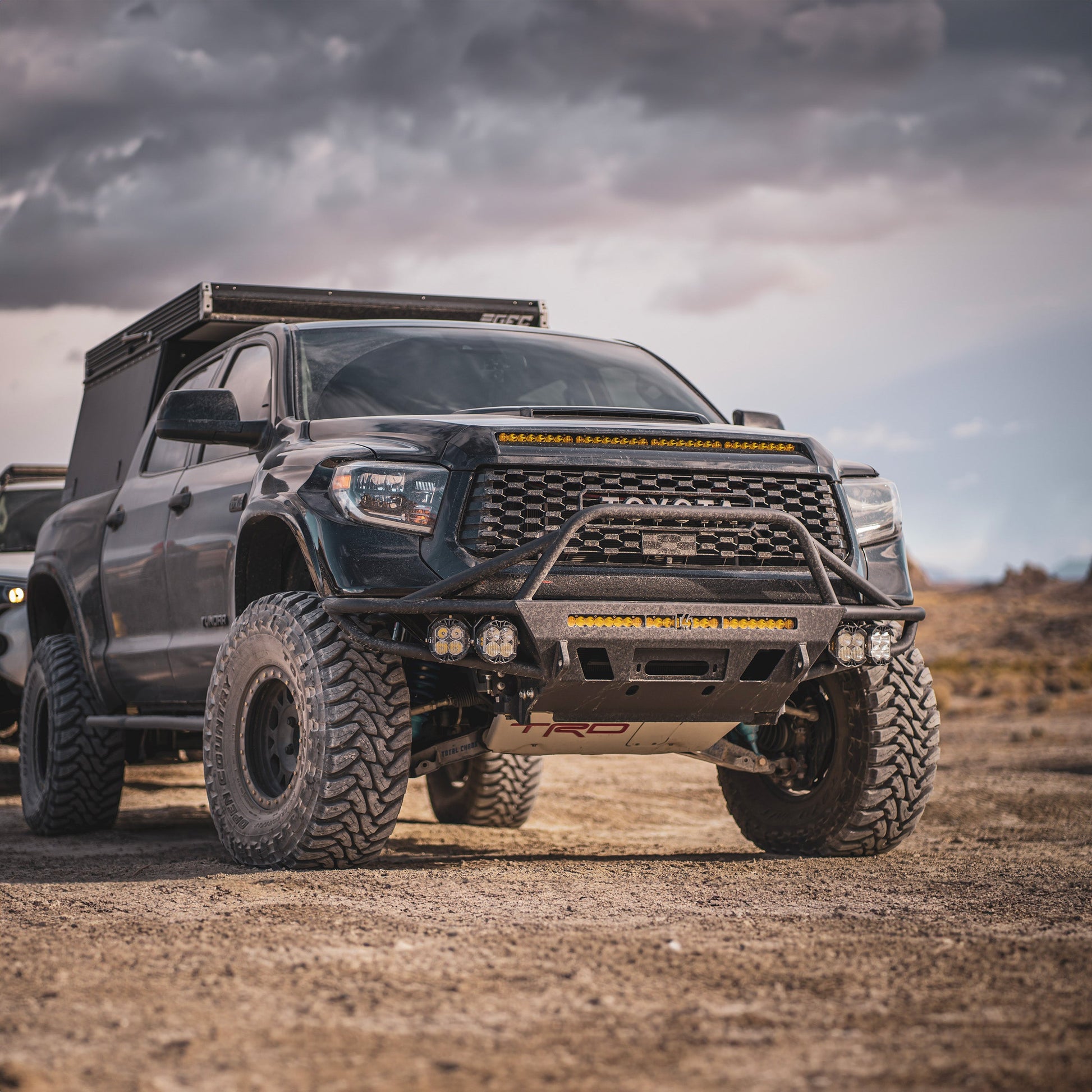

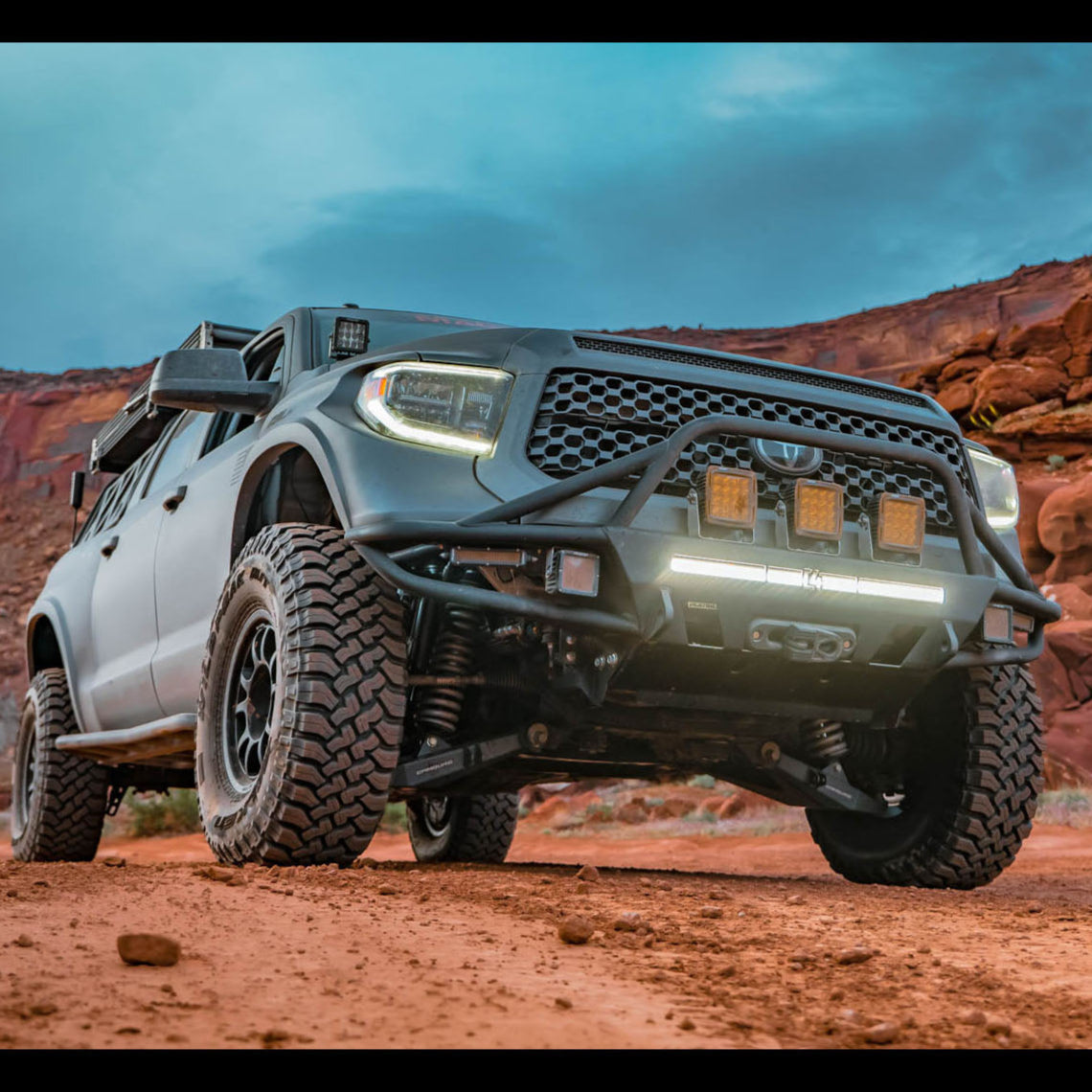

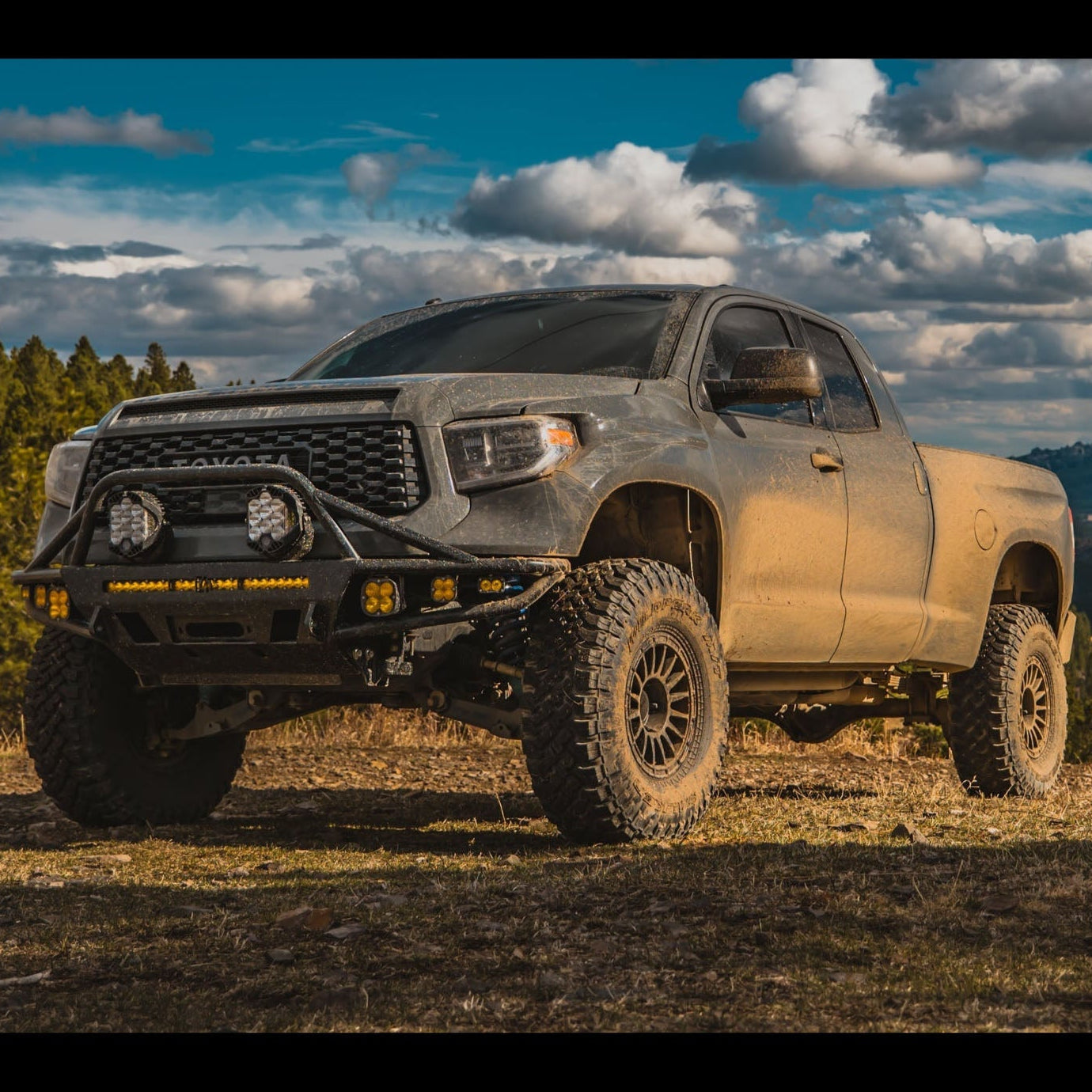

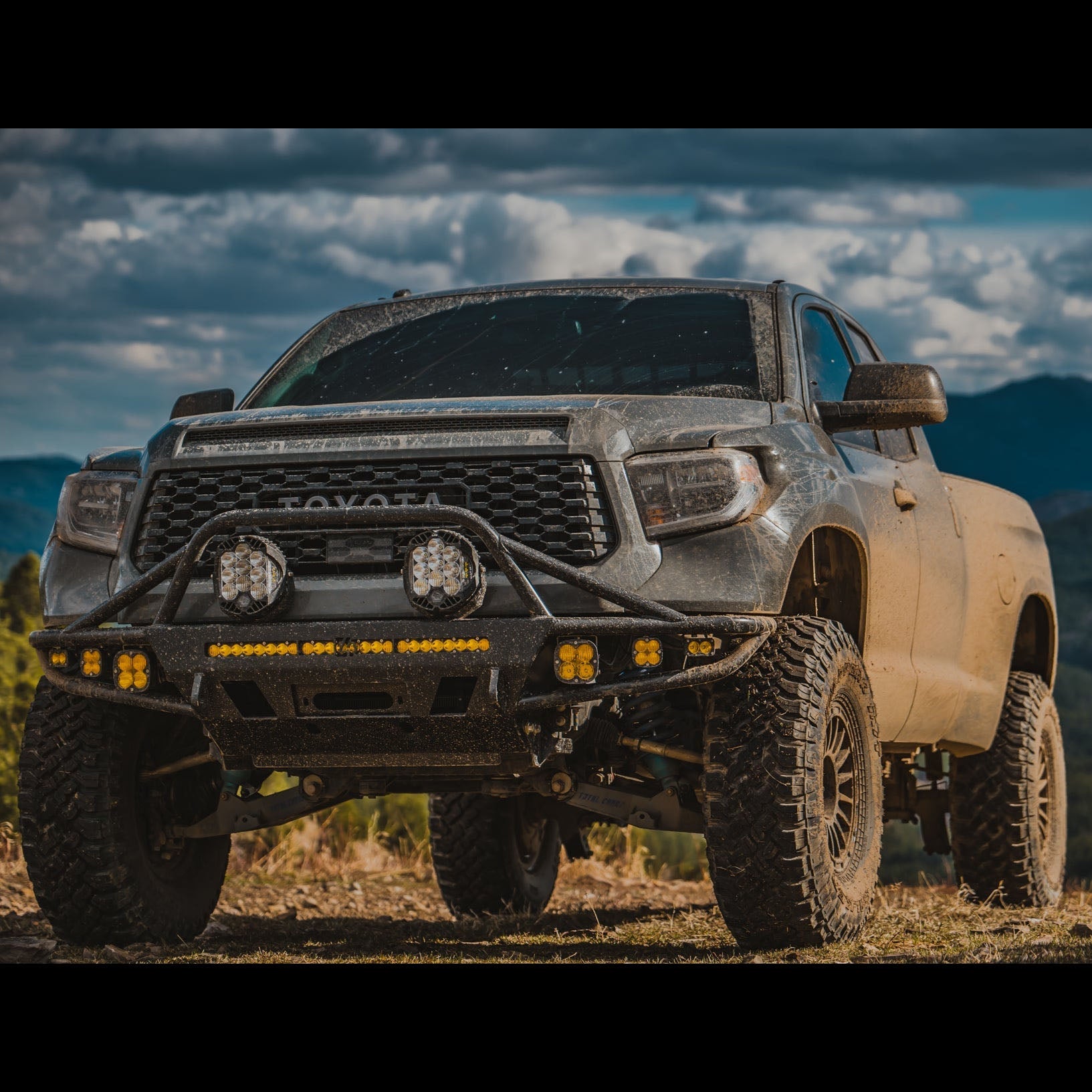

The C4 Fabrication Tundra Hybrid Front Bumper is a purpose-built upgrade for 2014–2021 Toyota Tundra (2nd Gen). It blends a plate-steel center with round tube ends to achieve a lighter look while preserving winch capability, versatile lighting options, and improved approach angles for tackling tougher trails.

Construction and materials

Center portion: 3/16" laser-cut P&O steel with 3/8" mounting plates and a 1/4" winch mounting plate
Tubes:.120" wall, 1 3/4" diameter HREW tubing
3/4" thick D-Ring tabs, fully welded front and back
Weight: 150 lbs without bull bar; 165 lbs with full-height bull bar

Winch compatibility and electrical considerations

Fits most 8k–12k winches; relocation of the electrical control box is recommended for many setups
Integrated control box winches may require trimming of grille support brackets to fit
Common compatibles: ComeUp, Smittybilt X20, Warn Zeon, and VR series
For best fitment, use synthetic rope with a hawse-style fairlead; some roller fairleads may be too large for the recessed fairlead mounting plate

Lighting, mounting, and access

Pre-drilled for a pair of LP9 or LP6 lights to mount on top of the bumper in front of the grille
LP9 lights accommodate the full-height bull bar as well as no bull bar
Designed to fit 30" single-row light bars (specifically Baja Designs S8); also compatible with Extreme LED 30" 5D and RIGID 30" SR series

Grille compatibility, bull bars, and sensors

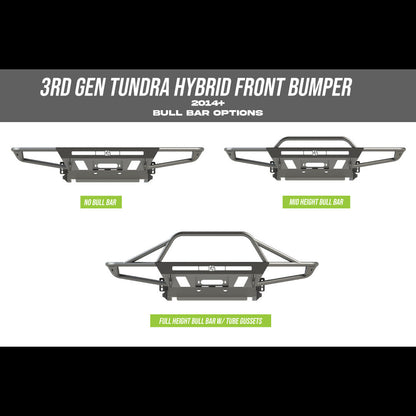

Full-height bull bar works with TSS in TRD Pro grilles only; will block TSS sensor on regular grilles
Mid-height bull bar works with TSS on all models

Skids and mounting

Compatible with TRD Pro skid and aftermarket skids
Direct bolt-on installation with no cutting or modifications required

Finish, care, and notes

Unless you choose the powder-coated option, the bumper will need to be painted or powder coated prior to installation to prevent rust
This listing is for Tundras with standard width fenders; fiberglass wide fenders require a different bumper listing

Features

The 2014-2021 Tundra Hybrid bumper is a unique combination of a plate steel center with round tube on the sides. This design allows you to achieve a “lighter” look while gaining the ability to mount a winch
LED light bar and multiple combinations of f...
Bumper offers more clearance for better approach angles and makes it easier to fit larger tires.
Center portion is made from 3/16″ laser cut P&O steel with 3/8″ thick mounting plates And 1/4″ winch mounting plate.
3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
Tube portions are .120 wall 1 3/4″ diameter HREW tubing.
Full-height bull bar will work with TSS in TRD Pro grilles only. Bull bar will block the TSS sensor on regular grilles.
Mid-height bull bar works with TSS on all models
Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (ComeUp
Smittybilt X20
Warn Zeon and VR...
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
Bumper works with TRD Pro skid and aftermarket skids.
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series
will also fit.
Bumper comes pre-drilled for a pair of LP9 or LP6 lights to mount on top of the bumper in front of the grille. The LP9 lights will work with the full-height bull bar as well as no bull bar.
Weighs 150lbs without bull bar
165lbs with full height bull bar.
This bumper is a direct bolt on application. No cutting or modifications needed.
Unless you choose our powder coated option
this product will need to be painted or powder coated before installation to prevent rust
Please Note: This listing is for Tundra's with standard width fenders. If you have fiberglass wide fenders
please view this bumper listing instead.
