C4 Fabrication Tacoma Rock Runner Front Bumper / 3rd Gen / 2016-2023

Name: C4 Fabrication Tacoma Rock Runner Front Bumper / 3rd Gen / 2016-2023
Brand: C4 Fabrication
SKU: 1200-3516-NB-T-W-01NA
Price: 1449.0 USD

Read Product Details

1200-3516-NB-T-W-01NA

In Stock (1 available)

$1,449.00

Secure checkout
SSL encrypted payment
Fast Shipping
2-3 Business days

Description

Introduction

Engineered for 3rd Gen Toyota Tacomas (2016–2023), the C4 Fabrication Tacoma Rock Runner Front Bumper delivers rugged front-end protection with a modular, bolt-on design. It’s built for off-road use, offering serious winch capability, integrated skid compatibility, and a purpose-built fit that stands up to demanding trails.

Key features

Modular 3-Piece design utilizing bolt-on wings for flexible installation and serviceability
11ga laser-cut P&O steel construction with 3/16" thick mounting plates and a dedicated winch plate
3/4" thick D-ring tabs, fully welded front and back for reliable recovery points
Frame support brackets included with the bumper for rigid mounting
3/4" D-ring tabs come fully welded front and back
Ships with winch cover plate and bridge skid that connect to current skid plates and factory cross member
Front Skid Plate kit includes replacement cross member and power steering relocation kit
Cutouts in front of the bumper provide easy winch lever access

Fitment and installation notes

Requires cutting of the plastic bumper to install
Cross Member Delete & Rock Runner Front Skid require cutting out the factory cross member
Bull bar is NOT compatible with Toyota Safety Sense

Specifications

Weight: Front with Plate Sides 78 lbs; Front with Tube Sides 73 lbs
Finish: If you do not choose the powder-coated option, painting or powder coating is required before installation to prevent rust

Winch compatibility and recommendations

Add-Ons: Fits Most Winches 8k–12k in size; relocation of the control box recommended
Confirmed fitment on Smittybilt X20 & Warn VR series
Recommendation: Synthetic rope winches and Hawse-style fairleads for best functionality

What’s included

Front bumper assembly with cross member delete compatibility
Winch cover plate and bridge skid that connect to current skid plates and factory cross member
Front Skid Plate kit includes replacement cross member and power steering relocation kit

Features

Fitment:
Requires cutting of the plastic bumper to install
Cross Member Delete & Rock Runner Front Skid requires cutting out factory cross member
Bull bar NOT compatible with Toyota Safety Sense.

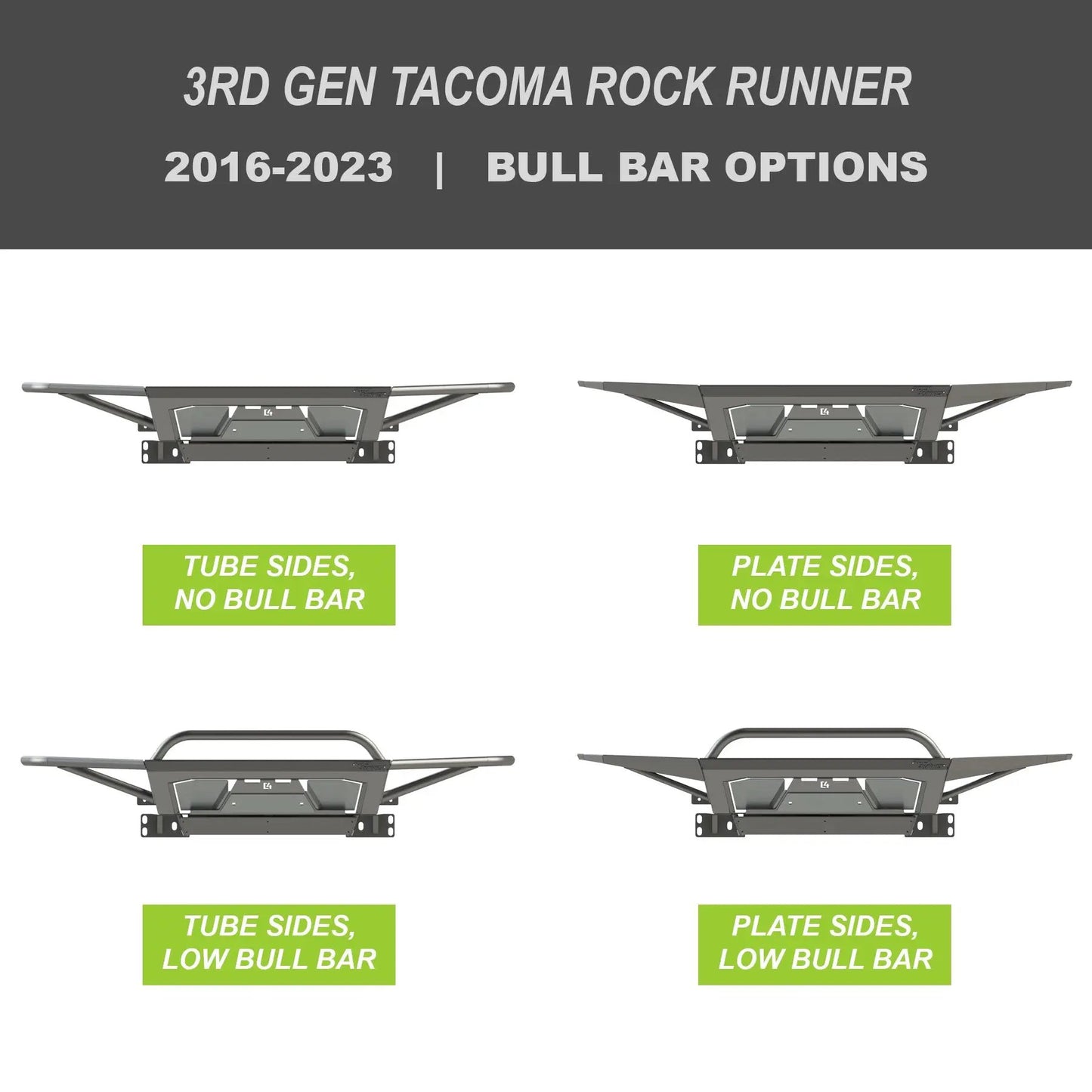

Modular 3-Pience Design utilizing bolt-on wings
Frame Support Brackets included with bumper
3/4″ thick D-ring tabs come fully welded front and back
Bumper is made from 11ga laser cut P&O steel with 3/16" thick mounting plates and winch plate.
Bumpers ship with winch cover plate and bridge skid that will connect to our current skid plates and factory cross member.
Front Skid Plate kit includes replacement cross member & power steering relocation kit
Cutouts in front of the bumper allow for winch lever access.
Weight: Front w/ Plate Sides: 78 lbs
Front w/ Tube Sides: 73 lbs
Unless you choose our powder coated option
this product will need to be painted or powder coated before installation to prevent rust.
Add-Ons:
Fits Most Winches 8k-12k in Size. Winches with the ability to relocate control box recommended. Confirmed fitment on Smittybilt X20 & Warn VR series.
We Recommend Synthetic Rope Winches & Hawse Style Fairleads for Best Functionality
