C4 Fabrication Tacoma Rock Runner Front Bumper / 3rd Gen / 2016-2023

Introduction

The C4 Fabrication Tacoma Rock Runner Front Bumper is a purpose-built, heavy-duty upgrade for 3rd Gen Toyota Tacomas (2016–2023). Designed for off-road explorers who want aggressive protection with winch-ready capability, it combines rugged steel construction with a modular, bolt-on design that’s engineered for real-world ruggedness—and real-world installs.

Key Features

• Modular 3-Pience design with bolt-on wings for flexible mounting options
• 11ga laser-cut P&O steel construction with 3/16" thick mounting plates and a dedicated winch plate
• 3/4" thick D-ring tabs that are fully welded on the front and back for reliable recovery capability
• Includes frame support brackets and a front bumper with winch cover plate and bridge skid that connects to existing skid plates and factory cross member
• Front skid plate kit includes replacement cross member and a power steering relocation kit
• Cutouts in the bumper face provide easy access to winch lever controls
• Weight: 78 lbs with plate sides; 73 lbs with tube sides
• Powder coat option available for corrosion resistance; otherwise painting or coating is required before installation
• Fits most winches in the 8k–12k range; relocation of the control box is recommended
• Confirmed fitment on Smittybilt X20 and Warn VR series winches
• Recommended to use synthetic rope winches and Hawse-style fairleads for best functionality

Fitment and Installation Notes

• Requires cutting the plastic bumper to install the Cross Member Delete & Rock Runner Front Skid
• Rock Runner Front Skid requires cutting out the factory cross member

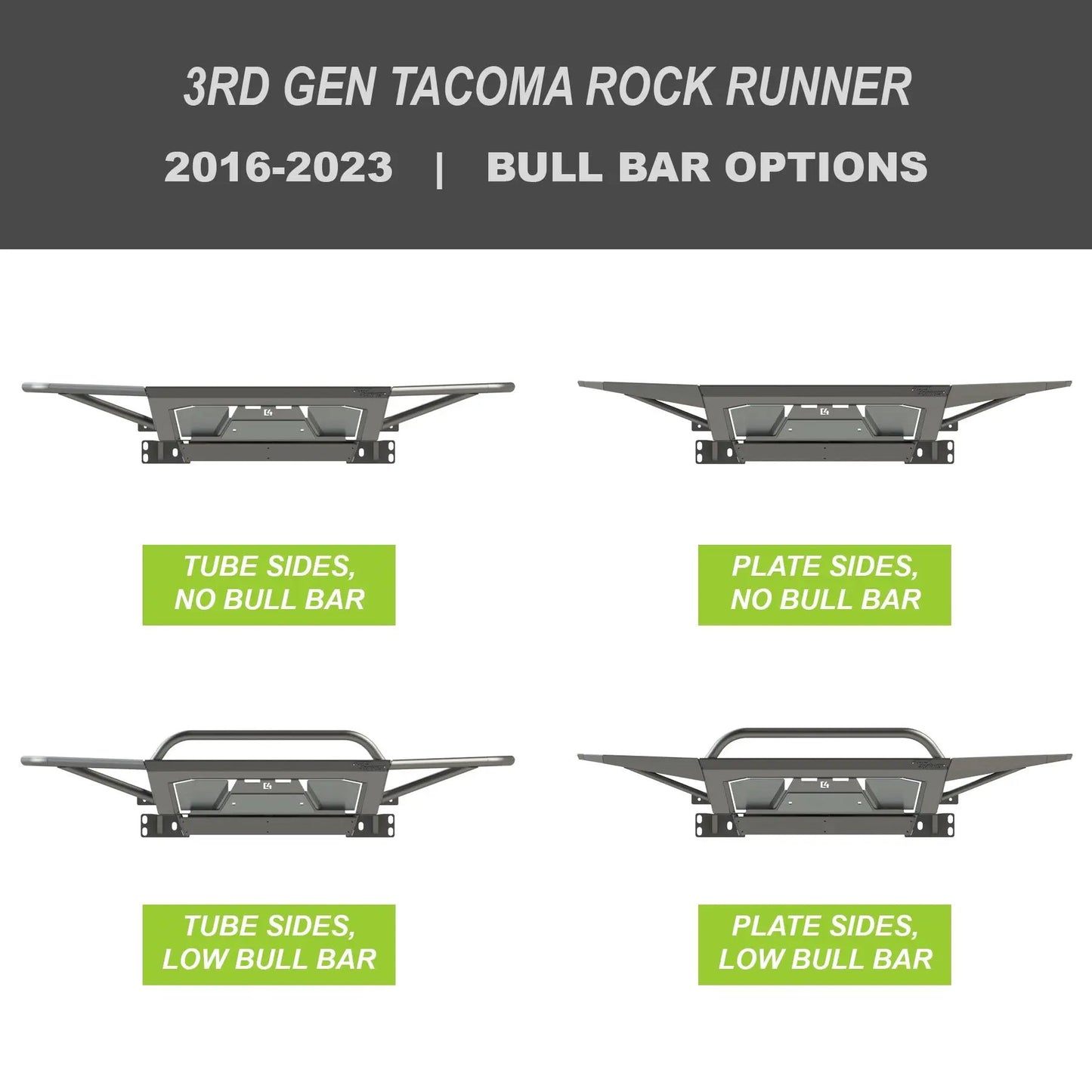

• Bull bar is NOT compatible with Toyota Safety Sense
• Design supports a modular, bolt-on configuration but demands careful installation and access to factory components

Build Details and Finish

• Manufactured from 11ga steel with precision laser-cut components
• Includes 3/16" thick mounting plates and a dedicated winch plate for secure mounting
• Front bumper ships with a winch cover plate and a bridge skid designed to integrate with existing skid plates
• Front Skid Plate kit provides a replacement cross member and a power steering relocation kit for a clean, integrated install
• Finish options: powder coating available; if not selected, the unit must be painted or powder coated to prevent rust

Winch Compatibility & Accessories

• Add-ons: Fits most winches in the 8k–12k range
• Best results with winches that relocate the control box
• Confirmed compatibility with Smittybilt X20 and Warn VR series winches

Use Cases & Benefits

• Rugged protection for front-end vulnerabilities during rock crawling, trail rides, and heavy off-roading
• Integrated winch mounting capability with dedicated winch plate and access cutouts for lever control
• Structural support via frame brackets and welded D-ring tabs for reliable recovery in challenging terrains
• Bridge skid and cross member integration improves undercarriage protection and compatibility with existing skid systems
