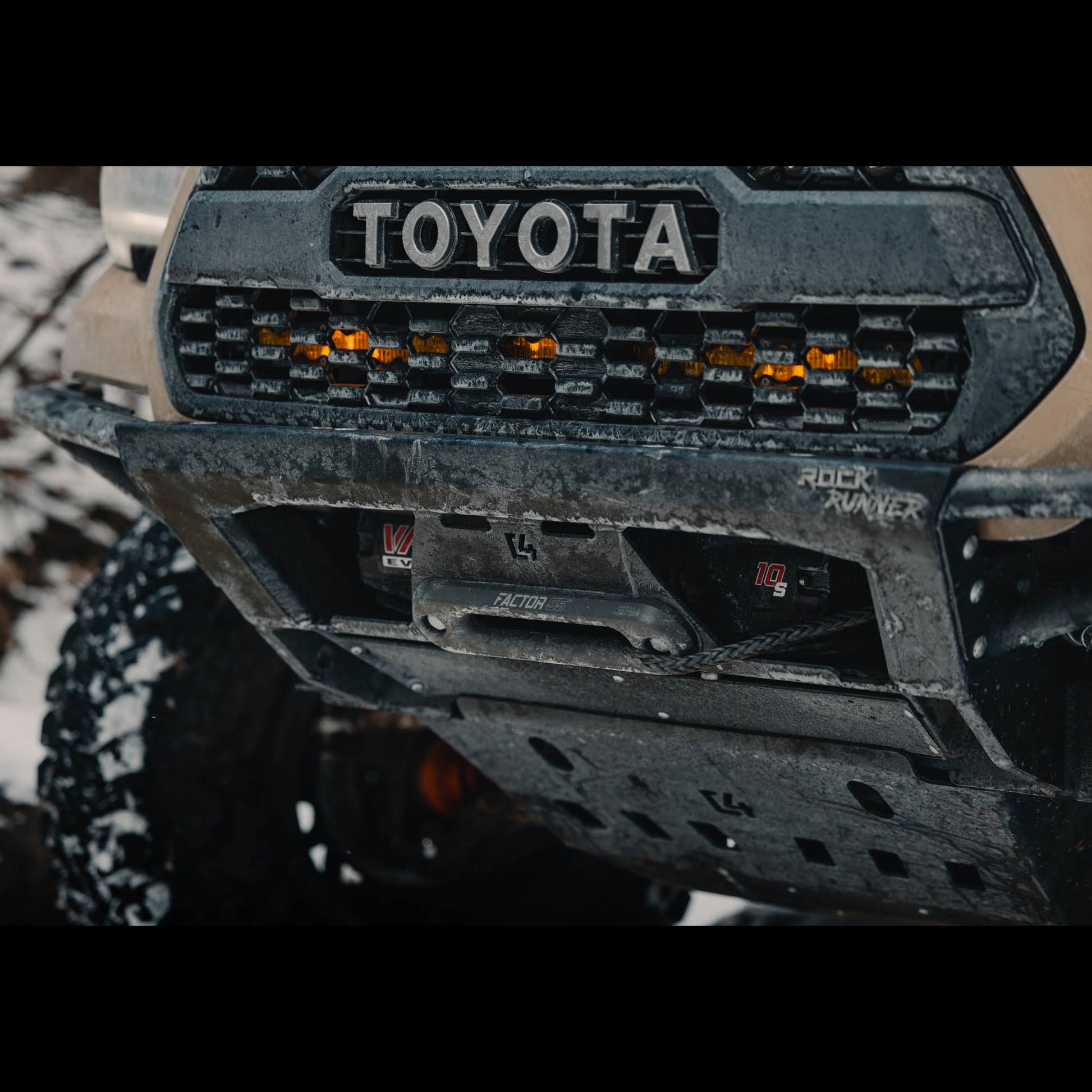

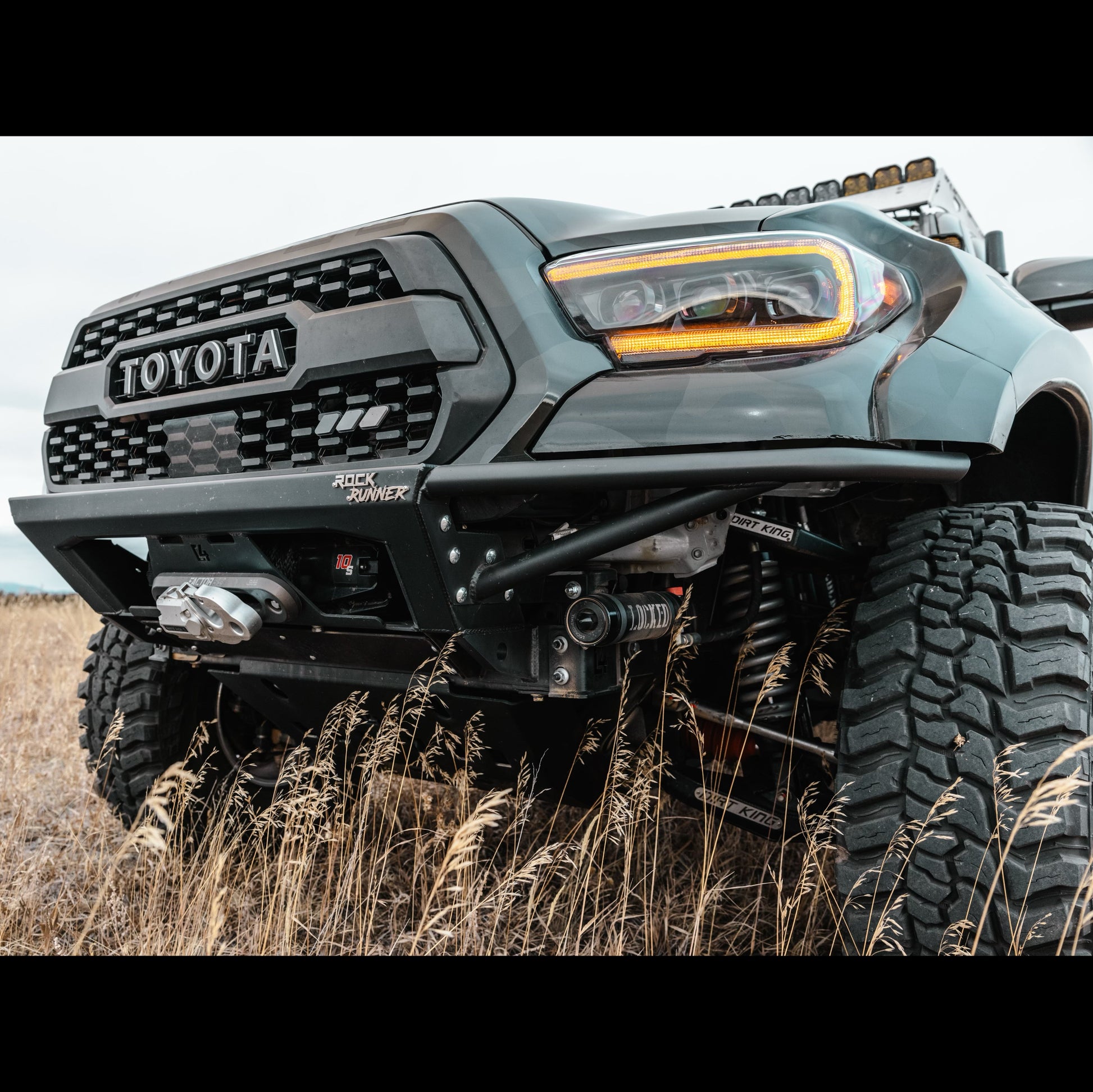

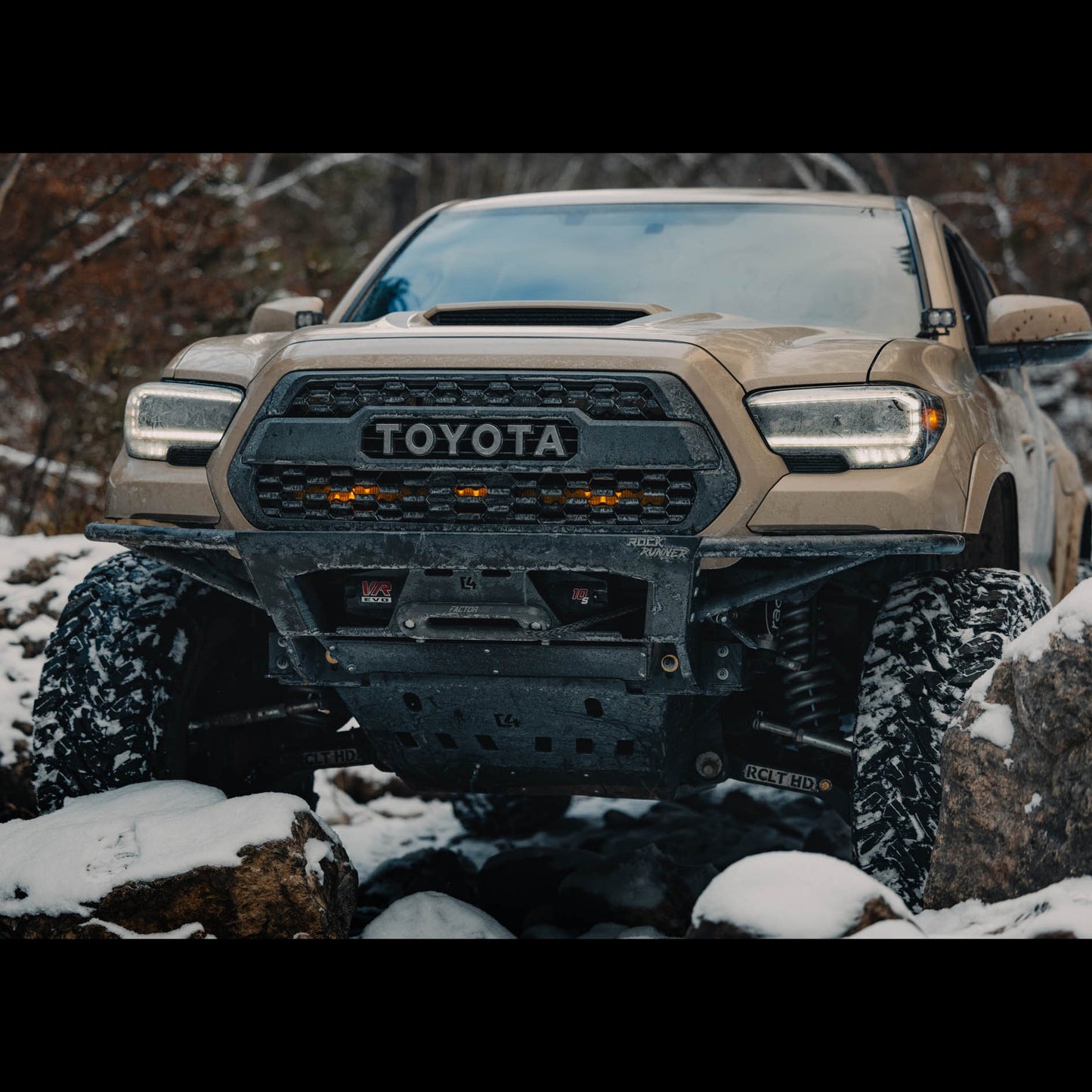

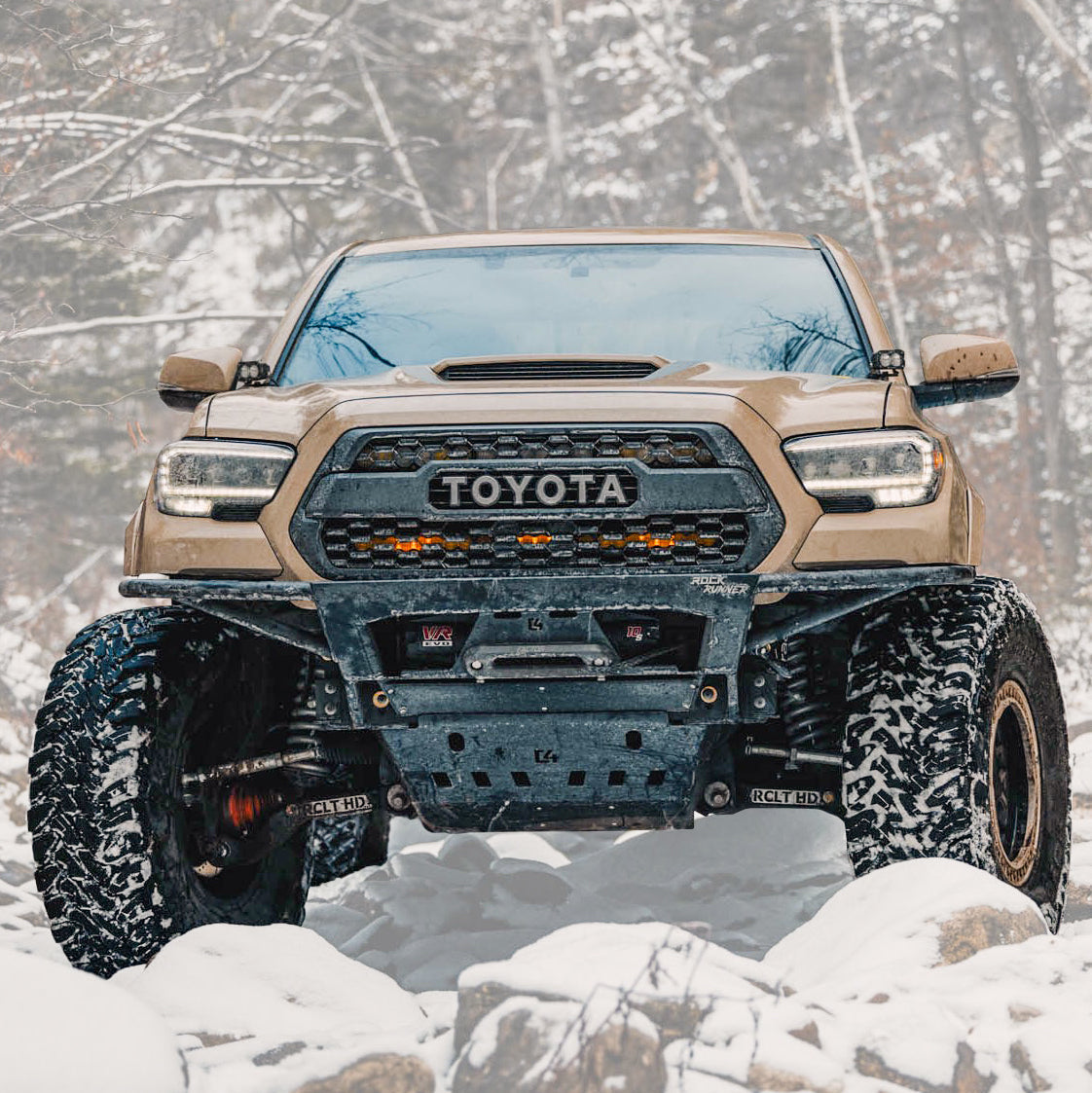

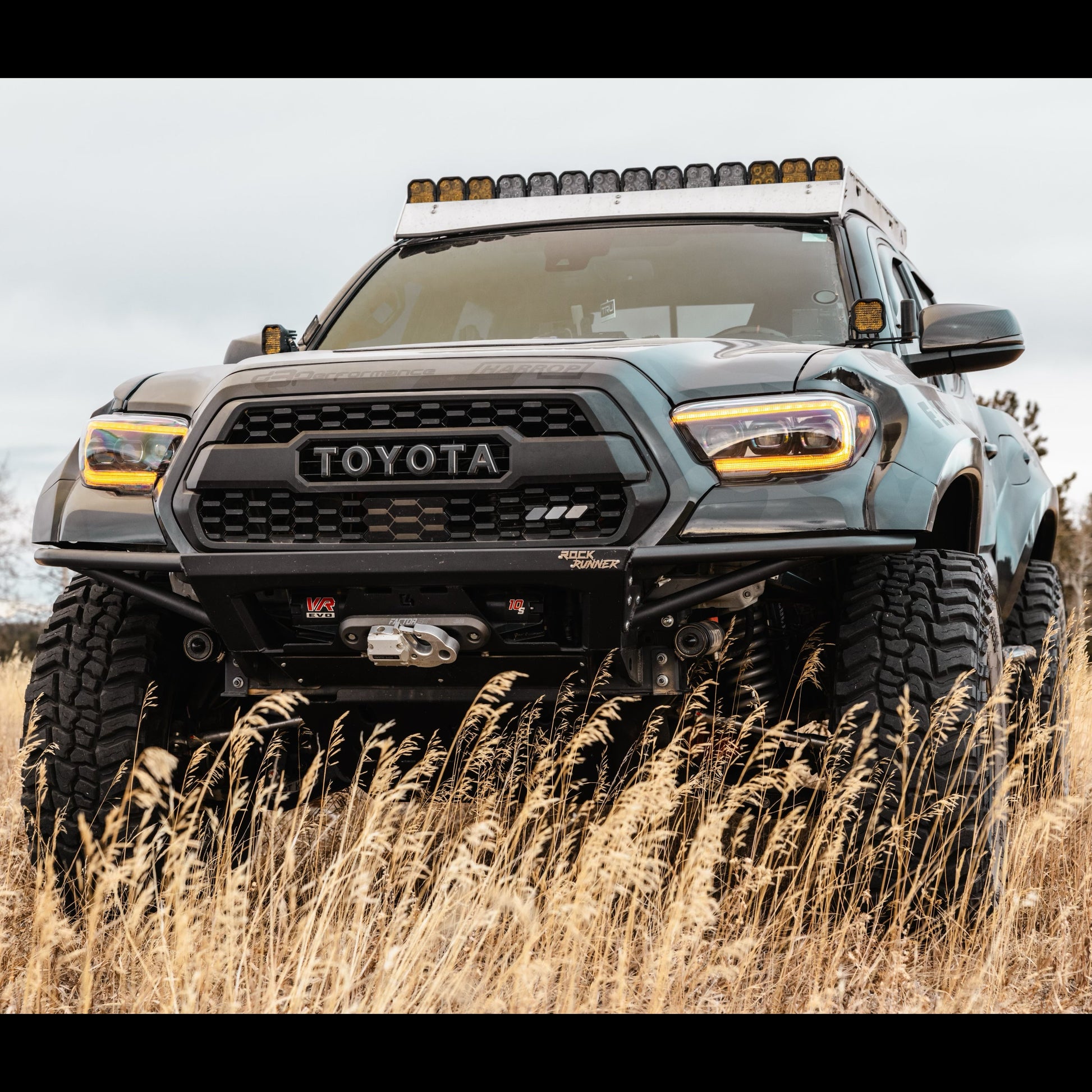

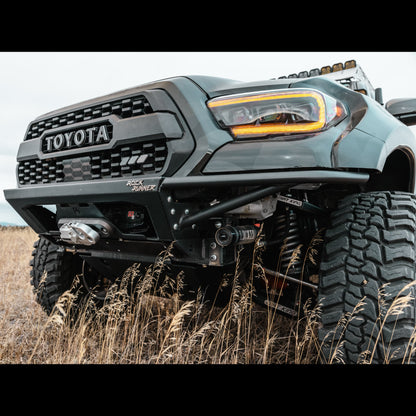

C4 Fabrication Tacoma Rock Runner Front Bumper / 3rd Gen / 2016-2023

Introduction

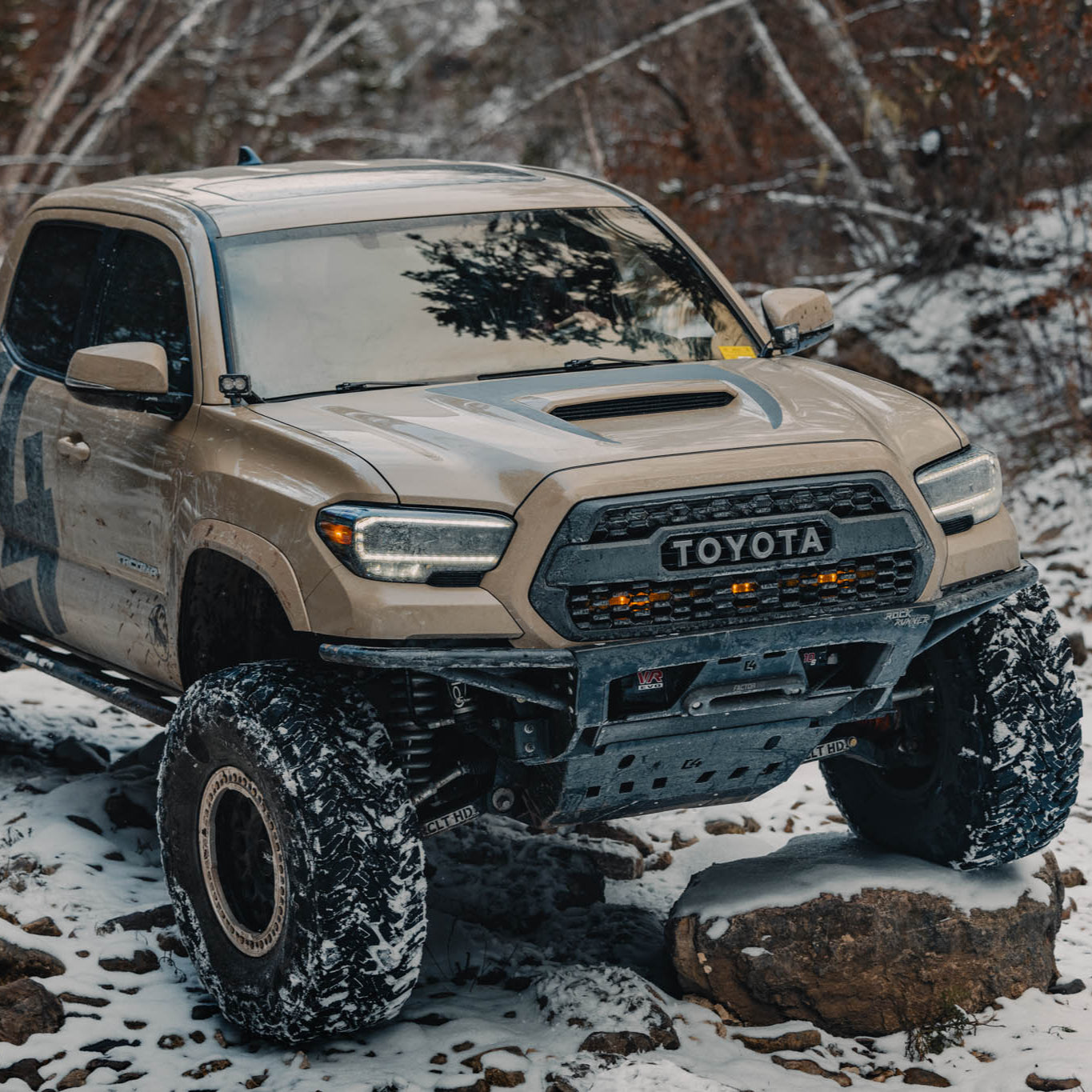

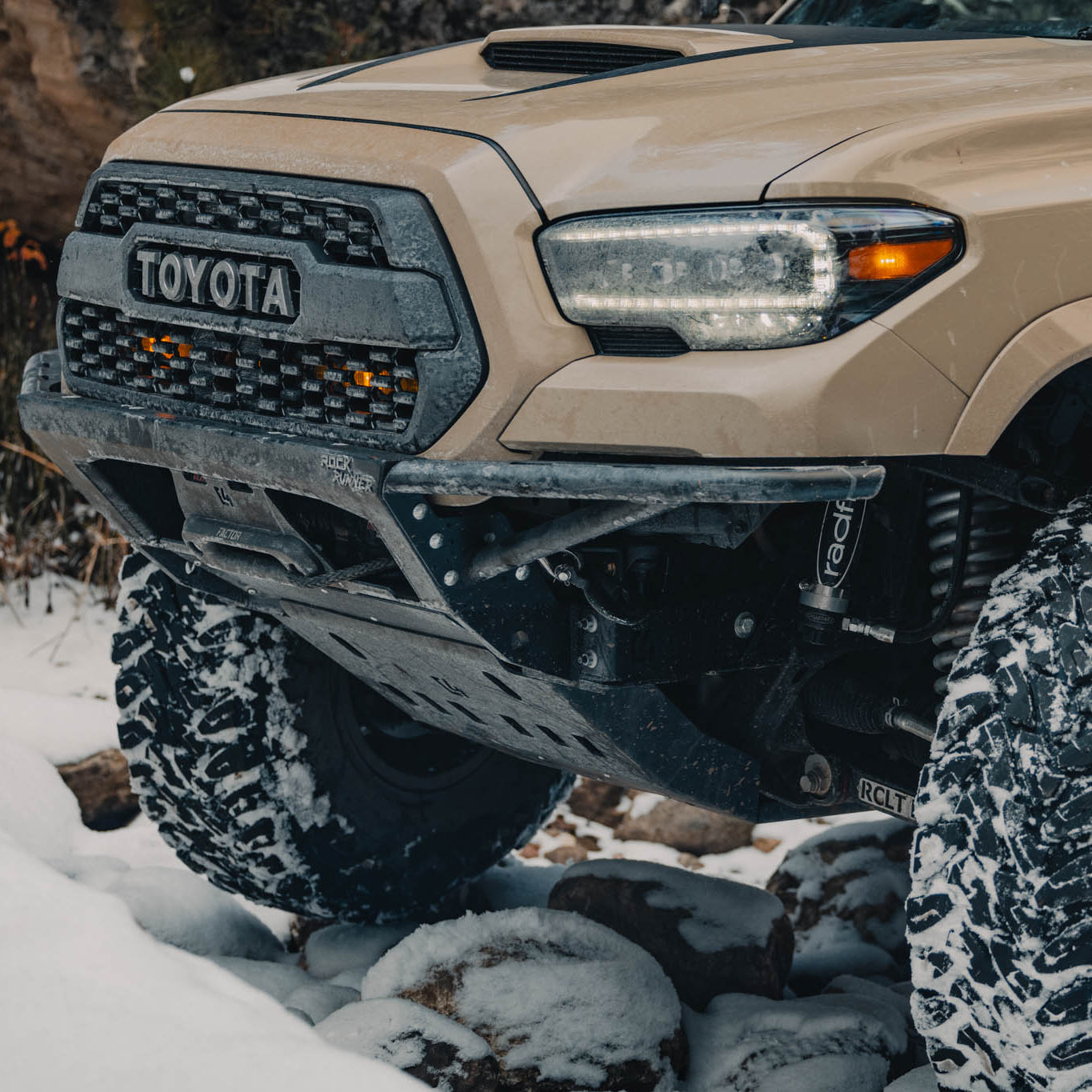

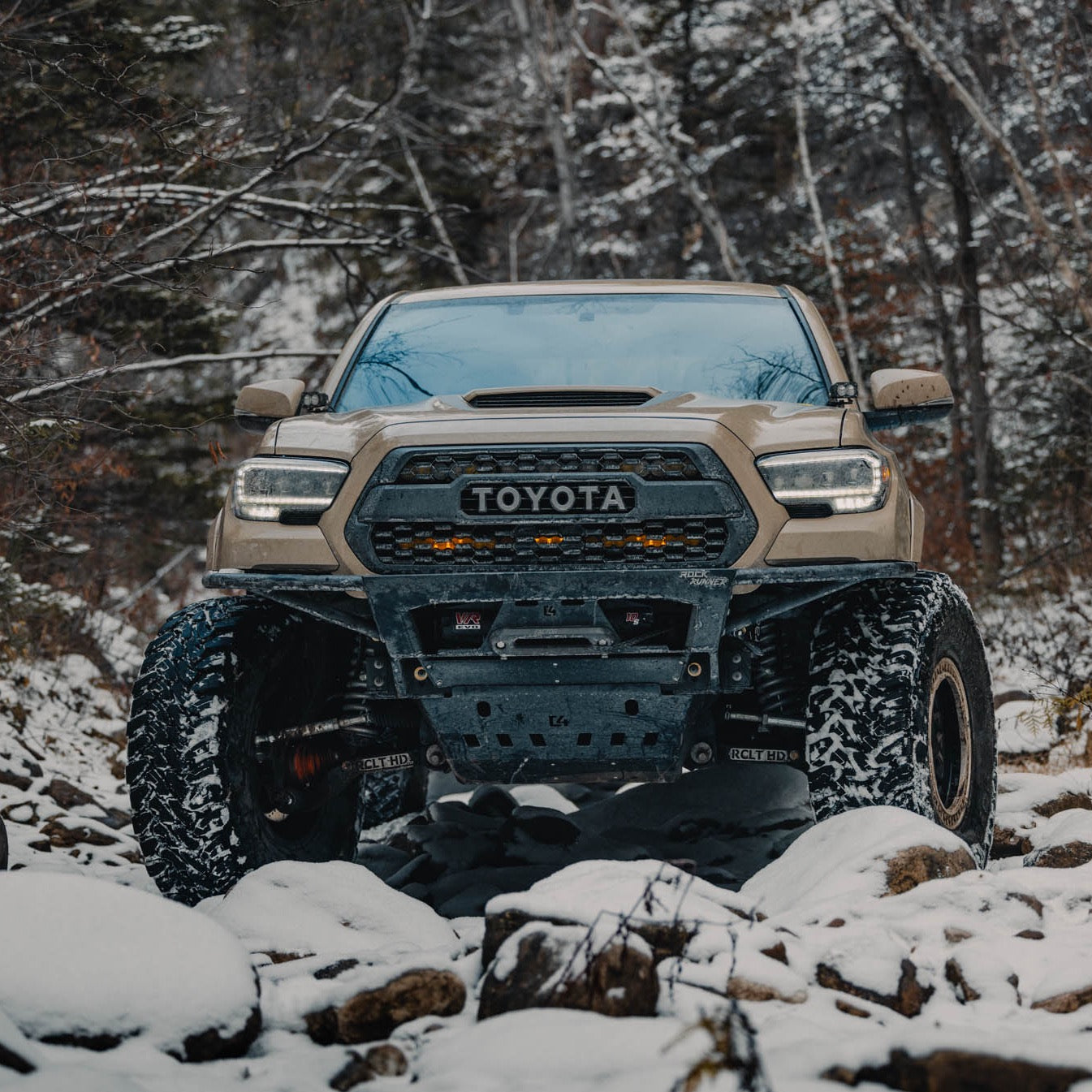

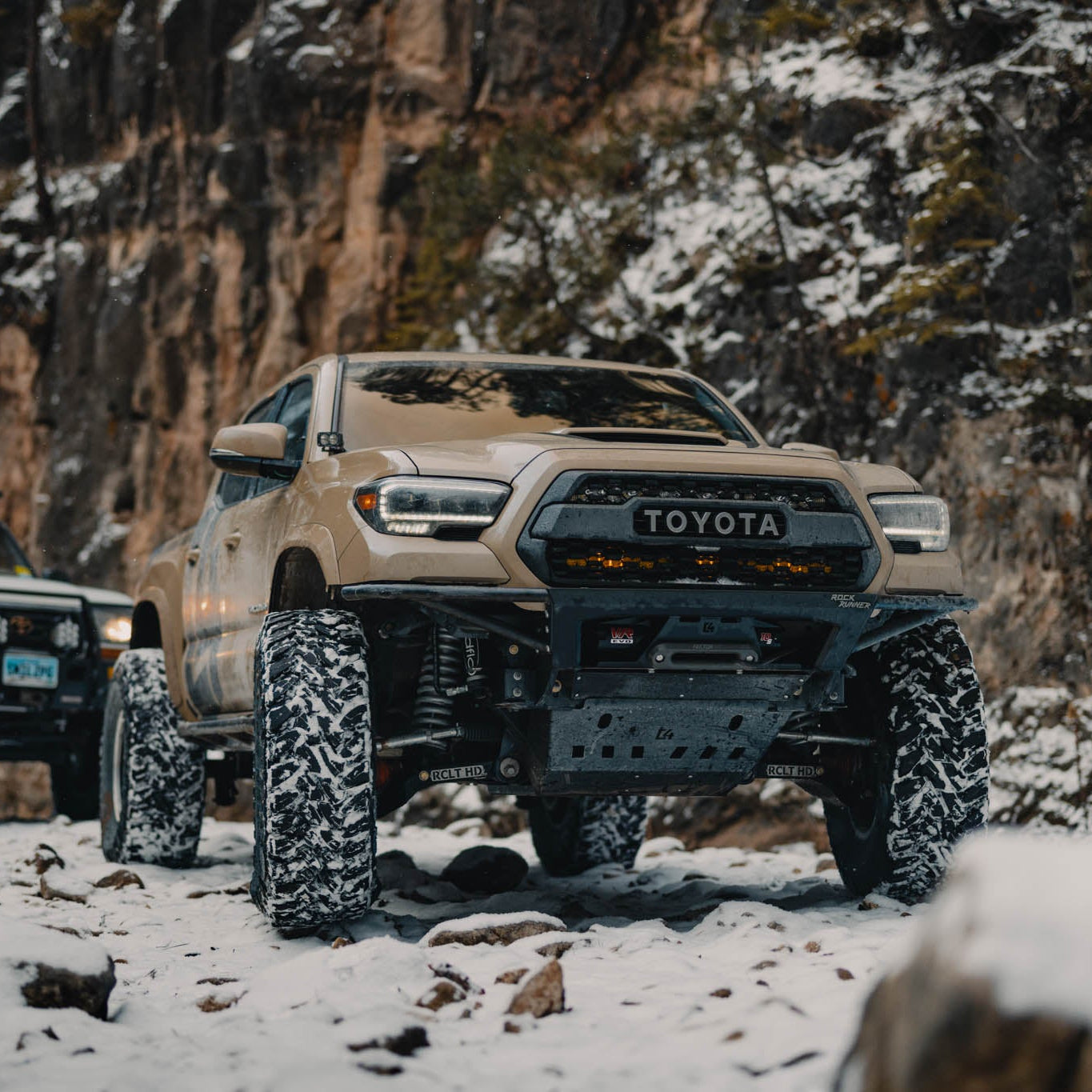

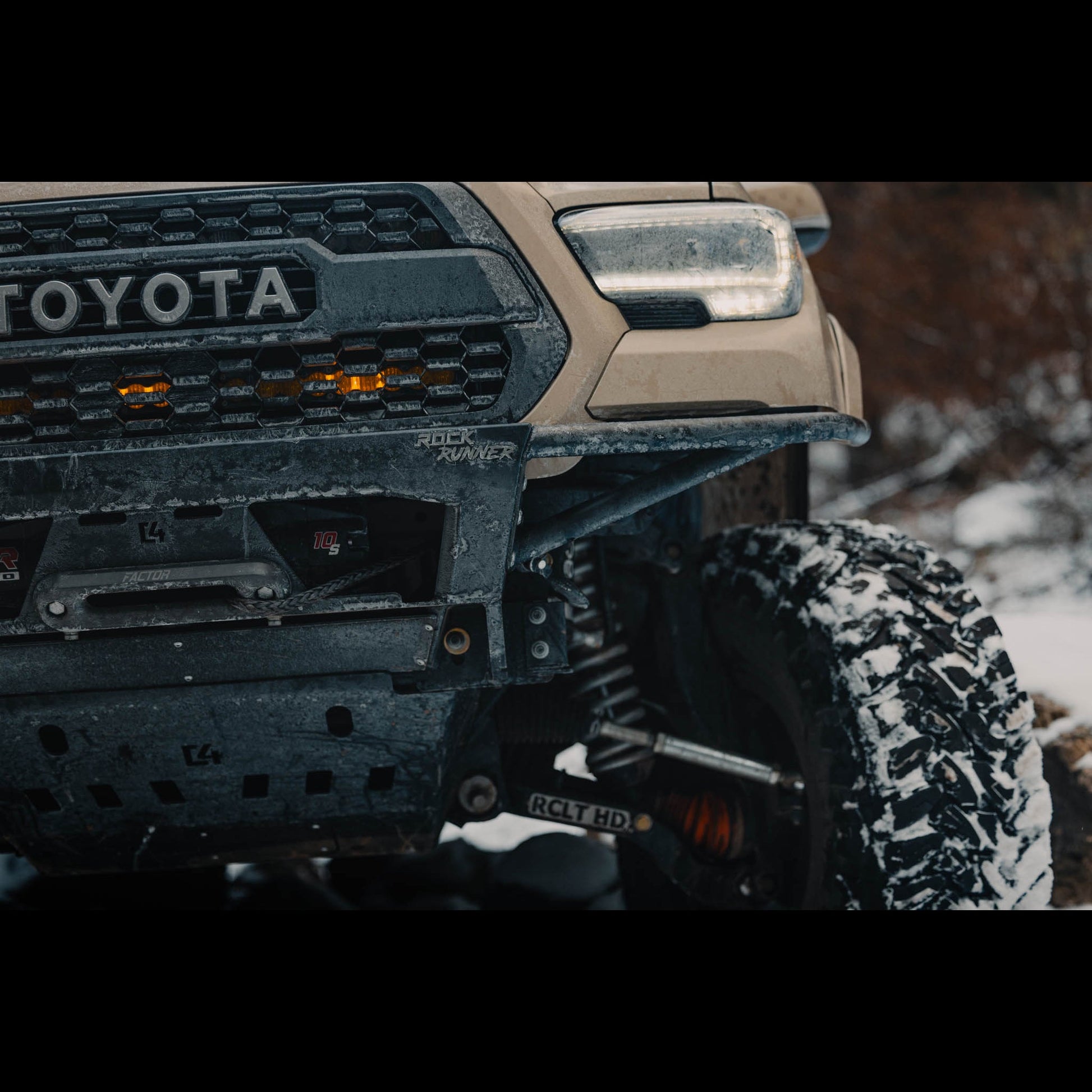

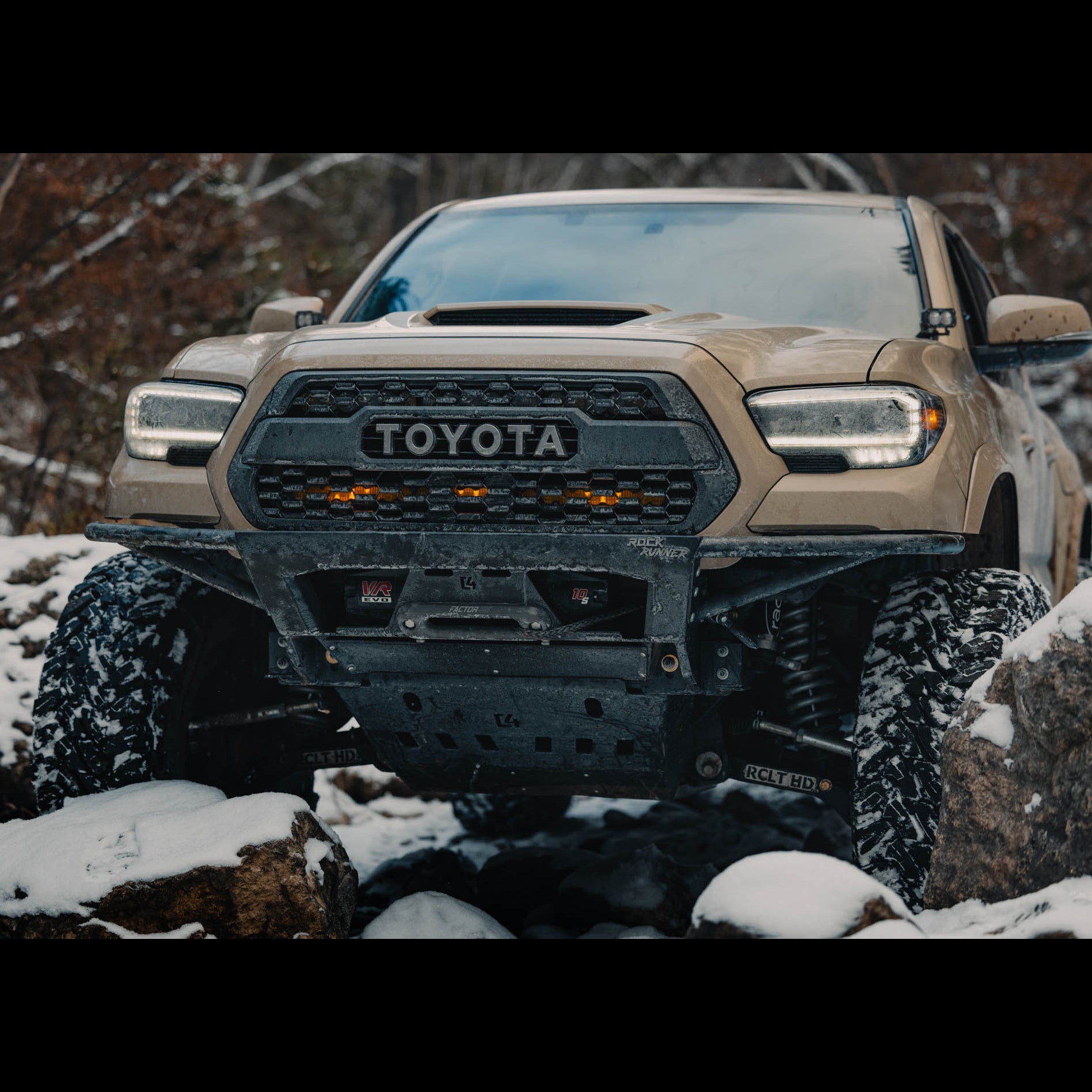

Meet the C4 Fabrication Tacoma Rock Runner Front Bumper for 3rd Gen Tacomas (2016–2023). This heavy-duty, modular bumper is built for off-road enthusiasts who crave durable protection, winch-ready capabilities, and a streamlined bolt-on design. Please note that installation requires cutting the plastic bumper to access the Cross Member Delete and Rock Runner Front Skid, and the bull bar is not compatible with Toyota Safety Sense.

Key Features

• 11ga laser-cut P&O steel construction with 3/16" thick mounting plates and a dedicated winch plate
• 3/4" thick welded D-ring tabs for reliable recovery points, welded on both front and back

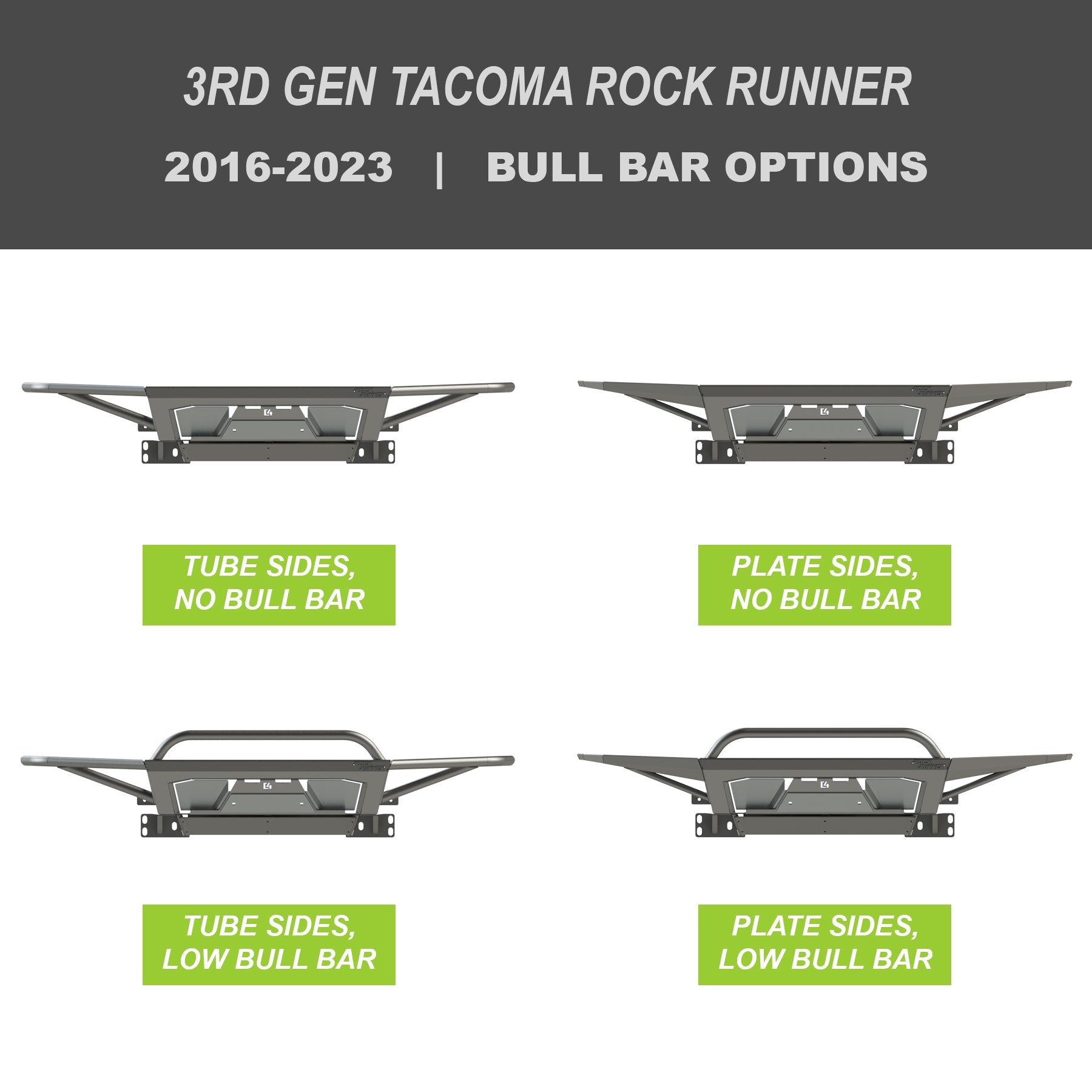

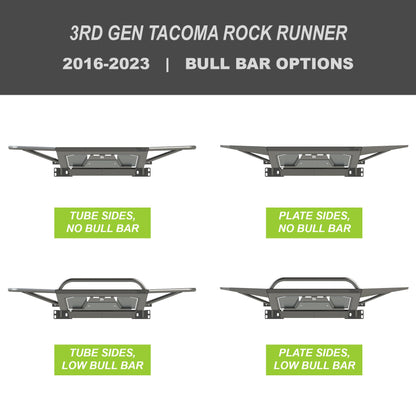

• Modular 3-Piece Design with bolt-on wings for flexible installation and future upgrades
• Frame support brackets included with the bumper for added rigidity
• Ships with a winch cover plate and a bridge skid that connects to existing skid plates and the factory cross member
• Front Skid Plate kit includes a replacement cross member and a power steering relocation kit
• Cutouts in the bumper provide access to winch lever operations
• Weight: Front with Plate Sides 78 lbs; Front with Tube Sides 73 lbs
• Finish considerations: unless a powder coat option is chosen, painting or powder coating is recommended to prevent rust

Construction & Design

• Built from 11ga steel with precision laser-cut components for durability in rocky terrain
• 3/16" thick mounting plates and a dedicated winch plate ensure solid attachment points
• 3-Piece modular design using bolt-on wings enables easier installation and potential additions
• Fully welded 3/4" D-ring tabs provide rugged, reliable recovery options

Fitment & Installation

• Designed for 3rd Gen Toyota Tacoma (2016–2023) with Cross Member Delete and Rock Runner Front Skid requirements
• Requires cutting of the factory plastic bumper to install

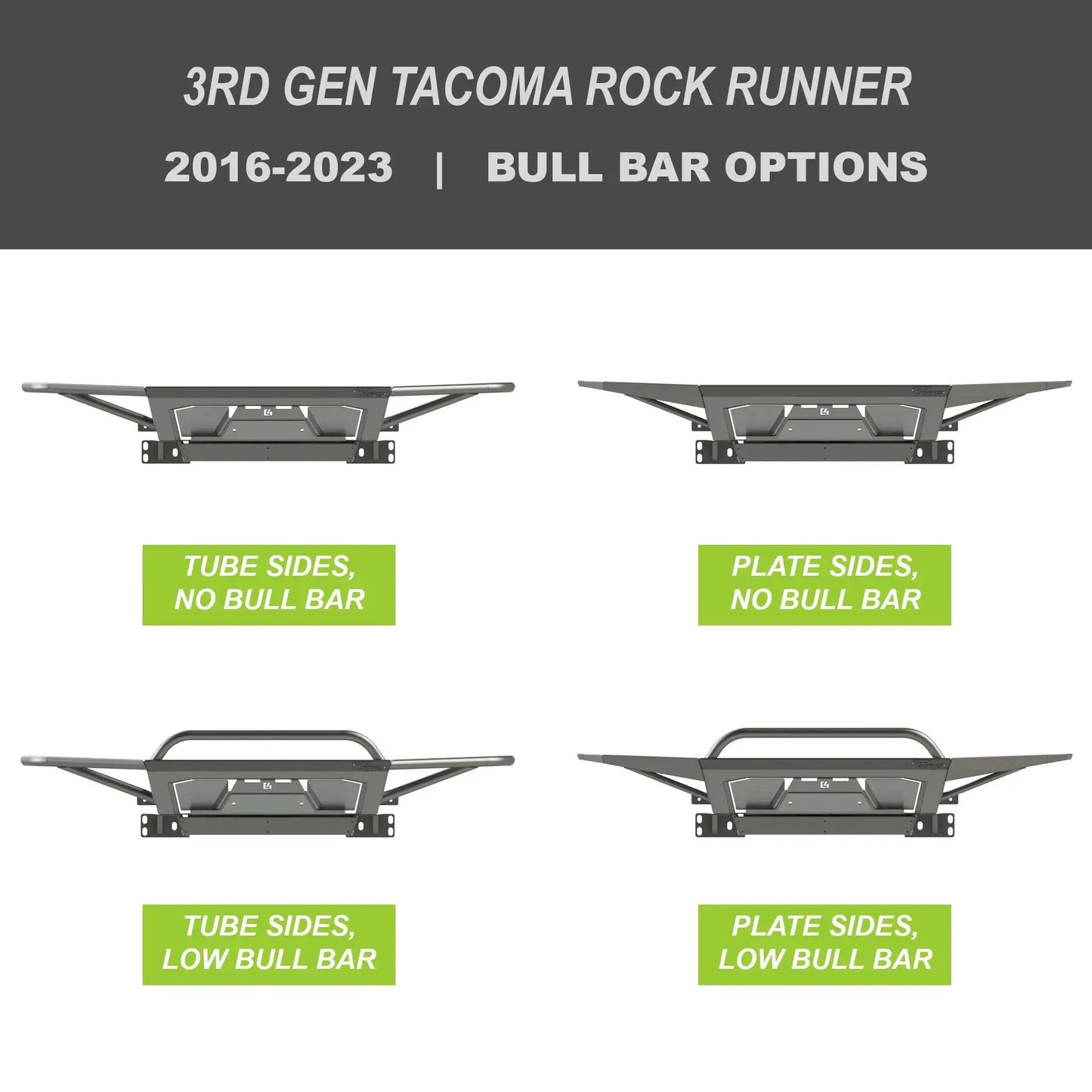

• Bull bar is not compatible with Toyota Safety Sense
• Front Skid Plate kit includes replacement cross member and power steering relocation kit
• Cutouts in the bumper allow for direct winch lever access

Weight & Finish

• Weight: Front with Plate Sides 78 lbs; Front with Tube Sides 73 lbs
• Finish: Powder coating is optional; without powder coat, painting or powder coating is recommended to prevent rust

Winch Compatibility & Add-Ons

• Fits Most Winches in the 8,000–12,000 lb range
• Winches that relocate the control box are recommended for best fit and clearance
• Confirmed fitment on Smittybilt X20 and Warn VR series
• Recommendation: use synthetic rope winches and Hawse style fairleads for optimal functionality
