C4 Fabrication Tacoma Rock Runner Front Bumper / 3rd Gen / 2016-2023

Overview

The C4 Fabrication Tacoma Rock Runner Front Bumper is designed for 3rd Gen Toyota Tacomas (2016–2023) who crave rugged off-road protection with factory-integrated versatility. Built for serious trail use, it combines heavy-duty construction with a modular design that accommodates winches, skid connections, and easier access to recovery gear.

Key Features

• Modular 3‑Piece design with bolt-on wings for flexible configuration
• 11ga laser-cut P&O steel shell with 3/16" thick mounting plates and a dedicated winch plate
• 3/4" thick D-ring tabs, fully welded on both front and back
• Front bumper ships with winch cover plate and bridge skid that connects to existing skid plates and factory cross member
• Front Skid Plate kit includes replacement cross member and power steering relocation kit
• Cutouts in the bumper front for easy winch lever access

Materials & Construction

• Fabricated from 11ga laser-cut steel for durability and improved resistance to denting
• 3/16" mounting plates and winch plate engineered to support winches up to 8k–12k lbs (see Add-Ons)
• Powder coat option available to prevent rust; otherwise painting or coating is required before installation

Fitment & Installation

• Targeted for 3rd Gen Toyota Tacoma (2016–2023)
• Requires cutting of the plastic bumper to install
• Cross Member Delete & Rock Runner Front Skid require cutting out the factory cross member

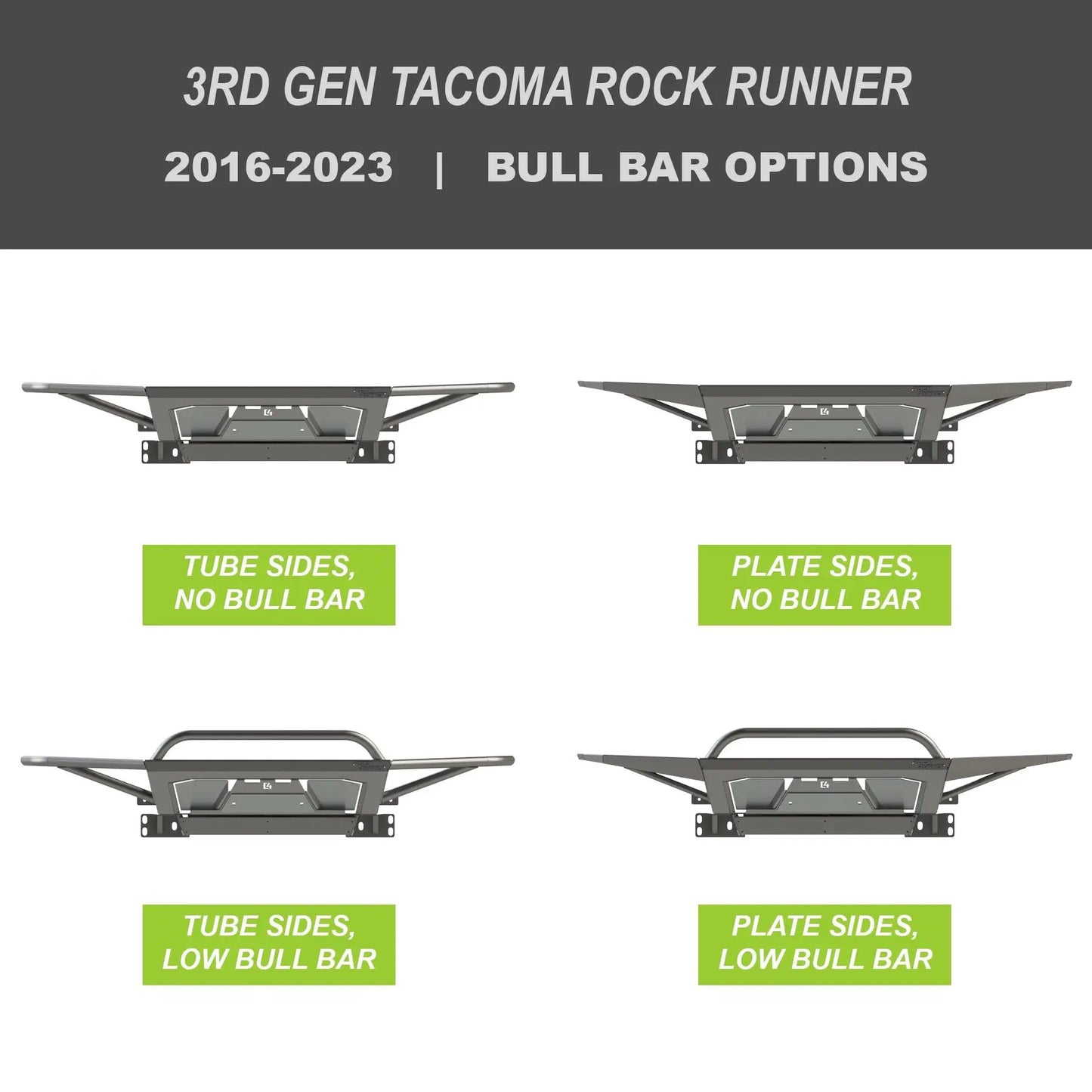

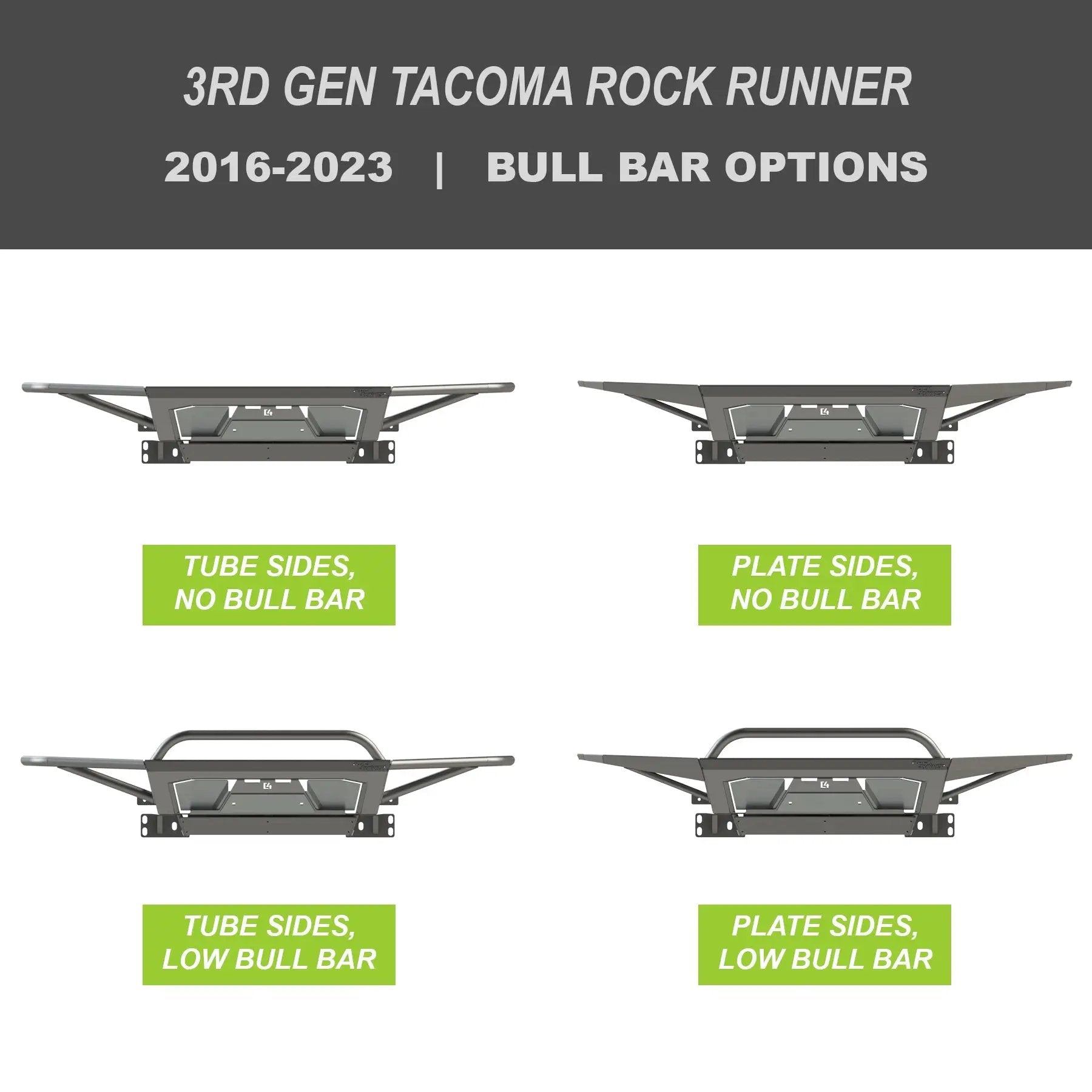

• Bull bar is NOT compatible with Toyota Safety Sense

Weight & Finish Options

• Weight with Plate Sides: 78 lbs
• Weight with Tube Sides: 73 lbs
• Finish: Powder-coated option available or paint/powder coat required to prevent rust if not selected

Winch Compatibility & Add-Ons

• Fits most winches in the 8k–12k range
• Winches with relocated control box recommended
• Confirmed fitment on Smittybilt X20 & Warn VR series
• Recommended: synthetic rope winches and Hawse style fairleads for best functionality

What’s Included & Installation Aids

• Front bumper with cross member delete integration and rock runner front skid
• Winch cover plate and bridge skid designed to connect with current skid plates and factory cross member
• Front Skid Plate kit with replacement cross member and power steering relocation kit
• Cutouts in the bumper front for winch lever access

Who this is for

Overland veterans, rock crawlers, and adventure-ready Tacoma builds will appreciate the Rock Runner’s rugged steel construction, modular design, and compatibility with common 8k–12k winches. It’s built to endure remote trails where reliable protection and versatile recovery options matter most.

Use Cases

• Overlanding rigs needing a robust front bash bar and integrated skid support
• Trail rigs that require a winch-ready bumper with accessible winch controls
• Desert trips and rock crawling where a heavy-duty front end protects vital components
