C4 Fabrication Tacoma Rock Runner Front Bumper / 2nd Gen / 2005-2015

Key Features

• Modular, 3‑piece design with bolt‑on wings for flexible installation and serviceability
• 11ga laser‑cut P&O steel construction with 3/16" thick mounting plates and a dedicated winch plate
• 3/4" thick D‑ring tabs, fully welded front and back
• Ships with a winch cover plate and a bridge skid that connects to your current skid plates and factory cross member
• Frame support brackets included with every bumper; additional front bumper frame brackets are included with all 2nd Gen Tacoma Rock Runner bumpers

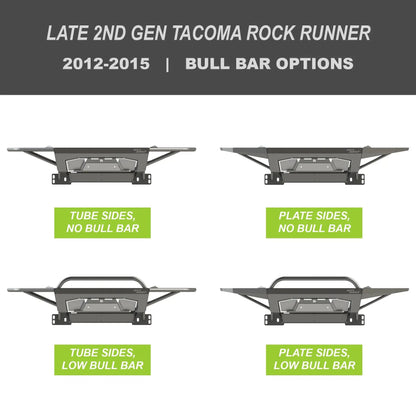

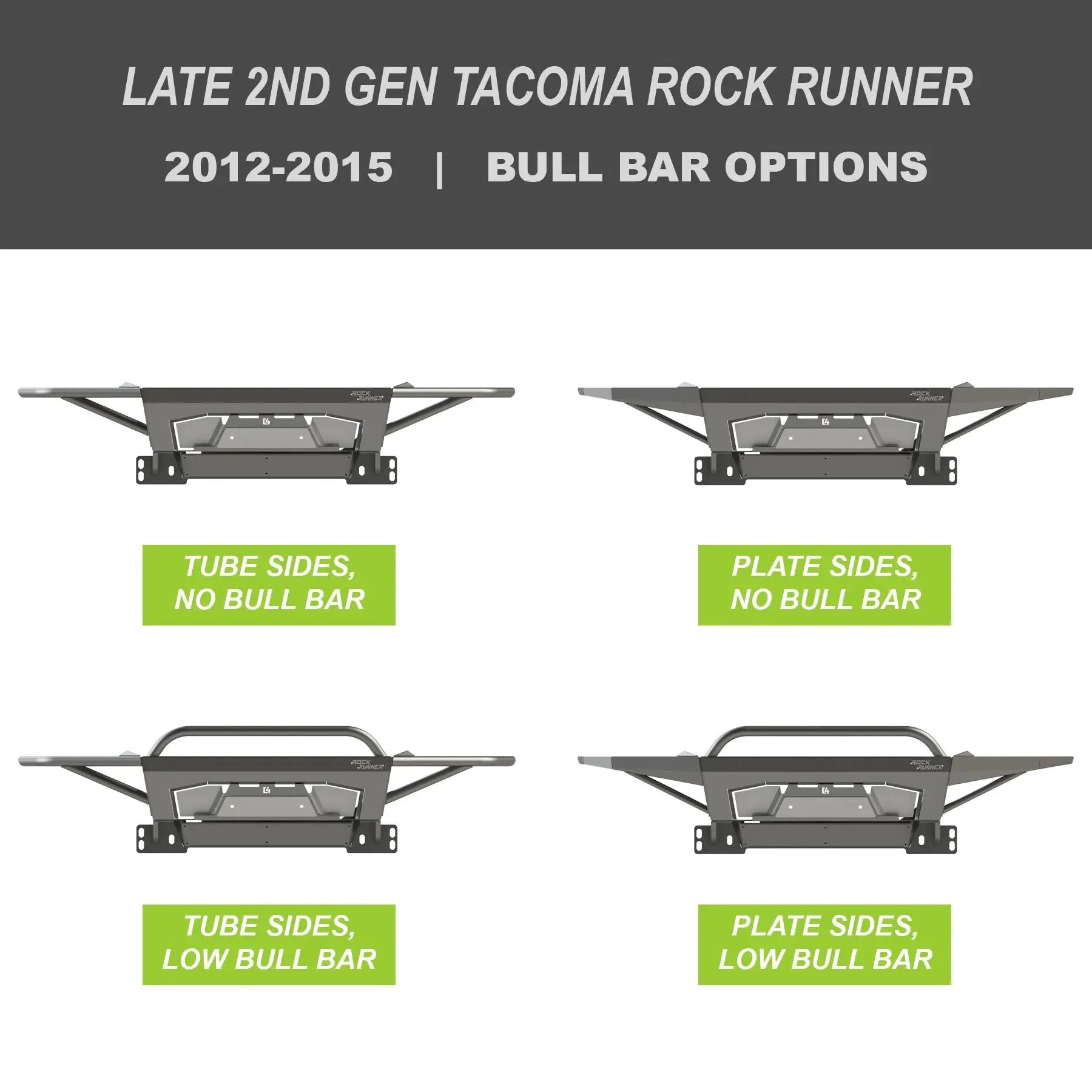

• Weight: Front w/ Plate Sides 85 lbs; Front w/ Tube Sides 85 lbs; Bull bar adds 5 lbs
• Bull bar not compatible with Toyota Safety Sense
• Fitment for most winches 8k–10k lbs; winch relocation of the electrical control box is recommended
• Integrated control box winches may require trimming of grille support brackets to fit
• Fits winches such as common models in the 8k–10k range (e.g., Smittybilt X20, Warn VR series)
• Recommend synthetic rope with a hawse style fairlead for best fitment; some roller fairleads may be too large for the recessed fairlead mounting plate
• Cutouts in front of bumper provide winch lever access
• Designed to connect with current skid plates and factory cross member via the included bridge skid
• Rust prevention: powder coat option available; otherwise painting or coating is required before installation
• Dedicated cross member delete option available: requires cutting out the factory cross member and replacing it with ours

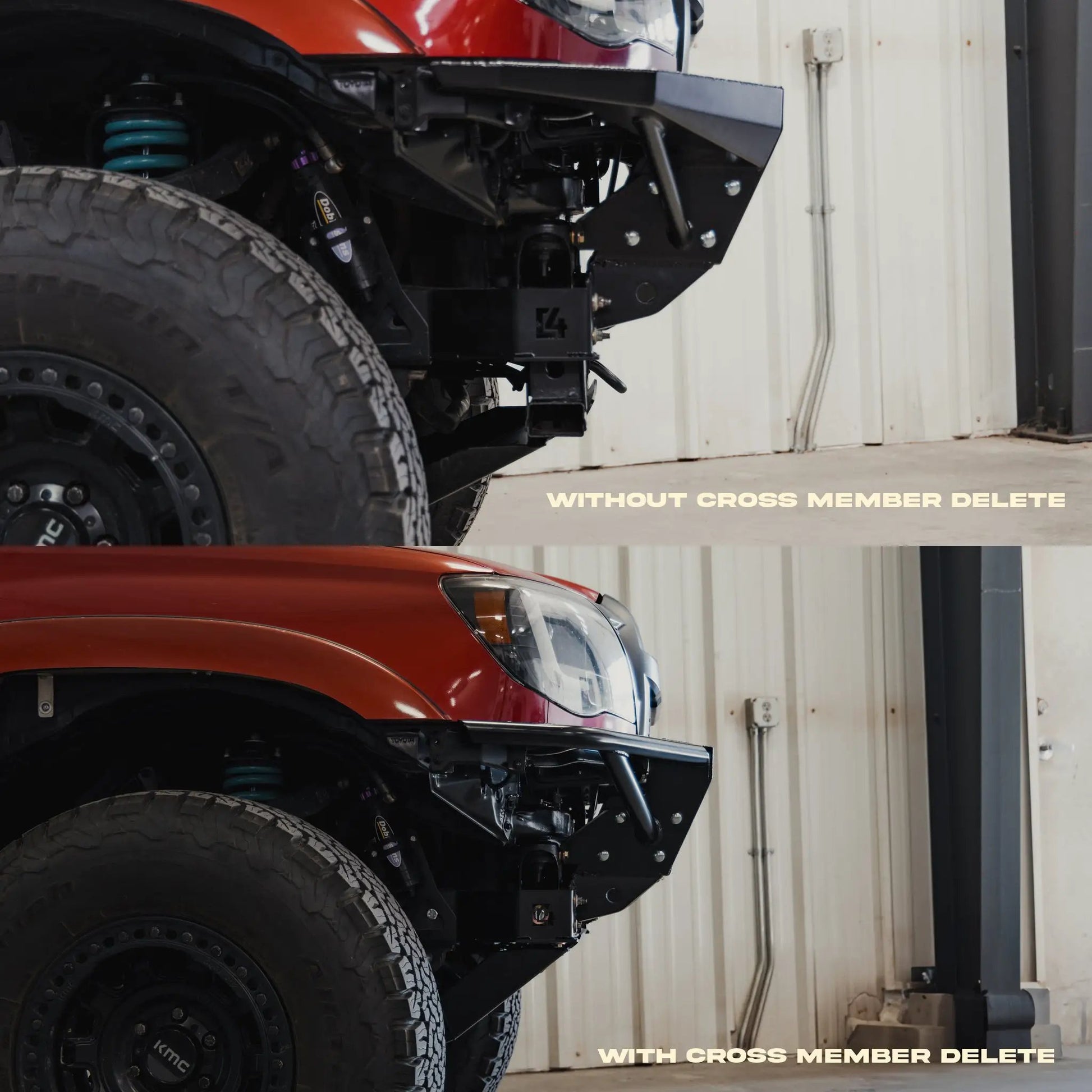

Cross Member Delete Option

If you select cross member delete, you will be required to remove the factory cross member and replace it with C4 Fabrication’s cross member. The option includes a replacement cross member, rock runner front skid plate, and a power steering relocation kit.

Note: Cross member delete/skid information is provided to help you plan installation and fitment.

What’s Included & Compatibility

• Front bumper with 11ga steel construction, winch plate, and bridge skid
• Frame support brackets (including the additional brackets specifically included with all 2nd Gen Tacoma Rock Runner front bumpers)
• Cross member delete option components (if chosen)
• Winch compatibility guidance for 8k–10k lb units; relocation of electrical control box recommended
• Powder coat option available to reduce rust risk; otherwise surface paint or coating required before installation
• Not compatible with Toyota Safety Sense when the bull bar is installed

Material, Build Quality, and Design

• 11ga laser‑cut P&O steel with 3/16" mounting plates and winch plate for solid mounting and protection
• 3/4" thick D‑ring tabs fully welded front and back for reliable recovery points
• 3‑piece modular design with bolt‑on wings for straightforward installation and future upgrades
• Designed to work with most mid‑to large‑sized winches and compatible fairleads

Installation & Care

• Some winch configurations may require trimming of grille support brackets to accommodate integrated control boxes
• Powder coat option helps prevent rust; without it, paint or powder coating is required before use
• Bull bar customization is available but not compatible with Toyota Safety Sense
• Cutouts in front of the bumper provide easy winch lever access
