C4 Fabrication Tacoma Overland Series Front Bumper / 2nd Gen / 2012-2015

C4 Fabrication's Tacoma Overland Series Front Bumper for the 2nd Gen Toyota Tacoma (2012–2015) is a rugged bolt-on upgrade engineered for off-road enthusiasts who want enhanced tire clearance, improved approach angles, and the ability to run larger tires. Designed to integrate with a range of winches and lighting options, it delivers serious strength without requiring welding.

Construction & Design

• 100% bolt-on design with no welding required (some minor trimming on 2012–2015 models).
• 3/16" laser-cut P&O steel construction with 1/4" mounting plates for rigid mounting.
• 3/4" thick D-Ring tabs, fully welded front and back.
• Bull bar tubing:.120" wall, 1 3/4" diameter HREW tubing.

Winch Compatibility & Installation

• Fits most 8k–12k winches; relocation of the electrical control box is recommended.
• Integrated control box winches may require trimming of grille support brackets to fit.
• Common compatible models include ComeUp, Smittybilt X20, Warn Zeon, and VR series.
• Recommend synthetic rope with a hawse-style fairlead for best fitment; some roller fairleads may be too large for the recessed fairlead plate.

Lighting, Skirting & Fog Light Provisions

• Designed to accept a 30" single-row light bar (specifically designed for Baja Designs S8).
• Will also fit Extreme LED 30" 5D light bars and RIGID 30" SR series.
• Fog light pockets designed for Baja Designs Squadron lights; factory fog lights are not supported.

Weight, Options & Finish

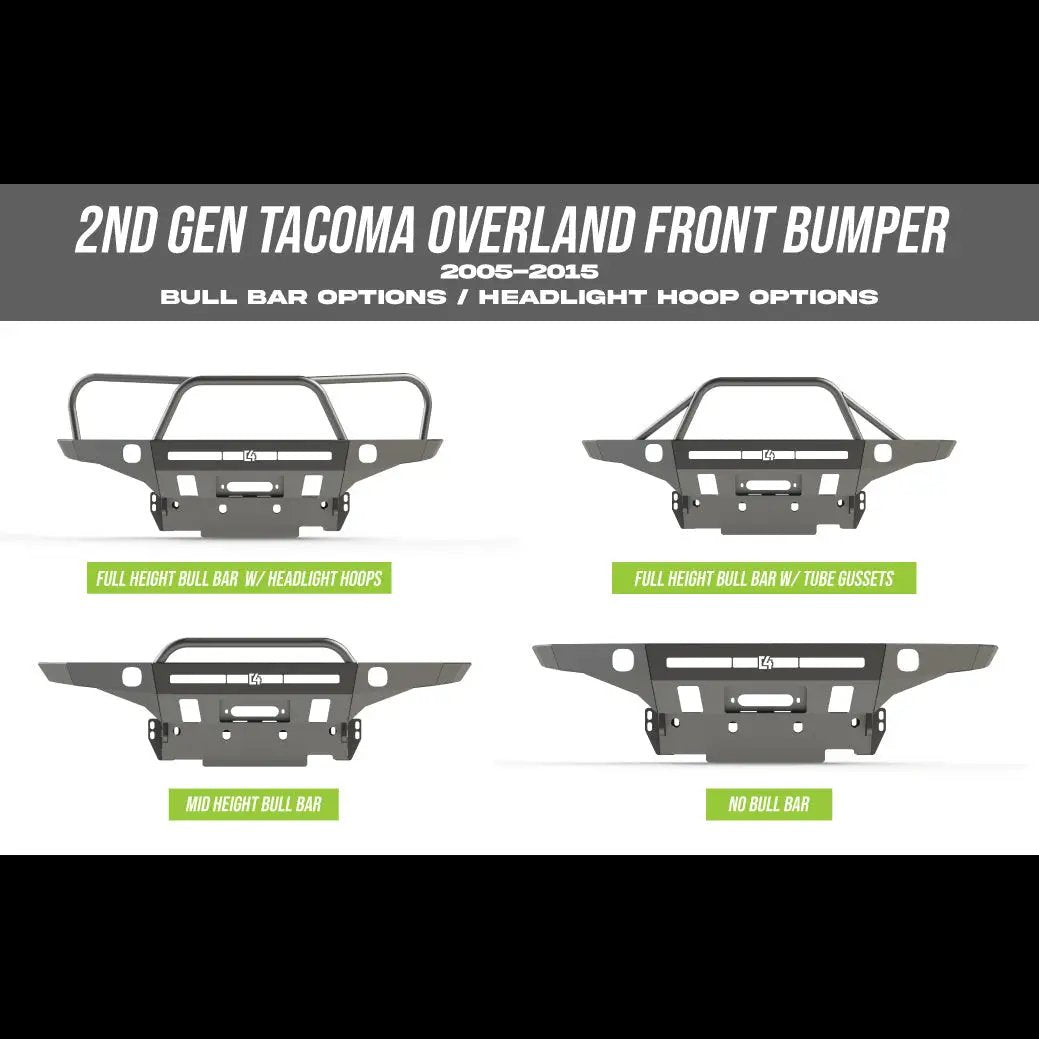

• 125 lbs without the bull bar; 130 lbs with mid-height bull bar; 140 lbs with full-height bull bar; 145 lbs with full-height bull bar and headlight hoops.
• Unless you choose a powder-coated option, the bumper will need to be painted or powder coated to prevent rust.

Included Accessories & Value

• Additional Front Bumper Frame Support Brackets included with all 2nd Gen Tacoma Overland and Hybrid front bumpers (a $177 value).

What to Know Before You Buy

This bumper is designed to significantly improve tire clearance and approach angle while enabling fitment of larger tires. For 2012–2015 models, some minor trimming may be required. It’s compatible with a range of winches and lighting configurations, but verify your specific setup (control box location, fairlead compatibility, and light bar fit) before installation. If you plan to run aftermarket lighting or auxiliary equipment, this bumper provides flexible mounting options and robust protection for your front end.
