C4 Fabrication Tacoma Overland Series Front Bumper / 2nd Gen / 2005-2011

Name: C4 Fabrication Tacoma Overland Series Front Bumper / 2nd Gen / 2005-2011
Brand: C4 Fabrication
SKU: 1200-3105-30-MH
Price: 1580.0 USD

Read Product Details

1200-3105-30-MH

In Stock (1 available)

$1,580.00

Secure checkout
SSL encrypted payment
Fast Shipping
2-3 Business days

Description

The C4 Fabrication Tacoma Overland Series Front Bumper is a purpose-built bolt-on upgrade for the 2005–2011 Toyota Tacoma 2nd Gen. It expands tire clearance, improves approach angles, and makes room for larger tires—without any welding required. Crafted for serious off-road use, it blends rugged protection with versatile winch and lighting compatibility.

Construction & Materials

100% bolt-on design with no welding required
3/16″ laser-cut P&O steel construction with 1/4″ thick mounting plates
3/4″ thick D-Ring tabs, fully welded on front and back
Bull bar tubing is.120″ wall, 1 3/4″ diameter HREW

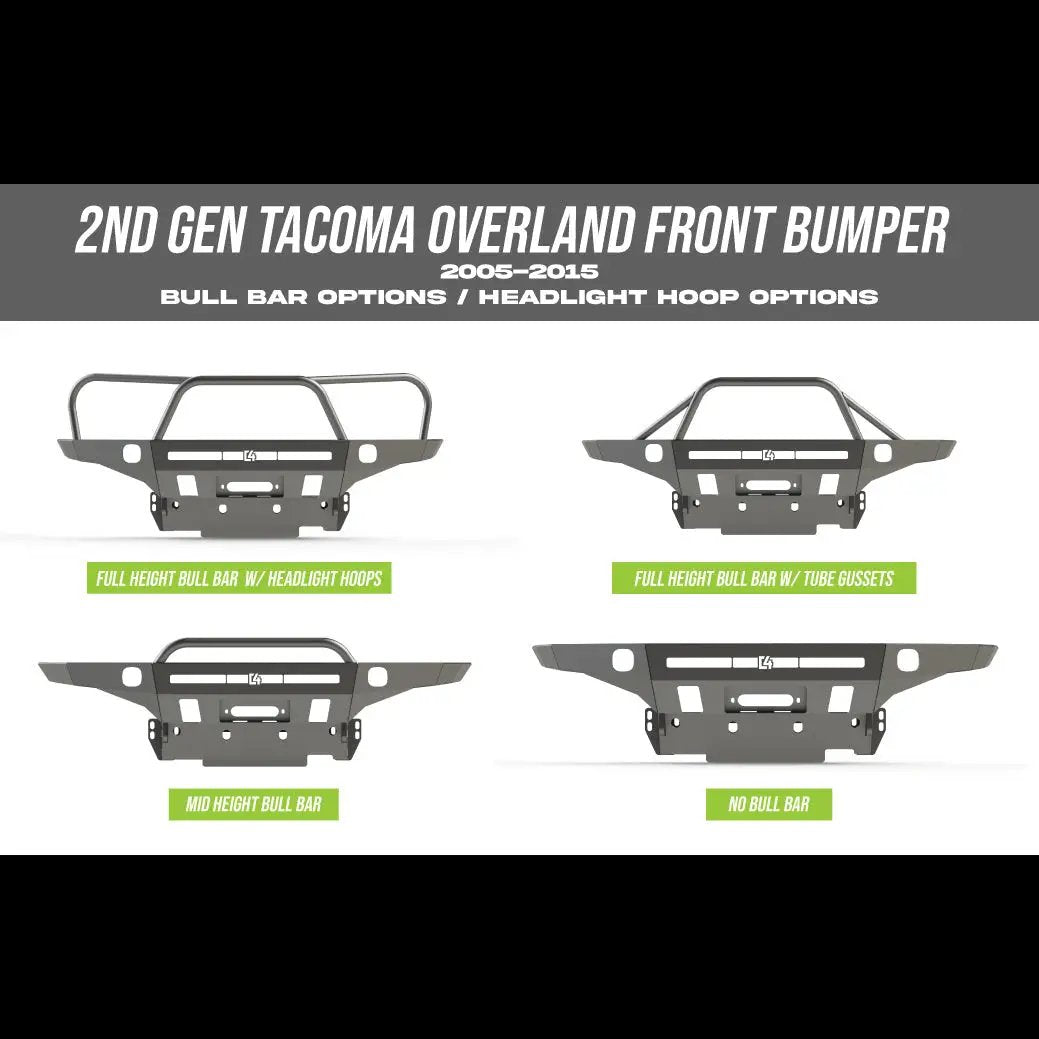

Weight & Configurations

125 lbs without bull bar
130 lbs with mid-height bull bar
140 lbs with full-height bull bar
145 lbs with full-height bull bar and headlight hoops
Designed to fit 30″ single-row light bars, specifically Baja Designs S8

Winch Compatibility & Electrical

Fits most winches in the 8k–12k range
Winches with relocation capability for the electrical control box are recommended
Integrated control box winches may require trimming of grille support brackets to fit
Common compatible winches include ComeUp, Smittybilt X20, Warn Zeon, and VR series
Best results with synthetic rope and a hawse-style fairlead
Some roller fairleads may be too large to fit the recessed fairlead mounting plate

Lighting & Grille Fitment

Designed to accommodate Baja Designs S8 30″ light bar
Extreme LED 30″ 5D light bar and RIGID 30″ SR series are also compatible
Fog light pockets designed for Baja Designs Squadron lights; factory fog lights are not supported

Fitment Notes & Accessories

Additional Front Bumper Frame Support Brackets are included with all 2nd Gen Tacoma Overland and Hybrid front bumpers (a $177 value)
For rust prevention, painting or powder coating is recommended unless you select the powder-coated option

Compatibility & Installation Tips

100% bolt-on design facilitates installation without welding
Ensure sufficient space for the chosen lighting and fairlead configuration
Consider the overall setup (bull bar height, light bar choice) to maintain clearance and aesthetics

Features

100% bolt on design
no welding required.
Bumper offers greatly improved tire clearance
better approach angle and makes it easier to fit larger tires.
Bumper is made from 3/16″ laser cut P&O steel with 1/4″ thick mounting plates.
3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
Bull bar tubing is .120 wall 1 3/4″ diameter HREW tubing.
Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit.(ComeUp
Smittybilt X20
Warn Zeon and VR ...
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
125lbs without bull bar
130lbs with mid height bull bar
140lbs with full height bull bar
145lbs with full height bull bar and headlight hoops.
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series
will also fit.
Fog light pockets designed for Baja Designs Squadron lights. (Factory fog lights not supported)
Additional Front Bumper Frame Support Brackets included with all 2nd Gen Tacoma Overland and Hybrid front bumpers! ($177.00 value).
Unless you choose our powder coated option
this product will need to be painted or powder coated before installation to prevent rust
