C4 Fabrication Tacoma Overland Series Front Bumper / 2nd Gen / 2005-2011

Name: C4 Fabrication Tacoma Overland Series Front Bumper / 2nd Gen / 2005-2011
Brand: C4 Fabrication
SKU: 1200-3105-30-FH-01NA
Price: 1899.0 USD

Read Product Details

1200-3105-30-FH-01NA

In Stock (1 available)

$1,899.00

Secure checkout
SSL encrypted payment
Fast Shipping
2-3 Business days

Description

Introduction

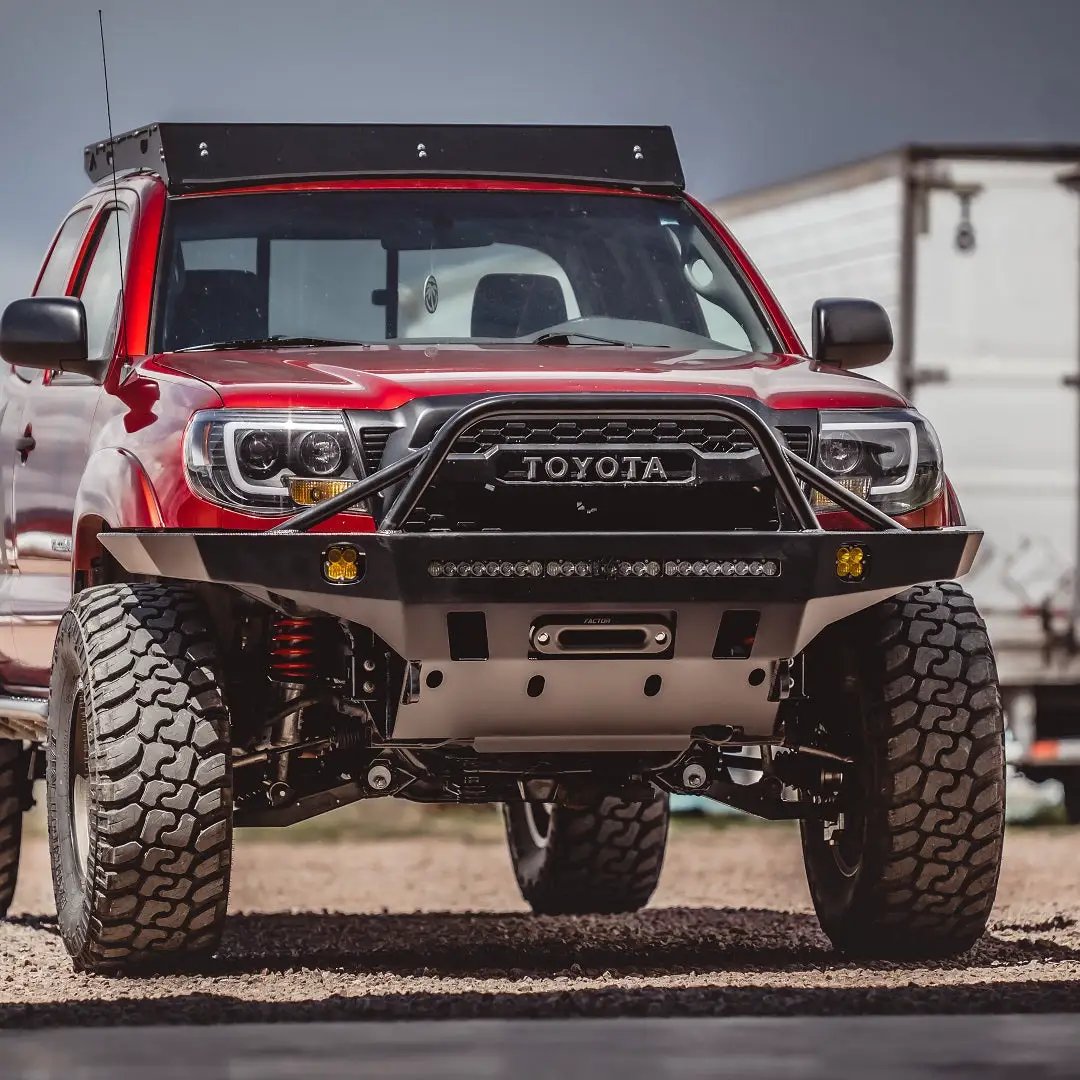

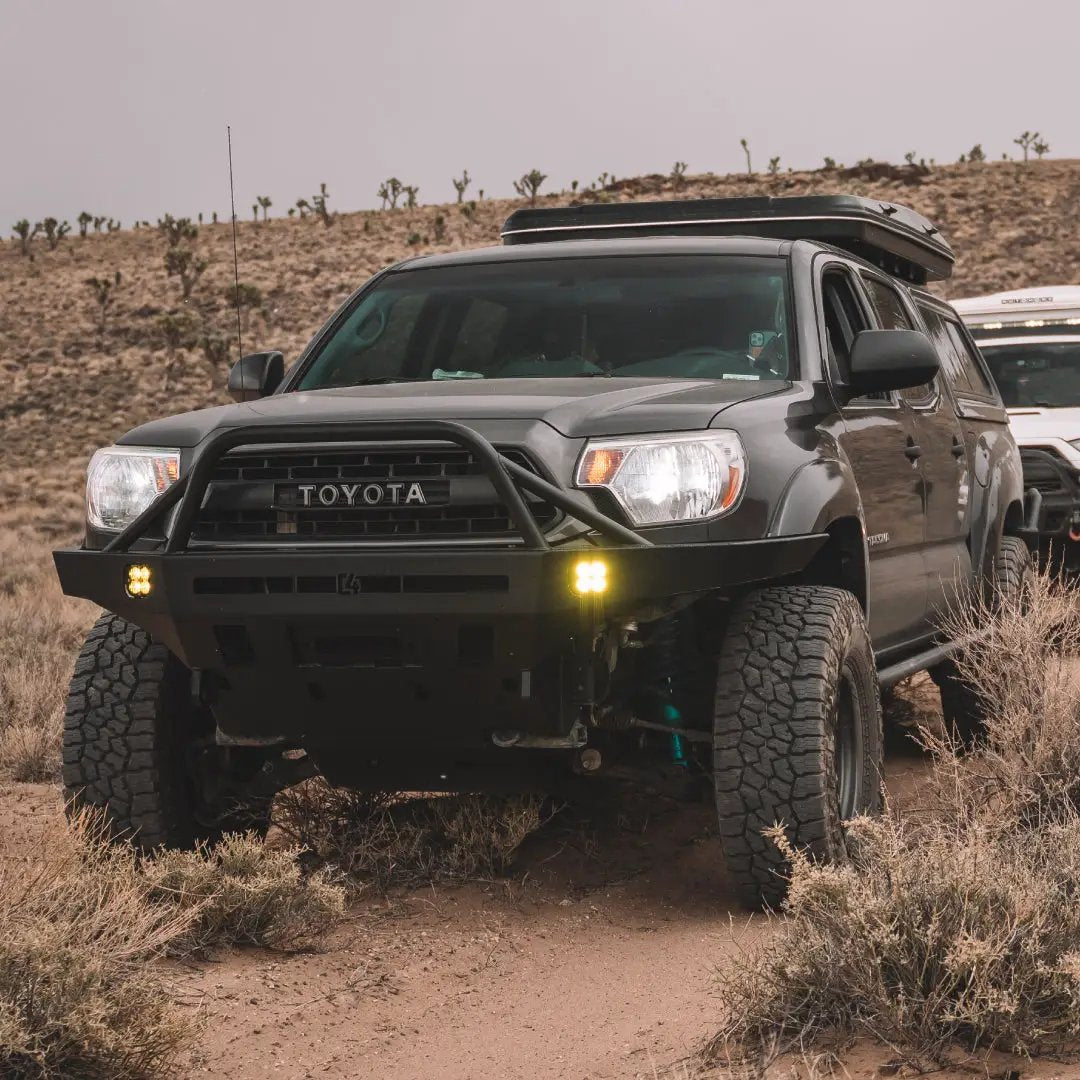

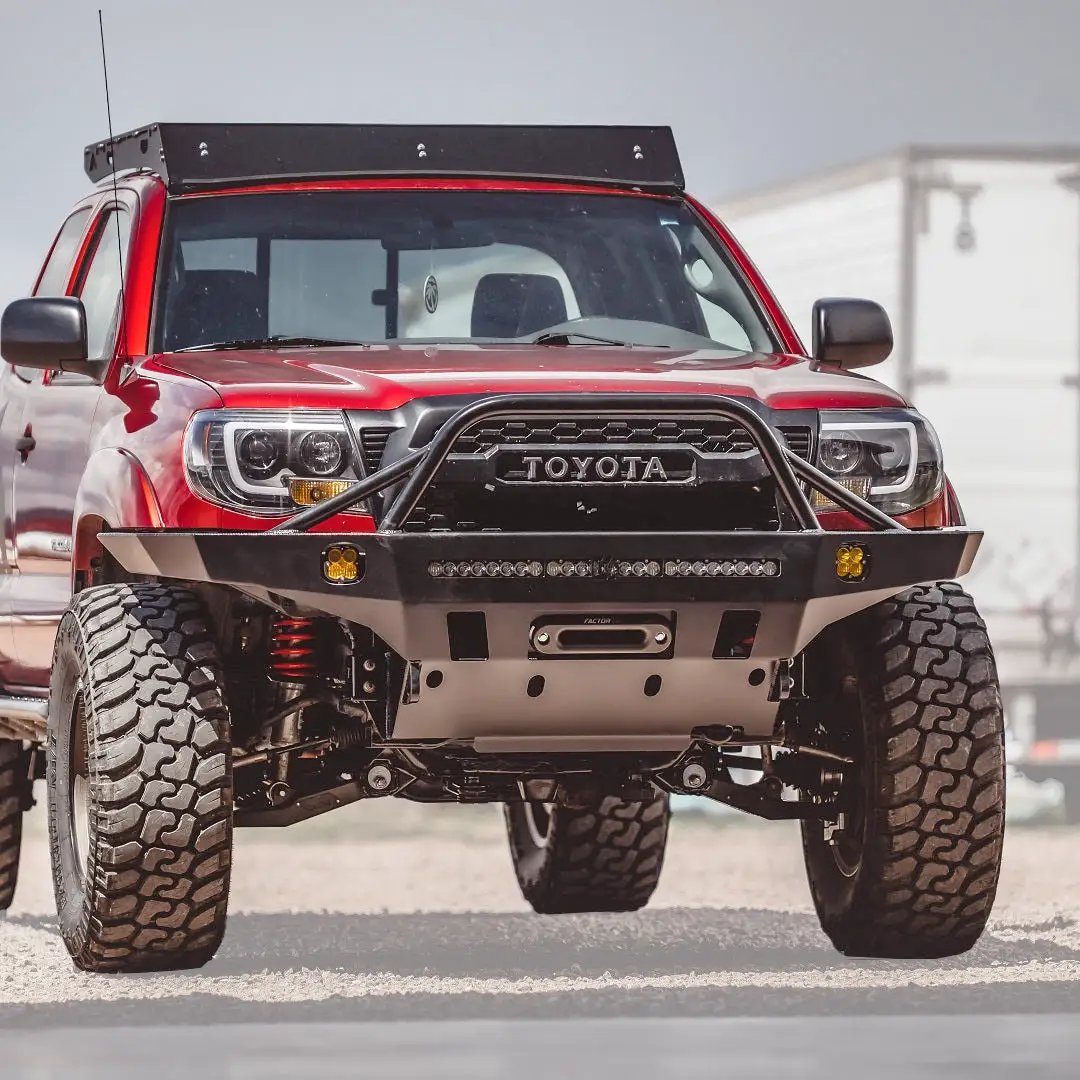

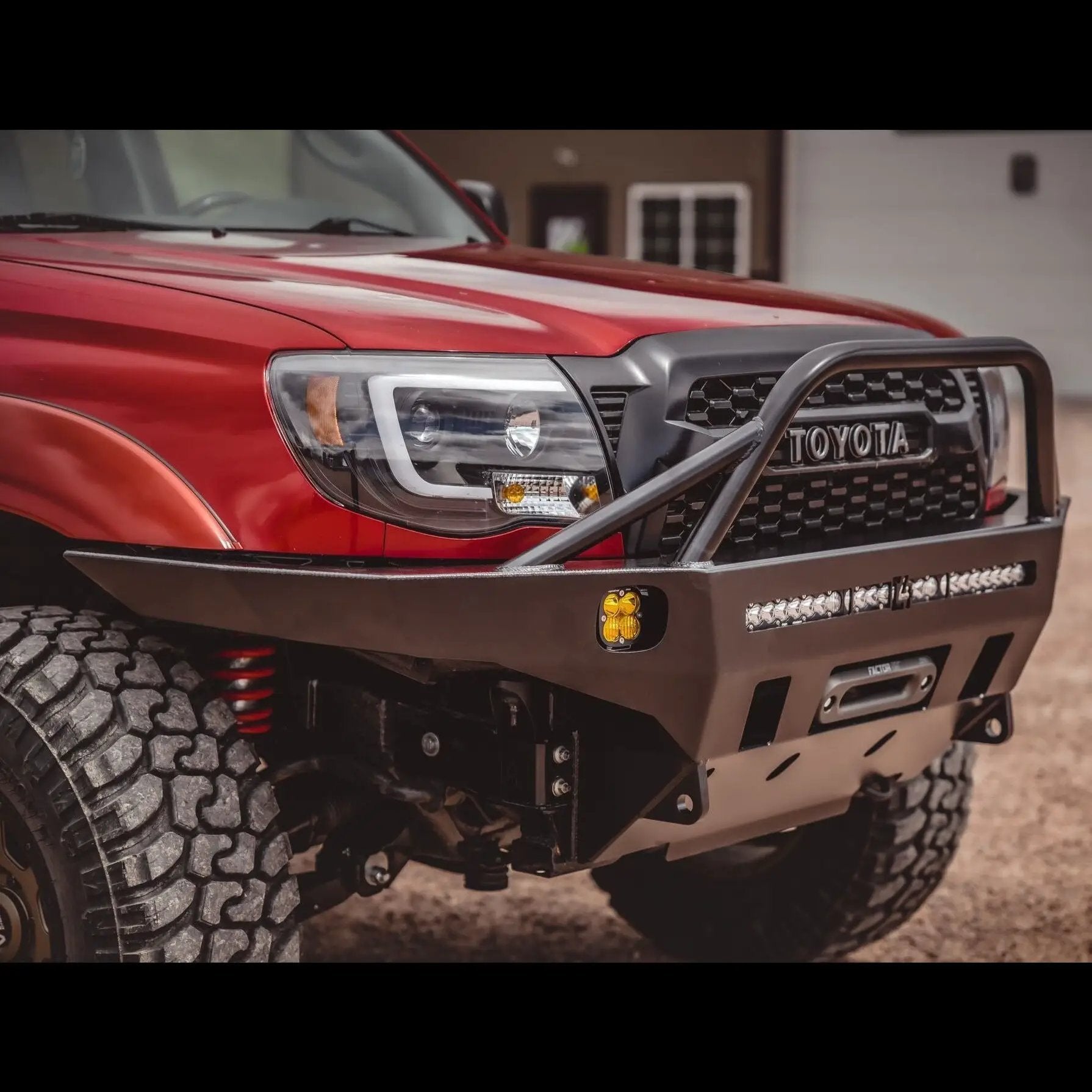

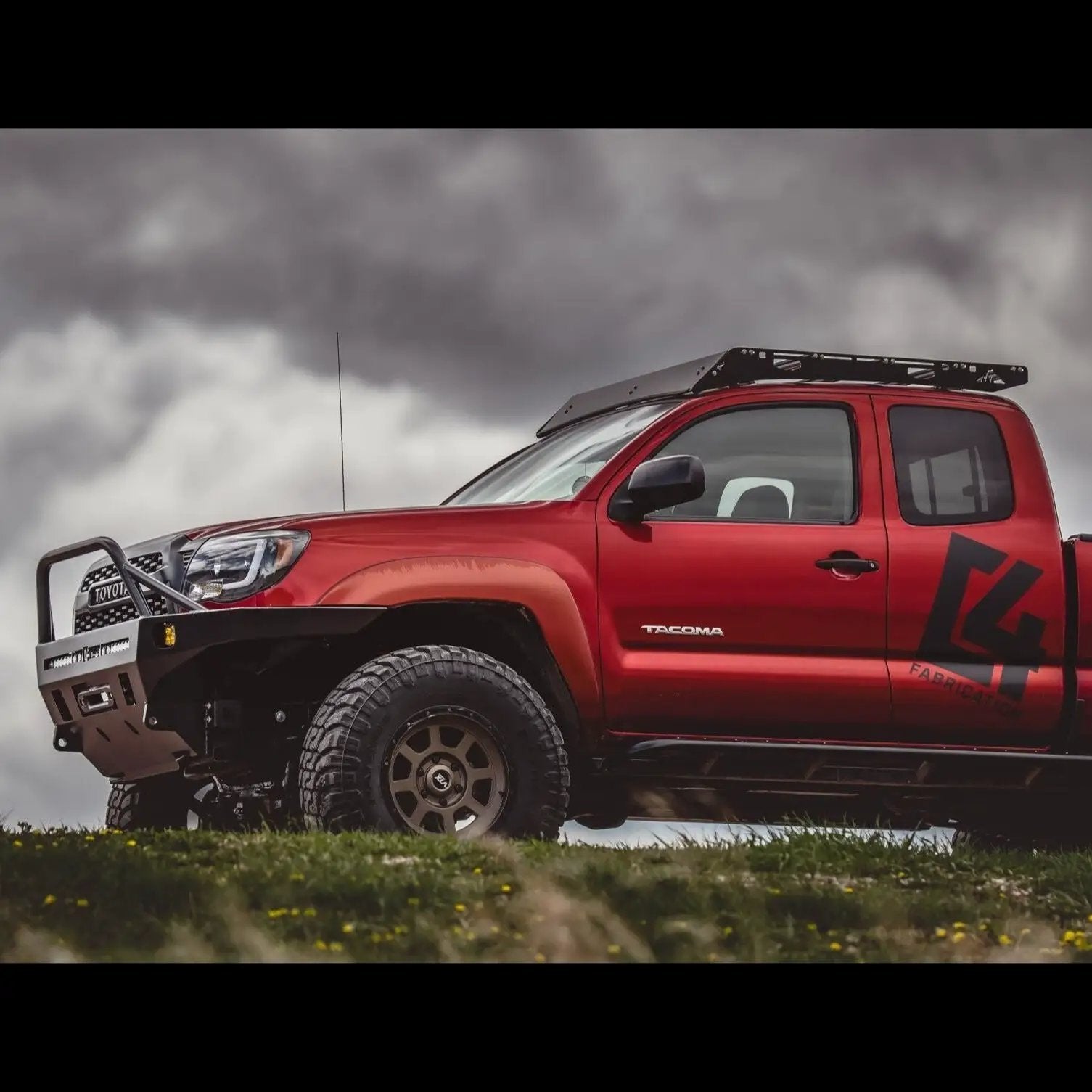

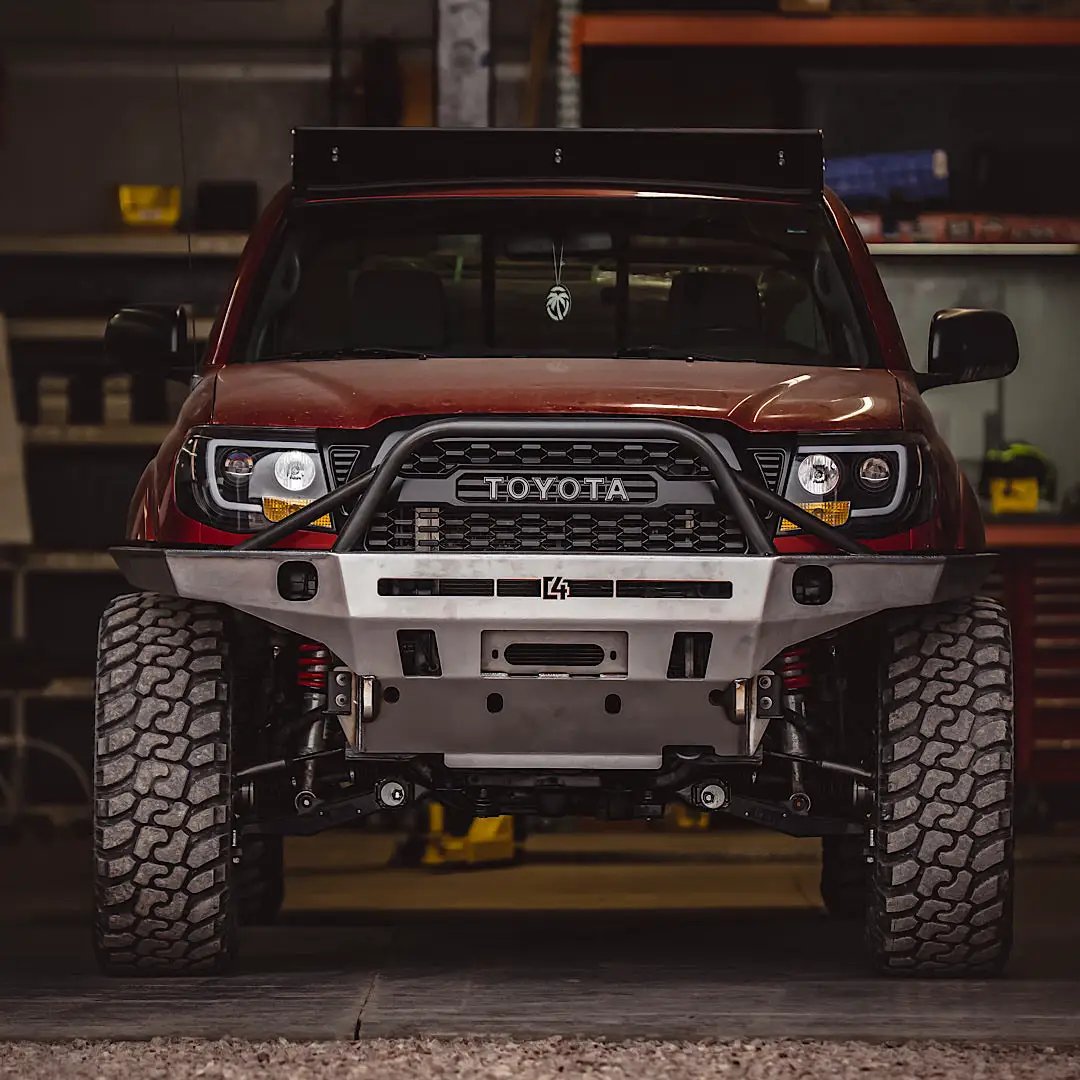

The C4 Fabrication Tacoma Overland Series Front Bumper is a bolt-on upgrade designed for the 2nd Gen Toyota Tacoma (2005–2011). Built for off-road adventures, it delivers significantly improved tire clearance and approach angle while making it easier to run larger tires—without any welding or fabrication.

Durable construction & mounting

100% bolt-on design with no welding required
3/16" laser-cut P&O steel main construction with 1/4" mounting plates
3/4" thick D-Ring tabs standard on every bumper, fully welded front and back
Bull bar tubing is.120" wall, 1 3/4" diameter HREW tubing

Winch compatibility & fitment

Designed to fit most 8k–12k winches
Winches with relocation capability are recommended; integrated control box winches may require trimming of grille support brackets
Common compatible models include ComeUp, Smittybilt X20, Warn Zeon, and VR series
For best results, use synthetic rope with a hawse-style fairlead; some roller fairleads may be too large for the recessed fairlead mounting plate

Lighting, visibility & compatibility

Designed to fit 30" single-row light bars (specifically Baja Designs S8)
Extreme LED 30" 5D light bar and RIGID 30" SR series are also compatible
Fog light pockets designed for Baja Designs Squadron lights; factory fog lights are not supported

Weight, finish & installation

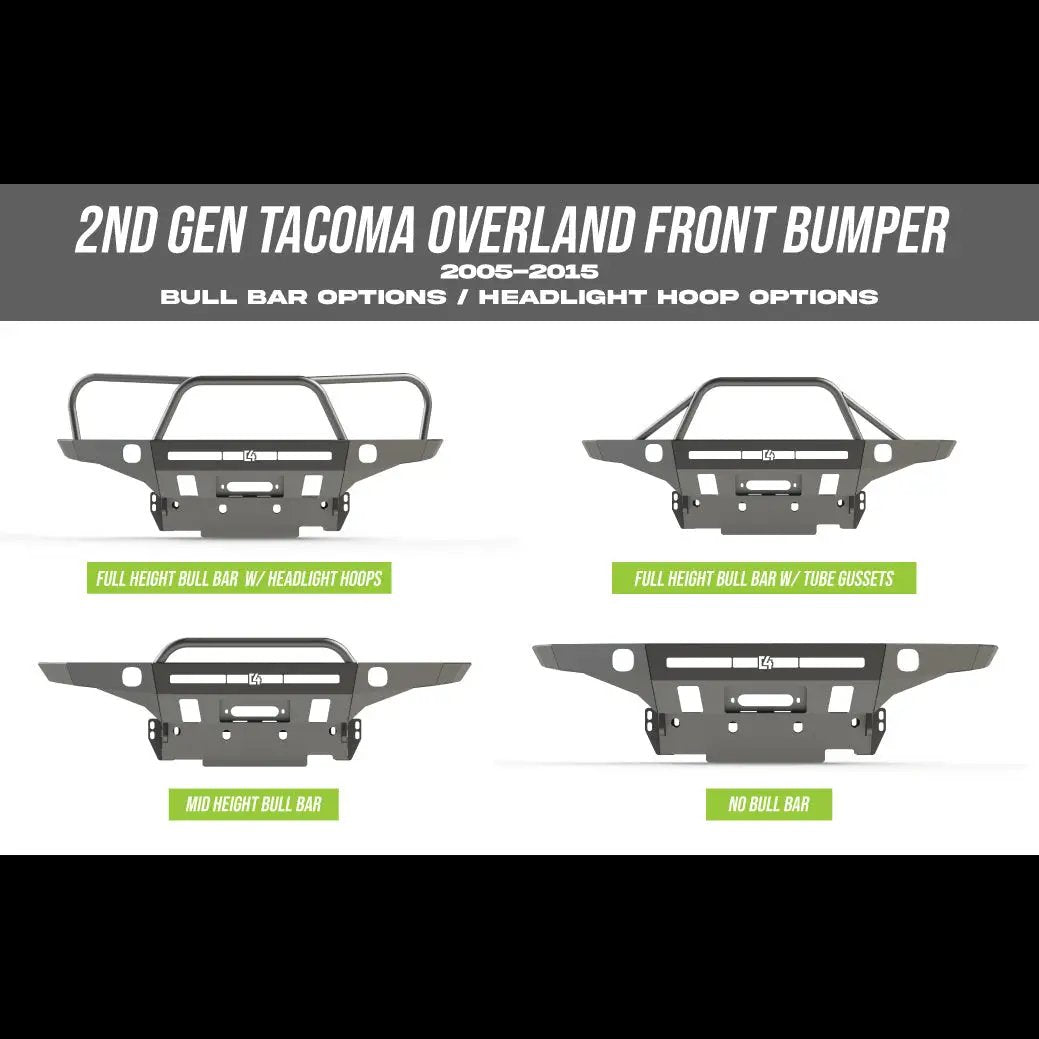

Weight without bull bar: 125 lbs
Weight with mid-height bull bar: 130 lbs
Weight with full-height bull bar: 140 lbs
Weight with full-height bull bar and headlight hoops: 145 lbs
Finish options: Unless you choose the powder-coated option, the bumper will need to be painted or powder-coated before installation to prevent rust

Included accessories & value

Additional Front Bumper Frame Support Brackets included with all 2nd Gen Tacoma Overland and Hybrid front bumpers (a $177 value)

Additional notes

Designed to fit 30" light bars; maintains compatibility with Baja Designs S8 and other popular 30" configurations

Features

100% bolt on design
no welding required.

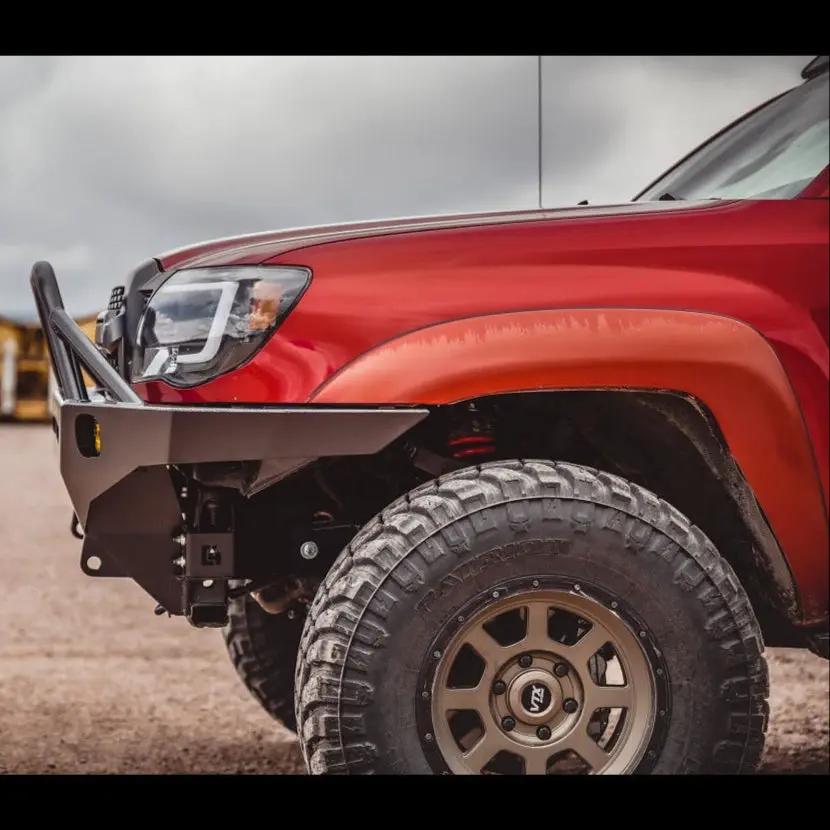

Bumper offers greatly improved tire clearance
better approach angle and makes it easier to fit larger tires.
Bumper is made from 3/16″ laser cut P&O steel with 1/4″ thick mounting plates.
3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
Bull bar tubing is .120 wall 1 3/4″ diameter HREW tubing.

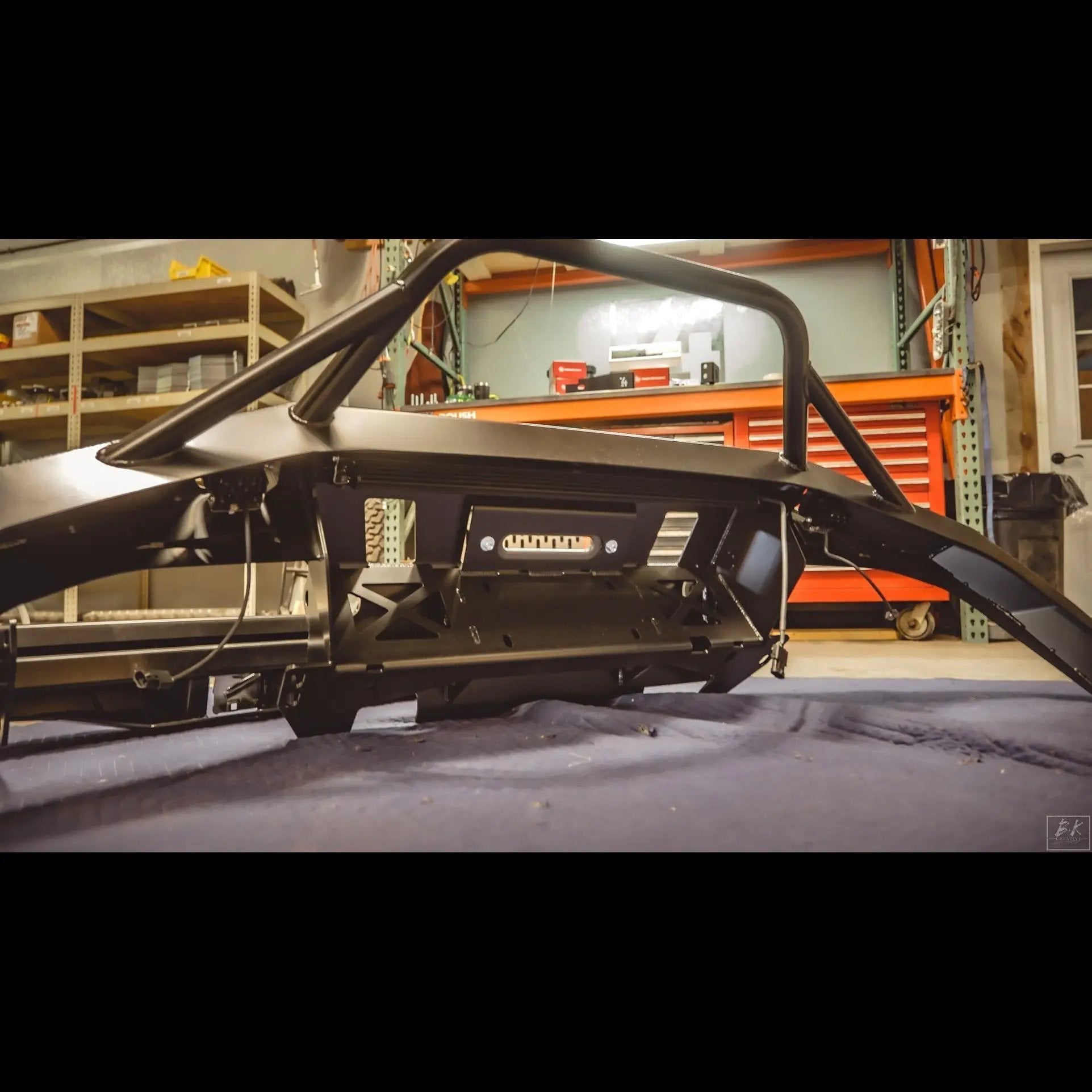

Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit.(ComeUp
Smittybilt X20
Warn Zeon and VR ...

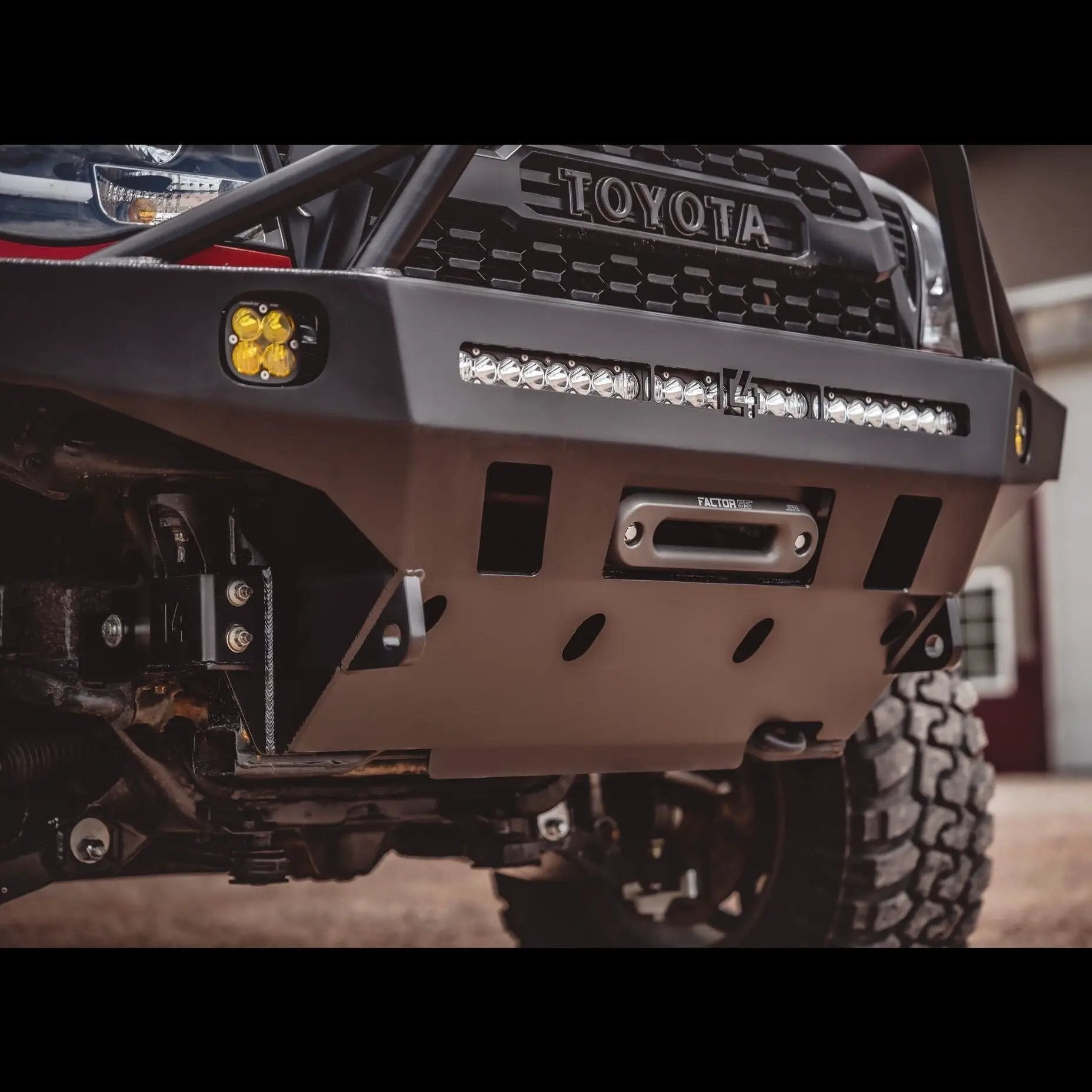

We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
125lbs without bull bar
130lbs with mid height bull bar
140lbs with full height bull bar
145lbs with full height bull bar and headlight hoops.
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series
will also fit.

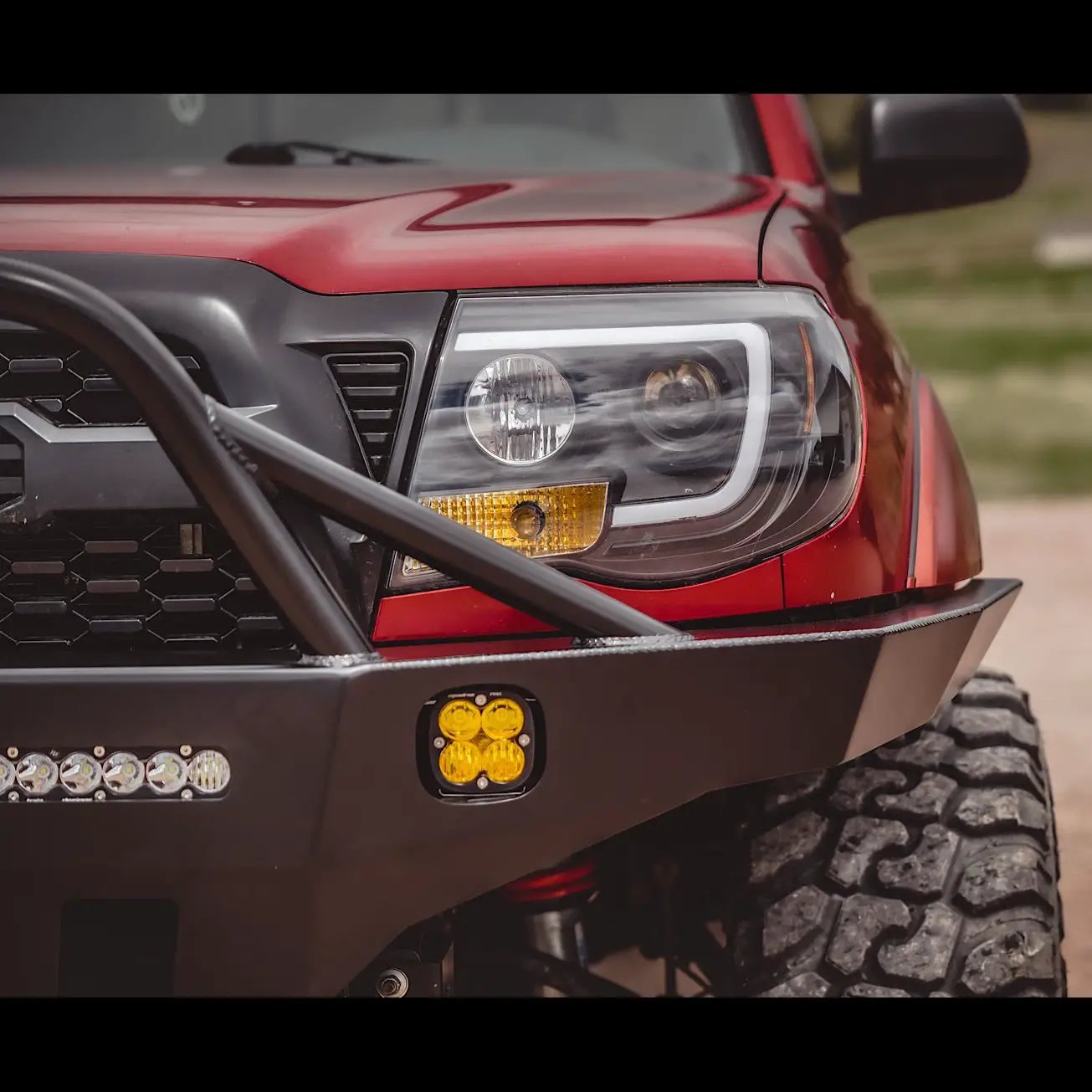

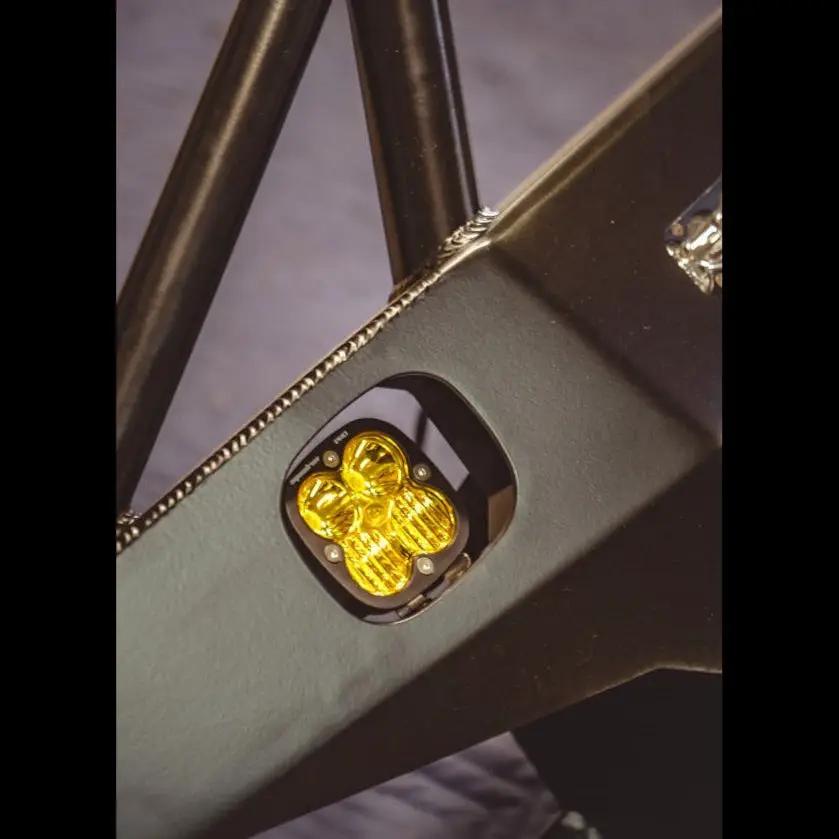

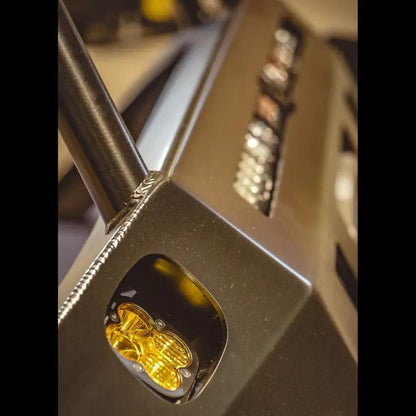

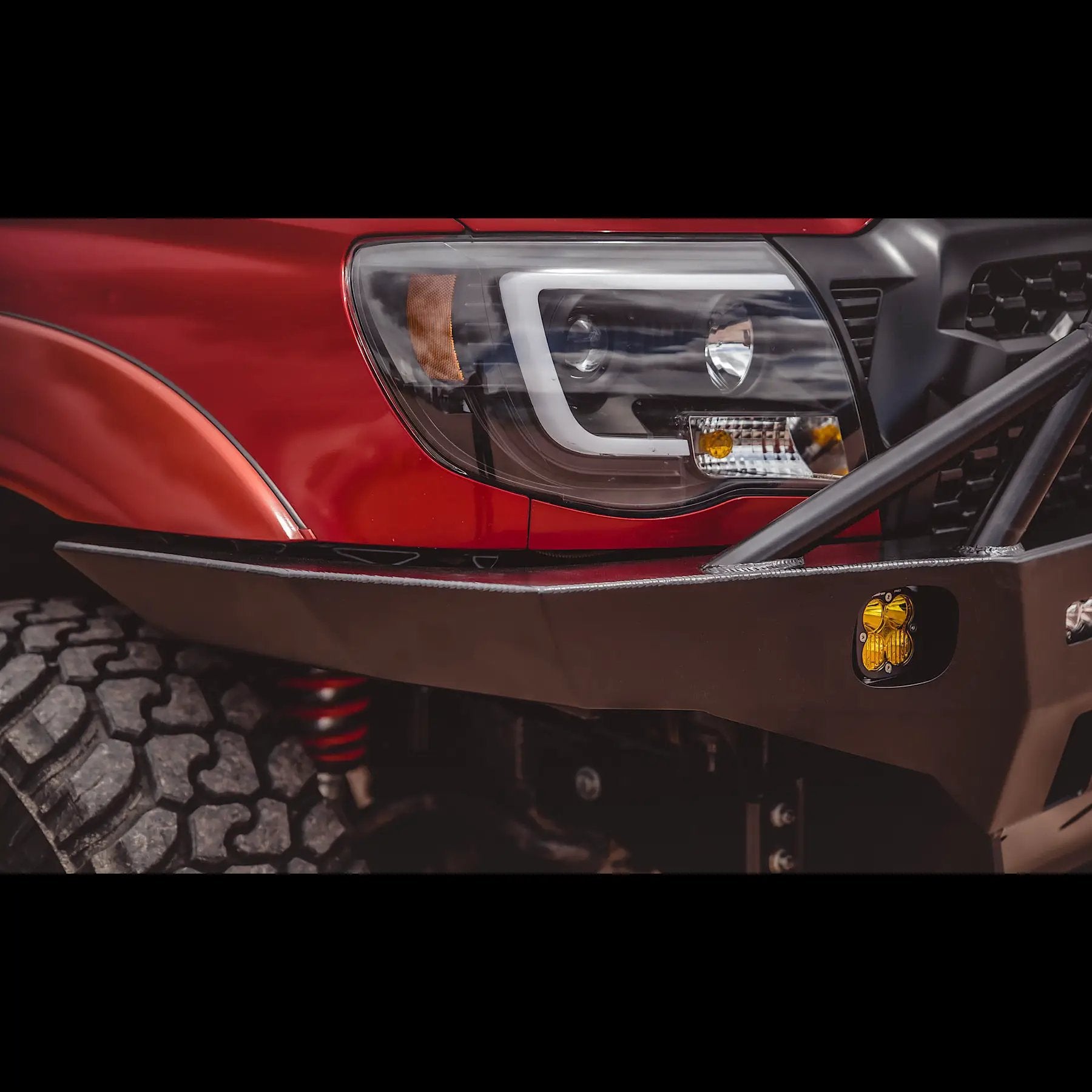

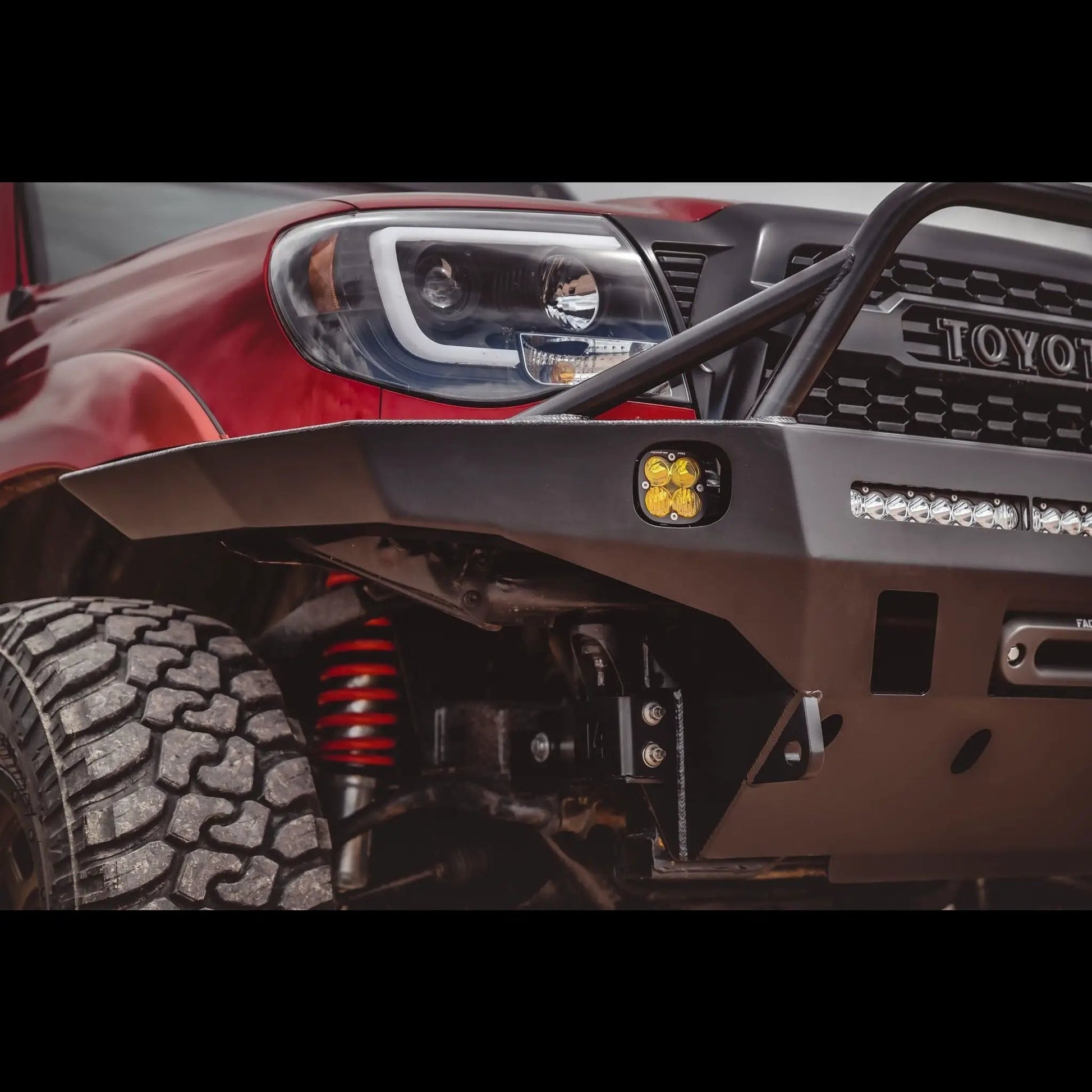

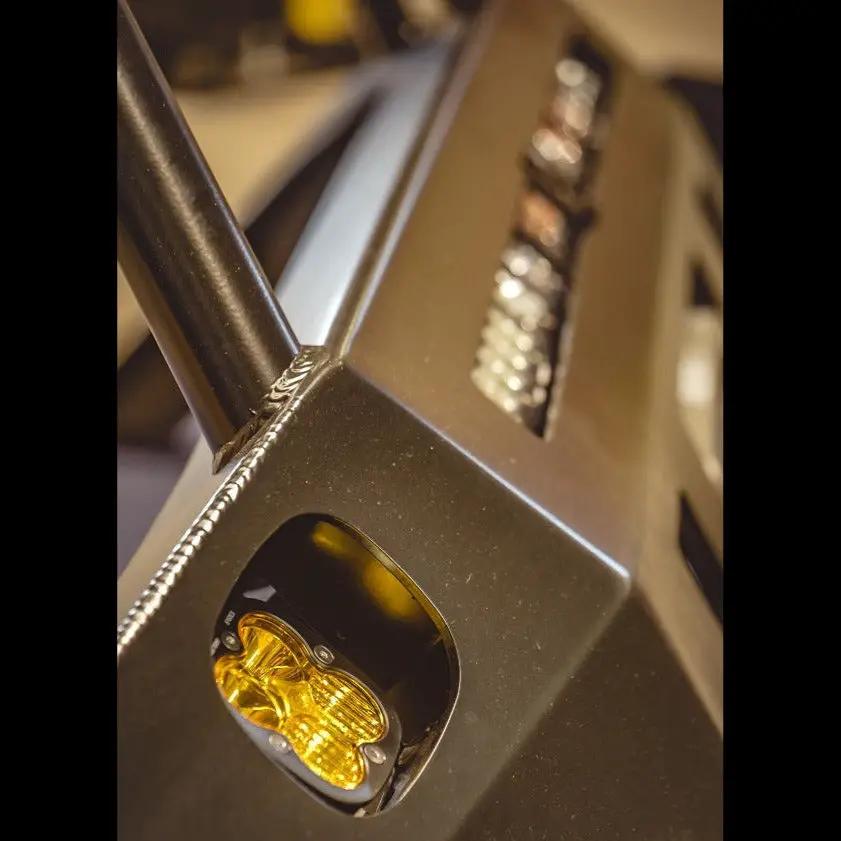

Fog light pockets designed for Baja Designs Squadron lights. (Factory fog lights not supported)
Additional Front Bumper Frame Support Brackets included with all 2nd Gen Tacoma Overland and Hybrid front bumpers! ($177.00 value).
Unless you choose our powder coated option
this product will need to be painted or powder coated before installation to prevent rust
