C4 Fabrication Tacoma Overland Front Bumper / 4th Gen / 2024+

Name: C4 Fabrication Tacoma Overland Front Bumper / 4th Gen / 2024+
Brand: C4 Fabrication
SKU: 1224-32000-MH-01NA
Price: 2359.0 USD

Read Product Details

1224-32000-MH-01NA

In Stock (1 available)

$2,359.00

Secure checkout
SSL encrypted payment
Fast Shipping
2-3 Business days

Description

Introducing the C4 Fabrication Tacoma Overland Front Bumper for the 4th Gen and 2024+ Tacomas. This front bumper is engineered for serious off-road use, blending rugged protection with precise winch integration and lighting compatibility. It’s designed for enthusiasts who want reliable performance and clear installation guidance.

Compatibility and Installation Notes

Requires cutting of the plastic bumper to install.
Fits most winches 8k–12k in size; electrical control box must be relocated from the top of the winch and trimming/fitting will be required. Warn VR series is a confirmed fit.
We recommend winches with synthetic rope and a hawse-style fairlead for best fitment and functionality.
Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
Cutouts in front of the bumper provide winch lever access.

Lighting and Accessory Fitment

Designed to fit 30″ single-row light bars; specifically tailored for Baja Designs S8, Heretic Studio 30", and Rigid SR-30.
Fog light pockets designed for Baja Designs Squadron lights; factory fog lights are not supported.

Construction and Build

Made from 3/16″ laser-cut P&O steel.
Bull bar tubing is 1 3/4" OD with 1/8" wall thickness; gussets and headlight hoops are 1 1/2" OD.
3/4″ thick D-ring tabs are fully welded on the front and back.

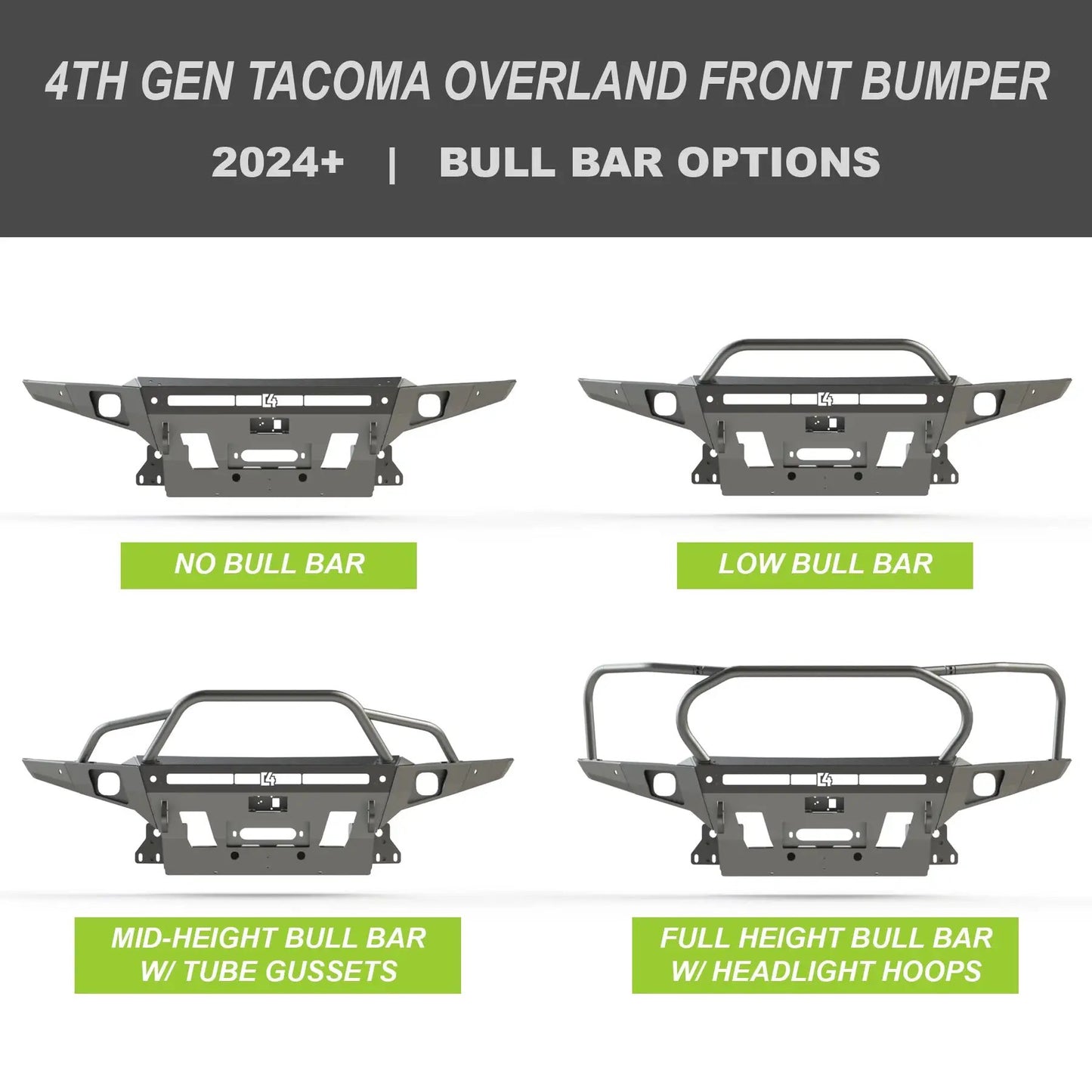

Weight varies by configuration: 114 lbs without bull bar, 121 lbs with low-height bull bar, 128 lbs with mid-height bull bar with tube gussets, and 138 lbs with full-height bull bar and headlight hoops.
All bull bar variants are compatible with Toyota Safety Sense and parking sensors; some vehicles may require a professional TSS recalibration after bumper install.

Finish, Maintenance, and Options

Unless you choose the powder-coated option, this product will need to be painted or powder coated before installation to prevent rust.

Included Components and Notes

Includes Washer Tank Skid and winch controller relocation kit.
TRD Pro and TRD Off-Road models do not require an additional mini-skid panel.
Ships Ground.

Features

Requires cutting of the plastic bumper to install.
Fits most winches 8k-12k in size. Electrical control box must be relocated from top of winch and trimming/fitting will be required (Warn VR series is a confirmed fit).
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
Cutouts in front of bumper allow winch lever access.
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8
Heretic Studio 30" and Rigid SR-30 light bars.
Fog light pockets designed for Baja Designs Squadron lights. (Factory fog lights not supported)
Bumper is made from 3/16″ laser cut P&O steel.
Tubing for bull bars is all 1 3/4" OD
1/8" wall thickness except for gussets and headlight hoops which are 1 1/2" OD.
3/4″ thick D-ring tabs fully welded front and back come standard.
114 lbs without bull bar
121 lbs with low-height bull bar
128 lbs with mid-height bull bar with tube gussets
138 lbs with full height bull bar and headlight hoops.
All bull bar variants are compatible with Toyota Safety Sense and parking sensors. Be aware that some vehicles will randomly require a professional TSS system recalibration after bumper install.
Unless you choose our powder coated option
this product will need to be painted or powder coated before installation to prevent rust
Includes Washer Tank Skid and winch controller relocation kit.
TRD Pro and TRD Off-Road models do not require additional mini-skid panel.
This product ships Ground.
