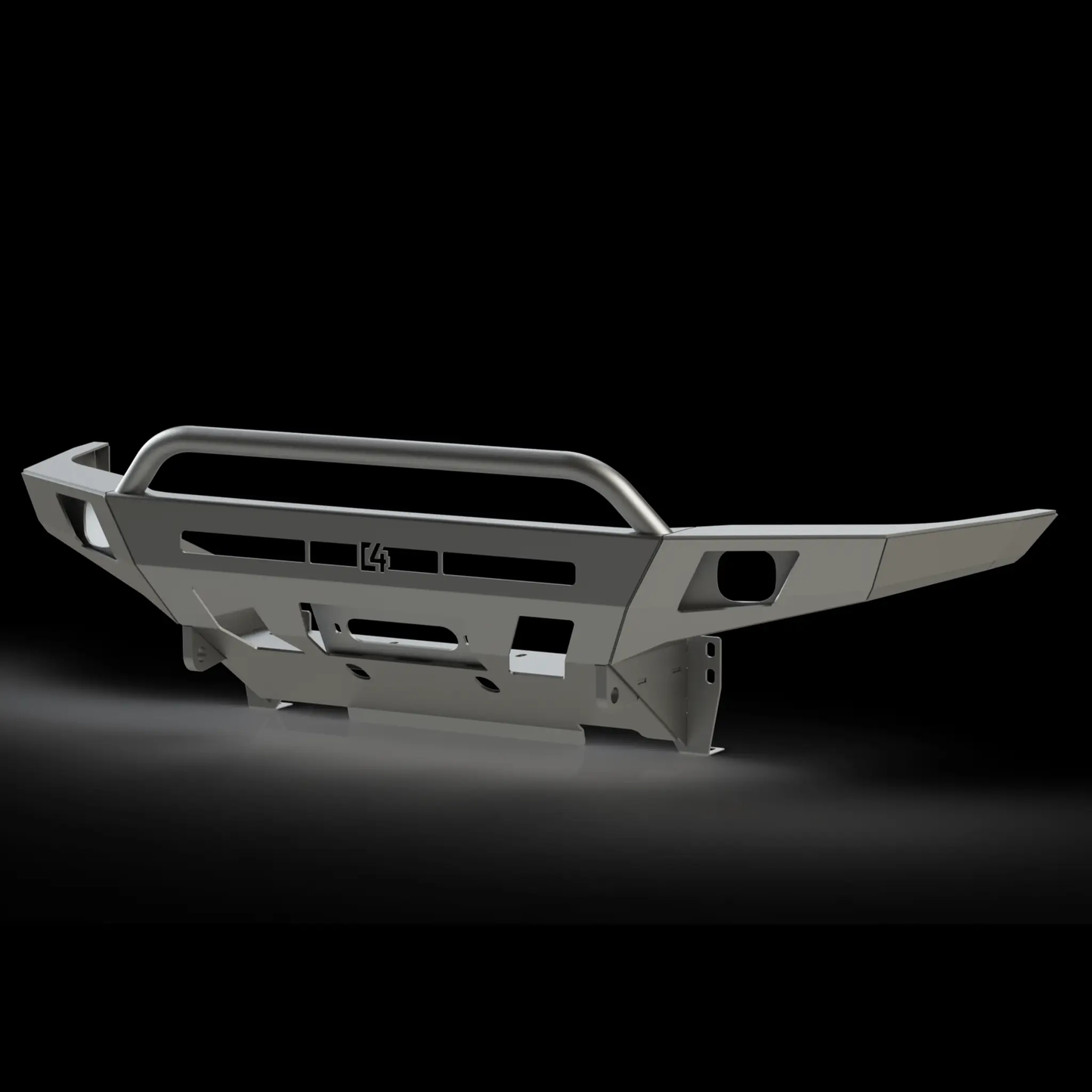

C4 Fabrication Tacoma Overland Front Bumper / 3rd Gen / 2016-2023

Built for the Toyota Tacoma 3rd Gen (2016–2023), the C4 Fabrication Tacoma Overland Front Bumper combines rugged protection with winch-ready access for overland builds. From laser-cut 3/16" P&O steel to 1/4" mounting plates, this bumper is engineered for strength, while thoughtful cutouts and mounting options support a wide range of accessories.

Construction and finish

• Material: 3/16" laser-cut P&O steel with 1/4" thick mounting plates
• Weight options: 115 lbs without a bull bar; 125 lbs with a mid-height bull bar; 130 lbs with a full-height bull bar; 135 lbs with a full-height bull bar and headlight hoops
• 3/4" thick D-ring tabs fully welded front and back
• Rust prevention: painting or powder coating is required unless you choose the powder-coated option

Winch compatibility and installation

• Fits most winches in the 8k–12k range
• Relocate the electrical control box for many winches; recommended for best fit
• Integrated control box winches may require trimming of grille support brackets to fit
• Common compatible winches include ComeUp, Smittybilt X20, Warn Zeon, and VR series
• Recommend synthetic rope with a hawse-style fairlead for optimal fit and performance
• Note: Some roller fairleads may be too large to fit the recessed fairlead mounting plate
• Cutting of the plastic bumper is required to install
• Cutouts in front of the bumper provide winch lever access

Lighting and fog light compatibility

• Designed to accommodate a 30" single-row light bar (specifically designed for Baja Designs S8)
• Extreme LED 30" 5D light bar and RIGID 30" SR series also fit
• Fog light pockets designed for Baja Designs Squadron lights
• Factory fog lights are not supported

Fitment, access, and accessory notes

• Projection-friendly design includes cutouts for winch lever access
• Bumper is intended to fit 3rd Gen Toyota Tacomas with the outlined dimensions and cutouts
• Mid-height bull bar is not compatible with Toyota Safety Sense

Finish options and installation care

• If you don’t select the powder-coated option, you’ll need to paint or powder coat before installation to prevent rust
