C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2012-2015

The C4 Fabrication Tacoma Hybrid Front Bumper for 2nd Gen Tacomas (2012–2015) blends heavy-duty protection with bolt-on simplicity. Built for serious off-roaders and overlanders, it offers winch readiness, 30" light-bar compatibility, and durable steel construction without permanent modifications to your truck.

Key Features

• 100% bolt-on installation with no welding or plastic bumper cutting required; only minor trimming of the sheet metal bracket under the headlights.
• Winch-ready design with front cutouts for winch rope access and clutch lever; fits most 8,000–12,000 lb winches.
• Relocation of the electrical control box is recommended for some setups; integrated control box winches may require trimming of grille support brackets to fit.
• Common fitment with popular winches such as ComeUp, Smittybilt X20, Warn Zeon, and VR series.
• Best results with synthetic rope and a hawse-style fairlead; some roller fairleads may be too large for the bumper’s recessed fairlead mounting plate.
• Rigid steel construction: bumper winch plate and mounting plates are 1/4" thick; main bumper body is 3/16" thick; tubing is 1 3/4" OD with 1/8" wall.
• 3/4" thick D-ring tabs fully welded front and back for reliable recovery points.

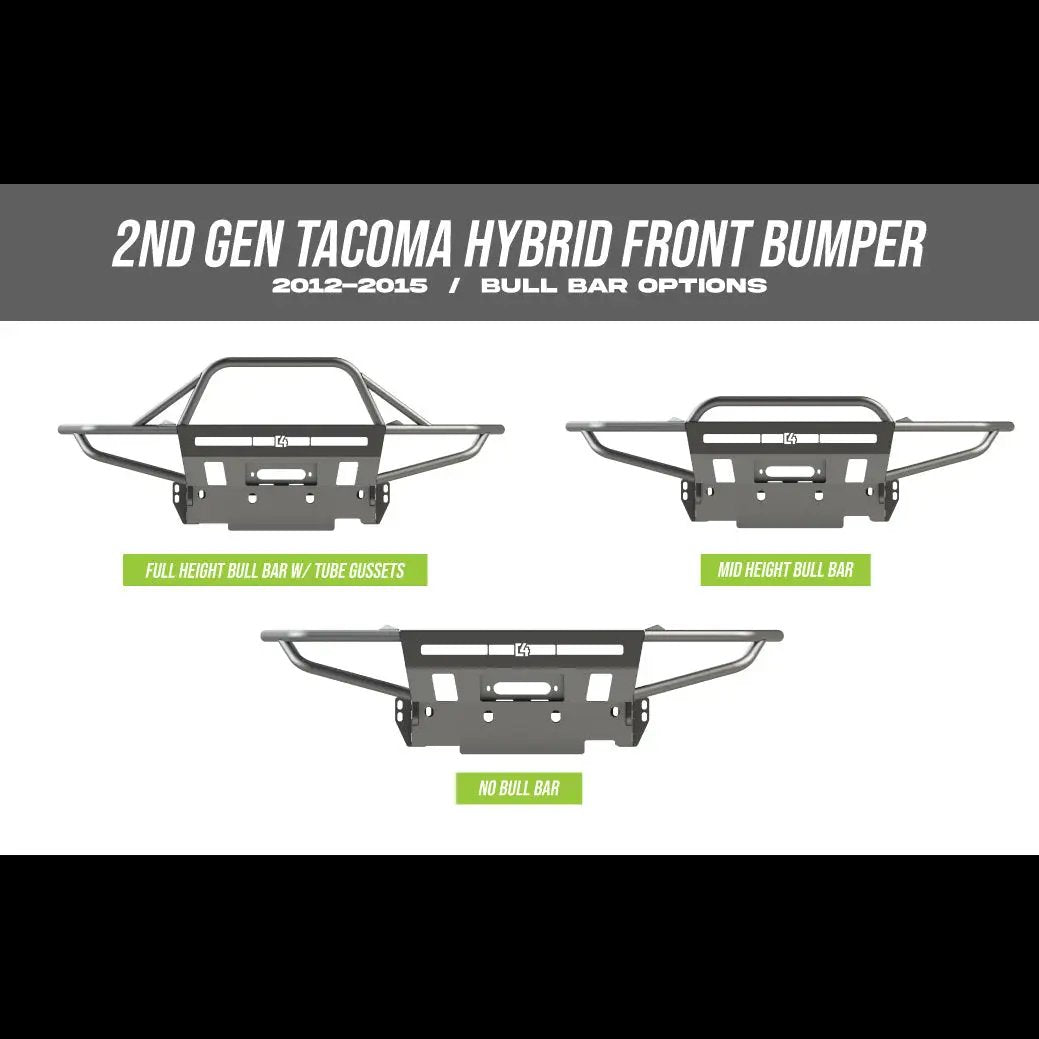

• Weight options to match your setup: 125 lbs (no bull bar), 130 lbs (mid-height bull bar), 137 lbs (full-height bull bar with side tube gussets).
• Designed to accommodate 30" single-row light bars (specifically Baja Designs S8); also compatible with Extreme LED 30" 5D and RIGID 30" SR series.
• Includes additional Front Bumper Frame Support Brackets (a $177 value) with all 2nd Gen Tacoma Overland and Hybrid bumpers.
• Finish note: unless you opt for the powder-coated version, painting or powder coating is recommended prior to installation to prevent rust.

Fitment, Lighting & Accessory Compatibility

Engineered specifically for the 2nd Gen Toyota Tacoma (2012–2015) to deliver robust front-end protection while preserving essential access points. The bumper’s design includes cutouts to reach the winch rope and clutch lever, ensuring smooth operation without removing the bumper. It supports 30" single-row light bars and is compatible with high-end LED options from Baja Designs, Extreme LED, and RIGID, offering flexibility for night-time visibility and off-road signaling.

Construction & Durability

This bumper uses a proven steel-build approach: 1/4" thick winch plate and mounting plates, 3/16" main body, and 1 3/4" OD tubing with 1/8" wall. D-ring tabs are fully welded on both faces for maximum recovery strength, and the mounting system is designed to endure demanding off-road use. The result is a durable, long-lasting front bumper that stands up to rocks, trails, and daily driving.

Installation & Finish

The installation is designed to be a straightforward bolt-on process, minimizing downtime and complexity. If you don’t select the powder-coated option, plan for painting or powder coating to prevent rust before installation. The bumper’s build also includes additional frame support brackets to reinforce the mounting point for enhanced rigidity on all 2nd Gen Tacoma Overland and Hybrid configurations.
