C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2012-2015

The C4 Fabrication Tacoma Hybrid Front Bumper for the 2nd Gen Tacoma (2012–2015) is a rugged, bolt-on upgrade designed for serious off-road use. It delivers robust steel construction, winch readiness, and dedicated lighting compatibility, all while maintaining a straightforward installation process for enthusiasts who prefer a clean, no-wuss approach to upgrades.

Key Features

• 100% bolt-on installation with no welding or plastic bumper cutting required
• Minor trimming of the sheet metal bracket under the headlights needed
• Winch compatible with cutouts in the front for winch rope and clutch lever access
• Fits most 8k–12k winches; relocation of the electrical control box is recommended
• Integrated control box winches may require some trimming of grille support brackets to fit
• Common compatible winches include ComeUp, Smittybilt X20, Warn Zeon and VR series
• Best fit with synthetic rope and hawse-style fairlead; some roller fairleads may be too large for the recessed fairlead plate
• Winch plate and mounting plates are 1/4" thick steel; bumper main body is 3/16" thick steel
• Tubing: 1 3/4" OD, 1/8" wall thickness
• 3/4" thick D-ring tabs fully welded front and back

Construction & Materials

• Sturdy steel construction designed to withstand rugged off-road use
• Front winch rope and clutch access cutouts for convenient operation
• 32"–30" lighting compatibility with specific support for Baja Designs S8 light bar and other 30" single-row bars

Lighting & Fitment

• Designed to fit 30" single-row light bars; specifically designed for Baja Designs S8
• Extreme LED 30" 5D light bar and RIGID 30" SR series will also fit

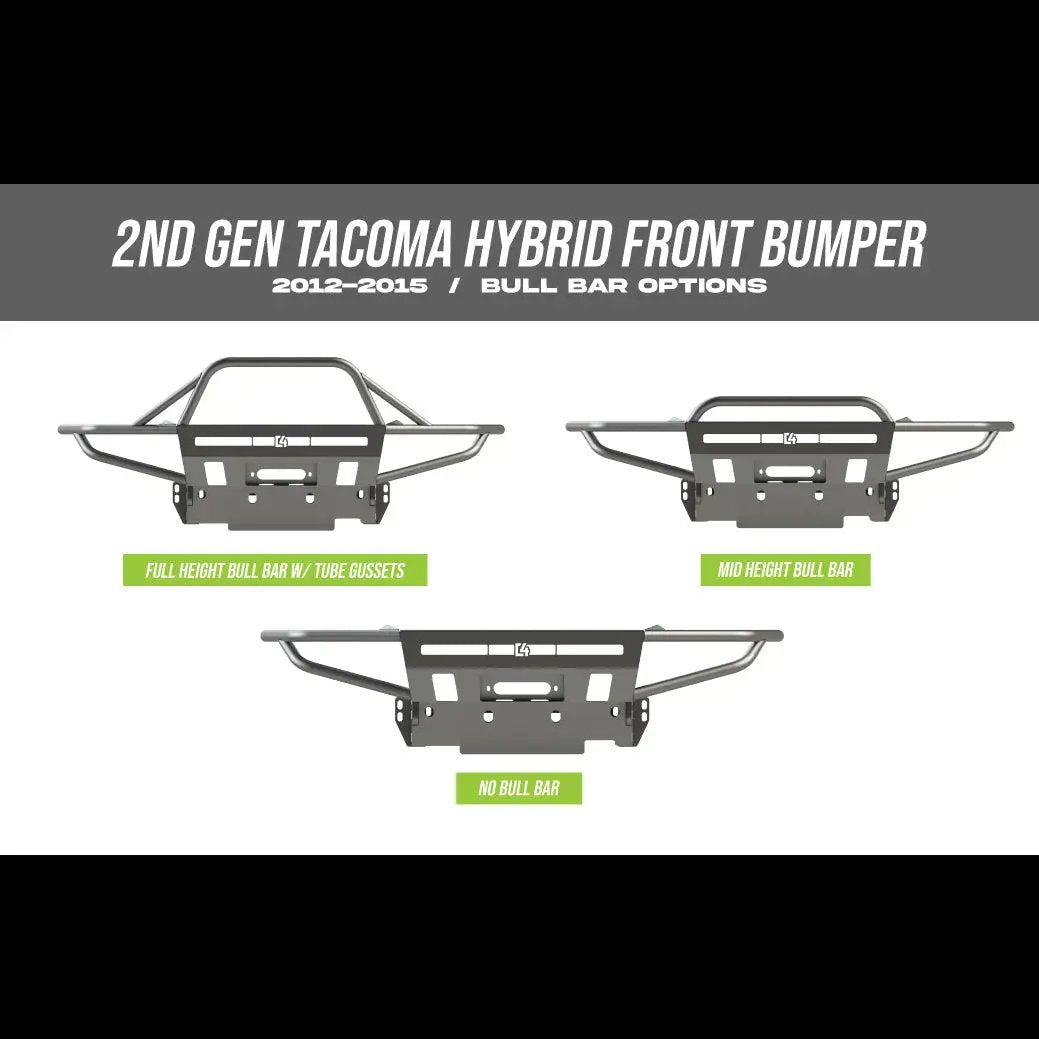

Weight, Variants & Accessories

• Without Bull Bar: 125 lbs
• With Mid-Height Bull Bar: 130 lbs
• With Full Height Bull Bar and side tube gussets: 137 lbs
• Additional Front Bumper Frame Support Brackets included with all 2nd Gen Tacoma Overland and Hybrid front bumpers ($177 value)

Compatibility & Application

• Fits 2012–2015 Toyota Tacoma 2nd Gen
• Designed for overland and off-road use with reinforced protection and mounting options

Finish, Coating & Maintenance

• Unless you choose the powder-coated option, the bumper will need to be painted or powder coated before installation to prevent rust

Winch Support & Electrical Considerations

• Winches in the 8k–12k range are suitable; relocation of the electrical control box is recommended for best fit
• Integrated control box winches may require trimming of grille support brackets to fit
• For best fitment and function, synthetic rope and hawse fairlead are recommended
