C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2012-2015

C4 Fabrication's Tacoma Hybrid Front Bumper for the 2nd Gen Toyota Tacoma (2012–2015) is a 100% bolt-on, heavy-duty upgrade designed to withstand serious off-road use. Built with a 3/16" steel main body, 1/4" winch plates, and 1 3/4" diameter tubing, it combines rugged protection with winch readiness and lighting customization, all without welding or plastic bumper cutting.

Key Features

• 100% bolt-on installation; minor trimming of the sheet metal bracket under the headlights required
• Winch compatible for 8k–12k capacity; cutouts in the front provide access to winch rope and clutch lever
• Designed to fit 30" single-row light bars (specifically Baja Designs S8); also compatible with Extreme LED 30" 5D and RIGID 30" SR series
• 1/4" thick steel bumper winch plate and mounting plates; 3/16" thick bumper main body
• 1 3/4" OD tubing with 1/8" wall thickness; 3/4" thick D-ring tabs fully welded front and back

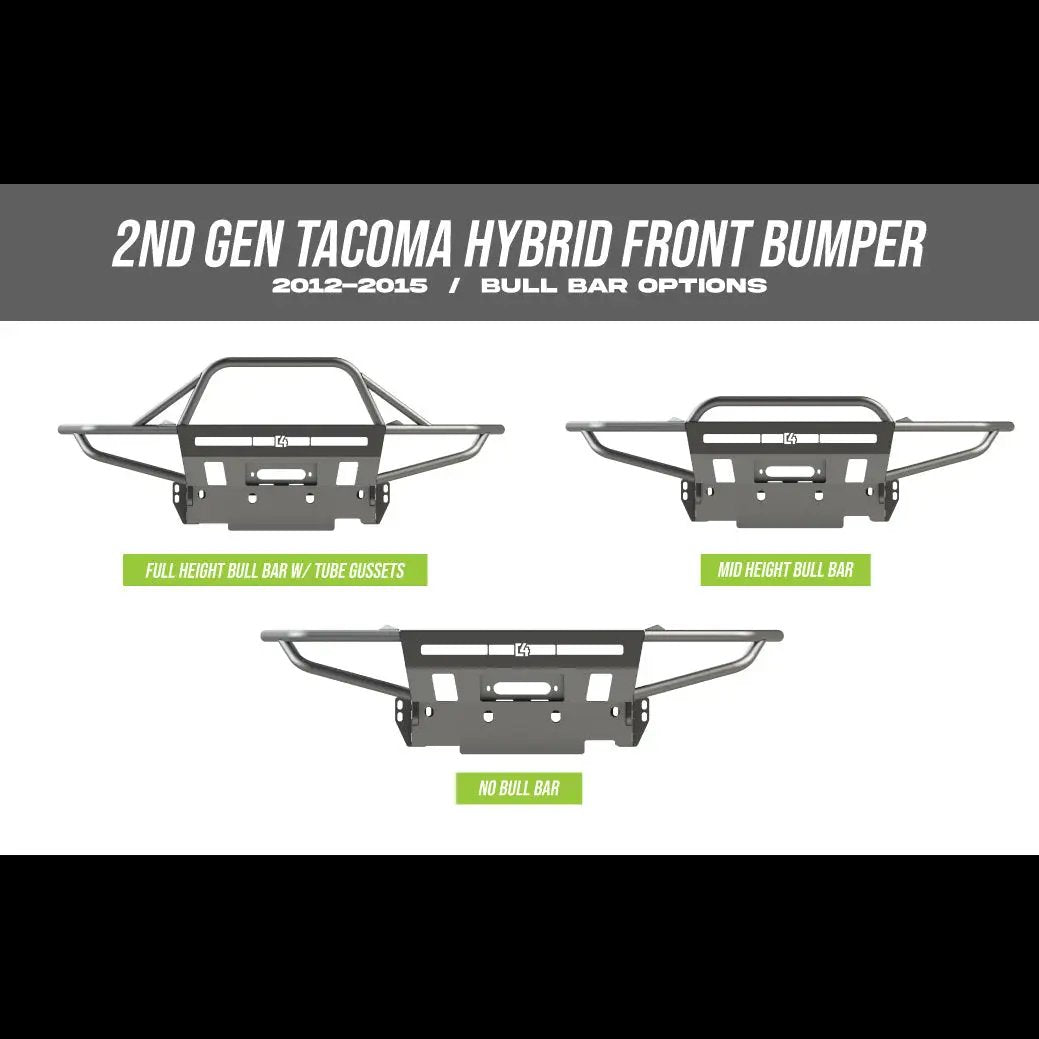

• Available configurations: without Bull Bar (125 lbs), with Mid-Height Bull Bar (130 lbs), with Full Height Bull Bar and side tube gussets (137 lbs)
• Additional Front Bumper Frame Support Brackets included with all 2nd Gen Tacoma Overland and Hybrid bumpers
• Powder coat option available; otherwise painting or coating required to prevent rust

Fitment & Compatibility

• Fits 2nd Gen Toyota Tacoma (2012–2015)
• Compatible with most winches in the 8k–12k range; for best fit, consider winches that allow relocating the electrical control box
• Integrated control box winches may require trimming of grille support brackets to fit
• Common compatible winches include ComeUp, Smittybilt X20, Warn Zeon, and VR series
• Some roller fairleads may be too large to fit the recessed fairlead mounting plate

Construction & Design

• Bumper winch plate and mounting plates are 1/4" thick steel
• Bumper main body is 3/16" thick steel
• Tubing is 1 3/4" OD with 1/8" wall thickness
• 3/4" thick D-ring tabs are fully welded front and back
• Designed to balance strength with weight considerations across three configurations

Lighting & Accessory Compatibility

• Specifically designed to accommodate a 30" Baja Designs S8 light bar
• Extends compatibility to Extreme LED 30" 5D light bar and RIGID 30" SR series

What’s Included & Added Value

• Additional Front Bumper Frame Support Brackets included with all 2nd Gen Tacoma Overland and Hybrid bumpers (valued at $177)

Finish, Installation & Maintenance

• Finish: powder coat option available; without powder coat, painting or coating is recommended to prevent rust
• Installation notes: no welding required; minor trimming of the sheet metal bracket under the headlights is necessary
• Warranty and care: follow hardware and coating guidelines to maintain the bumper’s finish and structural integrity

Additional Considerations

• Winches with relocated electrical control boxes are recommended for easier fitment
• Integrated control box winches may require trimming of grille support brackets to fit
• Be mindful that some roller fairleads could be too large for the bumper's recessed fairlead mounting plate
