C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2012-2015

Introduction

The C4 Fabrication Tacoma Hybrid Front Bumper for 2nd Gen Tacomas (2012–2015) is a rugged, bolt-on upgrade built for off-road enthusiasts who demand serious protection without sacrificing accessibility. Designed to install without welding or plastic bumper cutting, it offers winch readiness, reinforced construction, and thoughtful access points for recovery gear and lighting.

Key Features

• 100% bolt-on installation — no welding required
• Minor trimming of the sheet metal bracket under the headlights needed
• Winch compatible with cutouts to access winch rope and clutch lever
• Fits most 8,000–12,000 lb winches; relocation of the electrical control box recommended for certain setups
• Integrated control box winches may require trimming of grille support brackets to fit
• Common winches supported: ComeUp, Smittybilt X20, Warn Zeon, VR series
• Recommend synthetic rope and hawse-style fairlead for best fit and function
• Caution: some roller fairleads may be too large for the recessed fairlead mounting plate

Construction & Build

• Bumper winch plate and mounting plates: 1/4″ thick steel
• Bumper main body: 3/16″ thick steel
• Tubing: 1 3/4″ OD, 1/8″ wall
• 3/4″ thick D-ring tabs, fully welded to the bumper front and back

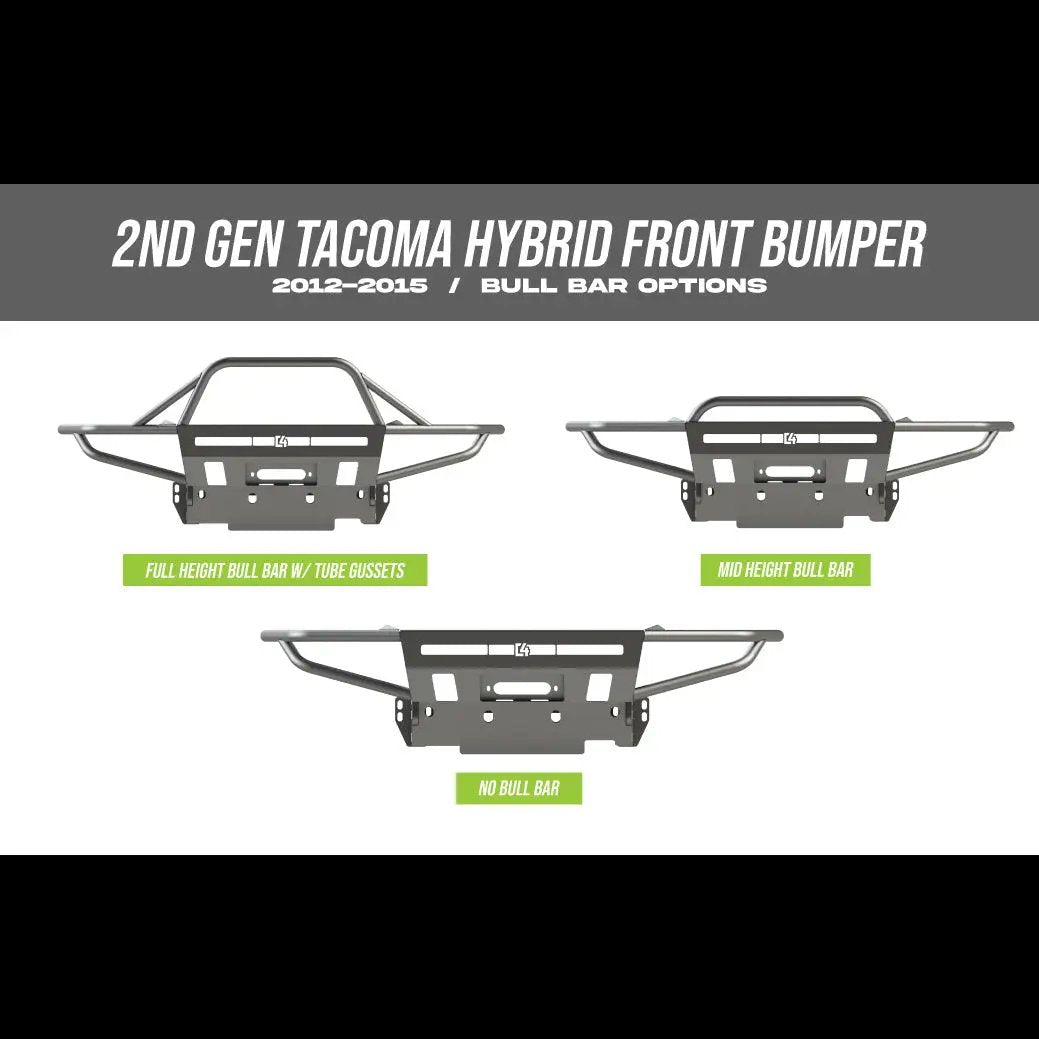

• Weight: 125 lbs (bumper without bull bar); 130 lbs (mid-height bull bar); 137 lbs (full-height bull bar with side tube gussets)

Lighting & Accessory Compatibility

• Designed to accommodate a 30″ single-row light bar (specifically designed for Baja Designs S8)
• Also compatible with Extreme LED 30″ 5D light bar and RIGID 30″ SR series

Fitment & Installation Notes

• All bumpers are winch-ready and designed for a straightforward bolt-on installation
• Minor trimming of the sheet metal bracket under the headlights is required
• No welding or plastic bumper cutting required for installation
• Additional Front Bumper Frame Support Brackets are included with all 2nd Gen Tacoma Overland and Hybrid front bumpers (a $177 value)

Finish, Maintenance & Warranty

• Unless you select the powder-coated option, the bumper will need painting or powder coating to prevent rust

What’s Included

• Front bumper assembly with 1/4″ thick winch plates and 3/16″ main body
• 1 3/4″ OD, 1/8″ wall tubing
• 3/4″ thick D-ring tabs (front and back, fully welded)
• Additional Front Bumper Frame Support Brackets (included)
