C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2012-2015

The C4 Fabrication Tacoma Hybrid Front Bumper is a rugged, bolt-on upgrade designed specifically for the 2nd Gen Toyota Tacoma (2012–2015). It delivers serious off-road protection, winch readiness, and a clean, no-wuss installation that avoids welding or plastic bumper cutting. If you want a capable front bumper that mounts quickly and tolerates demanding trails, this is built for you.

Key benefits

• 100% bolt-on installation with no welding required
• Minor trimming of the sheet metal bracket under the headlights only
• Winch compatible for 8k–12k capacity; cutouts provide access to winch rope and clutch lever
• Relocation-ready electrical control box recommended for some winches; integrated control box bumpers may need grille bracket trimming
• Designed to fit 30″ single-row light bars (Baja Designs S8, Extreme LED 30″ 5D, RIGID 30″ SR series) for a streamlined lighting setup
• 1/4″ thick steel bumper winch plate and mounting plates; 3/16″ thick main body; 1 3/4″ OD tubing with 1/8″ wall
• 3/4″ thick D-ring tabs fully welded front and back
• 2nd Gen specific: includes Additional Front Bumper Frame Support Brackets (a $177 value) with all Overland and Hybrid bumpers
• Paint or powder coat guidance: unless you choose the powder coated option, painting is advised before installation to prevent rust

Fit, compatibility, and installation

• Fits 2nd Gen Tacoma (2012–2015) models and is designed for straightforward bolt-on installation
• No welding or plastic bumper cutting required for installation
• Minor trimming of the sheet metal bracket under the headlights may be needed
• Bumper is winch ready and includes cutouts to access winch rope and clutch lever
• Winches in the 8k–12k range are supported; prefer winches that allow relocation of the electrical control box
• Integrated control box winches may require trimming of grille support brackets to fit
• Common compatible winches include ComeUp, Smittybilt X20, Warn Zeon, and VR series
• For best fitment and function, use synthetic rope with a hawse-style fairlead; some roller fairleads may be too large for the bumper’s recessed fairlead mounting plate

Construction & hardware details

• Winch plate and mounting plates: 1/4″ thick steel
• Main bumper body: 3/16″ thick steel
• Tubing: 1 3/4″ outside diameter, 1/8″ wall thickness
• D-ring tabs: 3/4″ thick and fully welded on both front and back

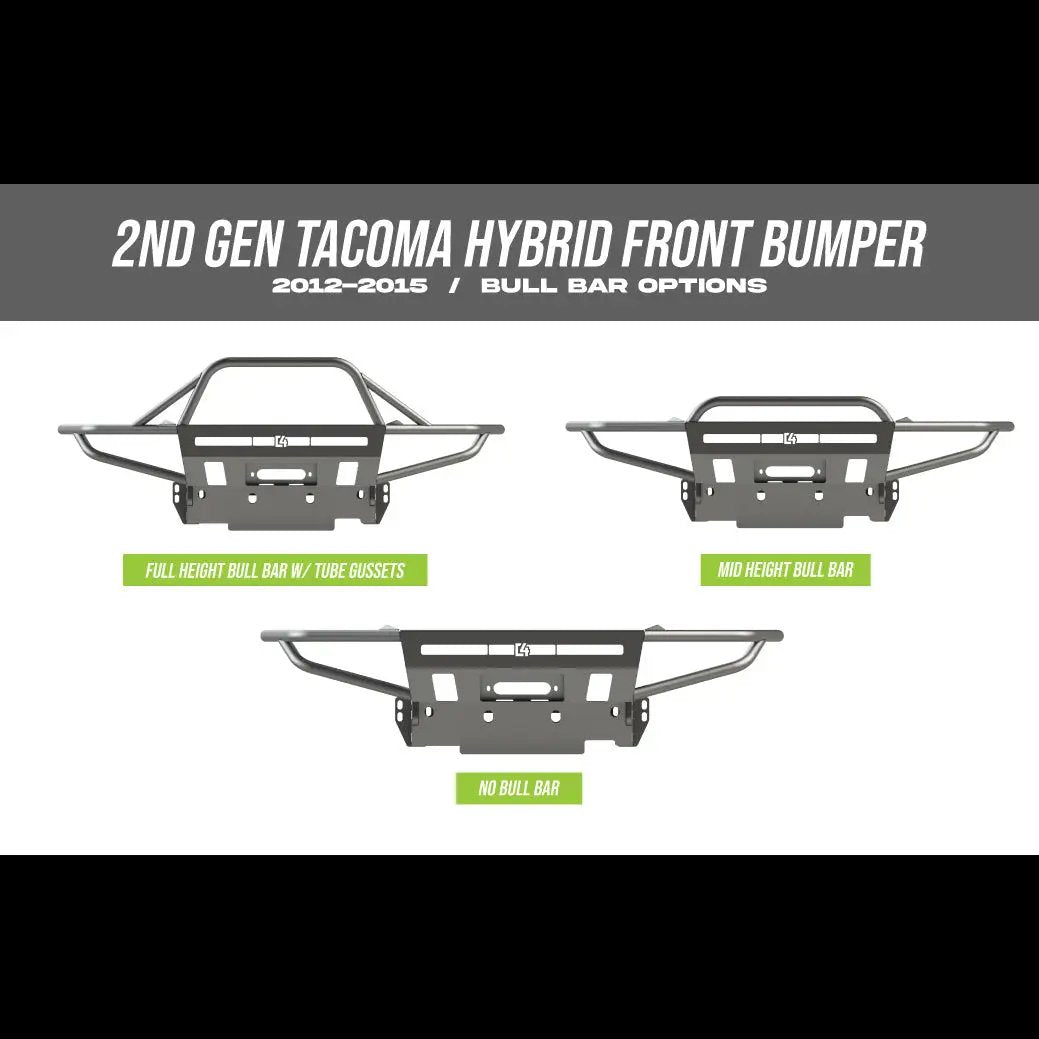

Weight by configuration

• Bumper without Bull Bar: 125 lbs
• Bumper with Mid-Height Bull Bar: 130 lbs
• Bumper with Full Height Bull Bar plus side tube gussets: 137 lbs

Lighting compatibility

• Designed to accommodate a 30″ single-row light bar
• Specified compatibility includes Baja Designs S8; Extreme LED 30″ 5D; RIGID 30″ SR series

What’s included

• Additional Front Bumper Frame Support Brackets (included with all 2nd Gen Tacoma Overland and Hybrid front bumpers)
• All required mounting hardware for a robust, bolt-on install
