C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2012-2015

Name: C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2012-2015
Brand: C4 Fabrication
SKU: 1200-3212-30-MH-W-01NA
Price: 1799.0 USD

Read Product Details

1200-3212-30-MH-W-01NA

In Stock (1 available)

$1,799.00

Secure checkout
SSL encrypted payment
Fast Shipping
2-3 Business days

Description

The C4 Fabrication Tacoma Hybrid Front Bumper for the 2nd Gen Toyota Tacoma (2012–2015) delivers rugged, bolt-on protection with true off-road capability. Engineered for serious trail use, it provides winch compatibility, thoughtful winch access, and compatibility with large single-row light bars—without the need for welding or cutting the bumper itself.

Key Features

100% bolt-on installation with no welding or plastic bumper cutting required
Minor trimming of the sheet metal bracket under the headlights only
Designed to fit winches in the 8,000–12,000 lb range; recessed fairlead mounting plate for a clean, secure fit
Cutouts in the front for winch rope access and clutch lever access
Frame support brackets included for enhanced rigidity (2nd Gen Overland & Hybrid bumpers)
1/4" thick steel bumper winch plate and mounting plates; main body is 3/16" thick steel
Tubing: 1 3/4" OD, 1/8" wall thickness; 3/4" thick D-ring tabs fully welded front and back
Compatible with popular winches (e.g., ComeUp, Smittybilt X20, Warn Zeon, VR series); synthetic rope with hawse fairlead recommended
Designed for 30" single-row light bars; compatible with Baja Designs S8, Extreme LED 30" 5D, and RIGID 30" SR series

Construction & Finish

All steel construction for lasting strength and protection

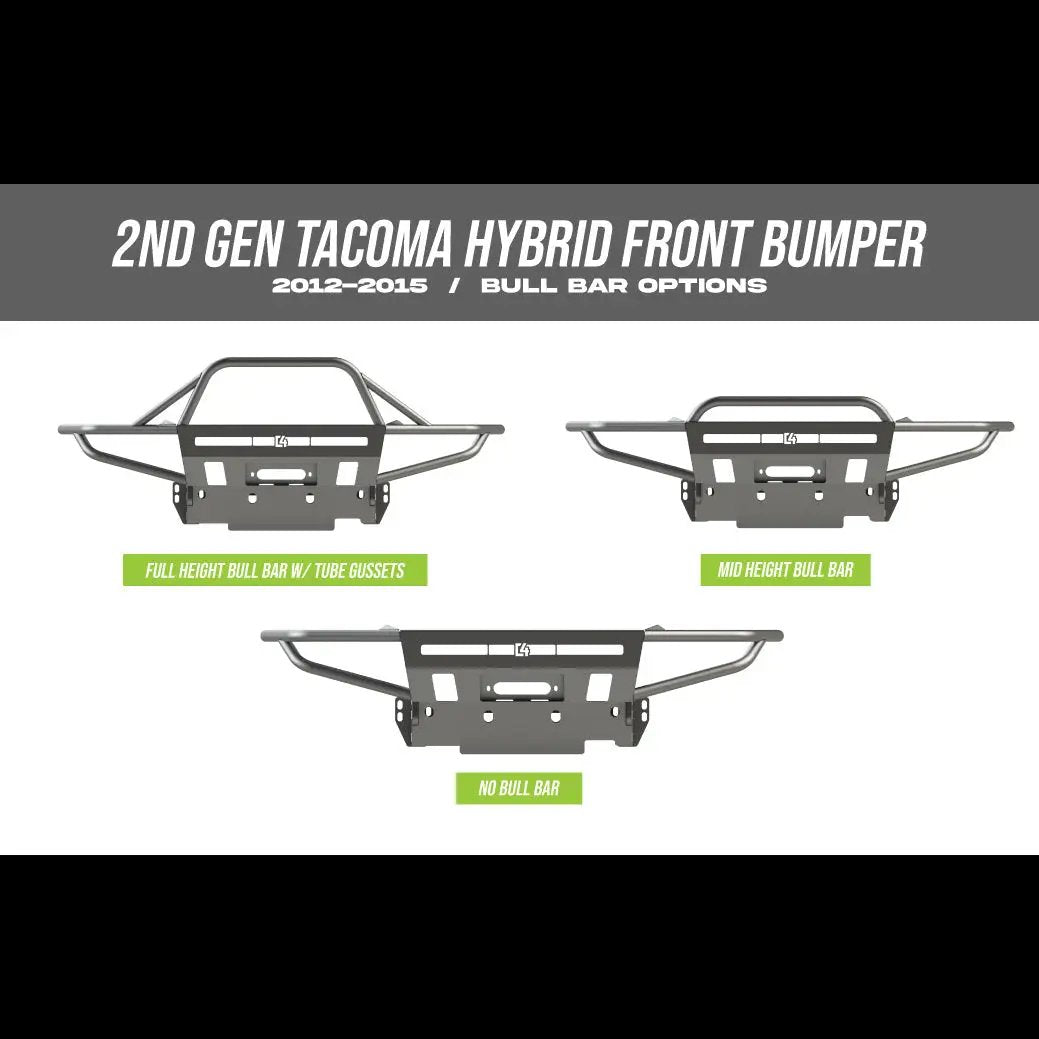

Weight variants based on configuration:
- Without Bull Bar: 125 lbs
- Mid-Height Bull Bar: 130 lbs
- Full Height Bull Bar with side tube gussets: 137 lbs
Powder coat option available; otherwise, painting or powder coating is recommended to prevent rust

Winch Compatibility & Access

Compatible with most 8k–12k winches; some relocation of the electrical control box is recommended
Integrated control box winches may require trimming of grille support brackets to fit
Access cutouts allow easy access to winch rope and clutch lever
Some roller fairleads may be too large for the recessed fairlead mounting plate

Lighting & Fitment

Specifically designed to accommodate a 30" single-row light bar
Fitment tested with Baja Designs S8, Extreme LED 30" 5D, and RIGID 30" SR series

Compatibility & Accessories

Fits 2nd Gen Toyota Tacoma (2012–2015)
Includes additional Front Bumper Frame Support Brackets to enhance rigidity

What’s Included & Optional Upgrades

Front bumper frame support brackets included (valued at $177.00)
Powder-coated option available for added corrosion resistance

Installation Considerations

100% bolt-on with no required welding
Minor trimming of the sheet metal bracket under the headlights required
No bumper cutting required

Features

Bumper is 100% bolt on. Minor trimming of the Sheet metal bracket under the headlights is required. No welding or plastic bumper cutting required for installation.
All bumpers are winch compatible.
Bumper has cutouts in the front to allow access to winch rope and clutch lever.
Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (ComeUp
Smittybilt X20
Warn Zeon and VR...
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
Bumper winch plate and mounting plates are 1/4″ thick steel. Bumper main body is 3/16″ thick steel. Tubing is all 1 3/4″ OD
1/8″ wall thickness.
3/4″ thick D-ring tabs fully welded front and back come standard.
Bumper without Bull Bar weighs 125lbs. Bumper with Mid-Height Bull Bar weighs 130 lbs. Bumper with Full Height Bull Bar and side tube gussets weighs 137 lbs.
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series
will also fit.
Additional Front Bumper Frame Support Brackets included with all 2nd Gen Tacoma Overland and Hybrid front bumpers! ($177.00 value).
Unless you choose our powder coated option
this product will need to be painted or powder coated before installation to prevent rust
