C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2012-2015

Name: C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2012-2015
Brand: C4 Fabrication
SKU: 1200-3212-30-FH-W
Price: 1653.0 USD

Read Product Details

1200-3212-30-FH-W

In Stock (1 available)

$1,653.00

Secure checkout
SSL encrypted payment
Fast Shipping
2-3 Business days

Description

C4 Fabrication's Tacoma Hybrid Front Bumper for the 2nd Gen Toyota Tacoma (2012–2015) delivers rugged front-end protection with a true bolt-on installation. It installs without welding or plastic bumper cutting, requiring only a minor trim to the sheet metal bracket under the headlights for a clean, secure fit.

Key Benefits

100% bolt-on installation with no welding required
Winch-ready design with front cutouts for rope access and clutch lever
Compatible with most 8,000–12,000 lb winches; recommended to relocate the electrical control box for optimal fit
Some integrated control box winches may need trimming of grille support brackets to fit
Designed to work best with synthetic rope and a hawse-style fairlead; some roller fairleads may be too large for the recessed fairlead plate

Winch Compatibility & Fit

Common compatible models include ComeUp, Smittybilt X2O, Warn Zeon, and VR series
Winch plate and mounting plates are 1/4" thick steel
Bumper main body is 3/16" thick steel

Construction & Durability

Tubing: 1 3/4" OD, 1/8" wall thickness
3/4" thick D-ring tabs, fully welded front and back

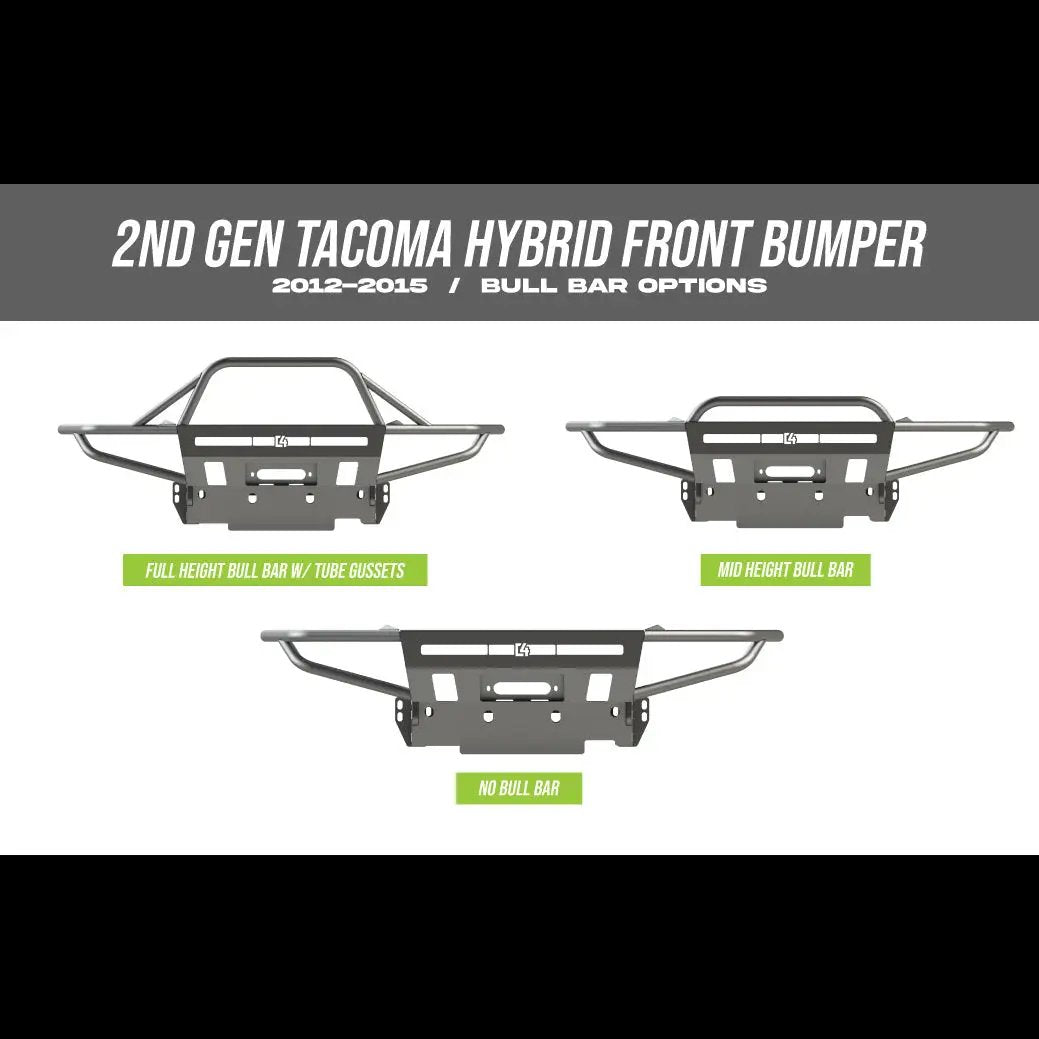

Weight: 125 lbs (no bull bar); 130 lbs (Mid-Height Bull Bar); 137 lbs (Full Height Bull Bar with side tube gussets)

Light Bar & Accessory Fitment

Designed to accommodate a 30" single-row light bar, specifically optimized for Baja Designs S8
Also fits Extreme LED 30" 5D and RIGID 30" SR series bars

Included Accessories & Value

Additional Front Bumper Frame Support Brackets included with all 2nd Gen Tacoma Overland and Hybrid front bumpers (a $177 value)

Finish & Maintenance

Unless you select the powder-coated option, the bumper will need painting or powder coating to prevent rust after installation

What to Expect During Installation

Entirely bolt-on; minor trimming of the sheet metal bracket under the headlights is required
No welding or plastic bumper cutting required

Features

Bumper is 100% bolt on. Minor trimming of the Sheet metal bracket under the headlights is required. No welding or plastic bumper cutting required for installation.
All bumpers are winch compatible.
Bumper has cutouts in the front to allow access to winch rope and clutch lever.
Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (ComeUp
Smittybilt X20
Warn Zeon and VR...
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
Bumper winch plate and mounting plates are 1/4″ thick steel. Bumper main body is 3/16″ thick steel. Tubing is all 1 3/4″ OD
1/8″ wall thickness.
3/4″ thick D-ring tabs fully welded front and back come standard.
Bumper without Bull Bar weighs 125lbs. Bumper with Mid-Height Bull Bar weighs 130 lbs. Bumper with Full Height Bull Bar and side tube gussets weighs 137 lbs.
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series
will also fit.
Additional Front Bumper Frame Support Brackets included with all 2nd Gen Tacoma Overland and Hybrid front bumpers! ($177.00 value).
Unless you choose our powder coated option
this product will need to be painted or powder coated before installation to prevent rust
