C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011

Name: C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011
Brand: C4 Fabrication
SKU: 1200-3205-30-NB-01NA
Price: 1599.0 USD

Read Product Details

1200-3205-30-NB-01NA

In Stock (1 available)

$1,599.00

Secure checkout
SSL encrypted payment
Fast Shipping
2-3 Business days

Description

The C4 Fabrication Tacoma Hybrid Front Bumper is a rugged, bolt-on upgrade engineered for 2005–2011 Toyota Tacoma 2nd Gen pickups. It delivers serious off-road protection with no cutting or welding required, and it’s tuned for winch-equipped adventures right out of the box.

Key Benefits

100% bolt-on installation: no cutting or welding needed, making installation straightforward and reversible.
Winch ready: designed to accommodate most 8,000–12,000 lb winches with front-mounted rope access and clutch lever cutouts.
Access cutouts: front openings allow easy access to winch rope and clutch lever for quick operation.
Sturdy construction: bumper winch plate and mounting plates are 1/4" thick steel; main body is 3/16" thick steel; tubing is 1 3/4" OD with 1/8" wall thickness.
Integrated D-ring mounts: 3/4" thick D-ring tabs are fully welded on the front and back for added strength.

Compatibility, Winches, and Electrical

Winch range: fits most winches 8k–12k lbs.
Electrical box considerations: for winches that relocate the electrical control box, relocation is recommended; integrated control box winches may require trimming of grille support brackets to fit.
Popular options: ComeUp, Smittybilt X20, Warn Zeon, and VR series are commonly compatible.
Fairlead guidance: for the best fit, use a synthetic rope and a hawse-style fairlead; some roller fairleads may be too large for the bumper’s recessed fairlead mounting plate.

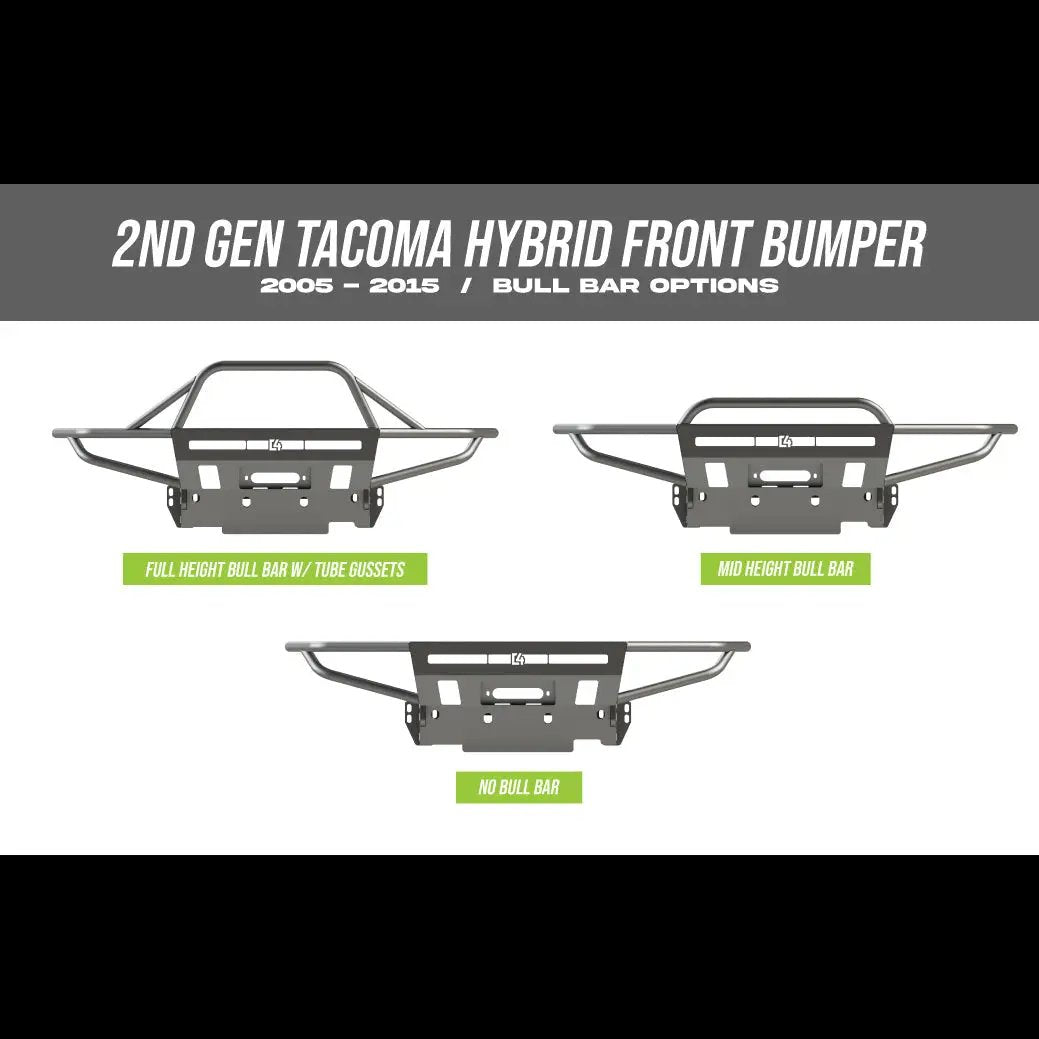

Weight and Configurations

Bumper without Bull Bar: 125 lbs
Bumper with Mid-Height Bull Bar: 130 lbs
Bumper with Full Height Bull Bar and side tube gussets: 137 lbs

Lighting and Bar Compatibility

Designed to fit 30" single-row light bars, specifically tuned for Baja Designs S8
Also compatible with Extreme LED 30" 5D light bars and RIGID 30" SR series

Included Accessories

All 2nd-gen Tacoma Hybrid front bumpers include Additional Front Bumper Frame Support Brackets ($177.00 value).

Finish, Maintenance, and Availability

Finish option: unless you choose our powder-coated option, the bumper will need to be painted or powder coated before installation to prevent rust.

Features

Straightforward installation
100% bolt on bumper
no cutting or welding of any kind required.
All bumpers are winch compatible.
Bumper has cutouts in the front to allow access to winch rope and clutch lever.
Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (ComeUp
Smittybilt X20
Warn Zeon and VR...
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
Bumper winch plate and mounting plates are 1/4″ thick steel. Bumper main body is 3/16″ thick steel. Tubing is all 1 3/4″ OD
1/8″ wall thickness.
3/4″ thick D-ring tabs fully welded front and back come standard.
Bumper without Bull Bar weighs 125lbs. Bumper with Mid-Height Bull Bar weighs 130 lbs. Bumper with Full Height Bull Bar and side tube gussets weighs 137 lbs.
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series
will also fit.
Additional Front Bumper Frame Support Brackets included with all 2nd gen Tacoma Hybrid front bumpers! ($177.00 value).
Unless you choose our powder coated option
this product will need to be painted or powder coated before installation to prevent rust
