C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011

Name: C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011
Brand: C4 Fabrication
SKU: 1200-3205-30-NB-W
Price: 1478.0 USD

Read Product Details

1200-3205-30-NB-W

In Stock (1 available)

$1,478.00

Secure checkout
SSL encrypted payment
Fast Shipping
2-3 Business days

Description

The C4 Fabrication Tacoma Hybrid Front Bumper is a rugged, bolt-on upgrade for the 2005–2011 Toyota Tacoma 2nd Gen. Built for serious off-road use, it delivers front-end protection with true winch readiness while keeping installation straightforward for DIY enthusiasts.

Key Benefits

100% bolt-on installation—no cutting or welding required
Winch compatible with built-in access cutouts for rope and clutch engagement
Supports most 8k–12k winches; relocation of the electrical control box is recommended
Integrated control box winches may require trimming of grille support brackets to fit
Designed to accommodate popular models (ComeUp, Smittybilt X20, Warn Zeon and VR series)
Ideal for synthetic rope with a hawse-style fairlead for best fitment; some roller fairleads may be too large for the recessed fairlead mounting plate
Sturdy construction: 1/4" thick steel bumper winch plate and mounting plates; 3/16" thick bumper main body
Powder-coated finish option available; otherwise paint or powder coat to prevent rust

Construction & Durability

Tubing: 1 3/4" OD, 1/8" wall thickness
3/4" thick D-ring tabs are fully welded to front and back

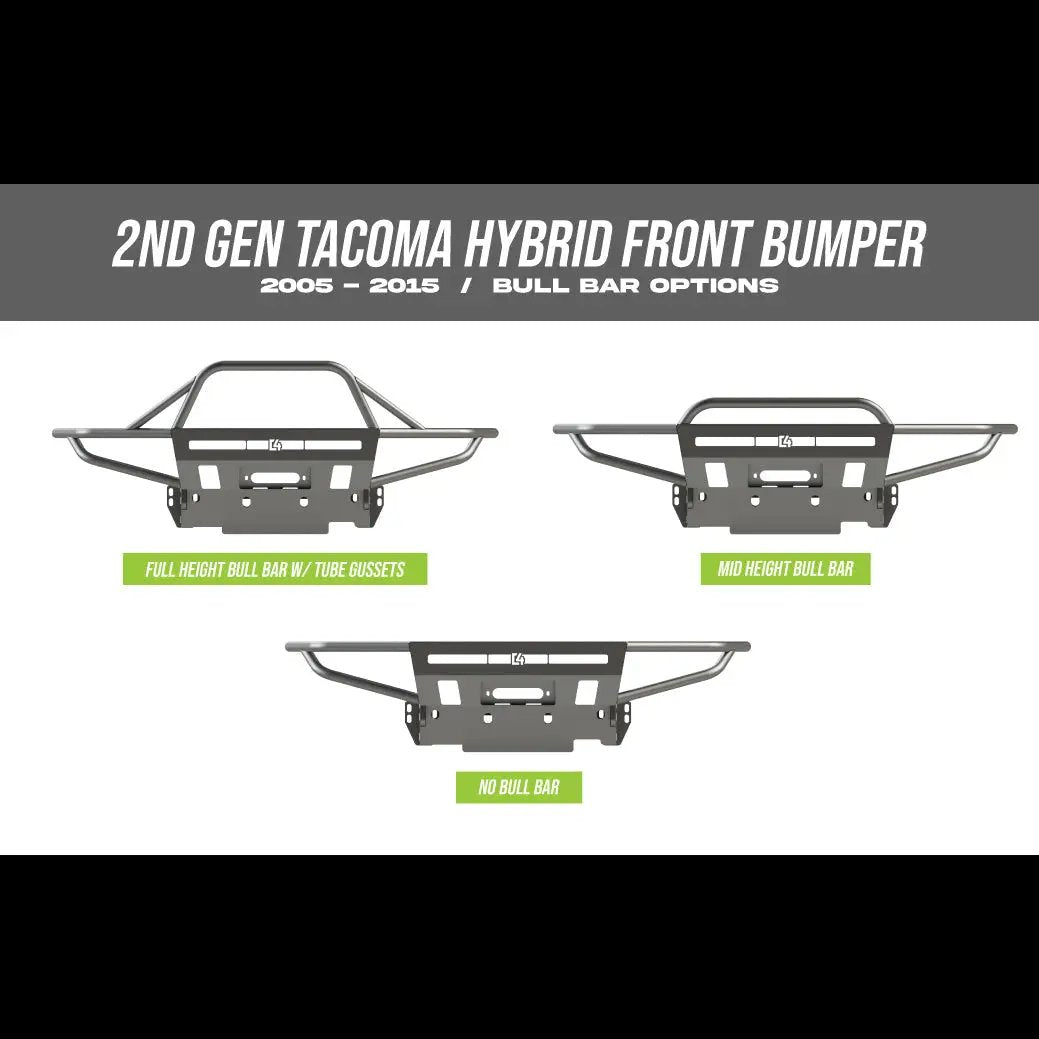

Weight varies by bull bar configuration:
- 125 lbs (without bull bar)
- 130 lbs (with mid-height bull bar)
- 137 lbs (with full-height bull bar and side tube gussets)

Fitment & Winch Options

Compatible with most 8k–12k winches; ideal for 30" single-row light bar applications
Front cutouts provide access to winch rope and clutch lever
Winches with relocated electrical control boxes are recommended; integrated control box winches may require trimming of grille support brackets
Common fitments include Baja Designs S8 30" light bar; Extreme LED 30" 5D and RIGID 30" SR series also fit

Light Bar & Accessory Fitment

Specifically designed to accommodate a 30" single-row light bar
Compatible with high-performance 30" lighting options from major brands

Included Features & Finish

Additional Front Bumper Frame Support Brackets included with all 2nd Gen Tacoma Hybrid front bumpers (a $177.00 value)
Finish options: powder coat available; otherwise job will require painting or powder coating before installation to prevent rust

Features

Straightforward installation
100% bolt on bumper
no cutting or welding of any kind required.
All bumpers are winch compatible.
Bumper has cutouts in the front to allow access to winch rope and clutch lever.
Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (ComeUp
Smittybilt X20
Warn Zeon and VR...
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
Bumper winch plate and mounting plates are 1/4″ thick steel. Bumper main body is 3/16″ thick steel. Tubing is all 1 3/4″ OD
1/8″ wall thickness.
3/4″ thick D-ring tabs fully welded front and back come standard.
Bumper without Bull Bar weighs 125lbs. Bumper with Mid-Height Bull Bar weighs 130 lbs. Bumper with Full Height Bull Bar and side tube gussets weighs 137 lbs.
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series
will also fit.
Additional Front Bumper Frame Support Brackets included with all 2nd gen Tacoma Hybrid front bumpers! ($177.00 value).
Unless you choose our powder coated option
this product will need to be painted or powder coated before installation to prevent rust
