C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011

Overview

The C4 Fabrication Tacoma Hybrid Front Bumper for the 2nd Gen Tacoma (2005–2011) is a rugged, bolt‑on recovery and protection solution crafted for off‑road enthusiasts. Designed for real-world use, it delivers winch readiness, heavy‑duty construction, and a purpose‑built mount system that installs without cutting or welding.

Key Features & Benefits

• 100% bolt‑on installation with no cutting or welding required for a straightforward upgrade.
• Winch compatible with most 8k–12k models; cutouts at the front provide access to winch rope and clutch lever.
• Relocateable electrical control box recommended for integrated control box winches; some trimming of grille support brackets may be needed to fit.
• Common fitment with popular winches such as ComeUp, Smittybilt X20, Warn Zeon, and VR series.
• Uses synthetic rope with a hawse fairlead recommended for best fit and function; some roller fairleads may be too large for the recessed fairlead plate.
• 1/4" steel winch plate and mounting plates; 3/16" thick bumper main body; tubing is 1 3/4" OD with 1/8" wall thickness; 3/4" D‑ring tabs fully welded front and back.
• Designed to accommodate 30" single‑row light bars (specifically Baja Designs S8); also fits Extreme LED 30" 5D and RIGID 30" SR series.
• Included with all 2nd Gen Tacoma Hybrid front bumpers: Additional Front Bumper Frame Support Brackets (a $177 value).
• Finish option: powder coating available; if not chosen, painting or powder coating is recommended to prevent rust.

Construction & Durability

• Bumper main body: 3/16" thick steel for robust impact resistance.
• Frame mounting: 1/4" thick steel bumper winch plate and mounting plates for secure, long‑lasting support.
• Tubing: 1 3/4" outer diameter, 1/8" wall thickness for added protection without excessive weight.
• D‑ring tabs: 3/4" thick and fully welded to endure heavy recovery loads.

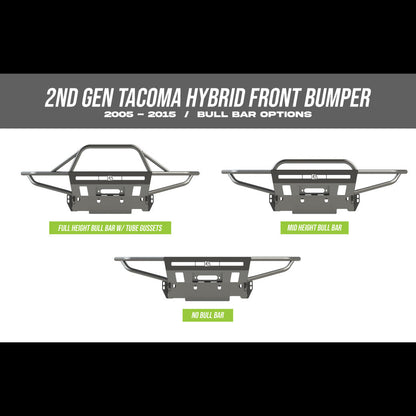

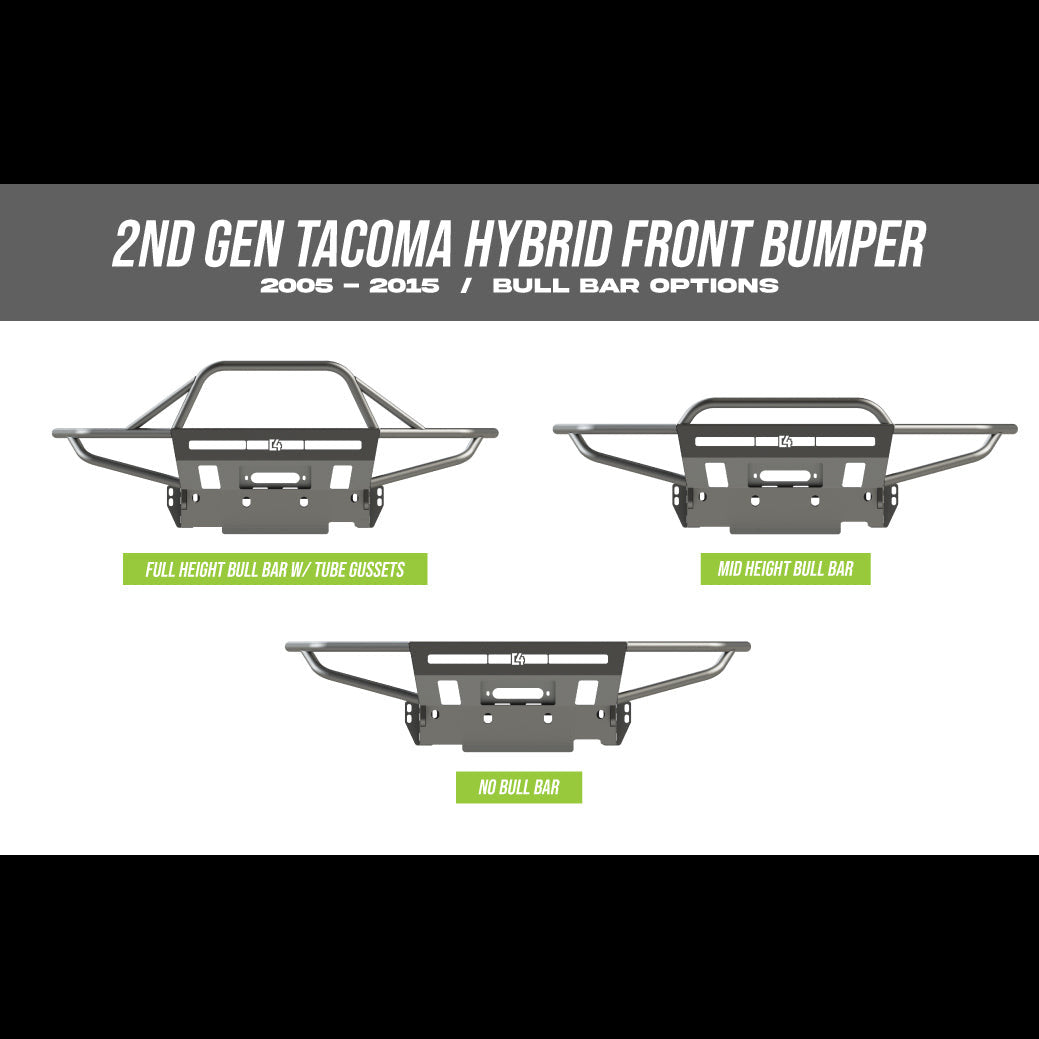

Weights & Configurations

• Without Bull Bar: 125 lbs
• With Mid‑Height Bull Bar: 130 lbs
• With Full Height Bull Bar and side tube gussets: 137 lbs

Fitment & Lighting

• Engineered specifically for the 2005–2011 Toyota Tacoma 2nd Gen platform.
• Compatible with 30" single‑row light bars; recommended options include Baja Designs S8, Extreme LED 30" 5D, and RIGID 30" SR series.

What's Included

• Additional Front Bumper Frame Support Brackets included with all 2nd Gen Tacoma Hybrid front bumpers.

Installation & Maintenance

• Installation is straightforward and requires no cutting or welding—simply bolt it on.
• Finish options: choose powder coating or paint to prevent rust; uncoated surfaces should be treated prior to exposure.
• For winches with relocateable electrical control boxes, plan for potential grille support bracket trimming to ensure a clean fit.
