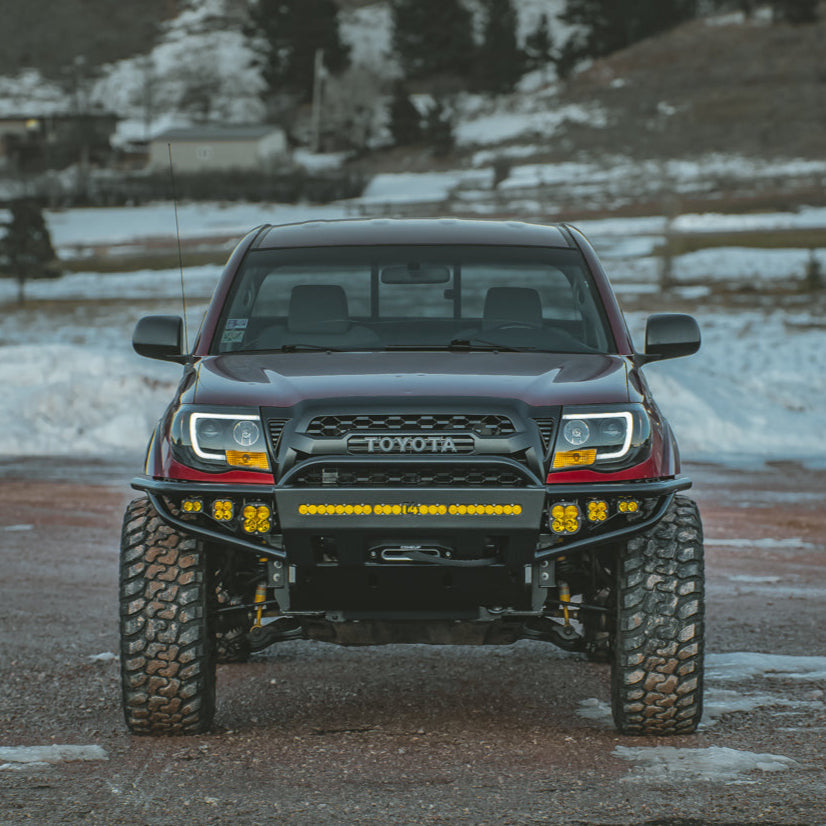

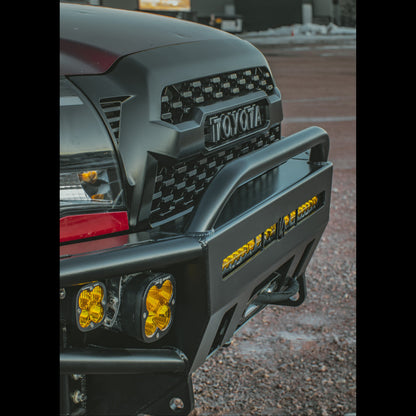

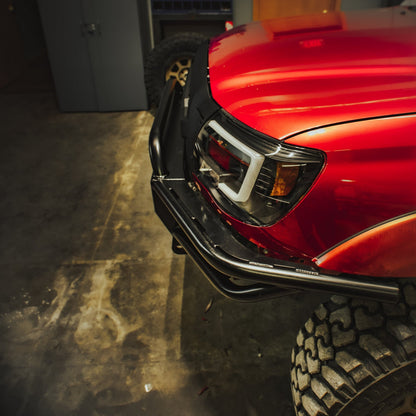

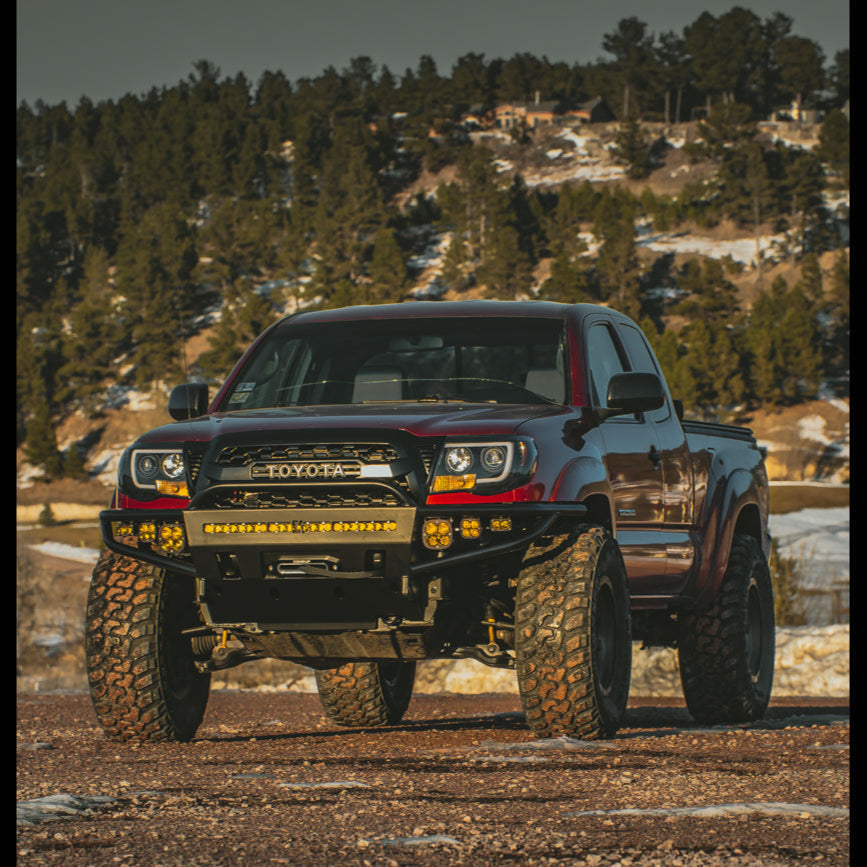

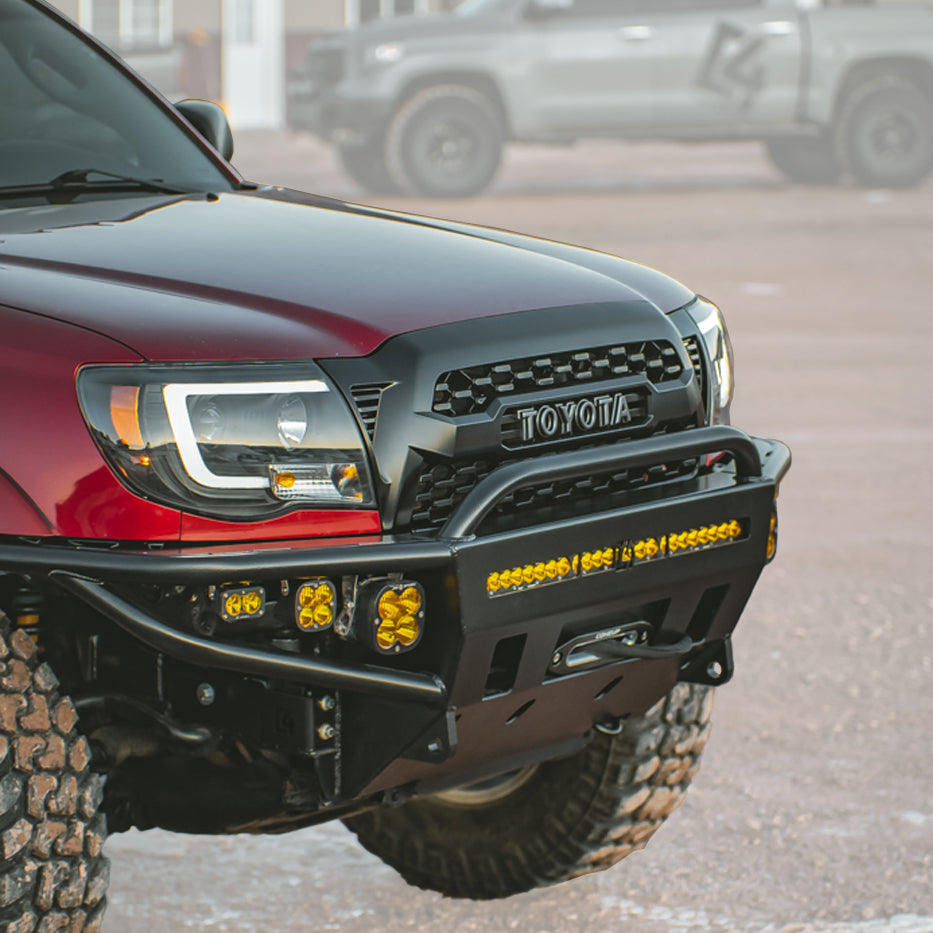

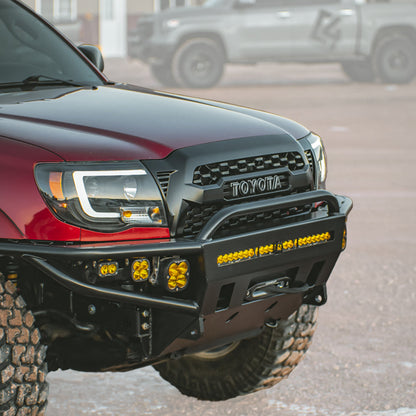

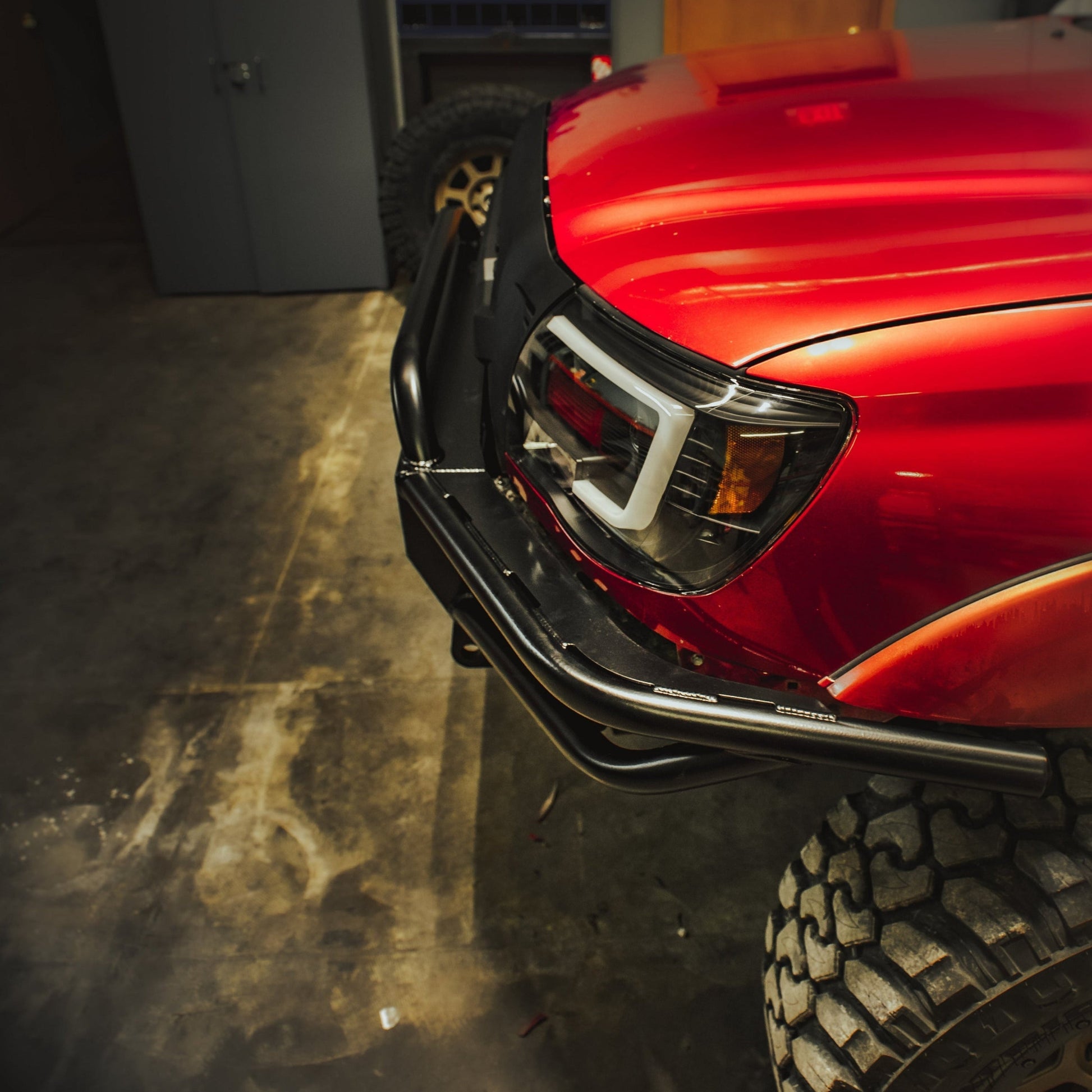

C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011

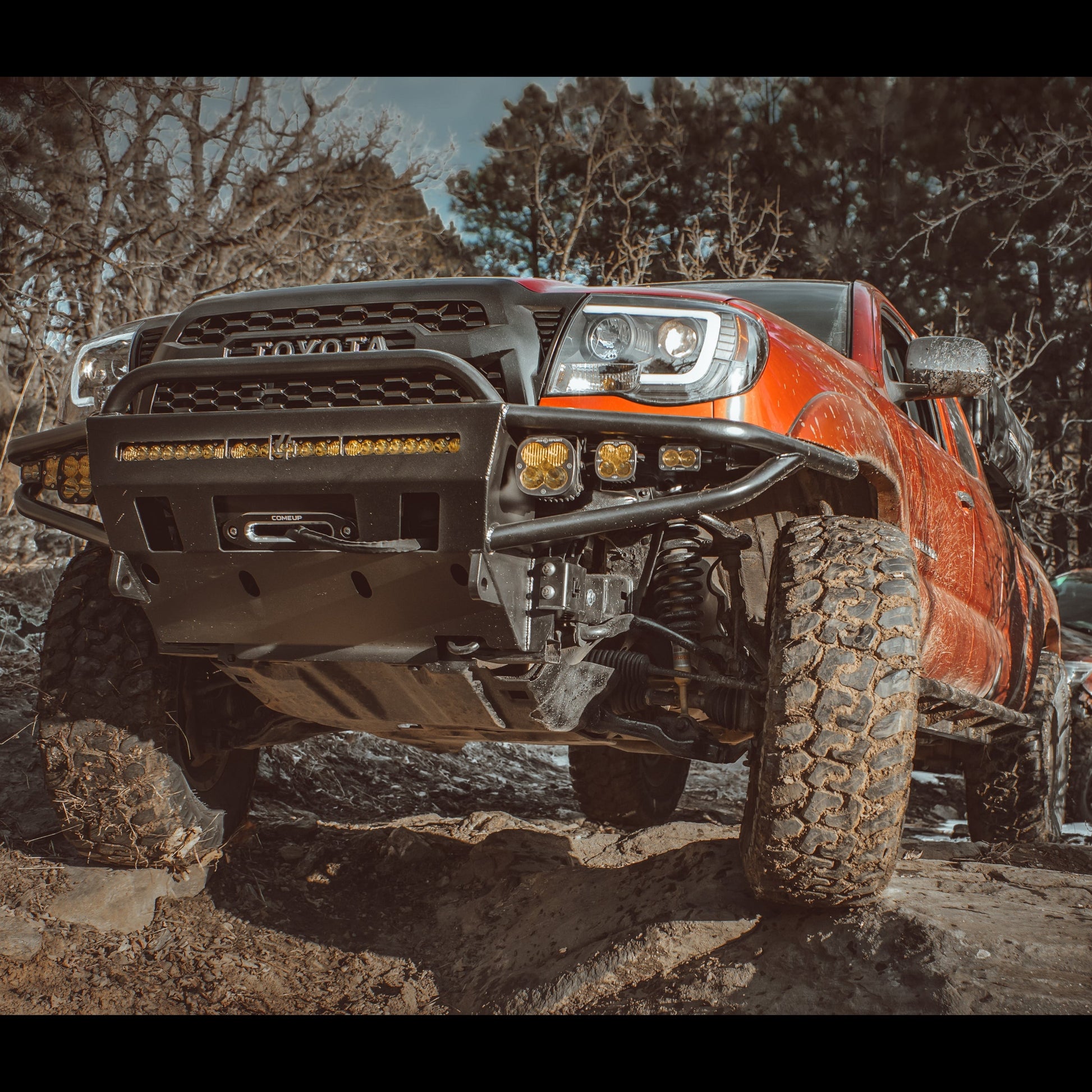

The C4 Fabrication Tacoma Hybrid Front Bumper is a rugged, bolt-on upgrade designed specifically for the 2nd Gen Toyota Tacoma (2005–2011). Built for off-road enthusiasts who want winch-ready protection without cutting or welding, this bumper pairs stout steel construction with versatile winch and lighting options. It’s engineered to mount cleanly on 2005–2011 Tacomas and supports a 30" single-row light bar alongside capable winch setups.

Key Features

• 100% bolt-on installation with no cutting or welding required
• Winch compatible for most 8,000–12,000 lb winches

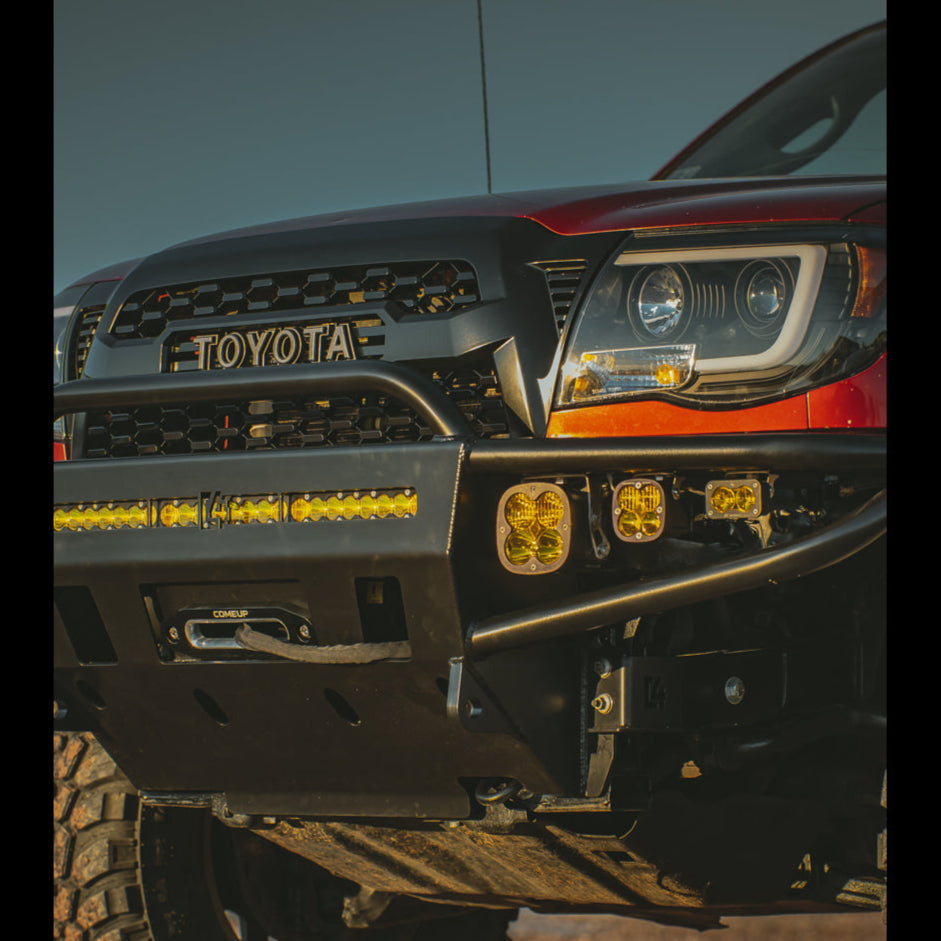

• Front cutouts provide access to winch rope and clutch lever
• Relocation of the electrical control box is recommended for integrated control box winches; some setups may require trimming of grille support brackets
• Compatible winches include ComeUp, Smittybilt X20, Warn Zeon, and VR series
• Recommends synthetic rope and hawse-style fairlead for best fitment; some roller fairleads may be too large for the recessed fairlead plate
• Winch plate and mounting plates are 1/4" thick steel; bumper main body is 3/16" thick steel
• Tubing is 1 3/4" OD with 1/8" wall thickness; D-ring tabs are 3/4" thick and fully welded front and back

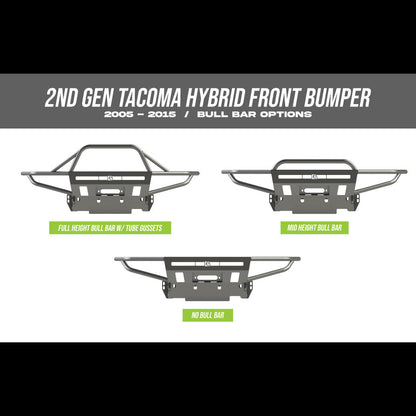

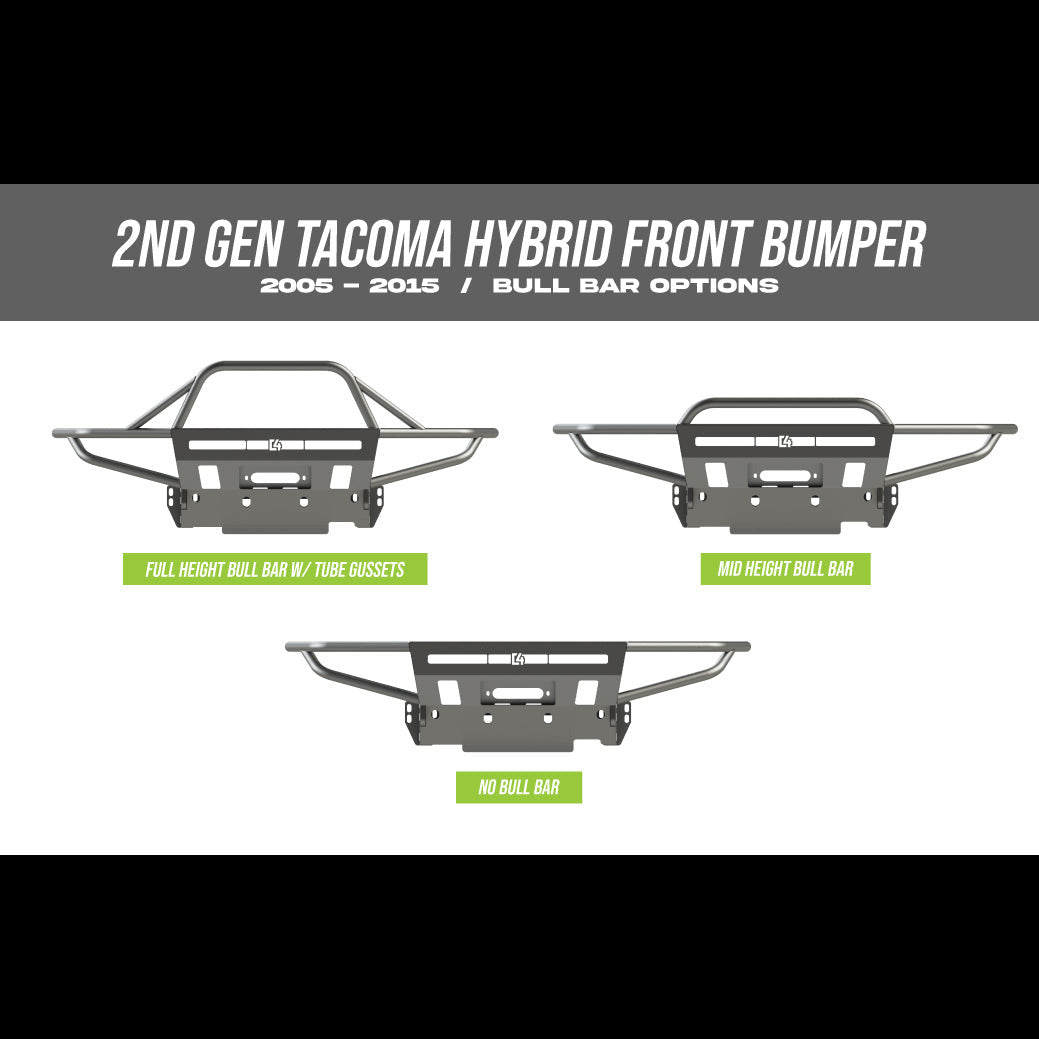

• Weight varies by configuration: 125 lbs (no bull bar), 130 lbs (mid-height bull bar), 137 lbs (full-height bull bar with side tube gussets)

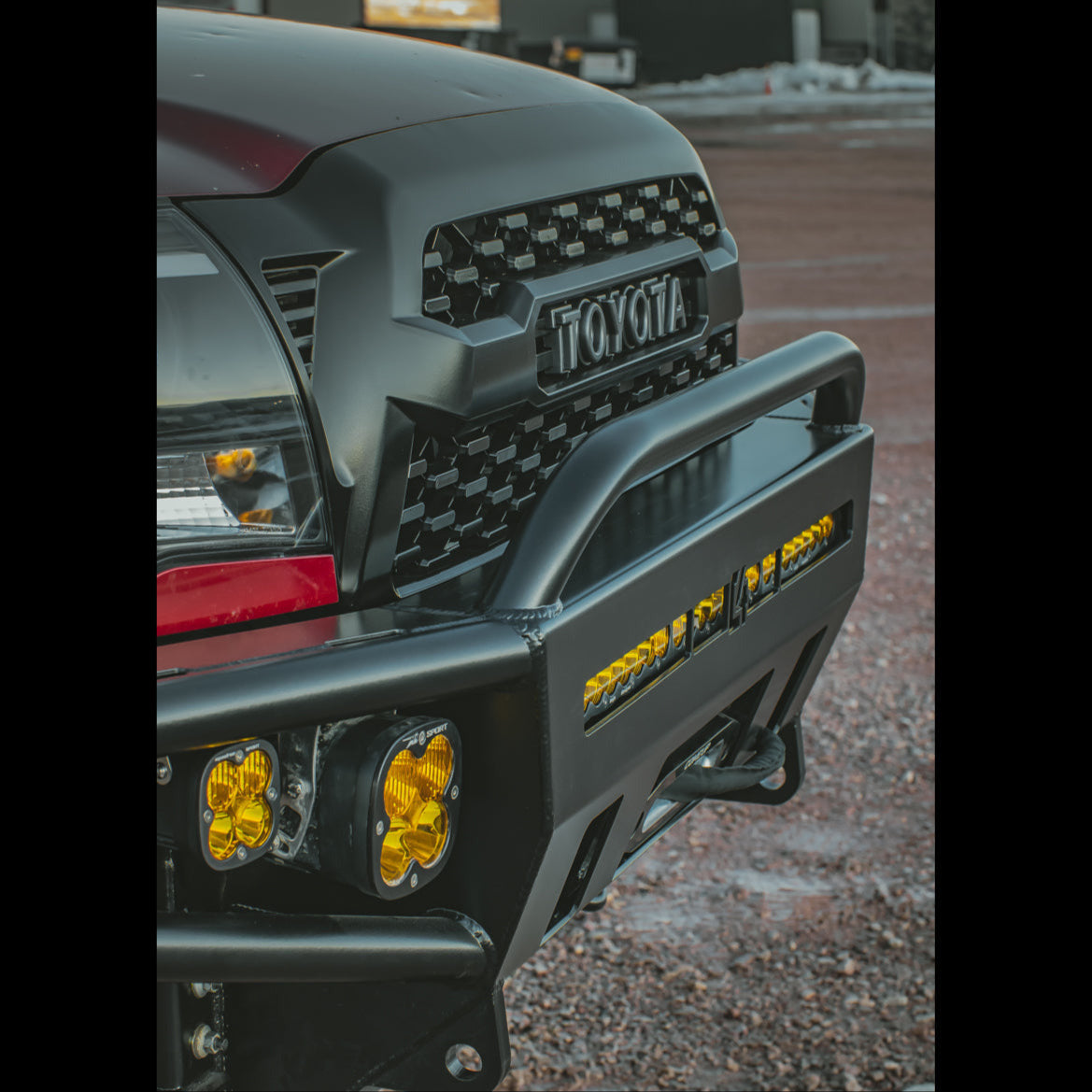

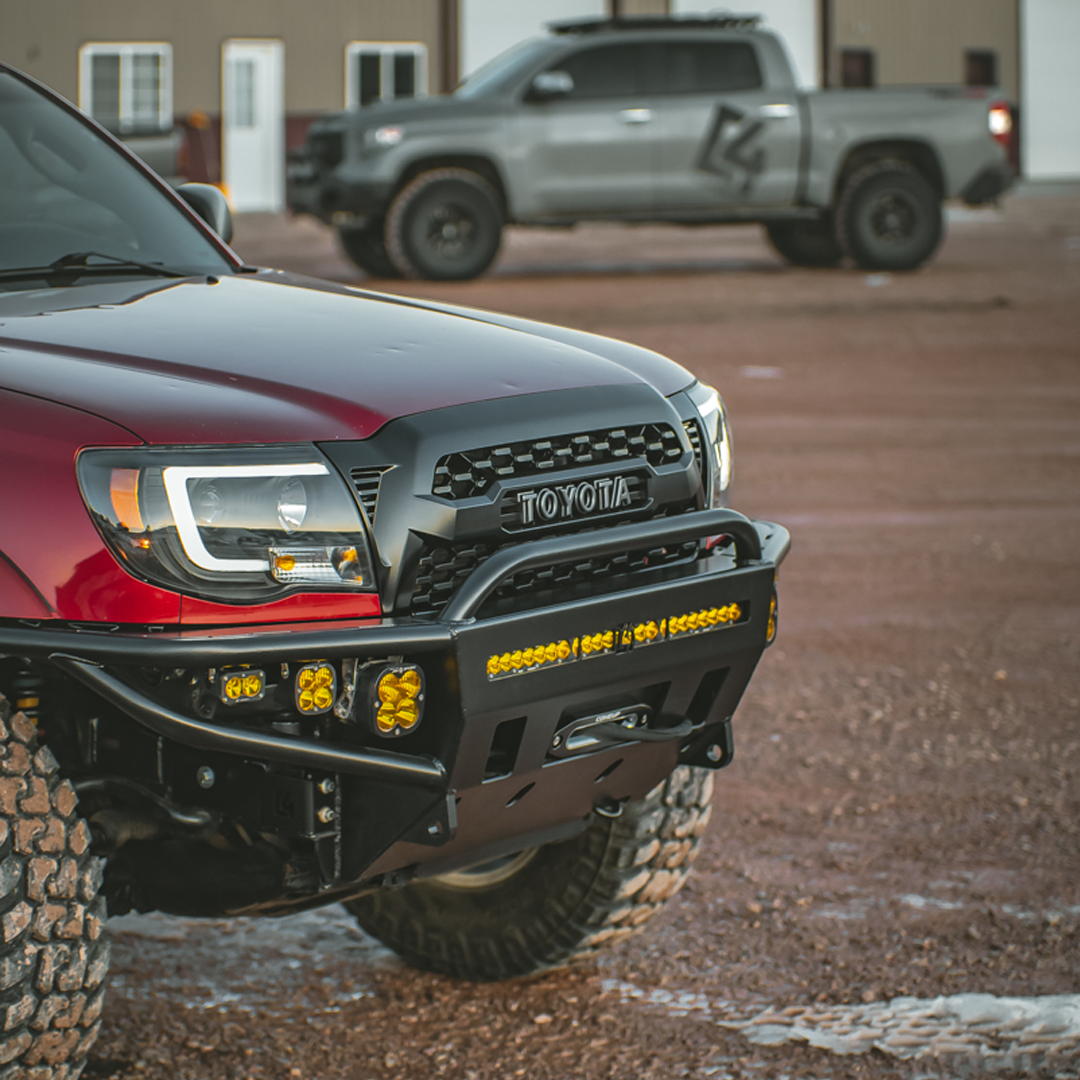

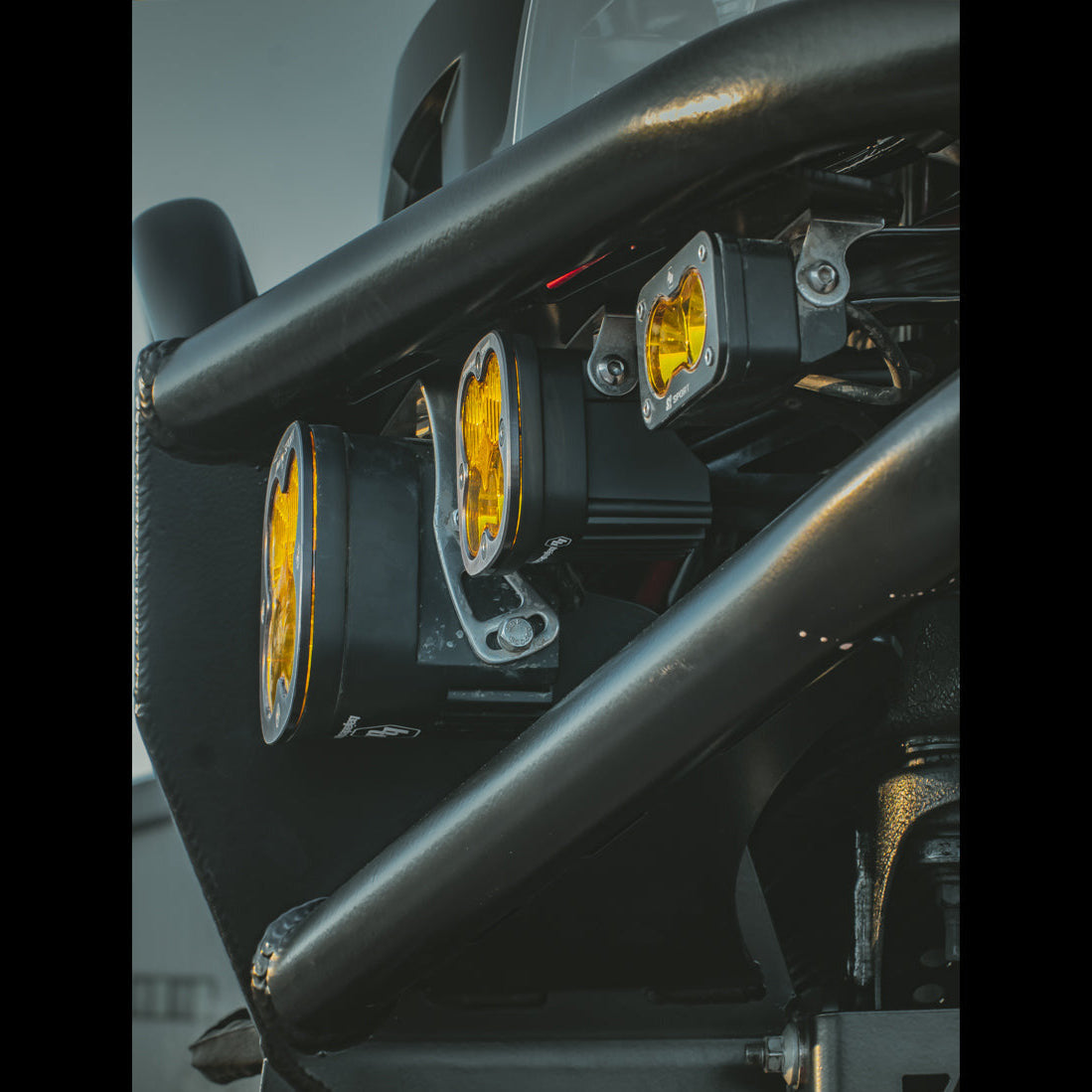

• Designed to fit 30" single-row light bars; specifically compatible with Baja Designs S8, Extreme LED 30" 5D, and RIGID 30" SR series
• Includes Additional Front Bumper Frame Support Brackets with all 2nd Gen Tacoma Hybrid front bumpers (a $177 value)
• Finish option: powder-coated or paint/coat as needed to prevent rust unless you choose our powder-coated option

Build Details and Durability

• Heavy-duty steel construction with a 3/16" main body and 1/4" thick winch plate mounting hardware for robust off-road protection
• All tubing uses 1 3/4" OD with 1/8" wall thickness for added rigidity and approach protection

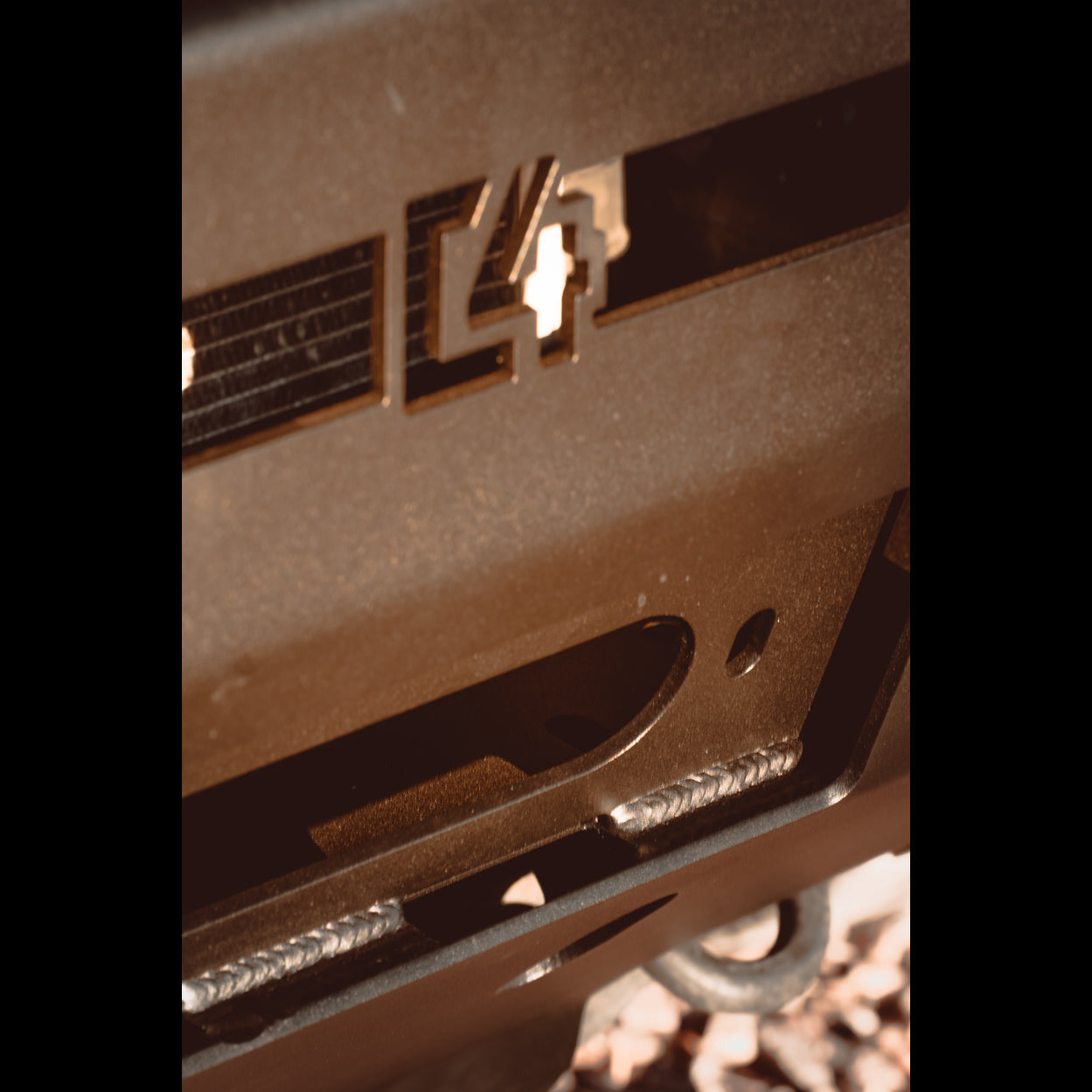

• 3/4" thick D-ring tabs are fully welded on both faces to resist torque and provide reliable recovery points

Light Bar and Winch Compatibility

• Optimized for 30" single-row light bars, including Baja Designs S8; compatible with Extreme LED 30" 5D and RIGID 30" SR series
• Winch compatibility covers most 8k–12k units; ensure your model can relocate the control box if needed

Fitment, Weight, and Options

• 2nd Gen Toyota Tacoma (2005–2011) – specifically designed for this generation
• Weight varies by configuration: 125 lbs (no bull bar), 130 lbs (mid-height bull bar), 137 lbs (full-height bull bar with side tube gussets)

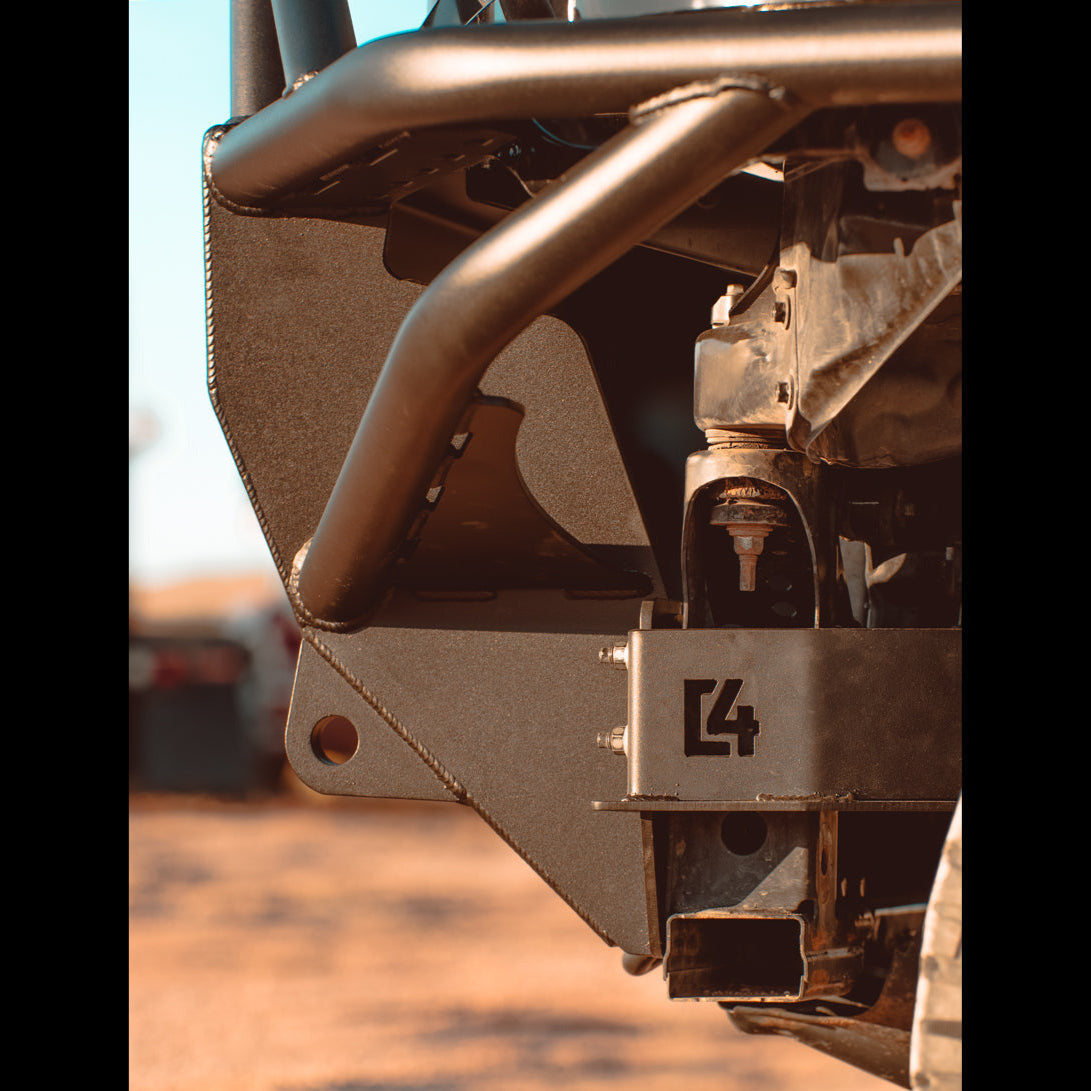

• Additional Front Bumper Frame Support Brackets are included with all 2nd Gen Tacoma Hybrid front bumpers

Finish and Maintenance

• If you don’t choose the powder-coated option, the bumper must be painted or powder coated before installation to prevent rust

Installation and Use

• Straightforward installation with a 100% bolt-on approach; no cutting or welding required
• Prepare to trim grille support brackets if using integrated control box winches; relocating the electrical control box is often recommended for optimal fit
