C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011

The C4 Fabrication Tacoma Hybrid Front Bumper for 2nd Gen Toyota Tacoma (2005–2011) is a rugged, bolt-on upgrade built for serious off-road use. It delivers winch-ready protection without any cutting or welding, making installation straightforward for experienced DIYers and shops alike. Designed to enhance capability while maintaining a clean, intentional look, it’s the ideal upgrade for Tacoma owners who demand performance and reliability.

Bolt-On Installation and Winch Readiness

• 100% bolt-on bumper with no cutting or welding required
• Winch compatible with cutouts in the front for access to winch rope and clutch lever
• Fits most winches 8k–12k; relocation of the electrical control box is recommended
• Integrated control box winches may require trimming of grille support brackets to fit
• Common winches that fit: ComeUp, Smittybilt X20, Warn Zeon and VR series
• Best fitment with synthetic rope and a hawse-style fairlead; some roller fairleads may be too large for the recessed fairlead plate

Construction and Durability

• Bumper winch plate and mounting plates are 1/4" thick steel
• Bumper main body is 3/16" thick steel
• Tubing is 1 3/4" OD with 1/8" wall thickness
• 3/4" thick D-ring tabs are fully welded to the bumper front and back

Compatibility with Lighting and Accessories

Designed to fit 30" single-row light bars—specifically designed for Baja Designs S8 light bar—with compatibility for Extreme LED 30" 5D light bars and RIGID 30" SR series lights.

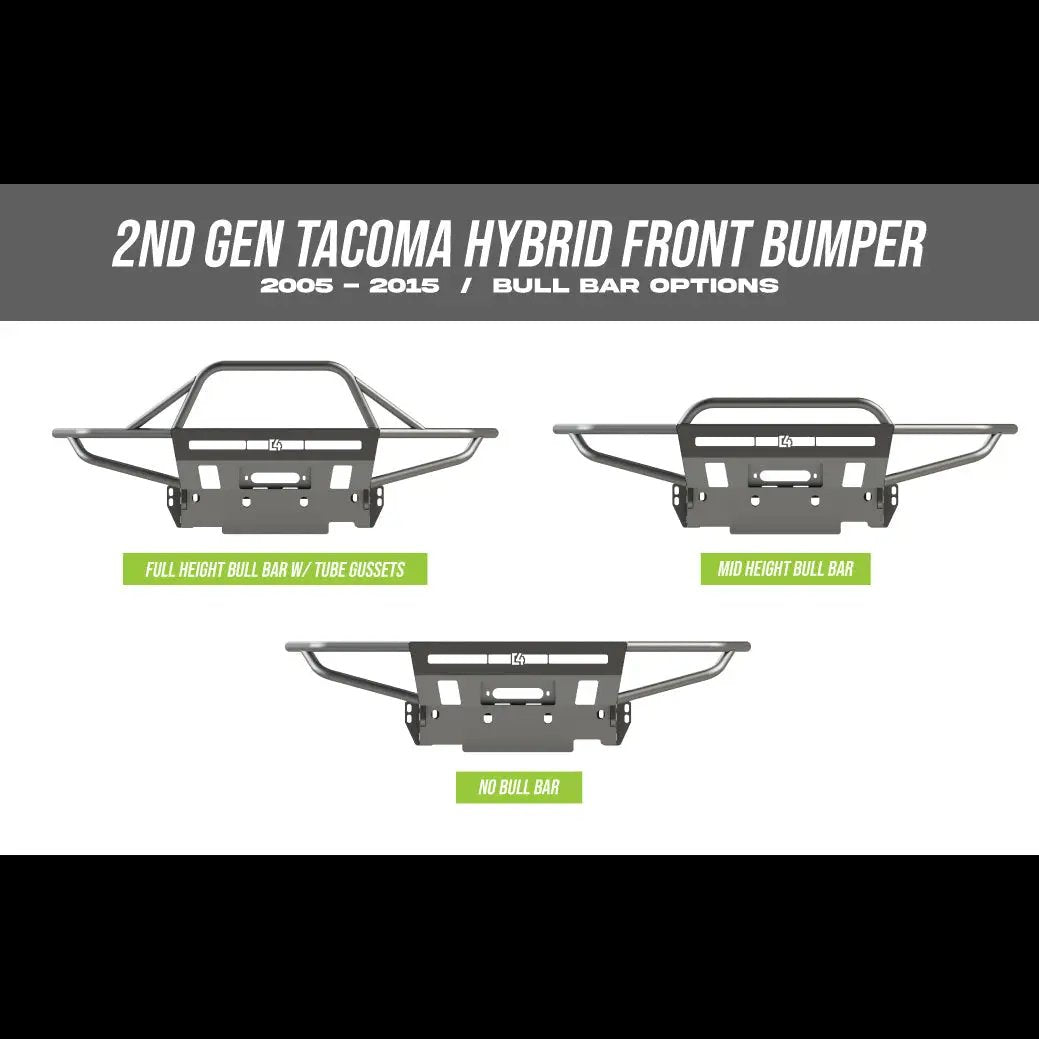

Variants, Weight, and Inclusions

• Bumper without Bull Bar: 125 lbs
• Bumper with Mid-Height Bull Bar: 130 lbs
• Bumper with Full Height Bull Bar and side tube gussets: 137 lbs
• Additional Front Bumper Frame Support Brackets included with all 2nd gen Tacoma Hybrid front bumpers ($177.00 value)

Finish and Maintenance

Unless you choose our powder-coated option, this bumper will need to be painted or powder coated before installation to prevent rust.
