C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011

The C4 Fabrication Tacoma Hybrid Front Bumper for the 2nd Gen Tacoma (2005–2011) is a rugged, bolt-on upgrade that adds serious protection and winch capability without cutting or welding. Built for serious off-road use, it integrates reliability, heavy-gauge steel, and thoughtful features that keep you moving when the trail gets tough.

Key Construction & Fit

• Straightforward installation with 100% bolt-on design; no cutting or welding required.
• Bumper winch plate and mounting plates are 1/4″ steel; bumper main body is 3/16″ steel.
• Tubing is 1 3/4″ OD with 1/8″ wall thickness; 3/4″ thick D-ring tabs are fully welded front and back.

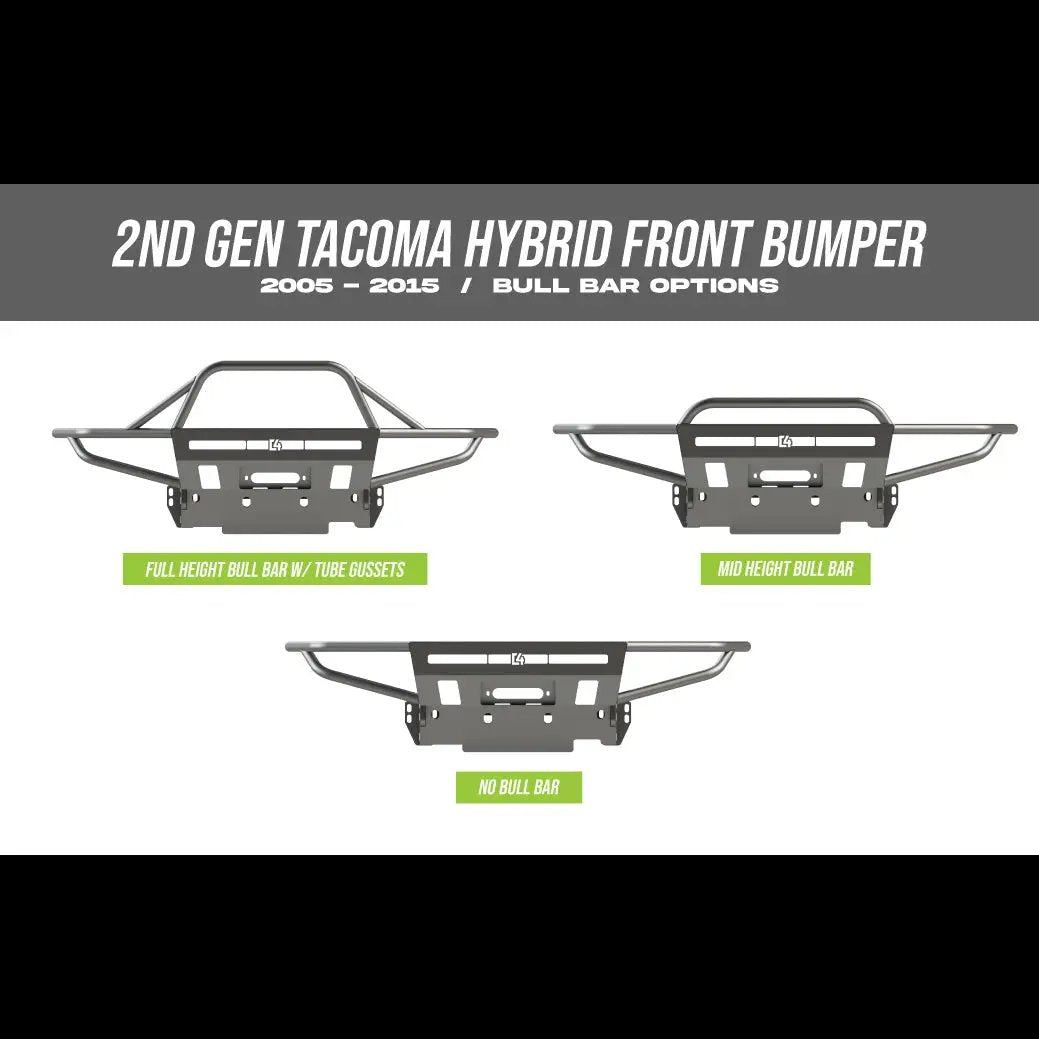

• Weights vary by configuration: 125 lbs (no bull bar), 130 lbs (mid-height bull bar), 137 lbs (full-height bull bar with side tube gussets).
• Factory stance designed to accommodate 30″ single-row light bars and select large light-bars with proper mounting.
• Includes front bumper frame support brackets (2nd gen Tacoma Hybrid) as part of the package (a $177 value).
• Finish note: Unless you choose the powder-coated option, painting or powder coating is required to prevent rust.

Winch Compatibility

• Winch-ready design that works with most 8k–12k winches.
• Front cutouts provide access to winch rope and clutch lever while installed.
• Relocatable electrical control box is recommended for some setups; integrated control box winches may require trimming of grille support brackets to fit.
• Common compatible winches include ComeUp, Smittybilt X20, Warn Zeon, and VR series.
• For best fitment and performance, synthetic rope with a hawse-style fairlead is recommended; be aware some roller fairleads may be too large for the recessed fairlead mounting plate.

Lighting & Accessory Fitment

• Specifically designed to accommodate a 30″ single-row light bar.
• Compatible with Baja Designs S8 light bar; also fits Extreme LED 30″ 5D and RIGID 30″ SR series when configured accordingly.

What’s Included & Value

• Additional Front Bumper Frame Support Brackets included with all 2nd Gen Tacoma Hybrid front bumpers ($177.00 value).

Important Installation Notes

• 100% bolt-on installation; no cutting or welding required.
• When not selecting the powder-coated option, plan for painting or powder coating prior to installation to prevent rust.
