C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011

Name: C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011
Brand: C4 Fabrication
SKU: 1200-3205-30-FH
Price: 1578.0 USD

Read Product Details

1200-3205-30-FH

In Stock (1 available)

$1,578.00

Secure checkout
SSL encrypted payment
Fast Shipping
2-3 Business days

Description

The C4 Fabrication Tacoma Hybrid Front Bumper is a rugged, bolt-on upgrade designed for 2005–2011 Toyota Tacoma 2nd Gen trucks. Built for serious off‑road use, it delivers winch-ready protection, practical winch-access cutouts, and unmatched durability—without any cutting or welding needed.

Compatibility & Fit

2nd Gen Toyota Tacoma (2005–2011)
100% bolt-on installation; no cutting or welding required
Winch compatible with access cutouts for winch rope and clutch lever
Fits most 8,000–12,000 lb winches; relocation of the electrical control box is recommended for some setups
Integrated control box winches may require trimming of grille support brackets to fit
Common winches that fit include ComeUp, Smittybilt X20, Warn Zeon, and VR series

Winch, Mounting & Accessories

3/4\" thick D-ring tabs, fully welded front and back
Bumper winch plate and mounting plates are 1/4\" thick steel; bumper main body is 3/16\" thick steel
Tubing: 1-3/4\" OD, 1/8\" wall thickness
3/4\" D-ring tabs come standard for recovery versatility
Designed to accommodate 30\" single‑row light bars (specifically Baja Designs S8); also fits Extreme LED 30\" 5D and RIGID 30\" SR series

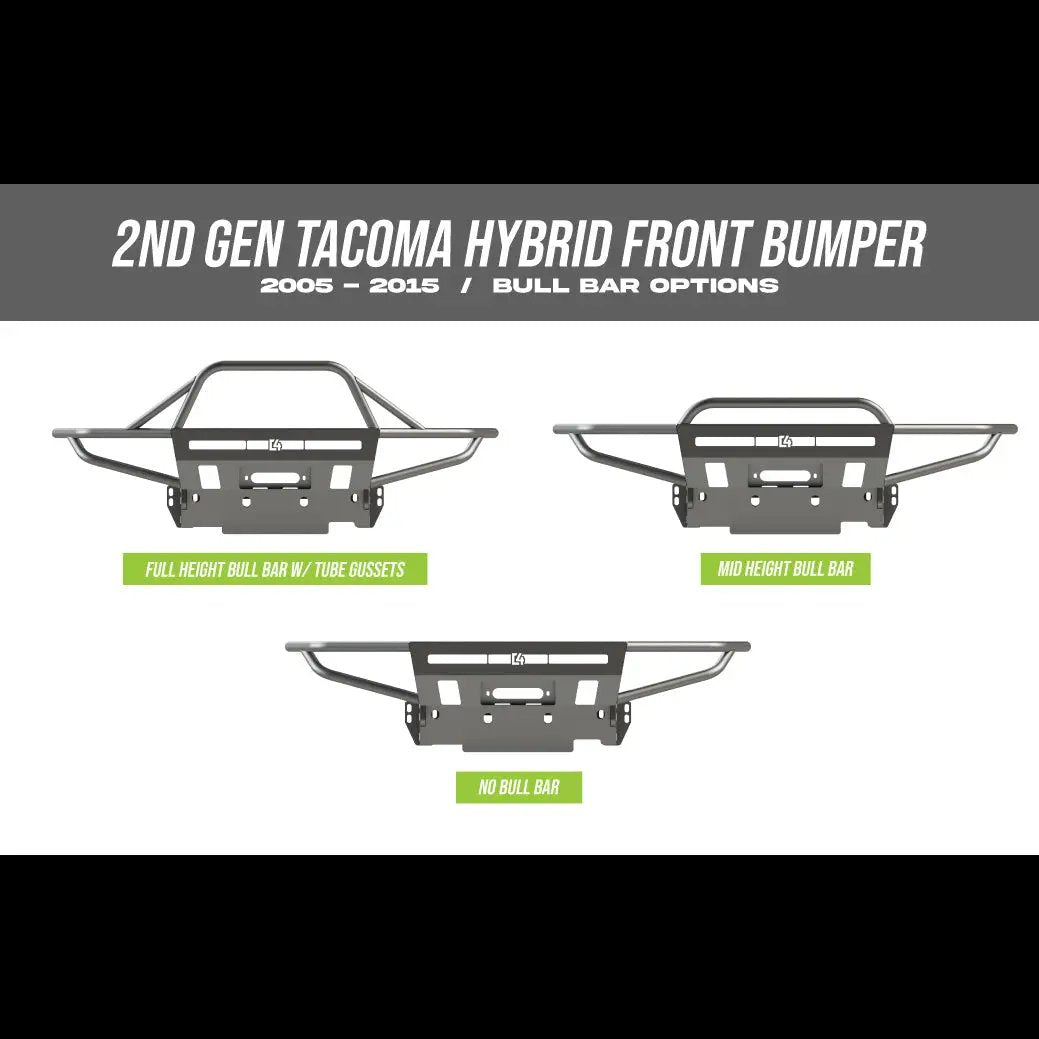

Weight & Configurations

Without bull bar: 125 lbs
With Mid-Height Bull Bar: 130 lbs
With Full Height Bull Bar and side tube gussets: 137 lbs

Materials, Build & Durability

All structural components use heavy-duty steel for maximum protection
Front bumper frame support brackets included with all 2nd Gen Tacoma Hybrid front bumpers (valued at $177.00)

Lighting & Aftermarket Compatibility

Specifically designed to pair with Baja Designs S8 30\" light bar
Compatible with other 30\" single-row light bars such as Extreme LED 30\" 5D and RIGID 30\" SR series

Finish, Coating & Maintenance

Powder-coated option available
If not powder-coated, please paint or powder coat prior to installation to prevent rust

Installation Notes & Practical Considerations

100% bolt-on installation for straightforward setup
Some winch installations may require relocating the electrical control box
Integrated control box winches may need grille support bracket trimming to fit
Some roller fairleads may be too large for the bumper’s recessed fairlead mounting plate
For best fitment and functionality, synthetic rope and a hawse-style fairlead are recommended

Features

Straightforward installation
100% bolt on bumper
no cutting or welding of any kind required.
All bumpers are winch compatible.
Bumper has cutouts in the front to allow access to winch rope and clutch lever.
Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (ComeUp
Smittybilt X20
Warn Zeon and VR...
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
Bumper winch plate and mounting plates are 1/4″ thick steel. Bumper main body is 3/16″ thick steel. Tubing is all 1 3/4″ OD
1/8″ wall thickness.
3/4″ thick D-ring tabs fully welded front and back come standard.
Bumper without Bull Bar weighs 125lbs. Bumper with Mid-Height Bull Bar weighs 130 lbs. Bumper with Full Height Bull Bar and side tube gussets weighs 137 lbs.
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series
will also fit.
Additional Front Bumper Frame Support Brackets included with all 2nd gen Tacoma Hybrid front bumpers! ($177.00 value).
Unless you choose our powder coated option
this product will need to be painted or powder coated before installation to prevent rust
