C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011

Name: C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011
Brand: C4 Fabrication
SKU: 1200-3205-30-FH-01NA
Price: 1799.0 USD

Read Product Details

1200-3205-30-FH-01NA

In Stock (1 available)

$1,799.00

Secure checkout
SSL encrypted payment
Fast Shipping
2-3 Business days

Description

The C4 Fabrication Tacoma Hybrid Front Bumper for the 2nd Gen Toyota Tacoma (2005–2011) is a rugged, bolt-on upgrade that delivers serious off-road protection without any cutting or welding. Designed for winch enthusiasts, it provides ready access to winch systems while maintaining a clean, factory-like integration.

Key Features

100% bolt-on installation with no cutting or welding required
Winch compatible with cutouts in the front for access to winch rope and clutch lever
Fits most winches in the 8,000–12,000 lb range; relocation of the electrical control box is recommended
Integrated control box winches may require trimming of grille support brackets to fit
Compatible winches include ComeUp, Smittybilt X20, Warn Zeon, and VR series
Best fit with synthetic rope and hawse-style fairlead; some roller fairleads may not fit the recessed fairlead mounting plate

Light Bar & Visibility

Designed to accommodate a 30" single-row light bar (specifically for Baja Designs S8)
Also compatible with Extreme LED 30" 5D and RIGID 30" SR series light bars

Construction & Durability

Bumper winch plate and mounting plates: 1/4" thick steel
Bumper main body: 3/16" thick steel
Tubing: 1 3/4" OD, 1/8" wall thickness
3/4" thick D-ring tabs fully welded front and back

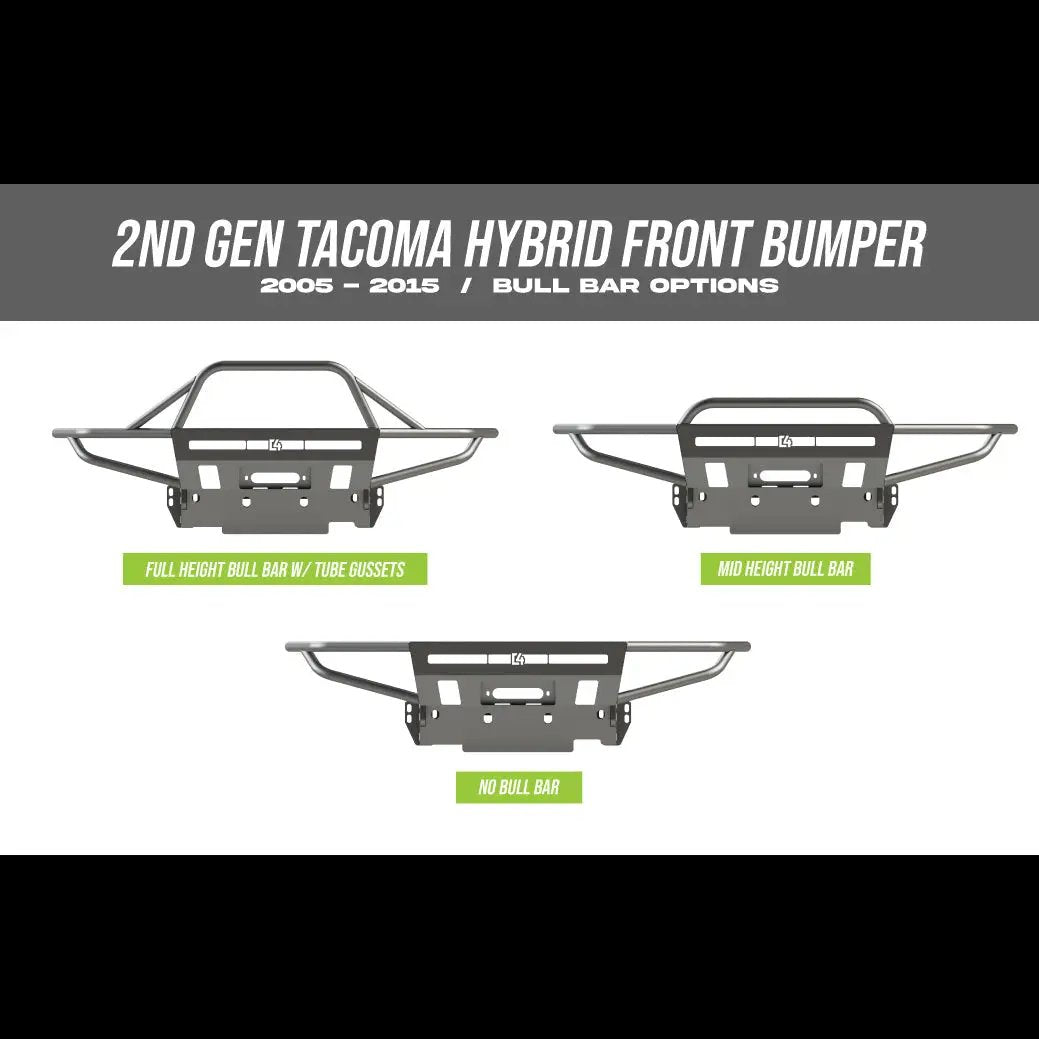

Weight Options

Without bull bar: 125 lbs
With Mid-Height Bull Bar: 130 lbs
With Full Height Bull Bar and side tube gussets: 137 lbs

Includes & Compatibility

Additional Front Bumper Frame Support Brackets included with all 2nd gen Tacoma Hybrid front bumpers (value of $177)
Designed to fit 2nd gen Toyota Tacomas; compatible with 30" light bars and multi-brand winches as listed

Finish & Installation Notes

Unless you choose the powder-coated option, the bumper must be painted or powder coated before installation to prevent rust
100% bolt-on design ensures straightforward installation with no cutting or welding

Features

Straightforward installation
100% bolt on bumper
no cutting or welding of any kind required.
All bumpers are winch compatible.
Bumper has cutouts in the front to allow access to winch rope and clutch lever.
Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (ComeUp
Smittybilt X20
Warn Zeon and VR...
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
Bumper winch plate and mounting plates are 1/4″ thick steel. Bumper main body is 3/16″ thick steel. Tubing is all 1 3/4″ OD
1/8″ wall thickness.
3/4″ thick D-ring tabs fully welded front and back come standard.
Bumper without Bull Bar weighs 125lbs. Bumper with Mid-Height Bull Bar weighs 130 lbs. Bumper with Full Height Bull Bar and side tube gussets weighs 137 lbs.
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series
will also fit.
Additional Front Bumper Frame Support Brackets included with all 2nd gen Tacoma Hybrid front bumpers! ($177.00 value).
Unless you choose our powder coated option
this product will need to be painted or powder coated before installation to prevent rust
