C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011

Name: C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011
Brand: C4 Fabrication
SKU: 1200-3205-30-FH-W
Price: 1653.0 USD

Read Product Details

1200-3205-30-FH-W

In Stock (1 available)

$1,653.00

Secure checkout
SSL encrypted payment
Fast Shipping
2-3 Business days

Description

The C4 Fabrication Tacoma Hybrid Front Bumper is engineered for the Toyota Tacoma 2nd Gen (2005–2011) owners who want an ultra-tlexible, bolt-on armor that’s ready for serious off-road use. It combines rugged off-road protection with practical winch integration, without the need for cutting or welding during installation.

Key Benefits

100% bolt-on installation with no cutting or welding required.
Winch-ready design with front cutouts for rope access and clutch lever.
Compatible with most 8k–12k winches; relocation of the electrical control box is recommended for some setups.
Concrete guidance on winch compatibility: ComeUp, Smittybilt X20, Warn Zeon, and VR series are commonly used.
For best fit and function, use synthetic rope with a hawse-style fairlead; some roller fairleads may not fit the recessed fairlead plate.
Sturdy construction: bumper winch plate and mounting plates are 1/4" steel; main body is 3/16" steel; tubing is 1 3/4" OD with 1/8" wall thickness; 3/4" D-ring tabs are fully welded front and back.

Build, Fit, and Materials

Durable, winch-compatible bumper designed for 30" single-row light bars (specifically for Baja Designs S8); also fits Extreme LED 30" 5D and RIGID 30" SR series.

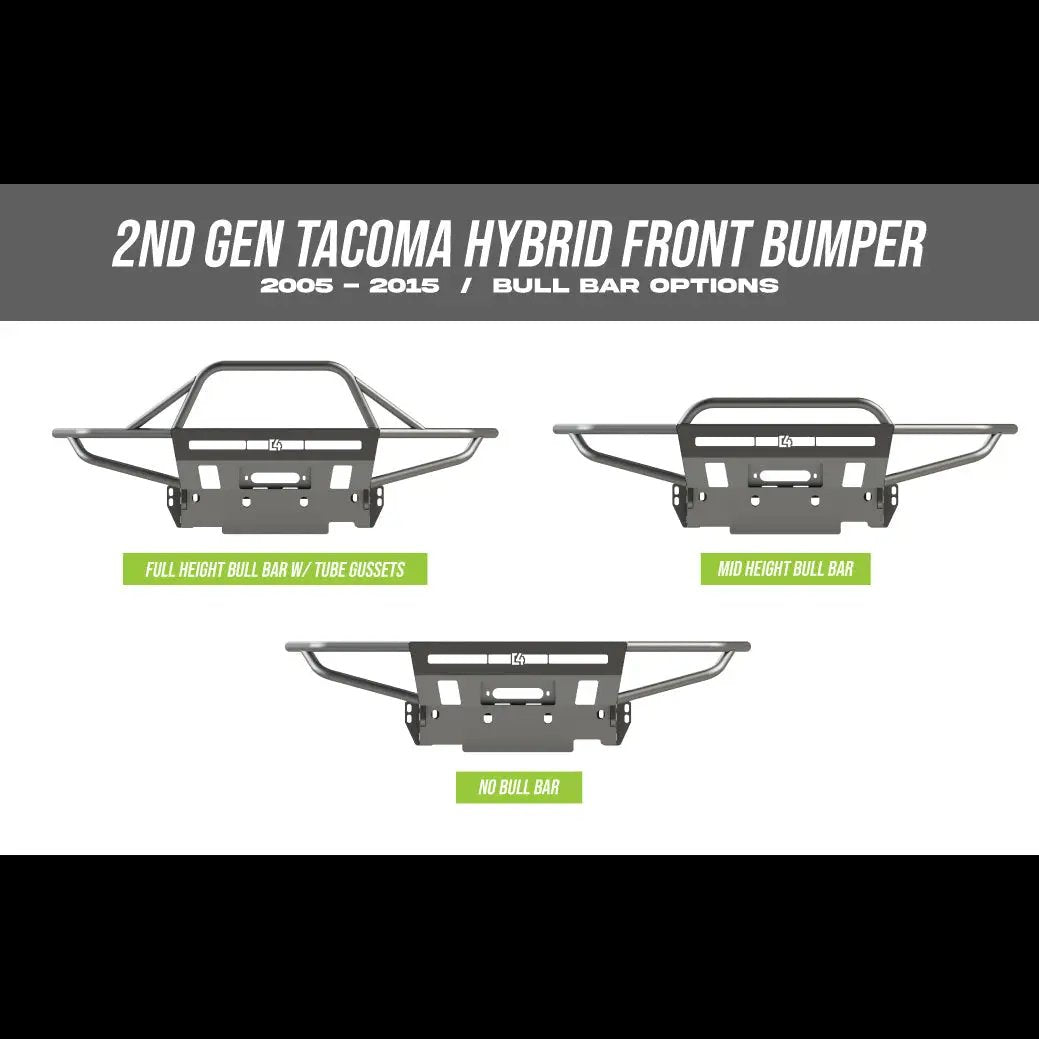

Available configurations include:
- Without Bull Bar – 125 lbs
- Mid-Height Bull Bar – 130 lbs
- Full Height Bull Bar with side tube gussets – 137 lbs
Includes Additional Front Bumper Frame Support Brackets with every 2nd gen Tacoma Hybrid bumper ($177 value).

Compatibility and Installation Notes

Designed specifically for 2005–2011 Toyota Tacoma 2nd Gen models.
Winches with relocation capability for the electrical control box are preferred; integrated control box winches may require trimming of grille support brackets to fit.

Finish, Maintenance, and Accessories

Unless you choose the powder-coated option, the bumper will need painting or powder coating to prevent rust after installation.
Includes front bumper frame support brackets to enhance rigidity and alignment during installation.

Features

Straightforward installation
100% bolt on bumper
no cutting or welding of any kind required.
All bumpers are winch compatible.
Bumper has cutouts in the front to allow access to winch rope and clutch lever.
Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (ComeUp
Smittybilt X20
Warn Zeon and VR...
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
Bumper winch plate and mounting plates are 1/4″ thick steel. Bumper main body is 3/16″ thick steel. Tubing is all 1 3/4″ OD
1/8″ wall thickness.
3/4″ thick D-ring tabs fully welded front and back come standard.
Bumper without Bull Bar weighs 125lbs. Bumper with Mid-Height Bull Bar weighs 130 lbs. Bumper with Full Height Bull Bar and side tube gussets weighs 137 lbs.
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series
will also fit.
Additional Front Bumper Frame Support Brackets included with all 2nd gen Tacoma Hybrid front bumpers! ($177.00 value).
Unless you choose our powder coated option
this product will need to be painted or powder coated before installation to prevent rust
