C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011

Name: C4 Fabrication Tacoma Hybrid Front Bumper / 2nd Gen / 2005-2011
Brand: C4 Fabrication
SKU: 1200-3205-30-FH-W-01NA
Price: 1859.0 USD

Read Product Details

1200-3205-30-FH-W-01NA

In Stock (1 available)

$1,859.00

Secure checkout
SSL encrypted payment
Fast Shipping
2-3 Business days

Description

The C4 Fabrication Tacoma Hybrid Front Bumper for the 2nd Gen Toyota Tacoma (2005–2011) delivers rugged, winch-ready protection with a straightforward bolt-on install. Designed for off-road enthusiasts who demand strength without cutting or welding, this bumper blends serious steel construction with practical access features and modern winch compatibility.

Key features

100% bolt-on installation — no cutting or welding required.
Winch compatible with most 8k–12k capacities; front cutouts provide easy access to winch rope and clutch lever.
Relocation of the electrical control box is recommended for integrated control box winches; some trimming of grille support brackets may be needed for fitment.
Compatible with popular winches (ComeUp, Smittybilt X20, Warn Zeon, VR series); supports synthetic rope with a hawse-style fairlead for best fitment.
Recessed fairlead mounting plate may not accommodate some larger roller fairleads.
1/4" thick steel winch plate and mounting plates; 3/16" thick bumper main body; 1 3/4" OD tubing with 1/8" wall.
3/4" thick D-ring tabs, fully welded on both front and back.
Designed to fit 30" single-row light bars (specifically Baja Designs S8); also compatible with Extreme LED 30" 5D and RIGID 30" SR series.
Includes 2nd-gen Tacoma Front Bumper Frame Support Brackets (a $177 value).

Fitment & compatibility

Fits 2005–2011 2nd Gen Toyota Tacomas.
Works with a range of winches from 8k to 12k pounds in capacity.
Designed to accommodate winches with a relocateable electrical control box; integrated control boxes may require trimming of grille support brackets for proper fitment.

Construction & weight

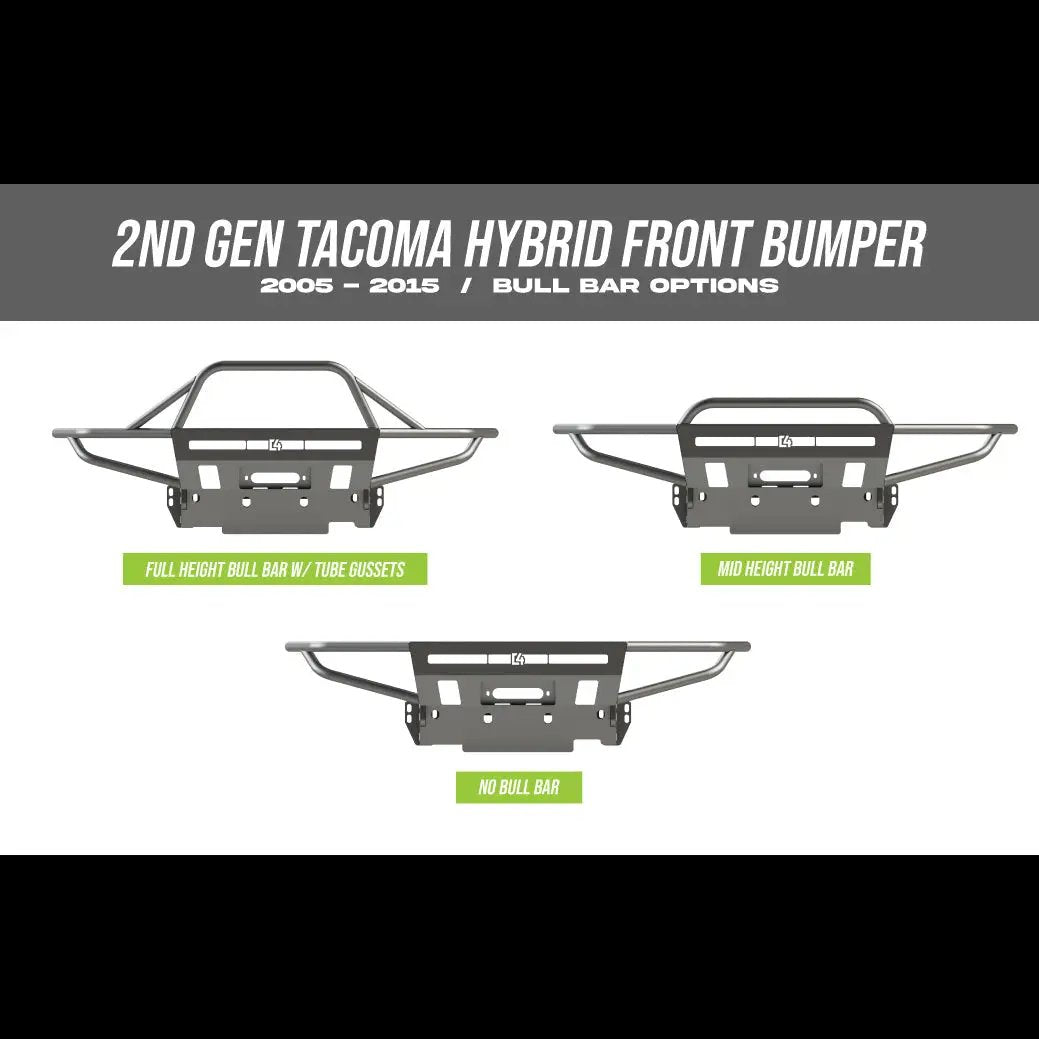

Bumper without bull bar: 125 lbs
Bumper with mid-height bull bar: 130 lbs
Bumper with full-height bull bar and side-tube gussets: 137 lbs
Bumper winch plate and mounting plates: 1/4" thick steel
Bumper main body: 3/16" thick steel

Light bar and accessory compatibility

Designed for 30" single-row light bars, with specific support for Baja Designs S8
Extensive compatibility: Extreme LED 30" 5D light bar and RIGID 30" SR series will fit

Finish & maintenance

Finish option: powder coating is available; if not chosen, the bumper will need to be painted or powder coated before installation to prevent rust.

What’s included

Additional Front Bumper Frame Support Brackets included with all 2nd gen Tacoma Hybrid front bumpers.

Features

Straightforward installation
100% bolt on bumper
no cutting or welding of any kind required.
All bumpers are winch compatible.
Bumper has cutouts in the front to allow access to winch rope and clutch lever.
Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (ComeUp
Smittybilt X20
Warn Zeon and VR...
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
Bumper winch plate and mounting plates are 1/4″ thick steel. Bumper main body is 3/16″ thick steel. Tubing is all 1 3/4″ OD
1/8″ wall thickness.
3/4″ thick D-ring tabs fully welded front and back come standard.
Bumper without Bull Bar weighs 125lbs. Bumper with Mid-Height Bull Bar weighs 130 lbs. Bumper with Full Height Bull Bar and side tube gussets weighs 137 lbs.
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series
will also fit.
Additional Front Bumper Frame Support Brackets included with all 2nd gen Tacoma Hybrid front bumpers! ($177.00 value).
Unless you choose our powder coated option
this product will need to be painted or powder coated before installation to prevent rust
