C4 Fabrication Tacoma Full Skid Plates / 2nd Gen / 3rd Gen / 2005-2023

Protect your Toyota Tacoma’s vital underside with a rugged, three-piece skid plate system designed for 2nd Gen and 3rd Gen Tacomas (2005–2023). This bolt-on setup delivers wide coverage over the engine, transmission, and transfer case, built from durable 3/16" CNC cut steel for serious protection on and off the trail. It’s engineered for straightforward maintenance and compatibility with common aftermarket upgrades.

Key features and benefits

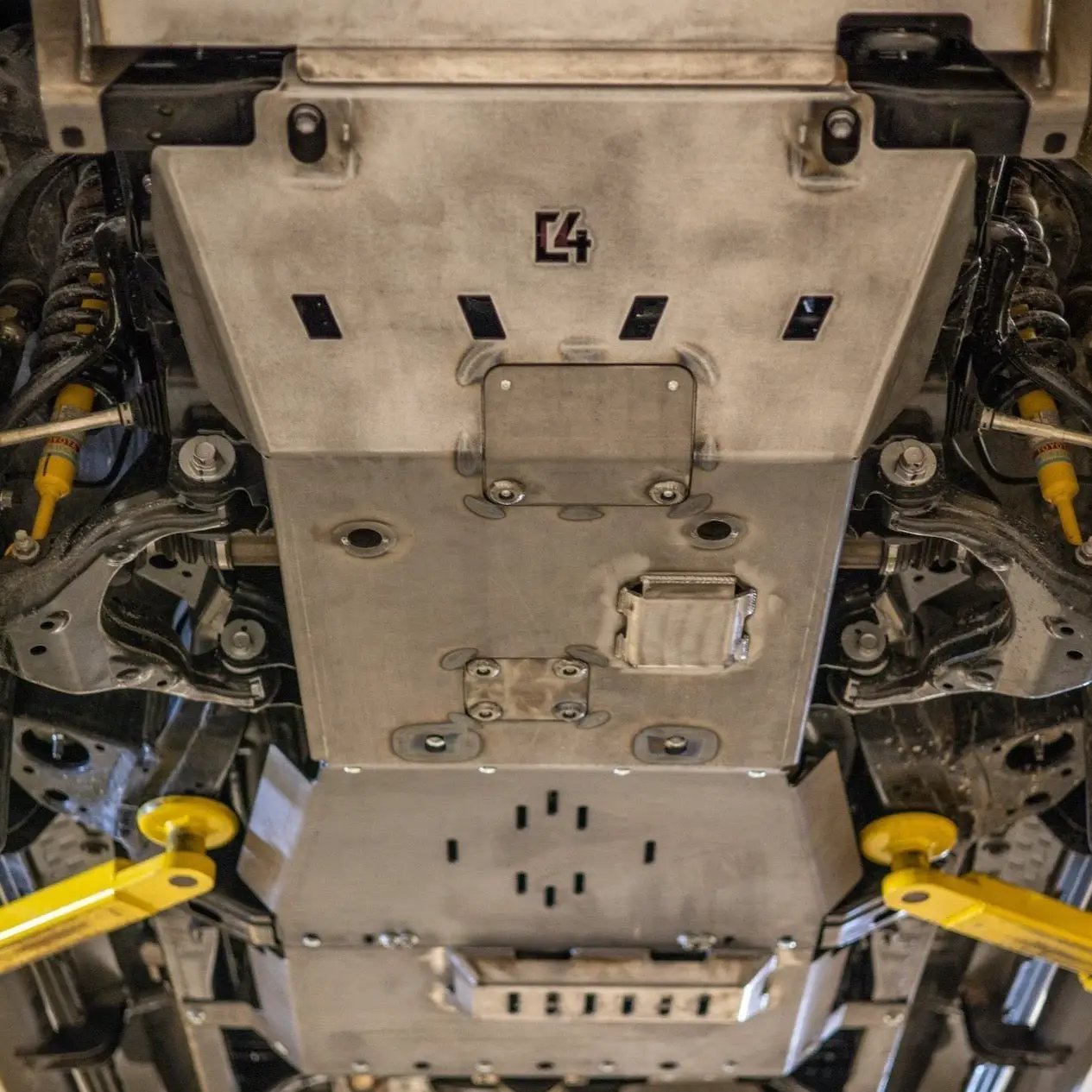

• Three separate skid plates bolt together to shield the engine, transmission, and transfer case for comprehensive underbody protection
• Unique bolt-in crossmember increases strength and protection for the transfer case
• 3/16" CNC cut steel construction provides solid protection without excessive weight
• 100% bolt-on design for easier install and removal compared to welded systems
• Oil Drain and Oil Filter Covers allow for easy oil changes without removing the skid plates
• Works with 1" diff drop and most aftermarket bumpers
• Includes front and rear skid plates with all mounting hardware
• Weighs 158 lb and is designed for durable, long-term use
• Available in steel only (painted or powder coated options): without powder coat, it must be painted or powder coated to prevent rust
• Exhaust clearance variant available: without the exhaust clearance drop for Tacomas with exhaust reroute (flat fill plate will be welded in place)

Compatibility & installation notes

• Designed for 2005–2023 Tacomas (2nd Gen and 3rd Gen)
• Compatible with most aftermarket bumpers
• Powder coated option available; otherwise, painting or powder coating is recommended prior to installation to prevent rust

What’s included

• Front skid plate
• Rear skid plate
• All mounting hardware
