Description

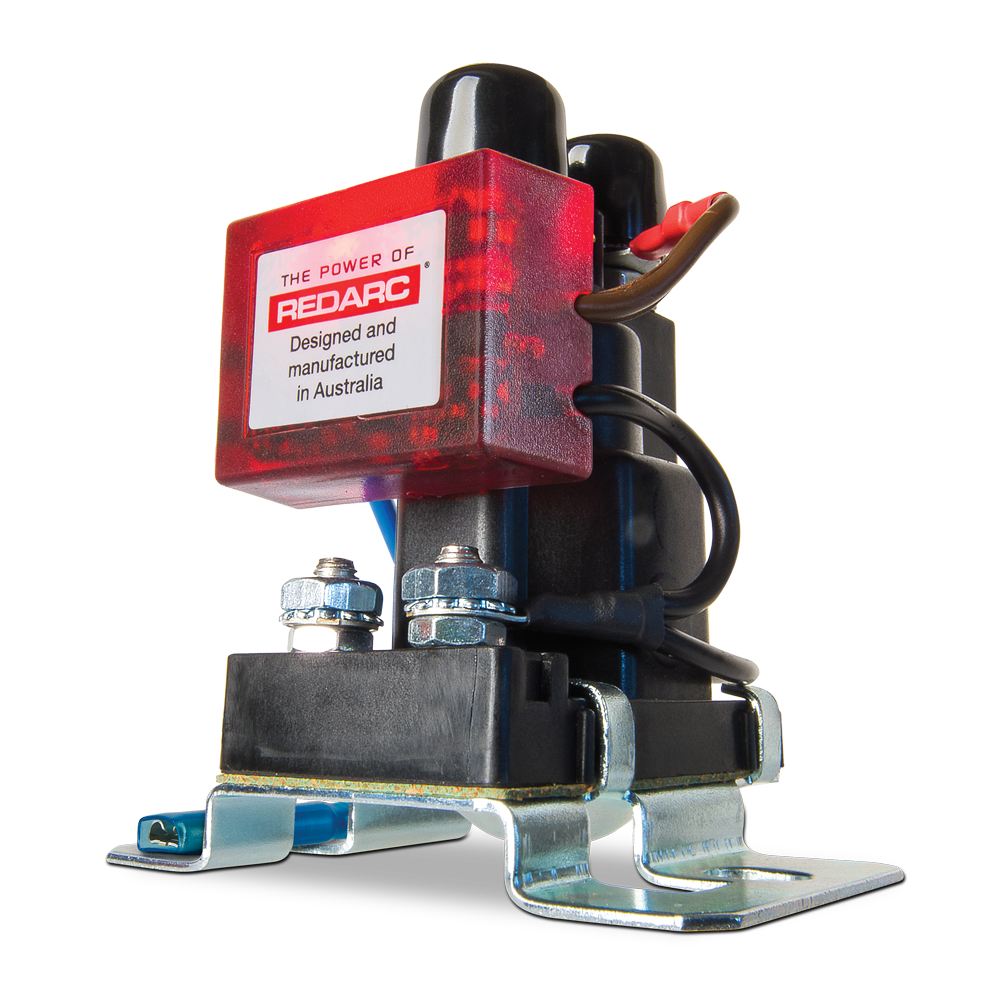

The REDARC Smart Start SBI24D is a dual battery isolator that is easy to install and is used to isolate start and auxiliary batteries in a dual battery system. It protects the start battery from a low charge in the secondary battery so it won't drain the primary battery. The SBI24D provides 24 volt DC incorporating 100A of continuous ratings. The dual sensing model isolates the start and auxiliary batteries in a system where the auxiliary battery may also be charged by solar panels or another external source. It also allows the start battery to be charged from the external source once the auxiliary battery reaches 26.4 volts. Power saving technology includes components which prevent the solenoid from generating high voltage transients. Sophisticated fault detection and LED indication of operation alerts the user of over-voltage, voltage drop, and excessive current draw conditions. The Smart Start SBI24D is surge protected and a safe way to charge auxiliary batteries. It's primarily used in commercial vehicles. The SBI range manages battery charge for your secondary battery banks while on the move.

Features

  • Overmold design
  • Compact size and easy installation
  • Silver contacts for longer life and suitable for marine applications
  • Power saving technology. Fault indication
  • Fully surge protected
  • Protect the starter battery's excessive discharge
  • allowing your auxiliary battery to power your accessories.
  • Power-saving technology that provides cost-effective protection for the primary battery in a safe and convenient way by using the alternator to charge the auxiliary battery.

Specifications

Dimensions

3.54 Inches
Length
3.54 Inches
Width
3.54 Inches
Height
0.55 lbs
Weight

SHIPPING INFORMATION

This item ships in its original packaging. Dimensions and weight are used to calculate shipping costs.

Warranty and Protection

Manufacturer Warranty

This product comes with 24 months warranty coverage.
