ReadyLift 6" Lift Kit - Dodge Ram 2500 4WD W/ Bilstein Shocks 2019-2023 With Driveline Indexing Kit

ReadyLift 6" Lift Kit - Dodge Ram 2500 4WD W/ Bilstein Shocks 2019-2023 With Driveline Indexing Kit

49-1961

Out of Stock
$2,499.95
  • Secure checkout
    SSL encrypted payment
  • Fast Shipping
    2-3 Business days

DOES THIS FIT MY VEHICLE?

Sold out

Description

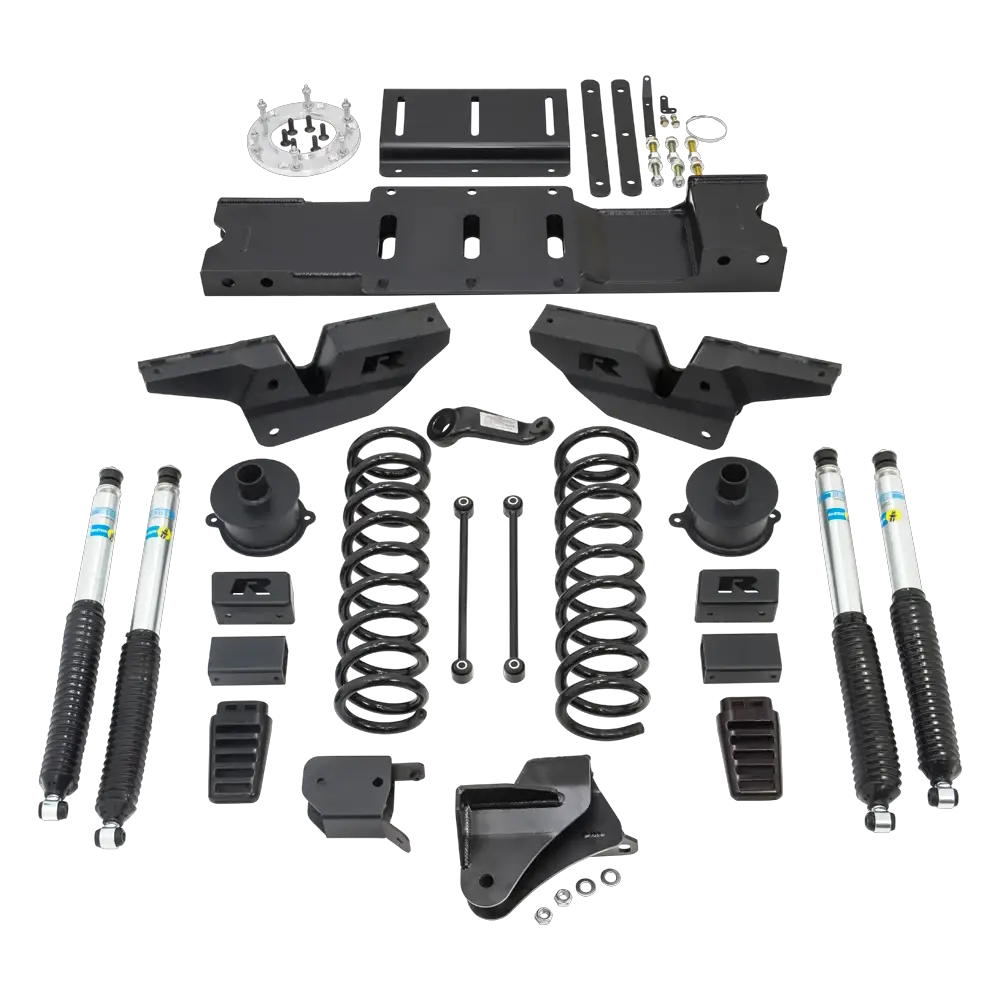

The new Ram HD trucks are more popular than ever and our ReadyLIFT 6" lift kit we introduced two years ago has been an extremely popular lift option. How can we take an already great 2019-2023 Ram HD 6" lift kit and make it better? How about adding a new CNC-machined billet Aluminum transfer case clocking ring to reposition the transfer case pinion angle? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity. Our new 49-1961 6" lift kit addresses that inherent driveline system issue with the addition of a heavy-duty transfer case clocking [indexing] ring and new transmission crossmember. This Driveline Indexing System (DIS) combination works great with our ReadyLIFT 6" lift kit while re-positioning the transmission and pinion position for a smooth driving experience on or off road. Kit 49-1961 includes everything in our popular 49-1960 6" lift kit as well as these new DIS re-positioning components. Heavy duty and great riding 6" lift front springs, 3.5" lift rear coil spring spacers, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over- compression of the new Bilstein 5100 series front/rear shocks are all included in this premium kit. For use on diesel 2500 trucks only.

Features

  • Allows for up to 37x13.50 tires on 9.5"" wide wheels with Allows for up to 37x13.50 tires on 9.5"" wide wheels with 18 offset
  • Includes all Includes allnew transfer case clocking ring
  • New heavy New heavyduty transmission crossmember
  • 201920192023 Ram 2500 4WD HD 6"" lift kit
  • 20192023 Ram 2500 4WD HD 6" lift kit
  • 4 Bilstein 5100 series shocks tuned specifically for Ram 2500 HD
  • 66inch front/3.5inch rear lift
  • 6inch front/3.5inch rear lift
  • Allows for up to 37x13.50 tires on 9.5" wide wheels with 18 offset
  • Does not work with Factory Air suspension or Auto Level system (factory helper bags)
  • For use on Diesel engine Ram 2500 4WD HD trucks only
  • Includes allnew transfer case clocking ring
  • New heavyduty transmission crossmember
  • Note: Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT

Specifications

Dimensions

47.75 Inches
Length
12.625 Inches
Width
24 Inches
Height
250 lbs
Weight
