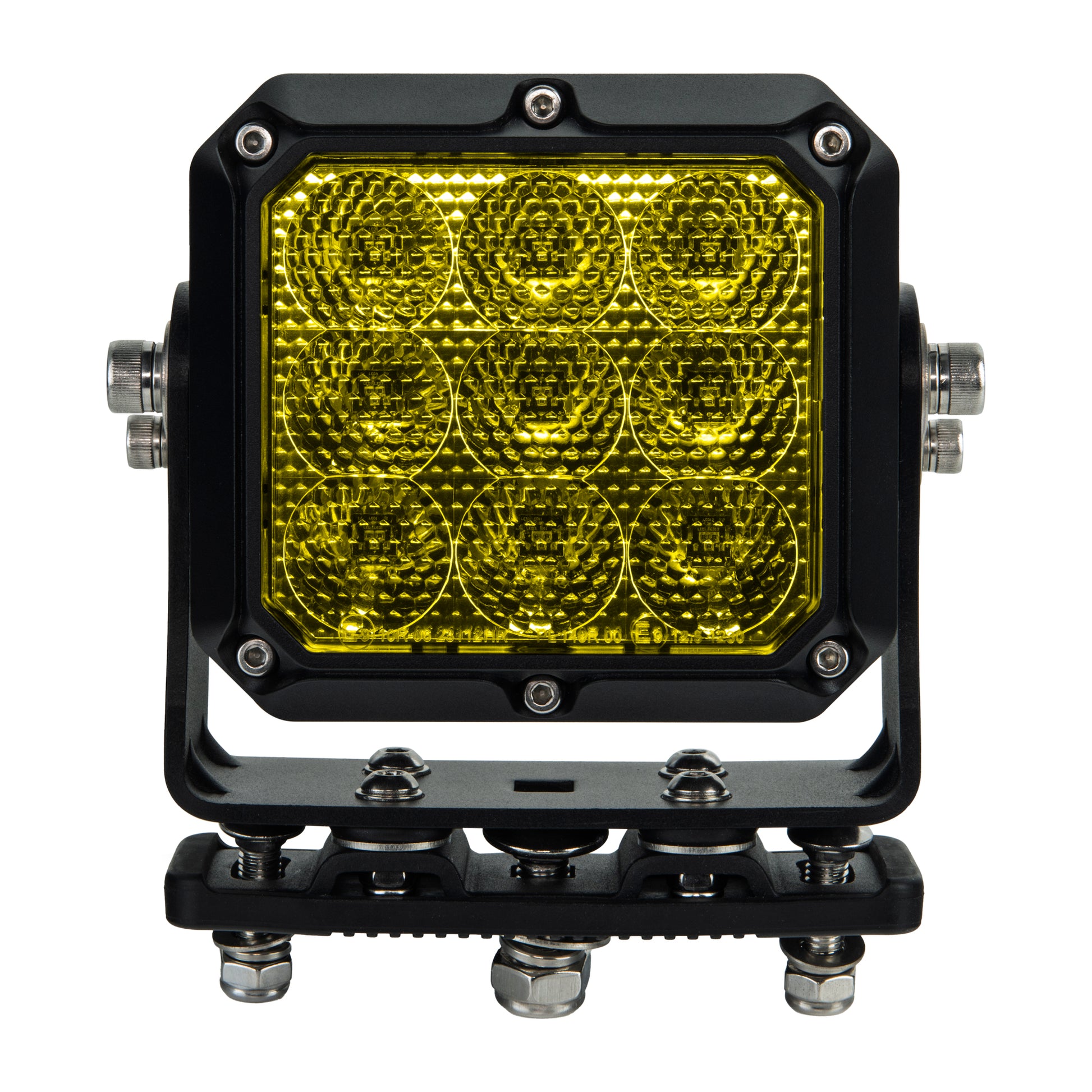

ORACLE Lighting ATLAS 4 90W High Performance Auxiliary Spot Light - Yellow LED

ORACLE Lighting ATLAS 4 90W High Performance Auxiliary Spot Light - Yellow LED

5933-S-006

Out of Stock
$287.25
  • Secure checkout
    SSL encrypted payment
  • Fast Shipping
    2-3 Business days

DOES THIS FIT MY VEHICLE?

Sold out

Description

Introducing the ATLAS 90W High Performance Auxiliary Light - the latest innovation from ORACLE Lighting and our toughest LED off-road light to date. Developed initially for military use, this isn't just a light; it's a battle-tested tool built to outperform and outlast everything in its class. The ATLAS is built around premium OSRAM LED chips delivering up to 10,500 RAW lumens (White) or 9,700 RAW lumens (Yellow) with a projection distance of 640 meters. Whether you're navigating remote trails, working in extreme conditions, or demanding maximum visibility, the ATLAS delivers without compromise. Engineered to survive where others fail, the ATLAS carries an IP69K waterproof rating - the highest available - and has been tested to 60G shock resistance for military-grade durability. A wide 10-32V input range makes it compatible with both 12V and 24V electrical systems, from light trucks to heavy-duty rigs.

Features

  • Spot/Yellow
  • Heavy Duty Industrial Bracket Design
  • EMC Test: CISPR 25 2008
  • GRADE: R10 Class 4
  • Ingress Protection IEC60529
  • GRADE: IP69K
  • Input Voltage: 10V-32V
  • Power Draw: 5A@12V / 2.5A@24V
  • LED Chip: OSRAM
  • Operating Power: 90W
  • CCT Color Temp: 6000K
  • Operating Temp: -40°F to 185°F
  • RAW Lumens 6000K: 10
  • 500 lm
  • RAW Lumens 3400K: 9700 lm
  • Optional Anti-Vibration Shock Plate
  • Projection Distance: 640m
  • Lux - Spot: (640 Meters) 0.25 lx
  • Lux - Flood: (240 Meters) 0.25 lx
  • Connector Type: Deutsch DT 2-Pin
  • Lens Material: Polycarbonate
  • Housing Material: Powdercoated Aluminum
  • Mounting Hardware: 304 Stainless Steel
  • Ingress Protection: IP69K Waterproof
  • Lamp Dimensions: 120mm x 110mm x 86mm
  • Lamp Weight: 5 lbs
  • Wide Voltage Input Range 10V-32VDC
  • In the Box: (1) 90W High Performance Auxiliary Light (1) Deutsch Connector Pigtail
  • CE
  • RoHS
  • R10 and R112 Certifications
  • 50
  • 000 Hours Runtime
  • 2 Year Warranty
  • Vibration: IEC 60068-2-6
  • 15.6Grms24—2000Hz
  • Shock Test: IEC 60068-2-27
  • GRADE: 2008 60G

Specifications

Dimensions

8 Inches
Length
8 Inches
Width
4 Inches
Height
5 lbs
Weight
