ORACLE Lighting TITAN 4 90W High Performance Auxiliary Flood Light - Yellow LED

ORACLE Lighting TITAN 4 90W High Performance Auxiliary Flood Light - Yellow LED

5933-F-006

Out of Stock
$287.25
  • Secure checkout
    SSL encrypted payment
  • Fast Shipping
    2-3 Business days

DOES THIS FIT MY VEHICLE?

Sold out

Description

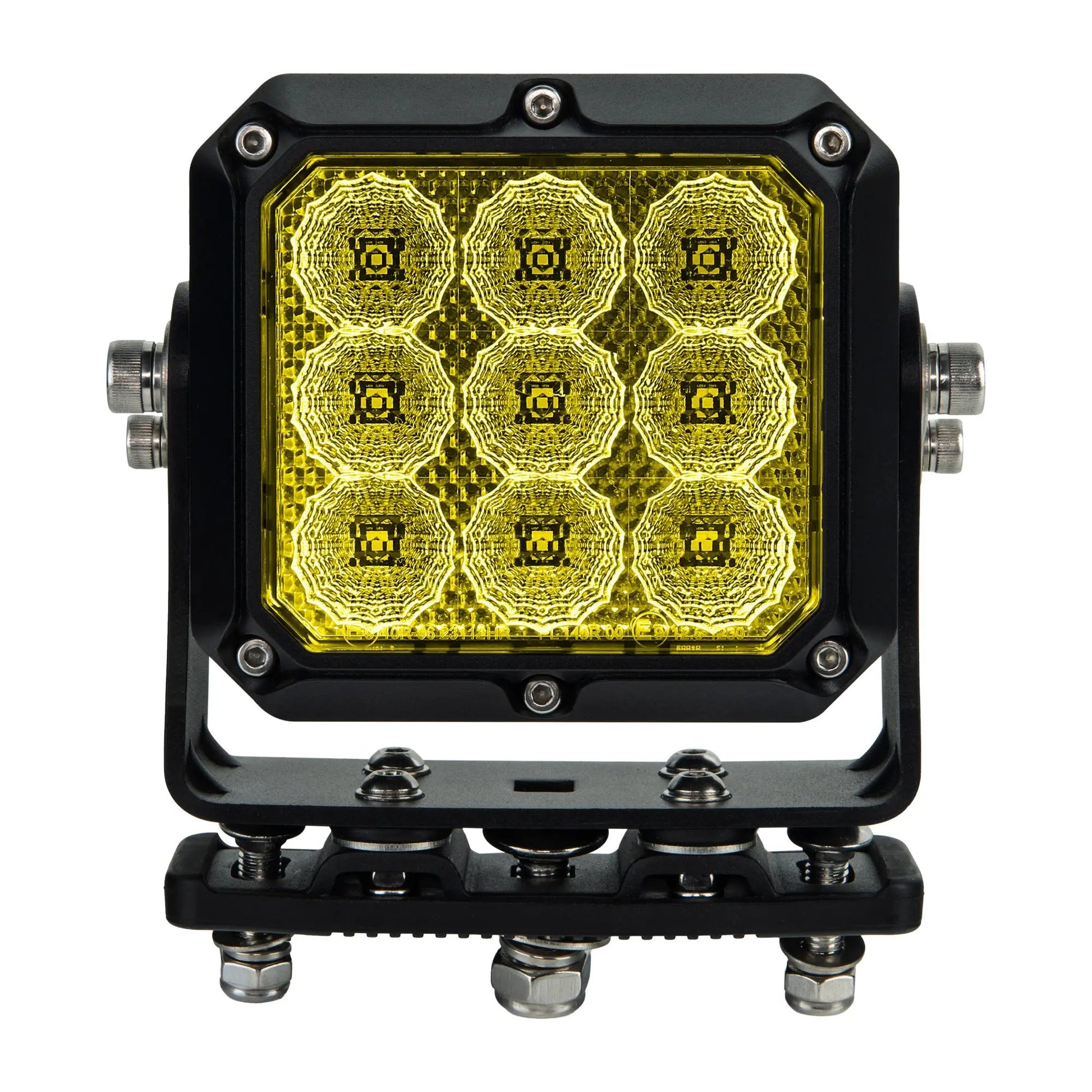

TITAN 4 90W High Performance Auxiliary Flood Light – Yellow LED by ORACLE Lighting

  • 90W high‑performance LED flood light with Yellow LED configuration delivers fog‑cutting clarity for off‑road night driving; part of ORACLE Lighting’s TITAN 90W lineup (also offered in White and Infrared).
  • Heavy‑Duty Industrial Bracket Design with an integrated Anti‑Vibration Shock Plate provides rugged stability in high‑impact, high‑speed conditions and is engineered to endure demanding environments.
  • Wide input voltage range from 10V to 32V DC with built‑in over/under voltage protection and reverse polarity protection for reliable operation on a variety of vehicles and installations.
  • Durable, weather‑ready construction with formal compliance include CE, RoHS, and automotive safety/performance ratings; designed for 50,000+ hours of operation.
  • Available in multiple beam configurations within the TITAN 90W family, including Flood beam for broad coverage and Yellow LED for enhanced visibility in challenging weather or terrain.
  • Rugged, field‑tested design purpose‑built for off‑road use, military‑inspired durability, and consistent performance under vibration and shock.
  • Backed by a 2‑year warranty, providing assurance for long‑term reliability in critical night‑driving scenarios.

Features

  • Flood/Yellow
  • Heavy Duty Industrial Bracket Design
  • EMC Test: CISPR 25 2008
  • GRADE: R10 Class 4
  • Ingress Protection IEC60529
  • GRADE: IP69K
  • Input Voltage: 10V-32V
  • Power Draw: 5A@12V / 2.5A@24V
  • LED Chip: OSRAM
  • Operating Power: 90W
  • CCT Color Temp: 6000K
  • Operating Temp: -40°F to 185°F
  • RAW Lumens 6000K: 10
  • 500 lm
  • RAW Lumens 3400K: 9700 lm
  • Optional Anti-Vibration Shock Plate
  • Projection Distance: 640m
  • Lux - Spot: (640 Meters) 0.25 lx
  • Lux - Flood: (240 Meters) 0.25 lx
  • Connector Type: Deutsch DT 2-Pin
  • Lens Material: Polycarbonate
  • Housing Material: Powdercoated Aluminum
  • Mounting Hardware: 304 Stainless Steel
  • Ingress Protection: IP69K Waterproof
  • Lamp Dimensions: 120mm x 110mm x 86mm
  • Lamp Weight: 5 lbs
  • Wide Voltage Input Range 10V-32VDC
  • In the Box: (1) 90W High Performance Auxiliary Light (1) Deutsch Connector Pigtail
  • CE
  • RoHS
  • R10 and R112 Certifications
  • 50
  • 000 Hours Runtime
  • 2 Year Warranty
  • Vibration: IEC 60068-2-6
  • 15.6Grms24—2000Hz
  • Shock Test: IEC 60068-2-27
  • GRADE: 2008 60G

Specifications

Dimensions

8 Inches
Length
8 Inches
Width
4 Inches
Height
5 lbs
Weight
