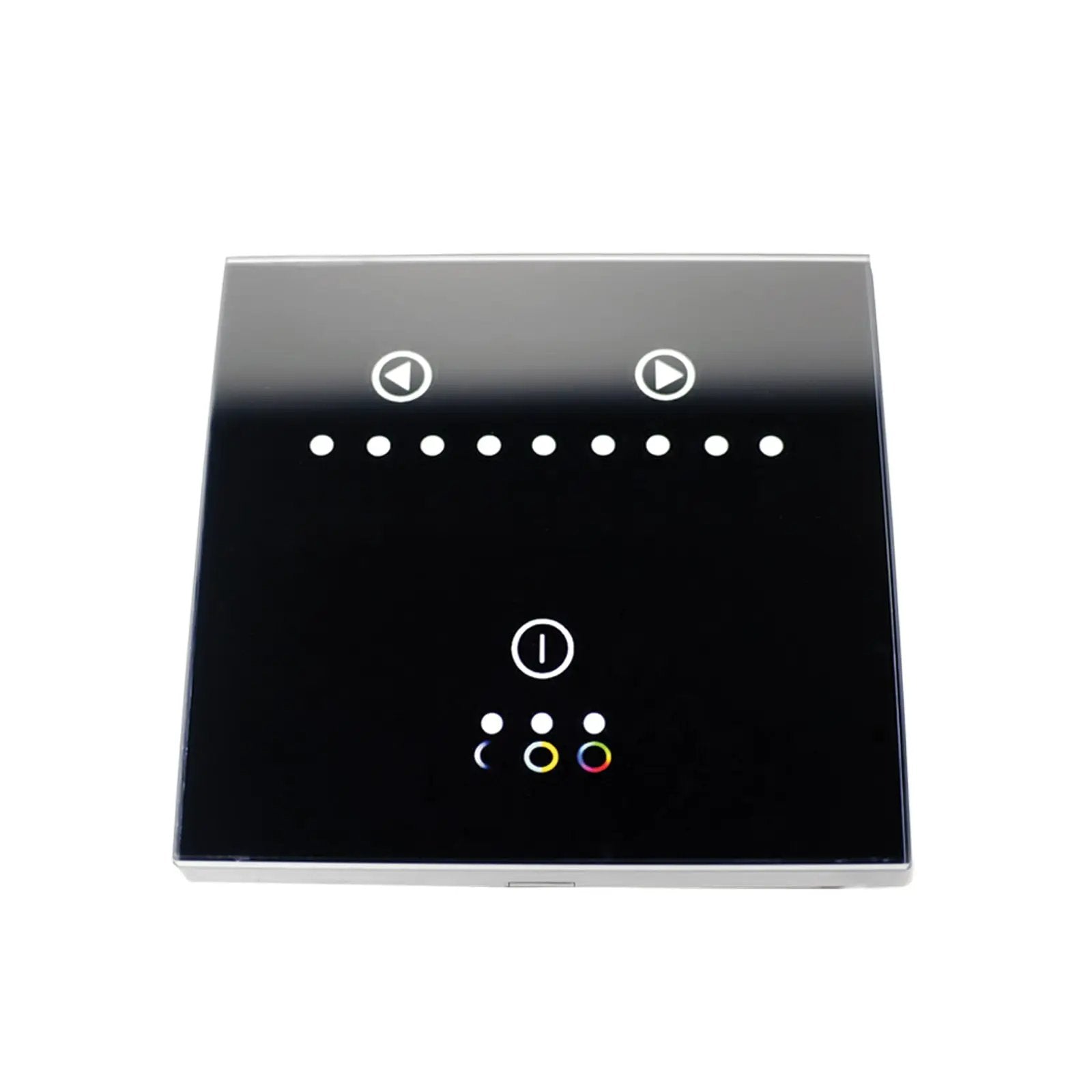

ORACLE Smart Touch RGB Dimmer (9053-504) — Glass Panel RGB Dimmer Controller

The ORACLE Touch Panel RGB Dimmer is a compact, high‑end LED controller with a glass panel for a modern, premium appearance. It uses a high‑precision touch control chip to improve responsiveness and reduce mistaken triggers, enabling precise RGB and white‑balance (CCT) adjustments across compatible LED lighting.

• Three‑channel output for RGB lighting with a DC input range of 12–24V; designed for RGB Flex LED strips, wall washers, and panel lights.
• Glass‑panel enclosure with a sleek, contemporary look that complements vehicle interior installations.
• Multiple control modes: RGB color control, color‑temperature (CCT) adjustment, and dimming, plus jump, gradual, strobe, and flash effects.
• Power and mode operations: a short press powers the unit on/off; a long press cycles between RGB mode, Color Temperature mode, and Dimmer mode.
• Intuitive parameter adjustment using the Left Arrow (increase) and Right Arrow (decrease); long presses boost brightness or speed as applicable.
• Compact footprint for in‑cab mounting with mounting guidance that the controller should reside inside the vehicle’s cabin.

Product details: Part # 9053-504; weight and exact dimensions are provided by installer resources as a compact, lightweight control panel suitable for automotive LED integrations. This controller is built to integrate with Oracle ColorSHIFT and related LED lighting ecosystems, delivering reliable, feature‑rich control in a single, easy‑to‑install unit.
