Description

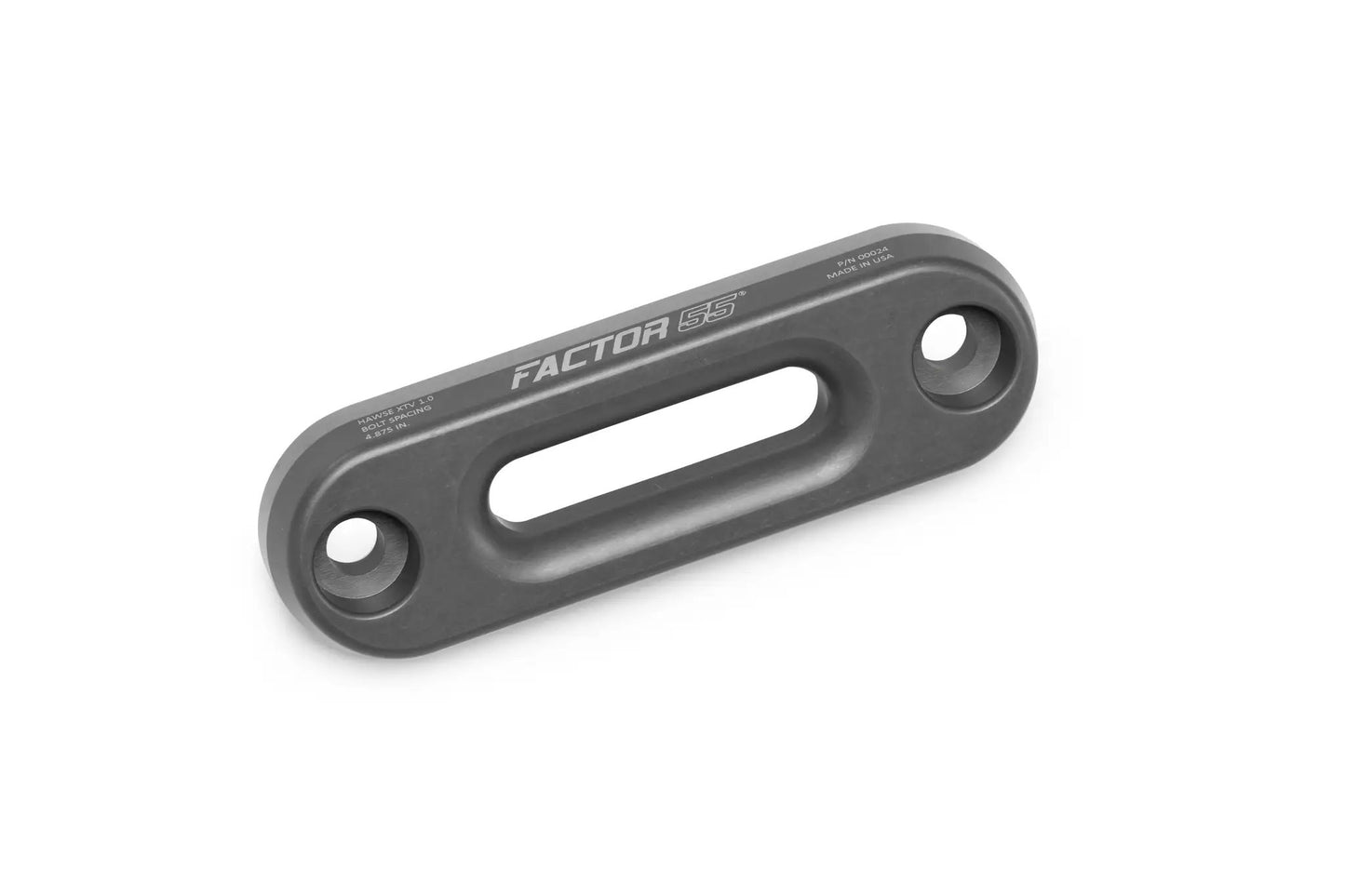

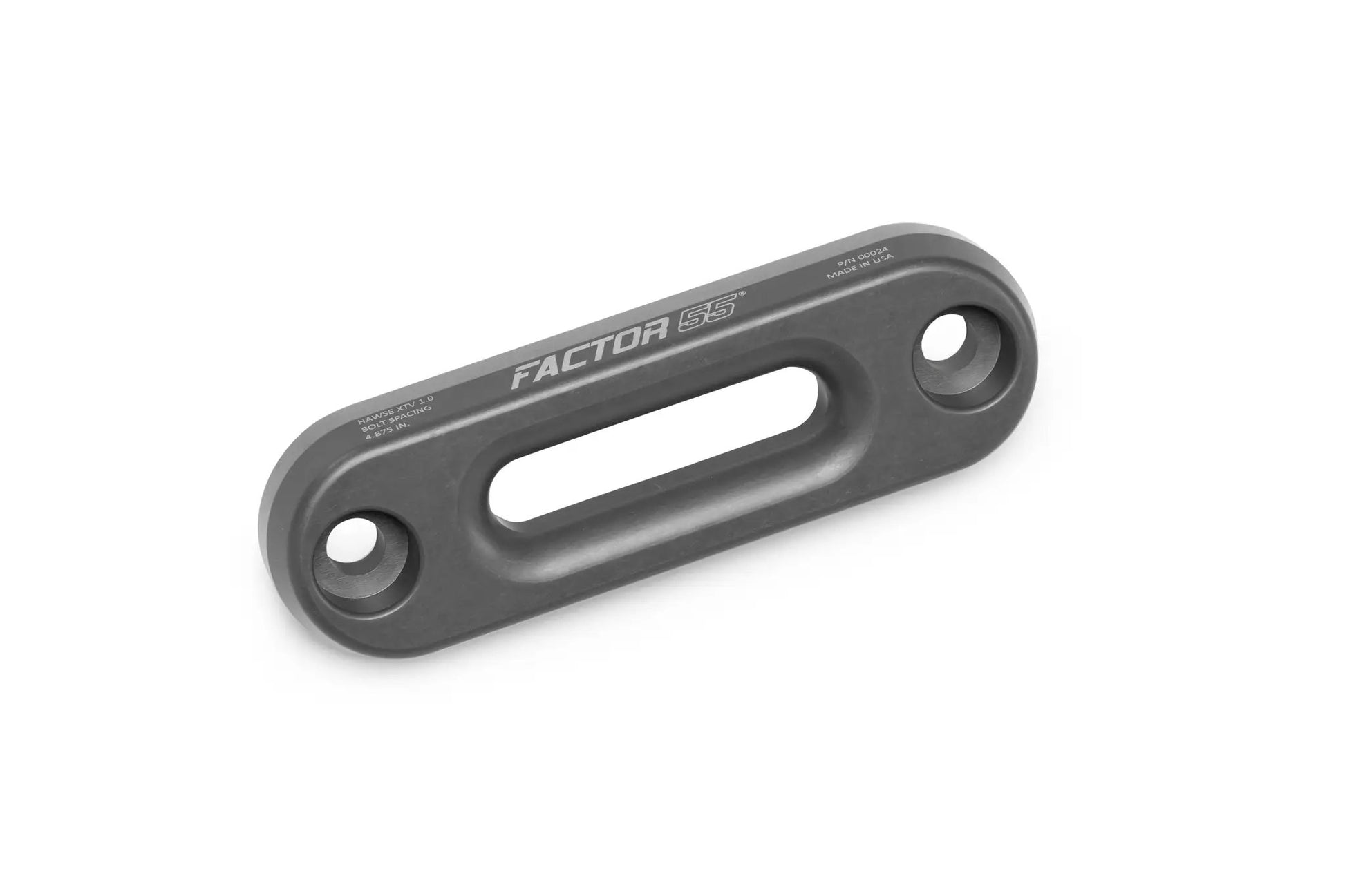

Factor 55 XTV Hawse Fairlead: 1" Thick USA 6000 Series Aluminum with Large Rope-Guide Radius

1"-thick CNC-machined USA 6000 series aluminum bar delivers exceptional rigidity and durability, doubling the industry standard thickness.
Extra-thick design creates a larger outer radius for synthetic rope to slide against, reducing abrasion and extending rope life.
Hard-wearing MIL-A-8625F TYPE III gunmetal gray hard-anodized finish with a laser-engraved Factor 55 logo for lasting corrosion resistance and branding.
Finish features a ~0.002" thick Al2O3 ceramic coating, among the hardest materials known, providing superior abrasion resistance.
Precise CNC tolerances ensure smooth rope feed and reliable performance under demanding recovery scenarios.
Designed specifically for hawse fairlead use, maximizing rope life while maintaining consistent rope guidance.

Features

For smaller or short drum powersport winches with 4.875" bolt spacing
Always confirm that the synthetic rope cannot make contact to any sharp edges like the opening in the steel fairlead mounting plate or bumper opening. In some cases it may be required to grind this slot larger. Always sand and deburr this opening after any grinding operation.
Durable MIL-A-8625F TYPE III gun metal gray hard anodized finish to resist the abrasion damage from a dirty/gritty synthetic winch rope rubbing across it
Large fillet radius and machined outer corner chamfer to reduce stress and extend the life of synthetic rope
Fairleads DO NOT come with mounting hardware
4.875" Bolt Mount Spacing
Overall dimension: 6.25? x 1.95?
Made in the USA
