Factor 55

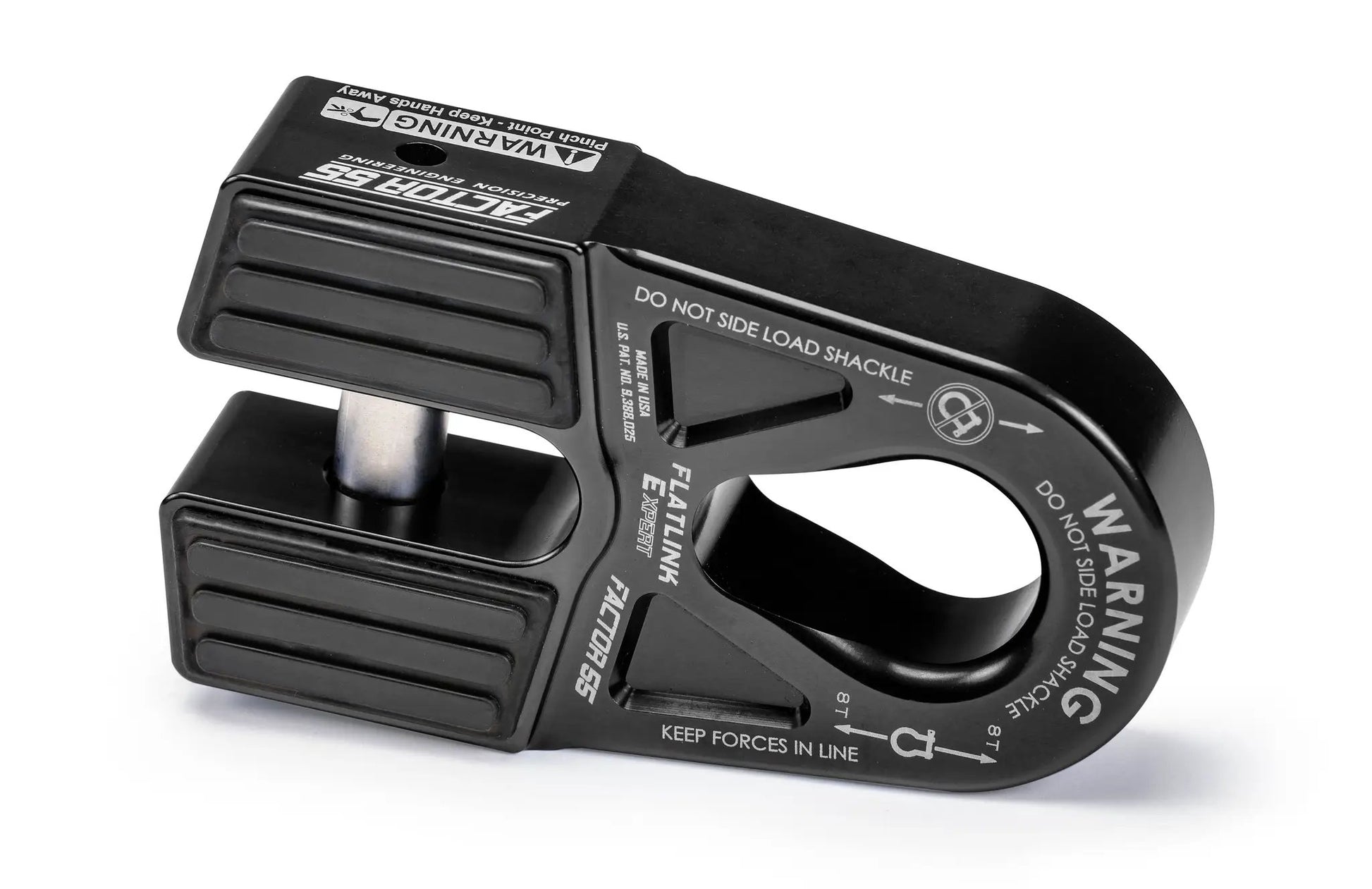

Factor 55 The FlatLink E folding shackle mount for recovery winches that eliminates the conventional winch hook and provides a versatile shackle mounting opening

Factor 55 The FlatLink E folding shackle mount for recovery winches that eliminates the conventional winch hook and provides a versatile shackle mounting opening

00080-04

Out of Stock
$217.10
  • Secure checkout
    SSL encrypted payment
  • Fast Shipping
    2-3 Business days

DOES THIS FIT MY VEHICLE?

Sold out

Description

Factor 55 FlatLink E folding shackle mount delivers hook-free, closed-system winching for safer, secure recoveries.

  • Hook-free, closed-system winching: replaces the conventional winch hook with a safe screw-pin or soft shackle through a large pear-shaped mounting opening designed for 3/4-inch screw-pin shackles, soft shackles, and OEM recovery points.
  • Secure, compatible design: the cable eye is retained by a 5/8-inch titanium double shear pin and internal snap ring; no splicing required and it works with steel cables or synthetic rope up to 3/8-inch diameter.
  • Folding, protective profile: folds to a compact form and stows neatly against roller or hawse-type fairleads; EPDM rubber guards shield alloy fairleads with four secure barbed tips.
  • Fast, simple installation: designed for quick mounting on standard recovery setups and minimal setup time to get you back on the trail.
  • Compact footprint and weight: dimensions are 4.00" L × 6.00" W × 4.00" H and weight is 1.81 lb, making it easy to transport and store.
  • Enhanced safety and strap longevity: eliminates strap fraying and end migration during slack cycles, delivering safer recoveries with less risk to gear.

Features

  • The Flatlink E provides a safe means to easily attach either end of a standard 3/4" screw pin or soft shackle to existing winch cable and rope eyes while laying flat against the fairlead.
  • The FlatLink E is more versatile than the original FlatLink design
  • but care must be taken to avoid shackle side loading
  • especially during momentary slack conditions.
  • When folded flat ? less than 1.75 inches of thickness
  • Fits 3/8? diameter steel cables and synthetic winch ropes
  • EPDM rubber guards protect alloy fairleads and cushions line stowage
  • Precision machined from 6000 series aluminum
  • Max load rating : 16
  • 000 pounds
  • Engineered
  • tested
  • and made in USA ? Patent pending

Specifications

Dimensions

4 Inches
Length
6 Inches
Width
4 Inches
Height
1.81 lbs
Weight
