ARB

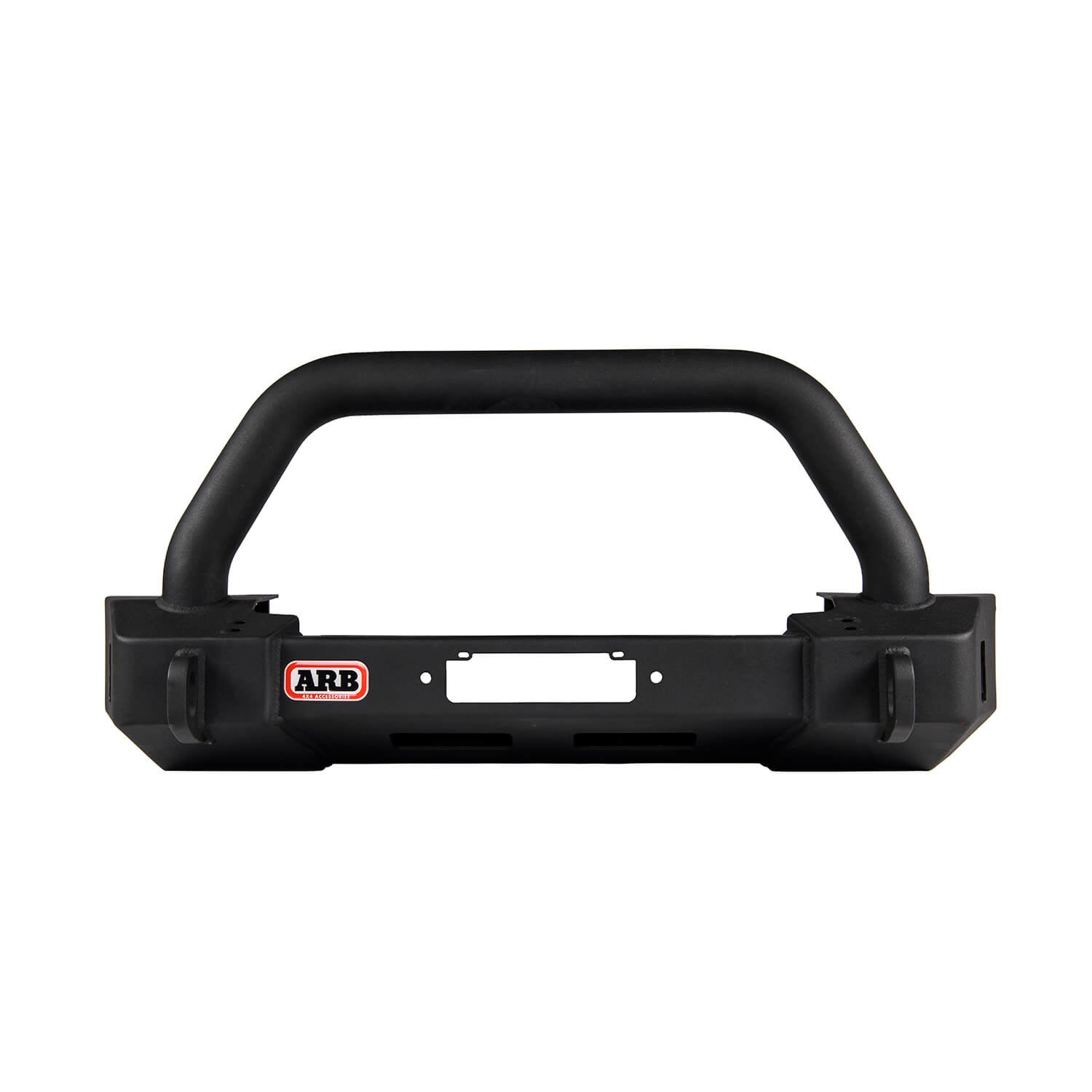

ARB Stubby Bumper

ARB Stubby Bumper

3450450

Out of Stock
$1,712.17
  • Secure checkout
    SSL encrypted payment
  • Fast Shipping
    2-3 Business days

DOES THIS FIT MY VEHICLE?

Sold out

Description

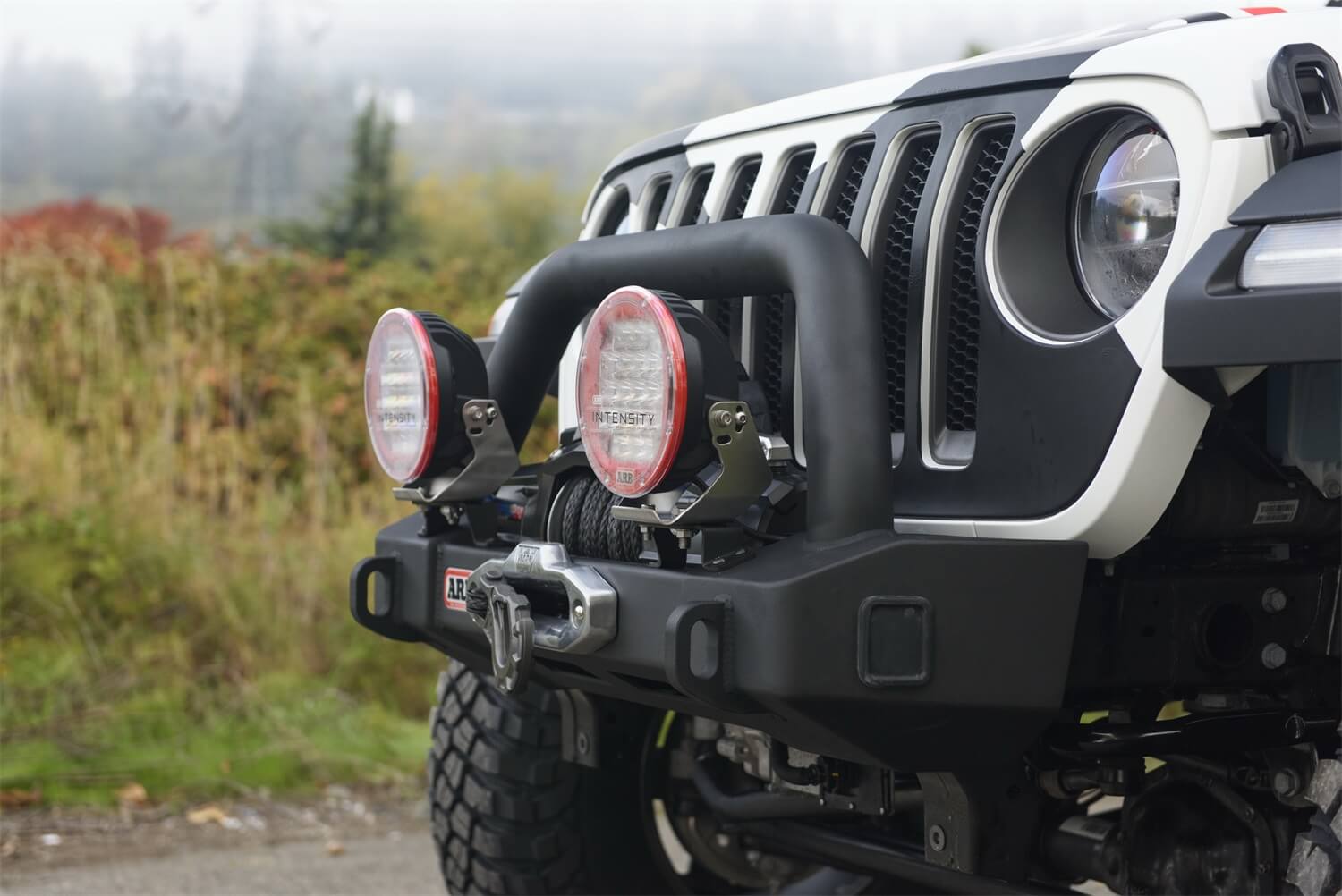

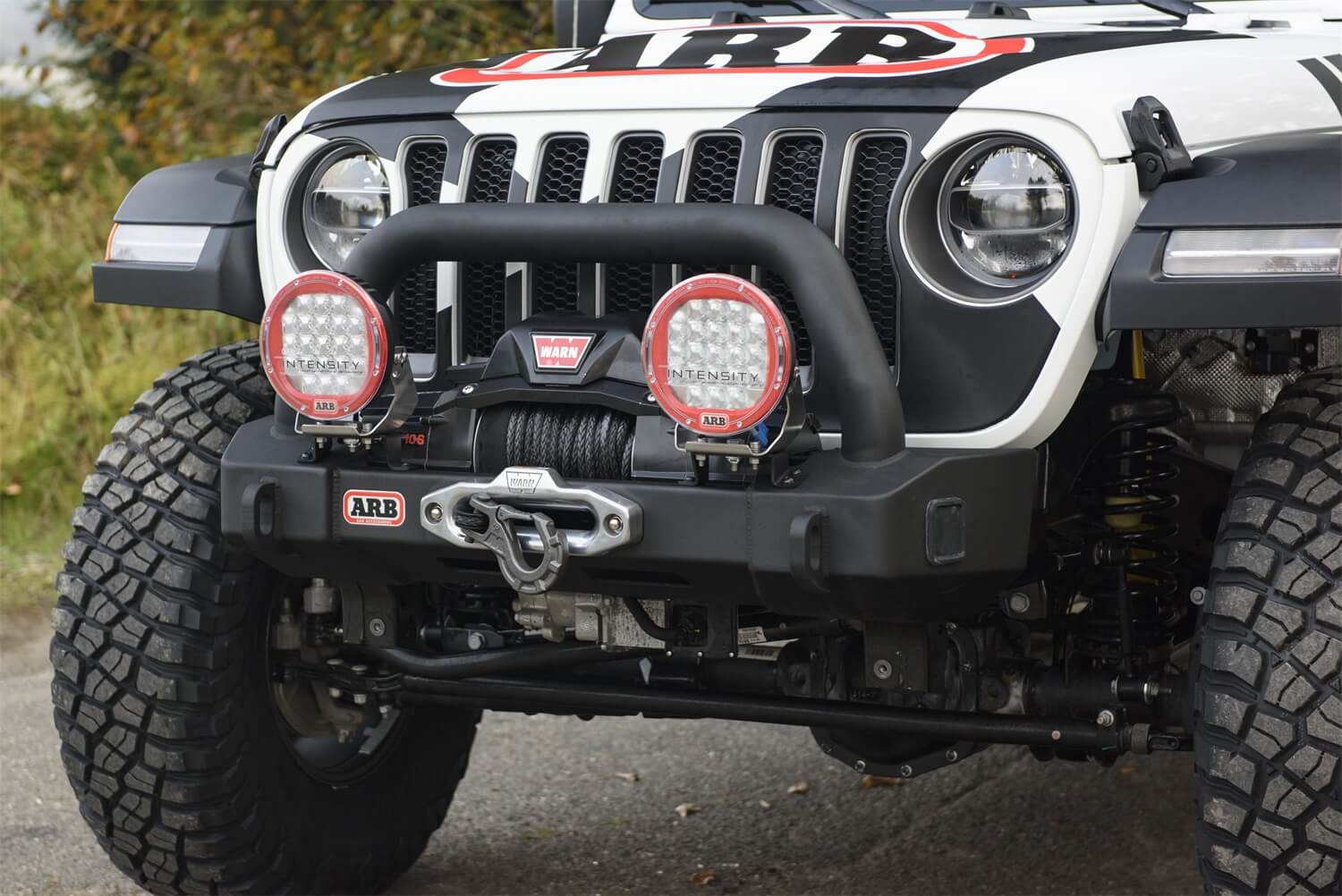

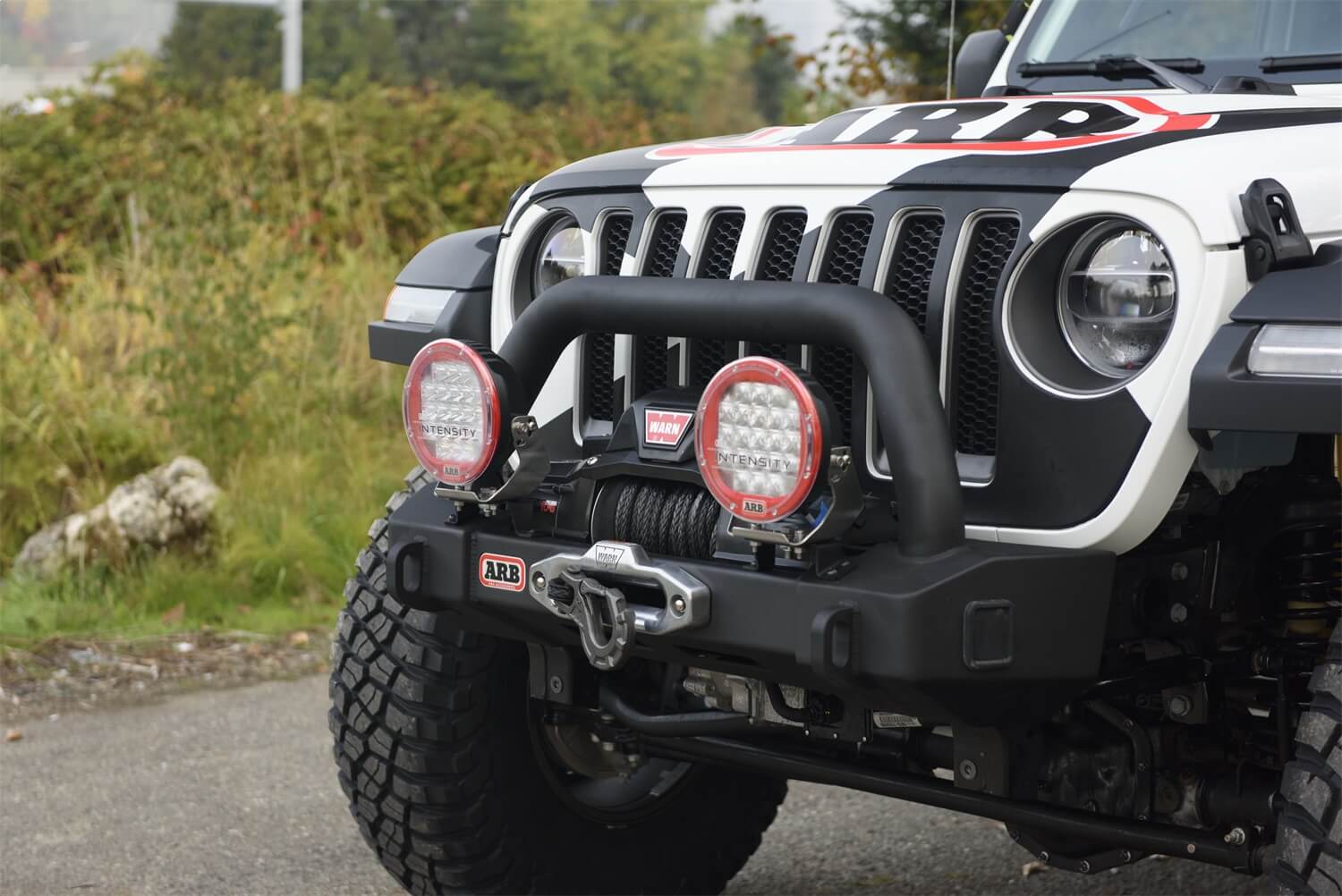

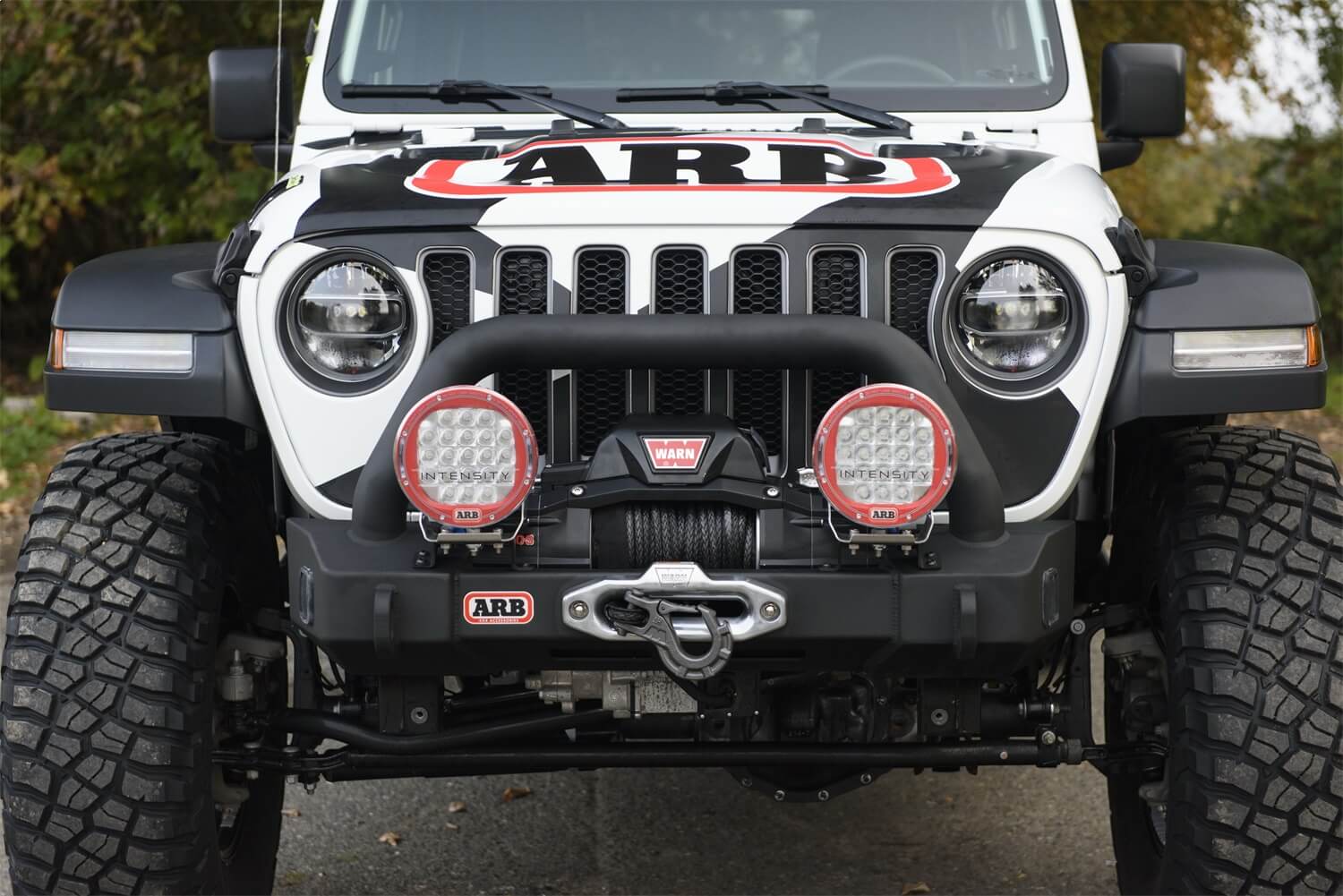

Inspired by the classic ARB Wrangler JK Stubby Bumper, the newly developed ARB Wrangler JL Stubby Bumper is designed for the off-roader who is in need of a winch mounting platform while maintaining maximum clearance for larger diameter tires. Generally vehicles that run larger than 37 inch tires may rub the wings of a traditional style ARB Deluxe Bumper. The Stubby Bumper eliminates this issue on the Jeep Wrangler JL as it is only a little wider than the vehicles chassis. For recovery situations each wing section features jacking points suitable for an ARB JACK or mechanical recovery jack. Antenna tabs on main tube can be used for fitment of communication antennas or driving lights to the bumper. Central on each outer wing section are 0.8 thick 350 grade recovery points which tie through the wings and into the chassis mounts directly giving the strongest possible recovery point. The winch platform will allow the mounting of most traditional low mount style Warn winches and narrow mount pattern competition type winches. A bracket is provided for those who wish to run their control box in the center of the bumper. Two front ?flip up style license plate mounts are provided. One to suit roller fairleads and one for the hawse type fairlead. These allow the number plate to be located over the fairlead and flipped up out of the way when the winch is in use.

Features

  • Specific Design To Complement Vehicle
  • Durable Steel Construction For Maximum Protection
  • Manufactured From 4 mm Laser Cut And Folded Steel Sheet
  • Equally Suited To Winch And Non Winch Applications
  • Provision To Accommodate A Range Of IPF And ARB Driving Lights
  • 0.8 in. 350 Grade Steel Recovery Points
  • All Hardware Zinc Plated For Corrosion Resistance
  • All Exterior Surfaces Are CMT Pulse Welded
  • ERW center frame tube

Specifications

Dimensions

48 Inches
Length
40 Inches
Width
16 Inches
Height
115 lbs
Weight

SHIPPING INFORMATION

This item ships in its original packaging. Dimensions and weight are used to calculate shipping costs.

Warranty and Protection

Manufacturer Warranty

This product comes with 3 years warranty coverage.

Extended Protection

Add extended warranty coverage for additional peace of mind.
