ARB ARB Zenith Winch Bumper Bundle

ARB ARB Zenith Winch Bumper Bundle

Read Product Details

3421950B

Out of Stock
$2,493.05
  • Secure checkout
    SSL encrypted payment
  • Fast Shipping
    2-3 Business days

DOES THIS FIT MY VEHICLE?
Sold out

Description

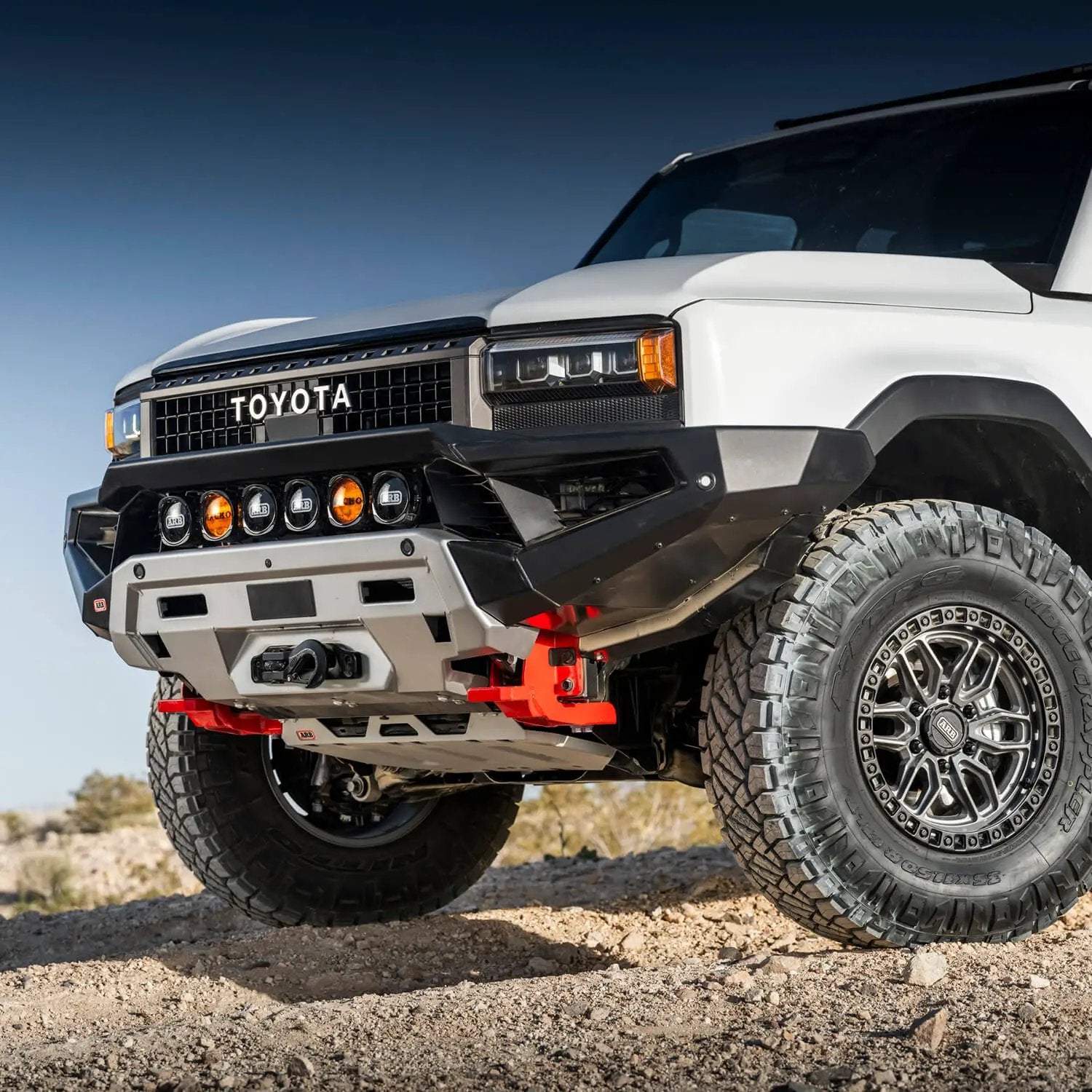

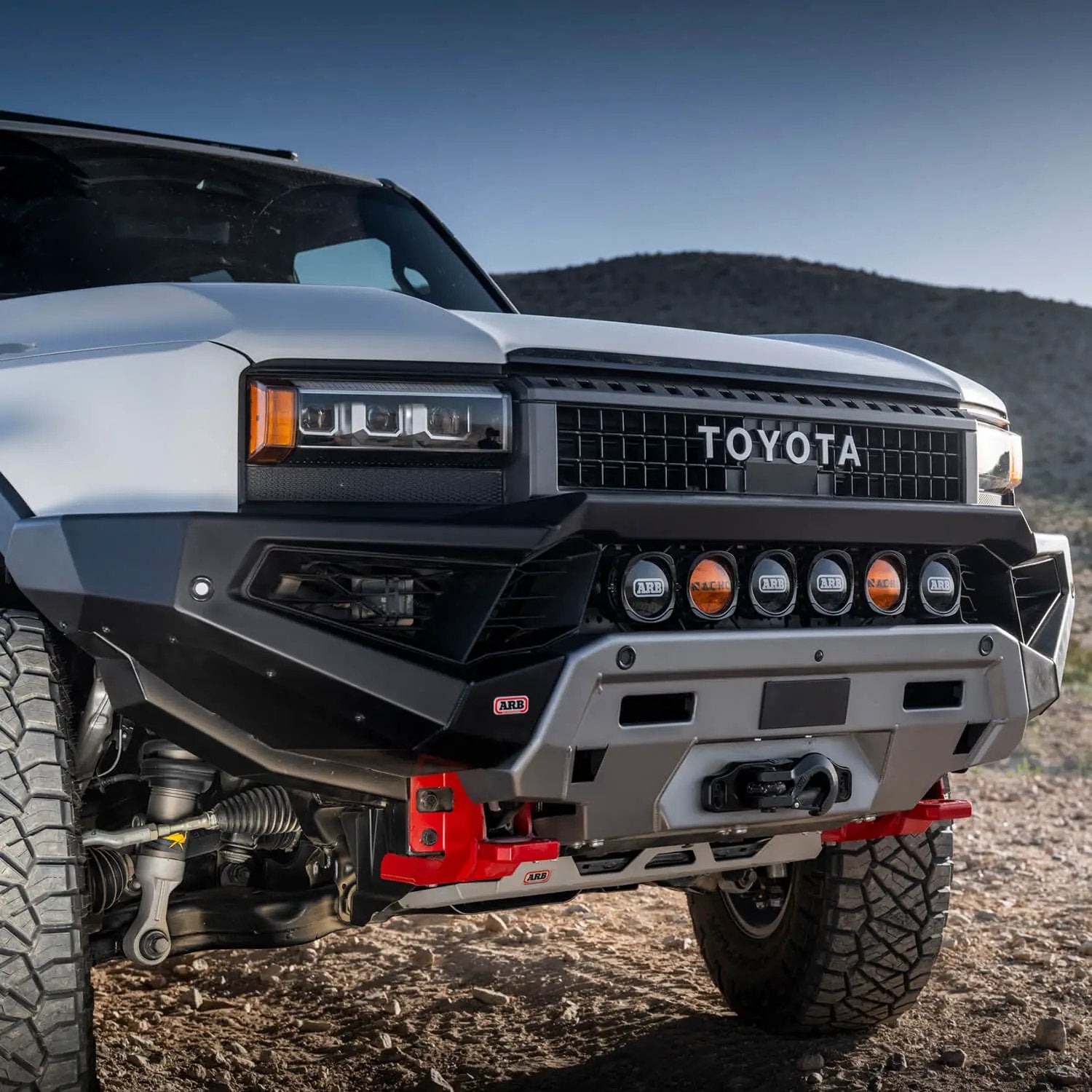

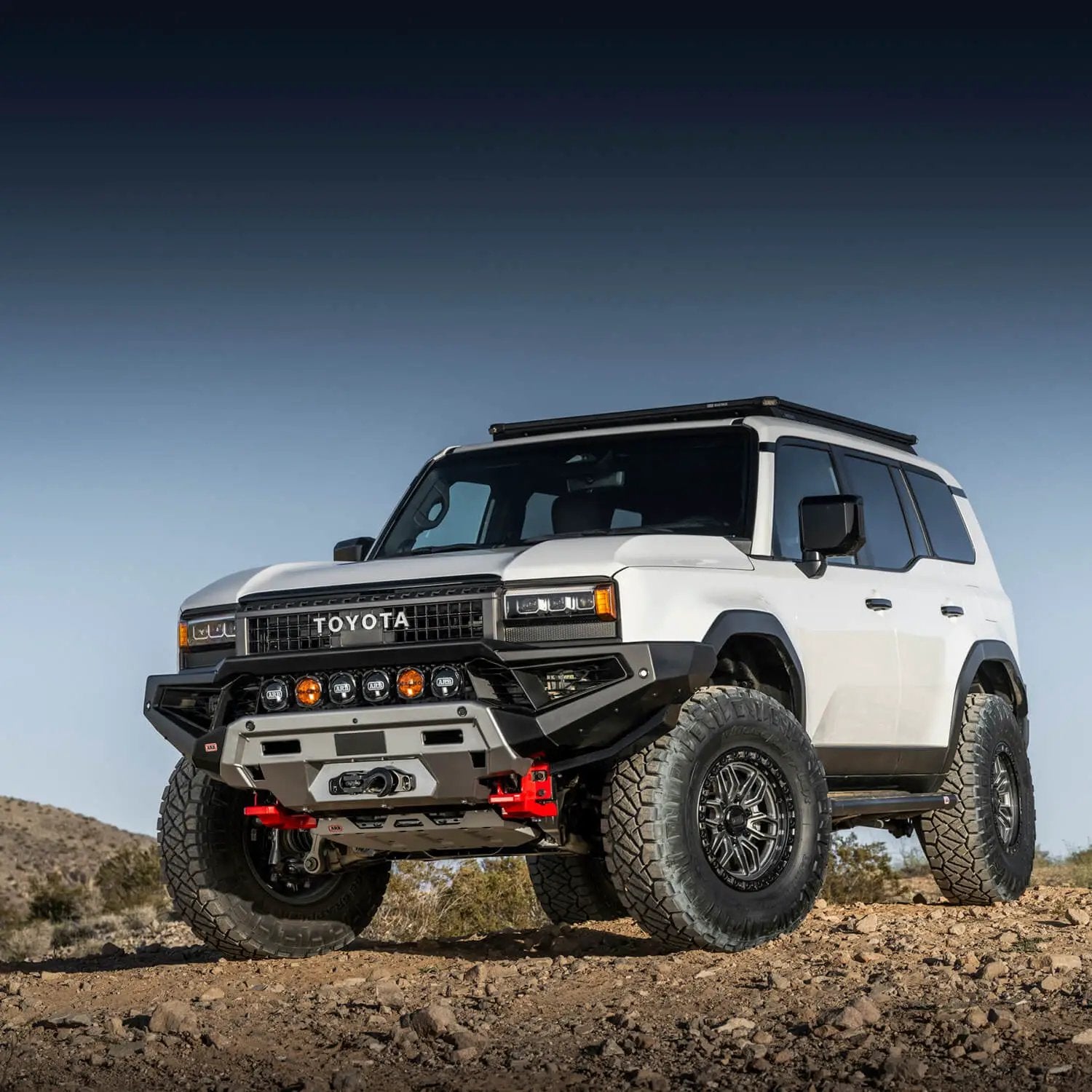

ARB Zenith Winch Bumper Bundle: a low-profile laser-cut steel bumper with a 10,000 lb winch cradle and twin 17,637 lb (8 ton) recovery points.

  • Laser-cut and formed steel construction finished with ecoat, meta prep and satin black powder coat for maximum corrosion resistance.
  • Integrated winch cradle compatible with most low-mount winches up to 10,000 lbs, enabling straightforward installation and reliable operation.
  • Twin forged recovery points rated at 17,637 lbs each (8 tons) designed to protect soft shackles and prevent point loading on steel bow shackles.
  • Front skid plates and under-wing pans shield vulnerable components while maintaining airflow to powertrain cooling systems.
  • OEM fog lamps are retained via dual apertures and the forward-facing radar is relocated; note: OE Front Cross Traffic Alert is not compatible with this bumper.
  • Dimensions: length 81.1 in, width 19.3 in, height 26.8 in; weight 246 pounds.
  • Low-profile styling minimizes impact on aerodynamics and powertrain performance while delivering robust protection.

Features

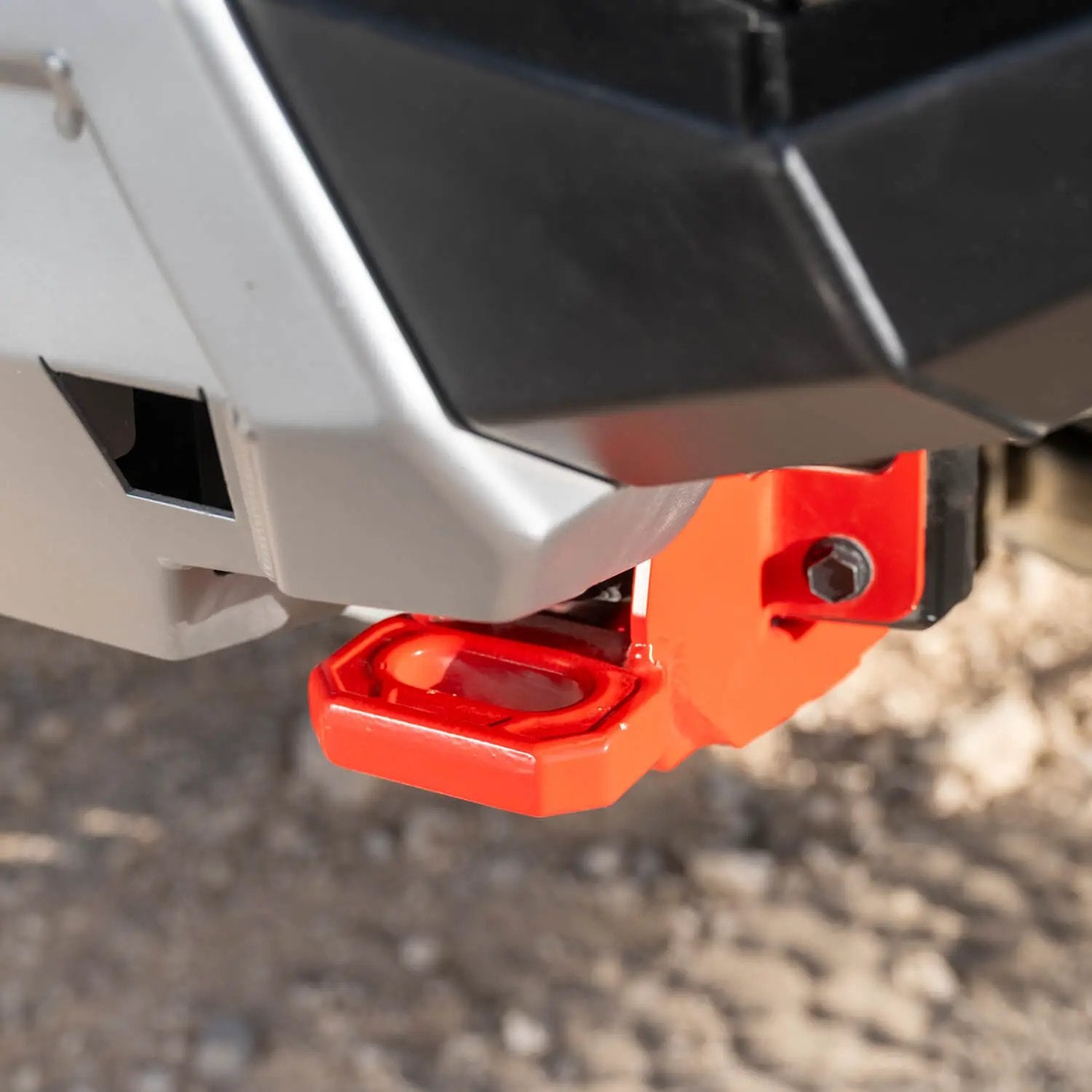

  • Two 8T rated recovery points
  • engineered and integrated into the bumper
  • rated to 17
  • 637lbs (8T) and finished in red powder coat
  • Skid plates included
  • with one heavy forged center piece and additional side bash plates for added protection on rugged terrain
  • Compatible with OE fog lights (on applicable models)

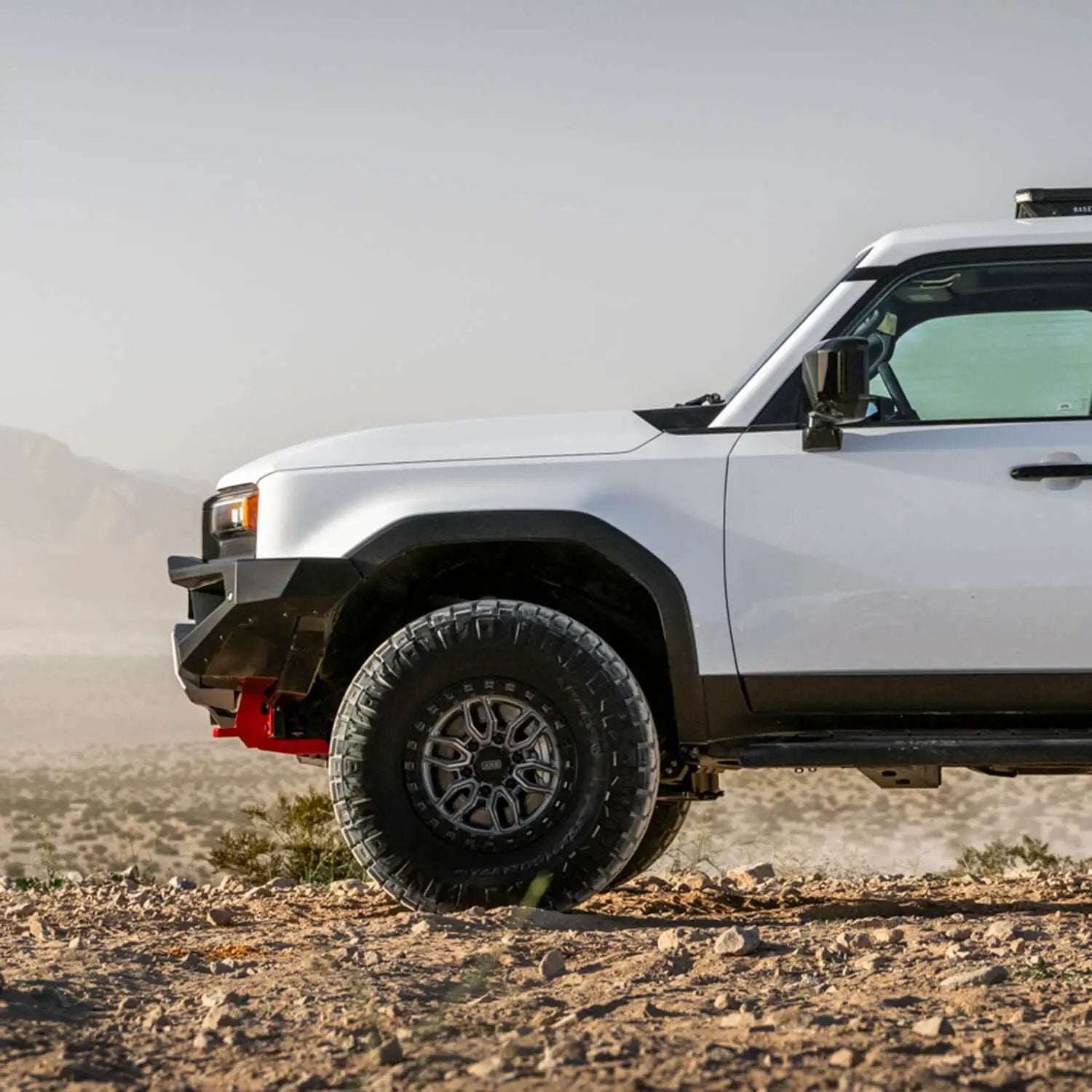

  • Slimline design profile
  • with minimal front overhang

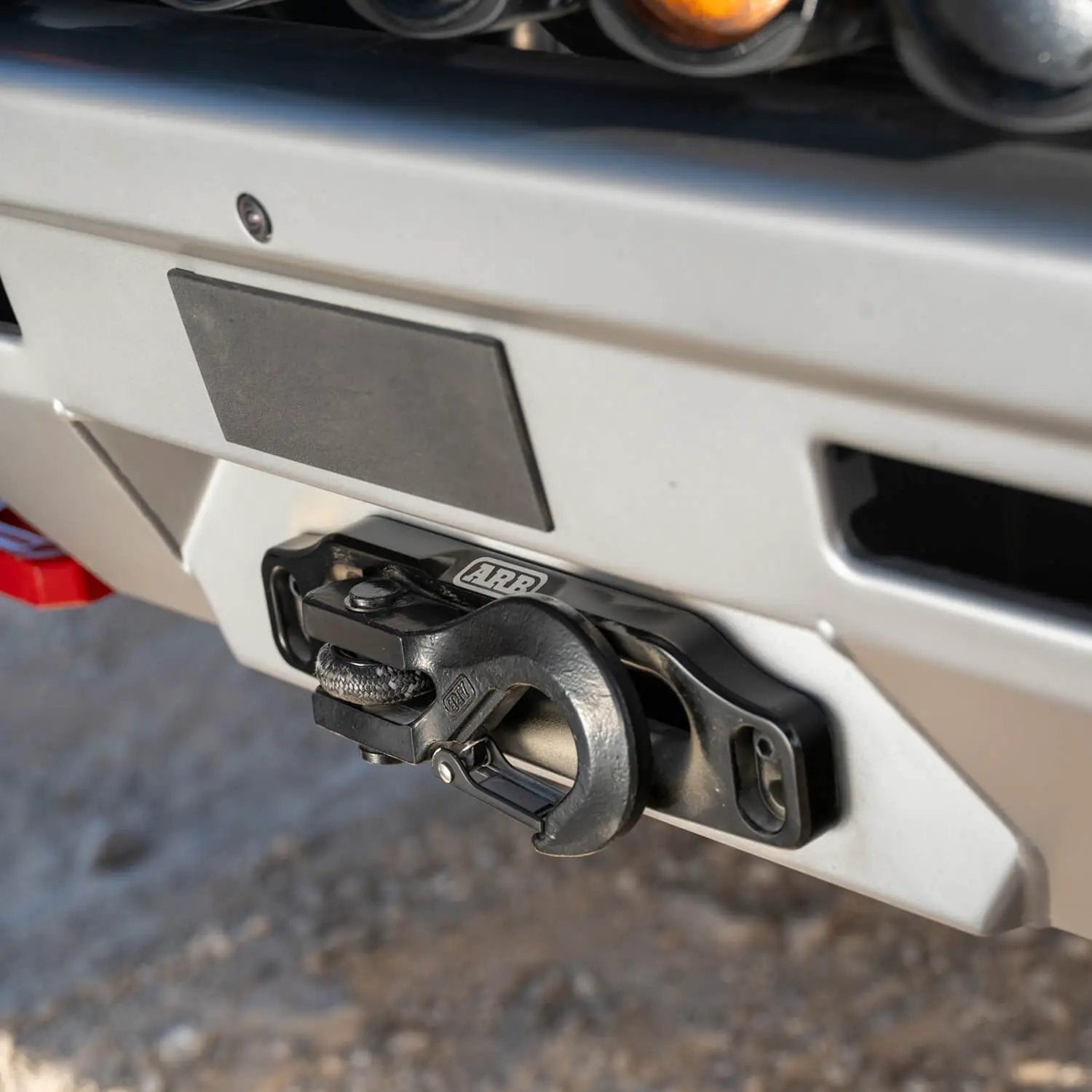

  • Built-in winch cradle
  • the Zenith bumper is compatible with most low mount winches up to 10
  • 000lbs
  • Including ARB Winch ARW100SA
  • Compatible with factory forward Radar
  • Parking Sensors
  • and Airbag systems. Not compatible with FCTA system.
  • Made from durable laser cut and formed 3mm steel for maximum strength-to-weight ratio
  • the Zenith is meta prep primed
  • and powder coated in an satin finish for corrosion resistance

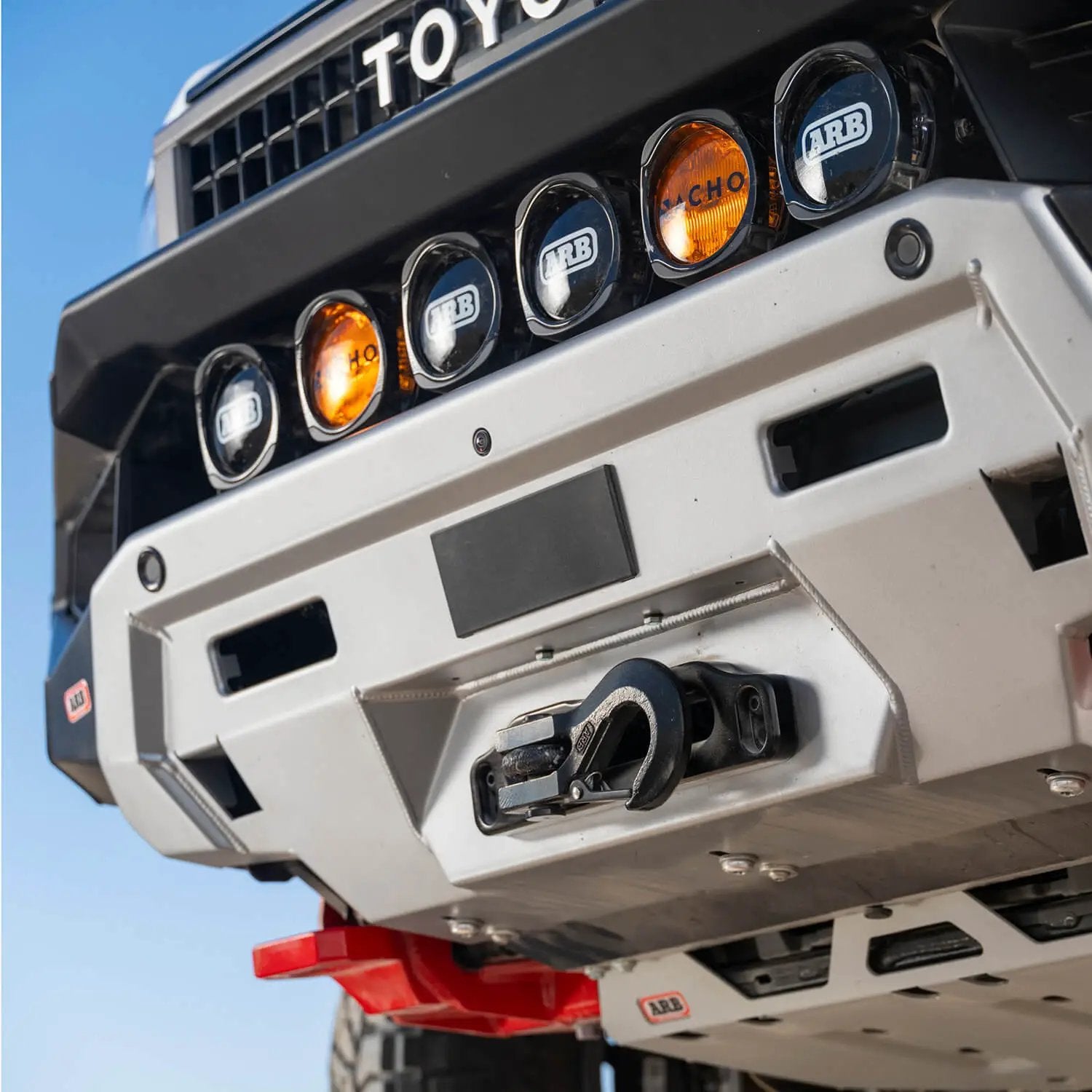

  • A removable center grille allows for the install of up to seven 4in pod lights or lightbars up to 30in
  • Twin recessed recovery jack points on the front of the bumper to ensure safe and secure locations to perform an recovery. Compatible with ARB Jack and traditional farm jacks.

Specifications

Dimensions

81.1 Inches
Length
19.3 Inches
Width
26.8 Inches
Height
246 lbs
Weight
