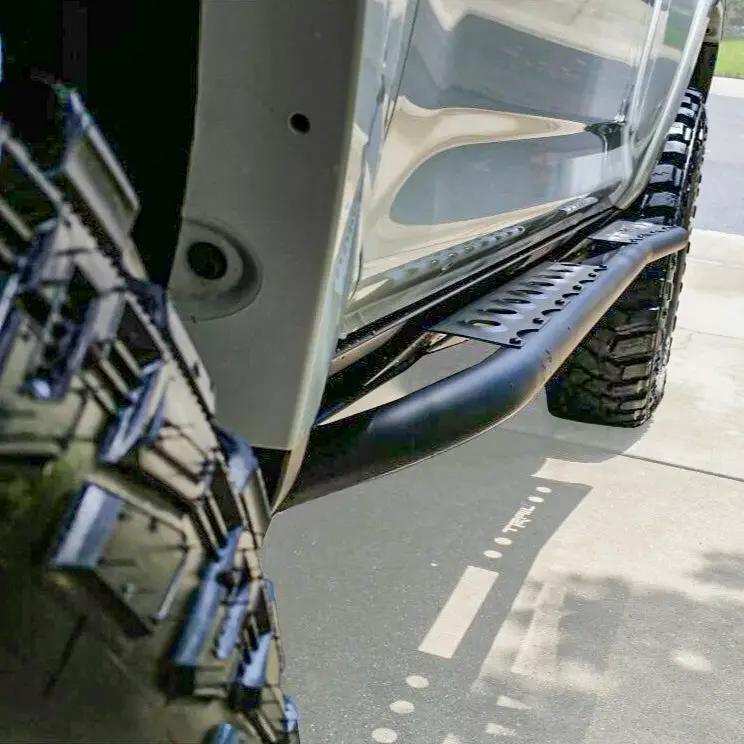

C4 Fabrication 4Runner Rock Sliders / 5th Gen / 2010 - 2013

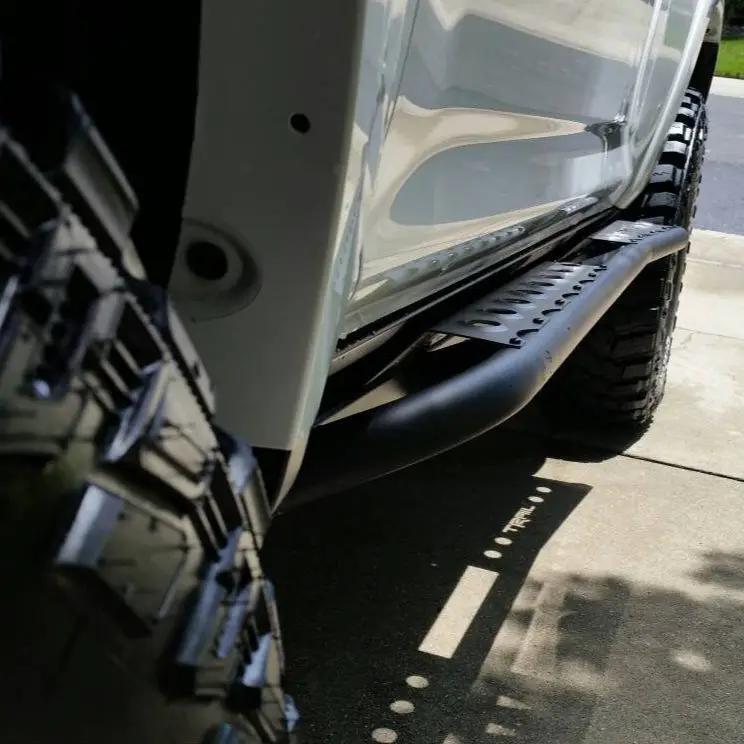

C4 Fabrication’s Rock Sliders for the 5th Gen Toyota 4Runner (2010–2013) deliver rugged rocker protection with a clean bolt-on installation. Built for off-road enthusiasts who demand durability, these sliders guard rocker panels without requiring drilling or welding.

Key features at a glance

• 100% bolt-on design—no drilling or welding required for installation
• DOM steel tubes with a.120" wall thickness for increased strength and dent resistance
• Frame mounting plates and gussets are.188" thick for robust mounting

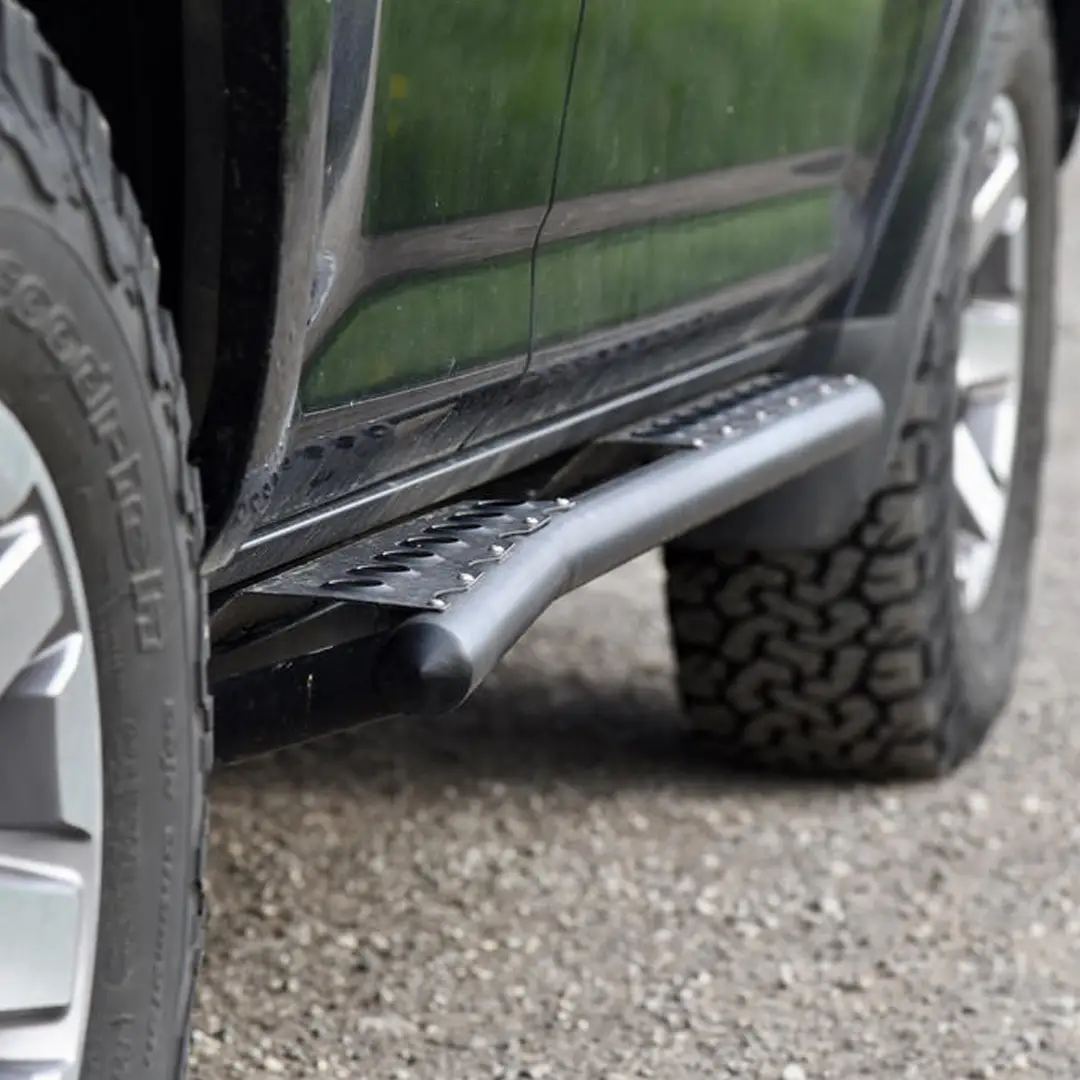

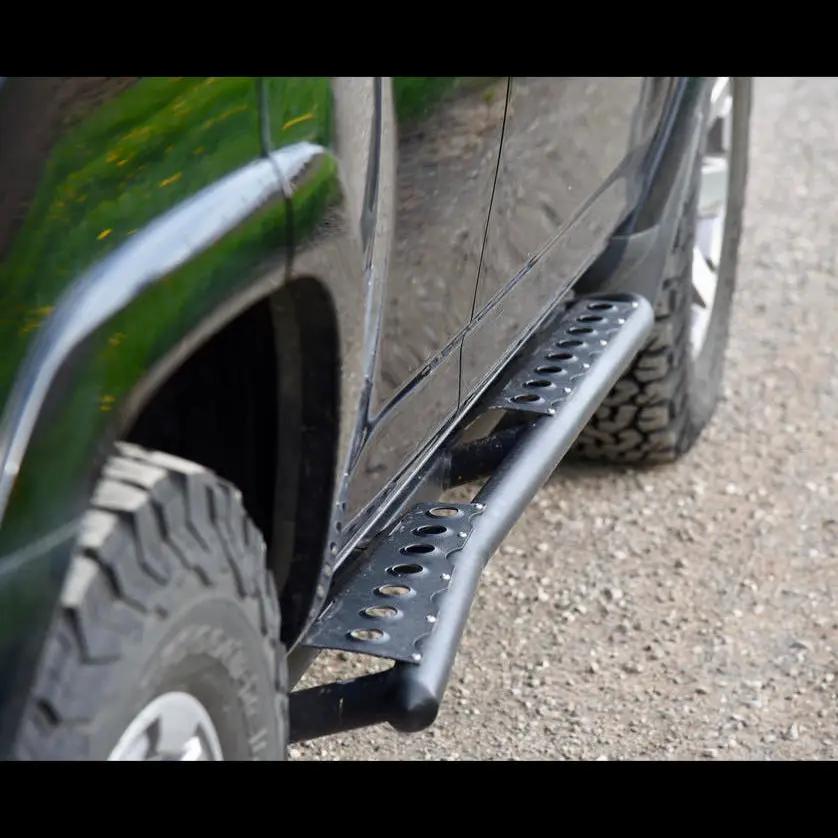

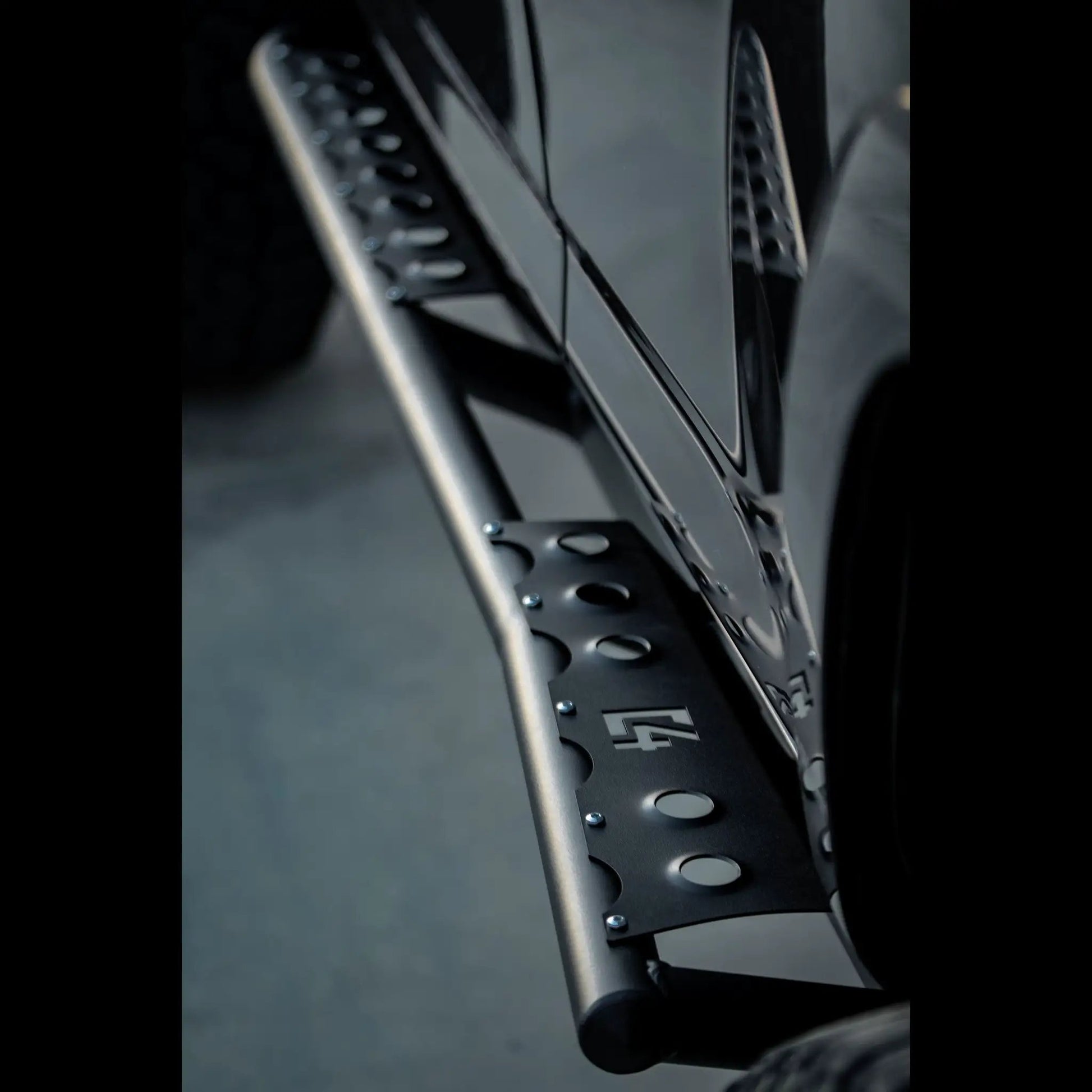

• Outer round tube slopes up at 25 degrees with flat step plates level to the ground
• Main slider support legs welded in at a 45° rotation to minimize hang-ups on rocks
• Grade 10.9 mounting hardware included

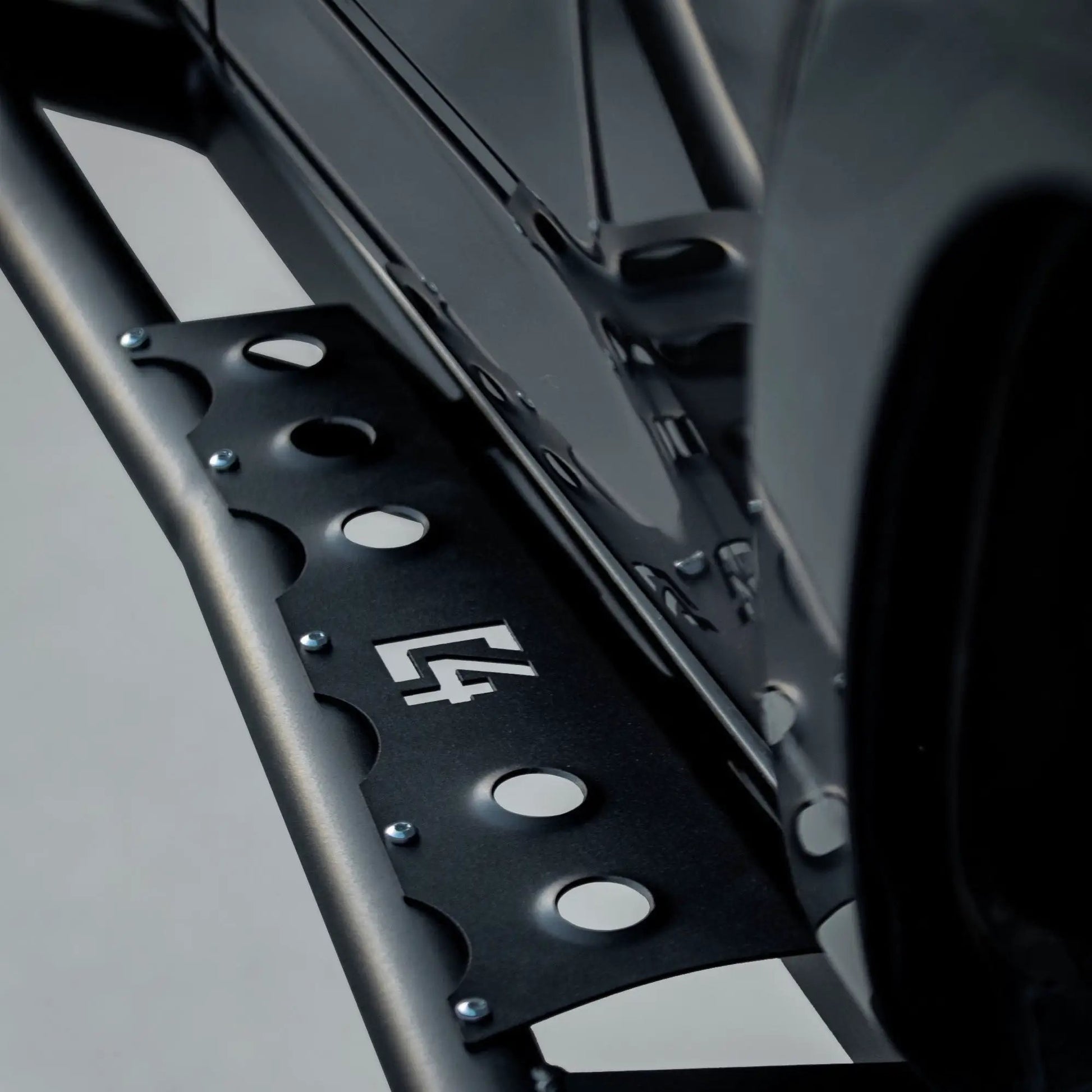

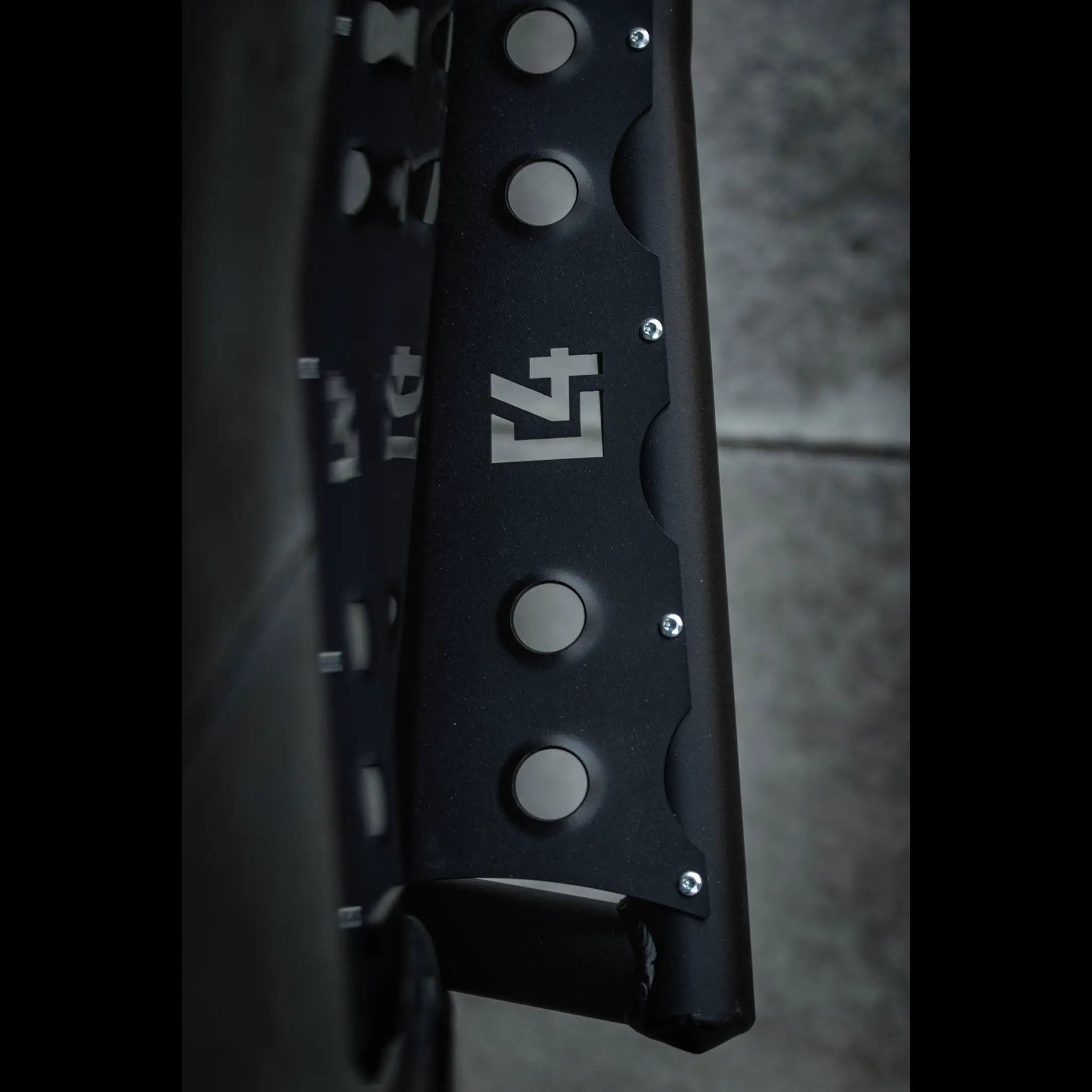

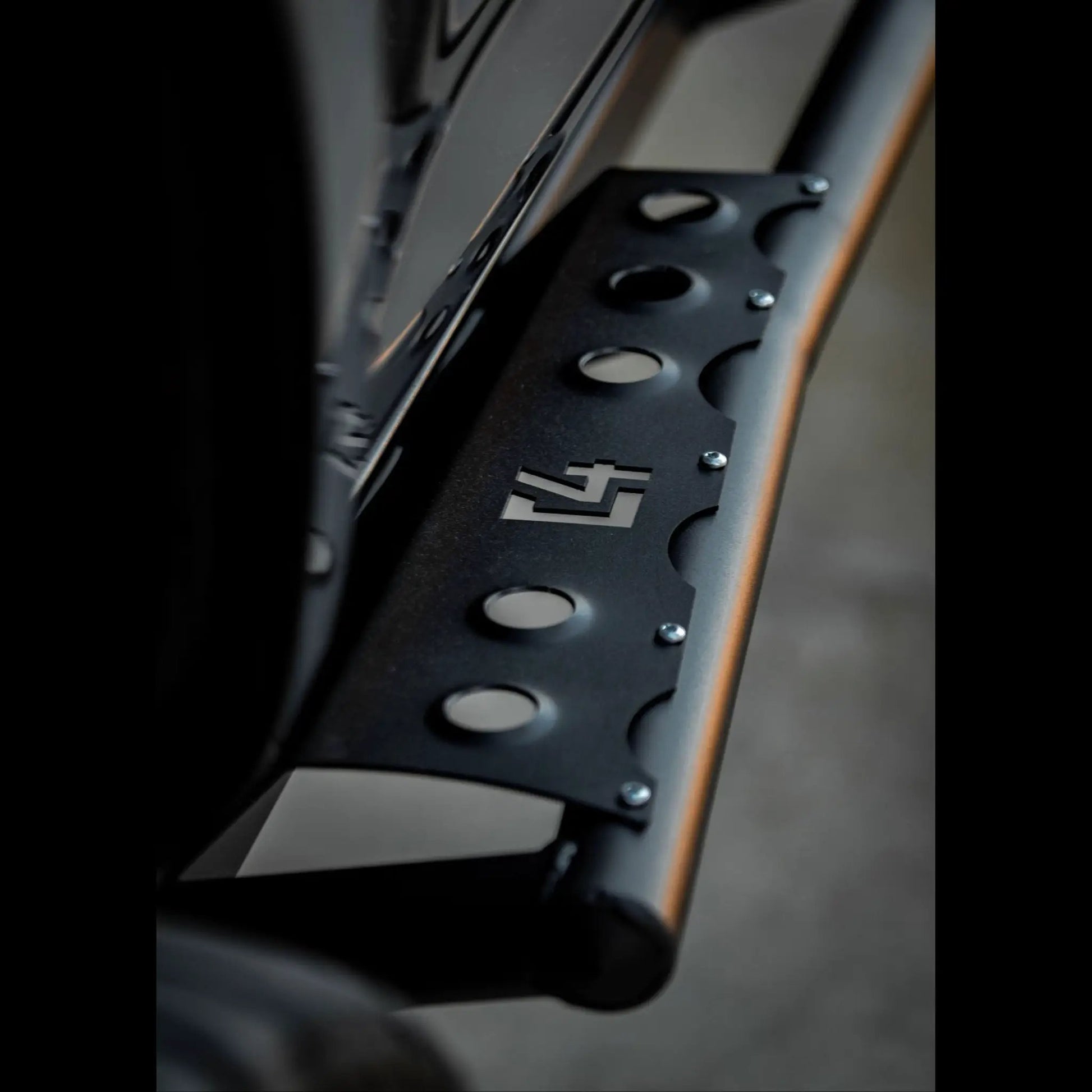

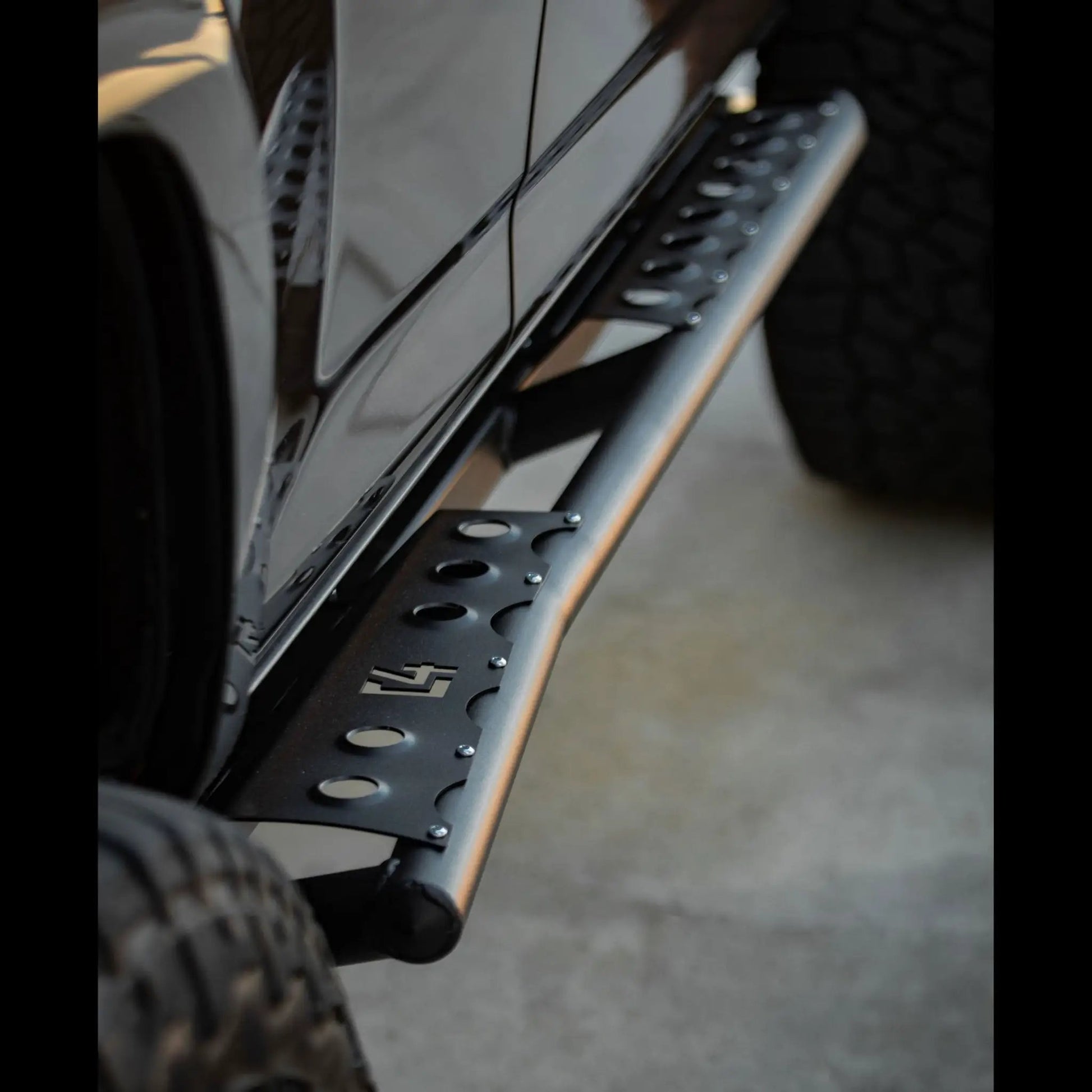

• Dimple-die stepped plates provide traction and self-cleaning action in mud or snow
• Removable step plates simplify painting and allow multiple coating options
• Welded-on step plates are not currently an option
• Screws: zinc-plated steel, Torx, pan head, 10-24 self-threading screws
• Not compatible with Limited models or 2022 Sport models
• Weight: 65 lbs each with step plates, 60 lbs each without
• Finish note: unless you select the powder-coated option, painting or powder coating is recommended before installation to prevent rust

Construction and design details

• All tube parts are DOM with a.120" wall thickness to maximize strength and dent resistance
• Frame mounting plates and gussets use.188" plate material for solid, durable support
• Outer round tube configuration is engineered to slope upward, reducing snagging on obstacles while providing a steady step

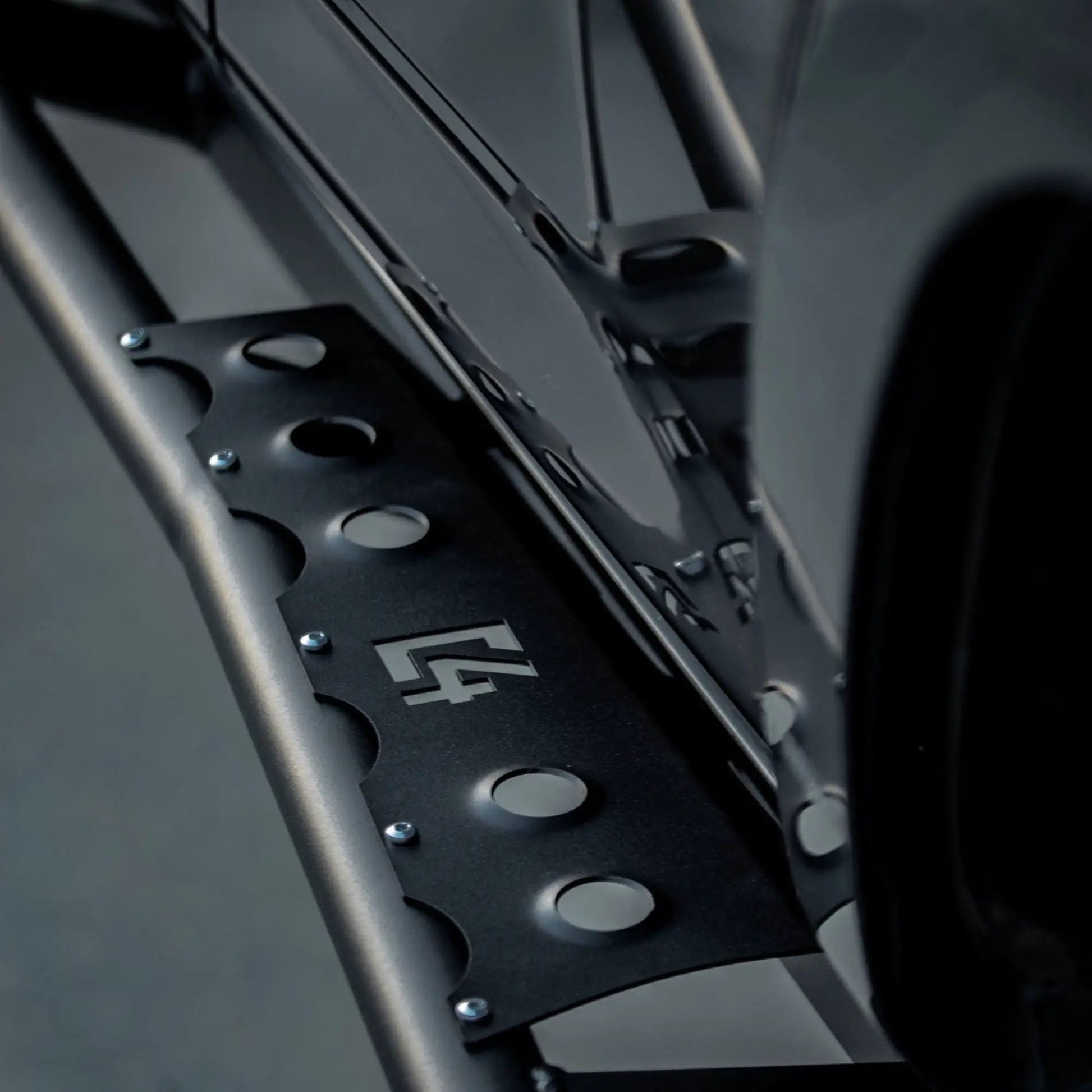

• Step plates feature a dimple-die texture for traction and to aid cleaning during off-road conditions

Step plates and coating options

• Removable step plates offer convenient painting or coating customization and easy maintenance
• Welded-on step plates are not an option

Fitment and compatibility

• Designed for 5th Gen Toyota 4Runner models from 2010–2013
• Not compatible with Limited models or 2022 Sport models

Installation and hardware

• 100% bolt-on design with included mounting hardware for a straightforward install
• All mounting hardware is grade 10.9

Weight and finish

• Sliders with step plates weigh 65 lbs each; without step plates weigh 60 lbs each
• Because the product may be shipped unpainted, plan to coat or paint it (or select the powder-coated option) to prevent rust

Use cases and benefits

• Protects rocker panels during rock crawling, trail riding, and off-road adventures
• Maintains ground clearance with a design that reduces hang-ups on rocky terrain
• Traction-ready stepping surface helps when entering or exiting the vehicle in mud, snow, or slick conditions
