C4 Fabrication 4Runner Rock Runner Front Bumper / 5th Gen / 2010+

Name: C4 Fabrication 4Runner Rock Runner Front Bumper / 5th Gen / 2010+
Brand: C4 Fabrication
SKU: 1110-30393-NB-T-01NA
Price: 1399.0 USD

Read Product Details

1110-30393-NB-T-01NA

In Stock (1 available)

$1,399.00

Secure checkout
SSL encrypted payment
Fast Shipping
2-3 Business days

Description

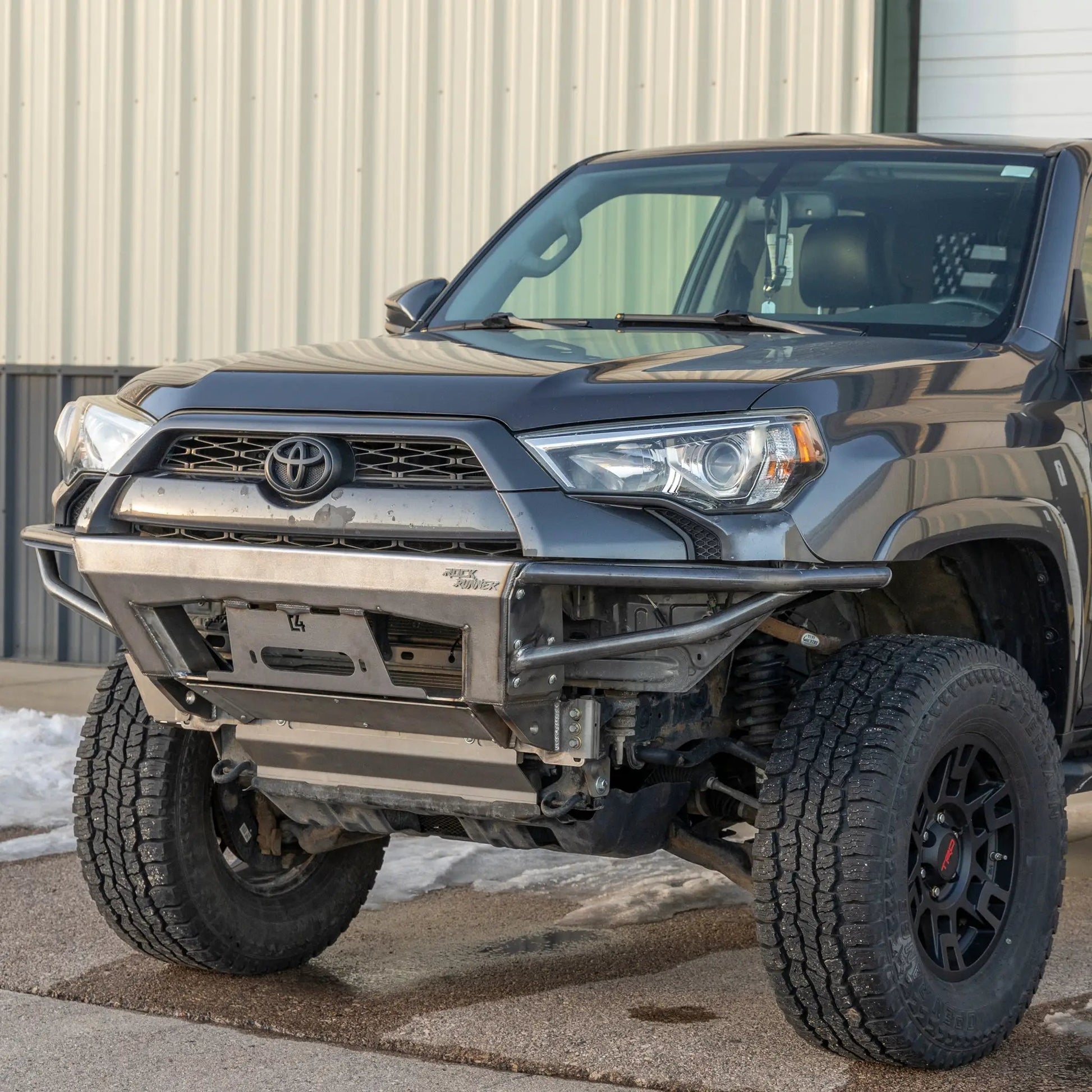

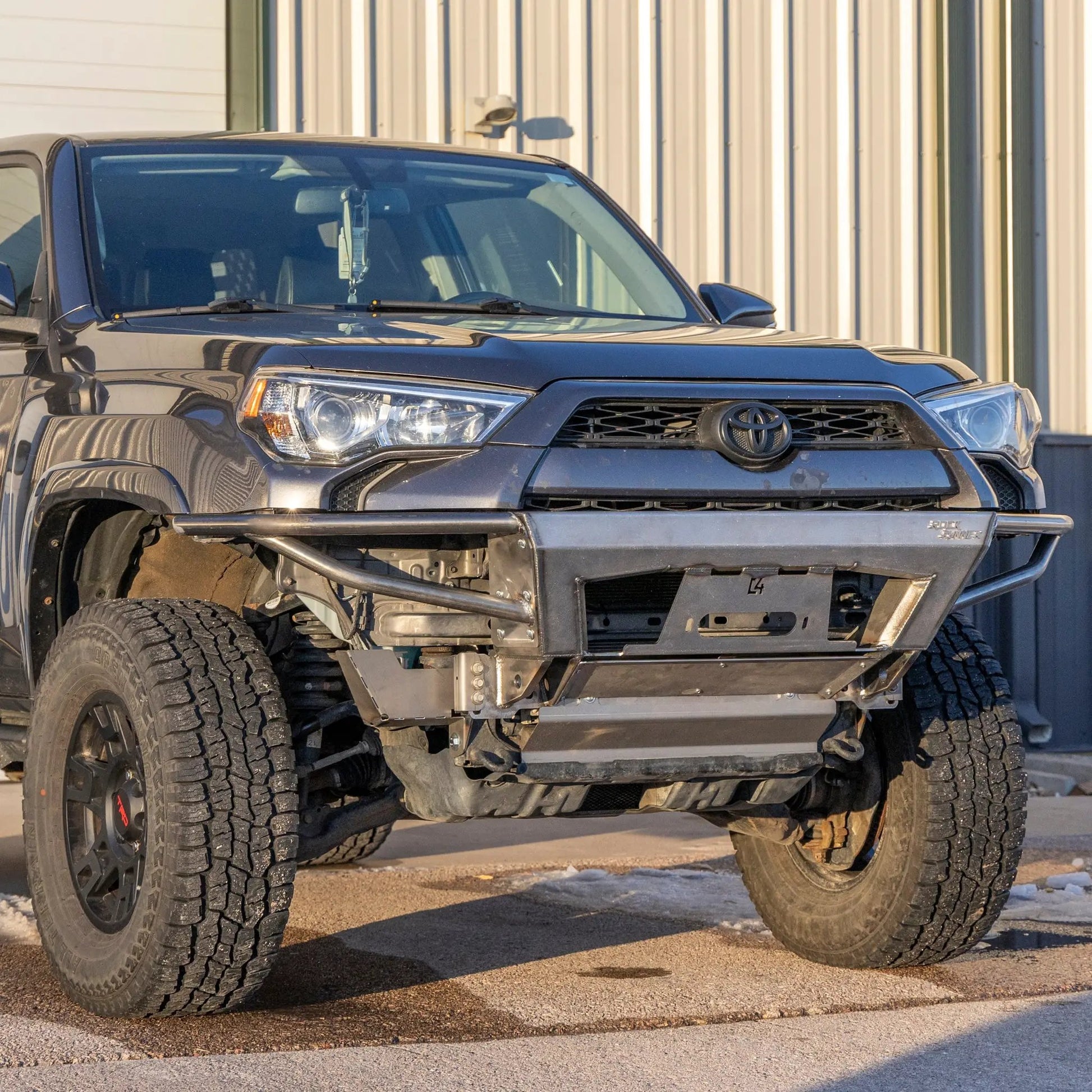

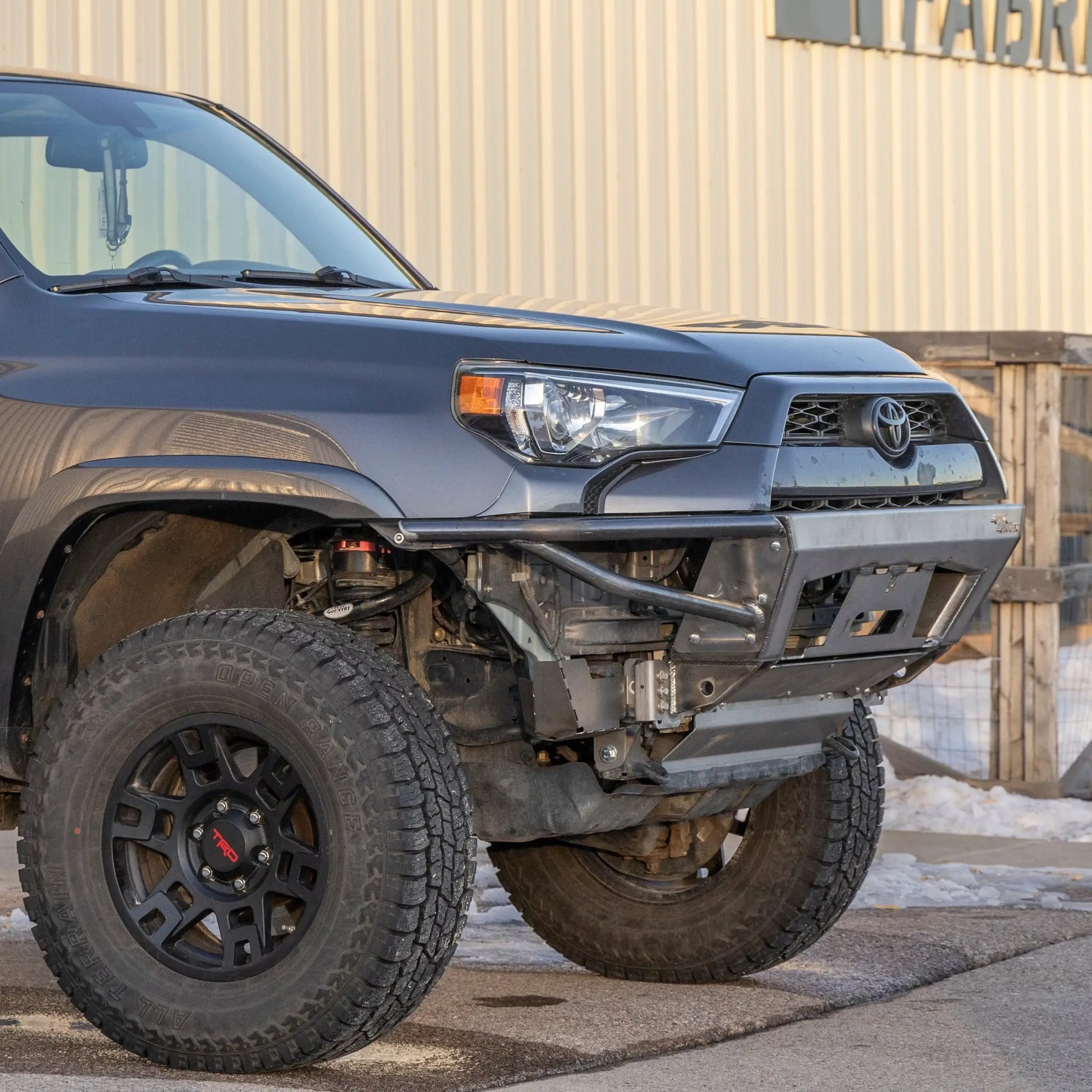

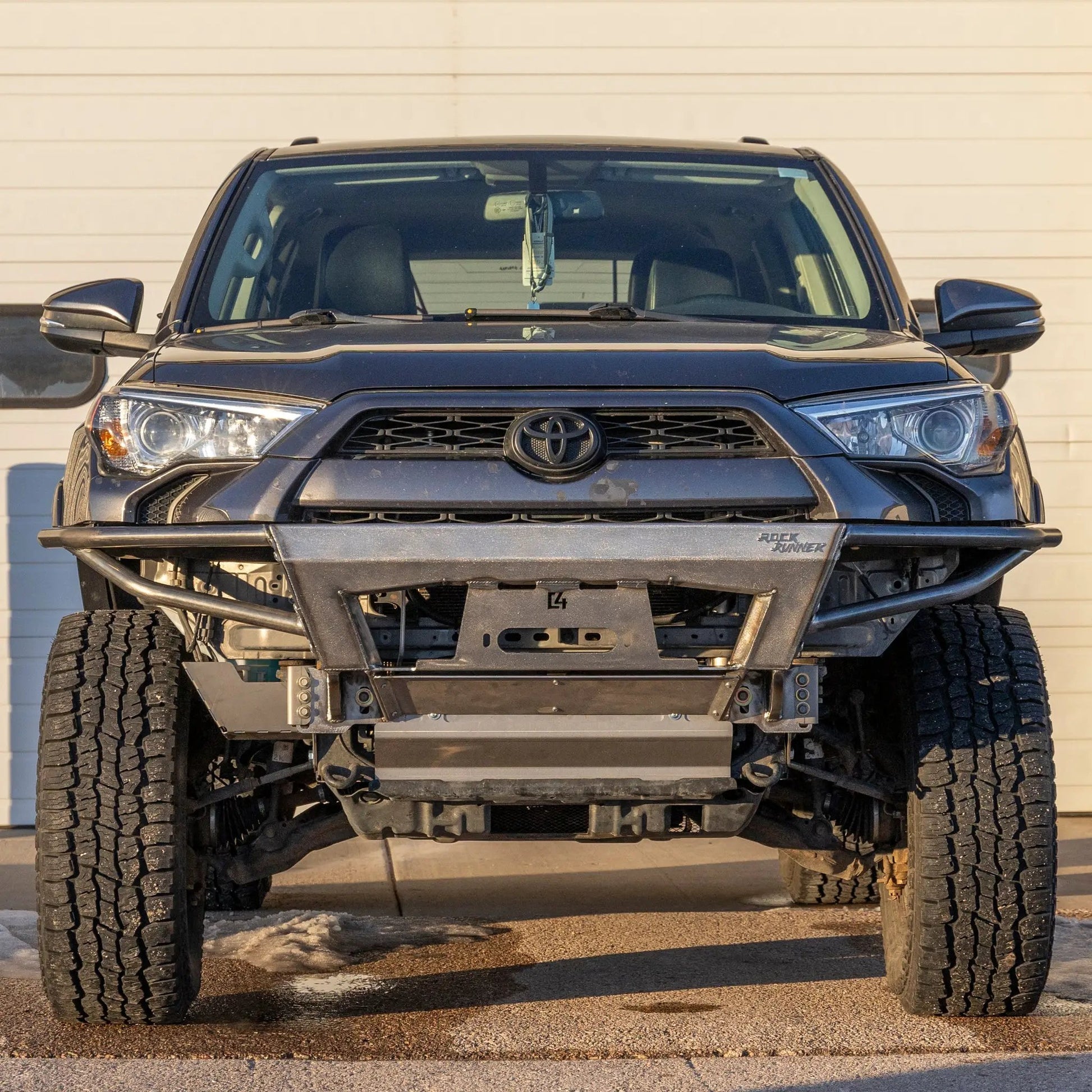

Transform the front end of your 5th Gen Toyota 4Runner with the C4 Fabrication Rock Runner Front Bumper. Built for off-road enthusiasts who demand rugged protection and customizable aesthetics, it combines heavy-duty construction with modular versatility for a proven, ready-for-anything upgrade.

Key features

Modular, 3-piece design with bolt-on wings for flexible configuration
Frame support brackets included for solid mounting
11 ga laser-cut P&O steel construction with 3/16" thick mounting plates and winch plate
3/4" thick D-ring tabs fully welded front and back
1.5" x.120" tube used on tube sides and bull bar for added protection
Shipped with winch cover plate and bridge skid that connects to existing skid plates and factory cross member
Includes aluminum fill panel to finish the look if you skip the winch
Washer tank skid option available for additional protection

Winch compatibility and installation

Fits most 8k–10k winches; recommended to relocate the electrical control box
Integrated control box winches may require trimming of grille support brackets to fit
Common compatible winches include Smittybilt X20 and Warn VR series
Best fit with synthetic rope and hawse-style fairlead; some roller fairleads may be too large for the recessed fairlead mounting plate
Cutouts in front of bumper provide winch lever access

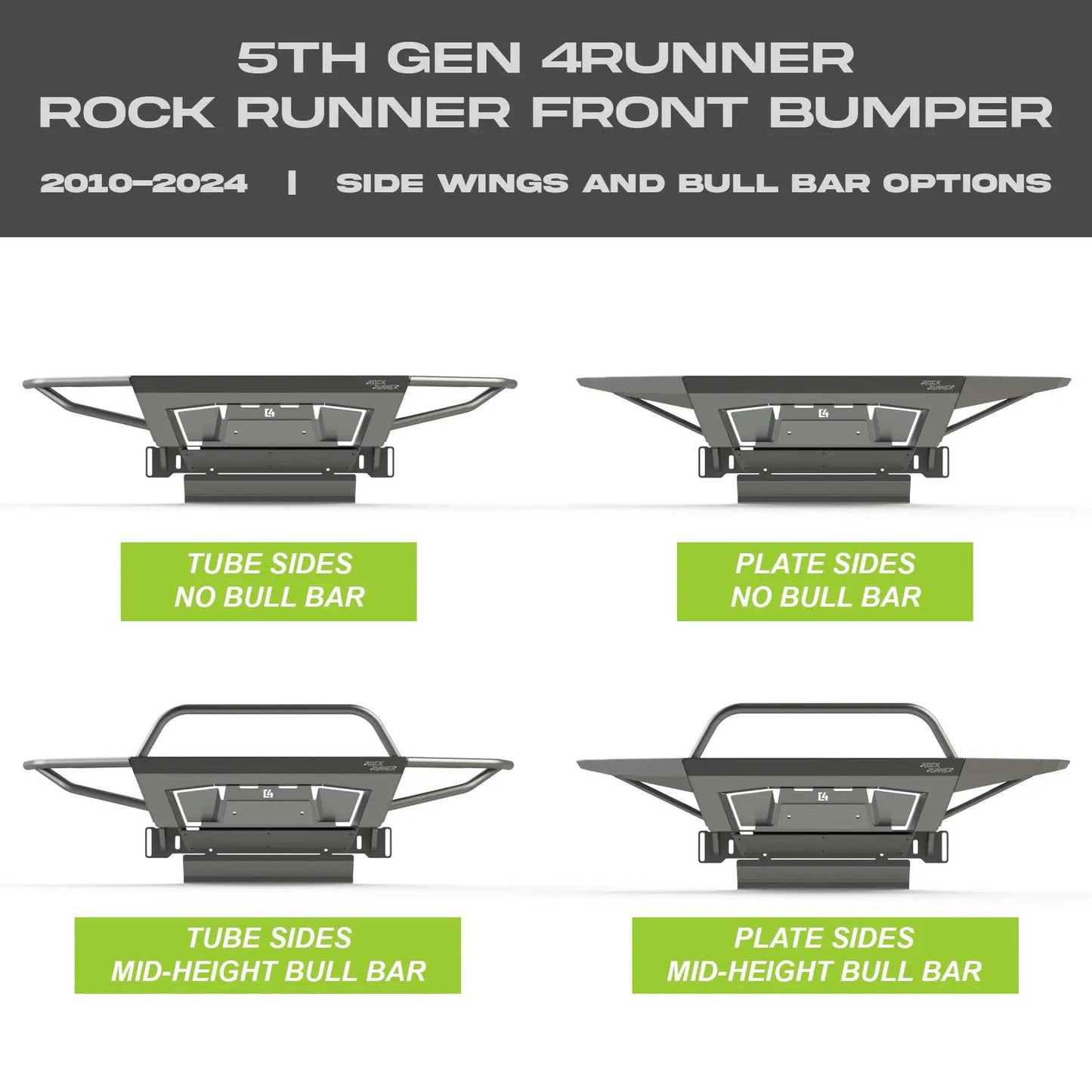

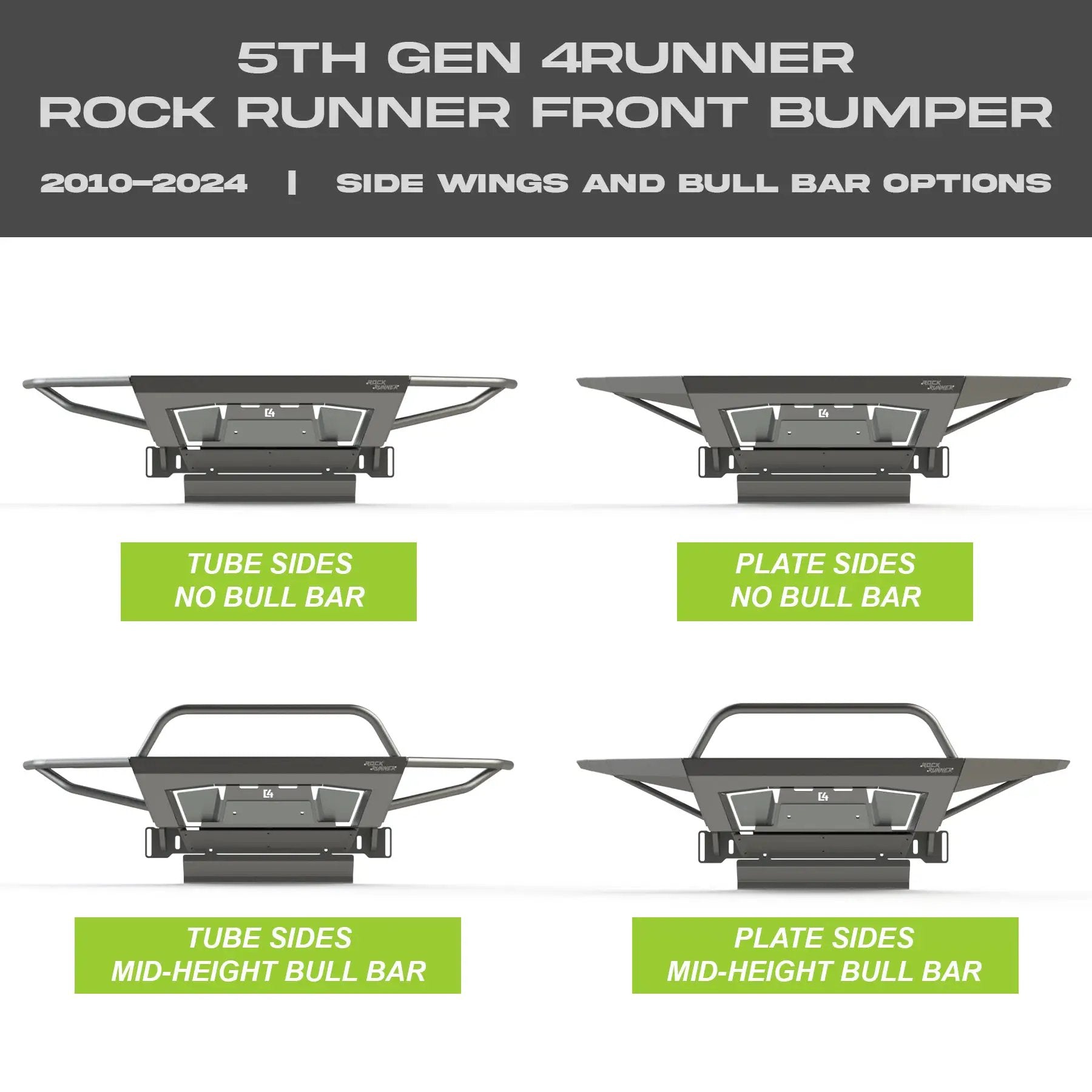

Weight options

Front w/ Plate Sides: 100 lbs
Front w/ Plate Sides and Bull Bar: 106 lbs
Front w/ Tube Sides: 102 lbs
Front w/ Tube Sides and Bull Bar: 108 lbs

Fitment, use, and installation notes

Requires cutting of the plastic bumper to install
Bumpers ship with bridge skid to connect to current skid plates and factory cross member

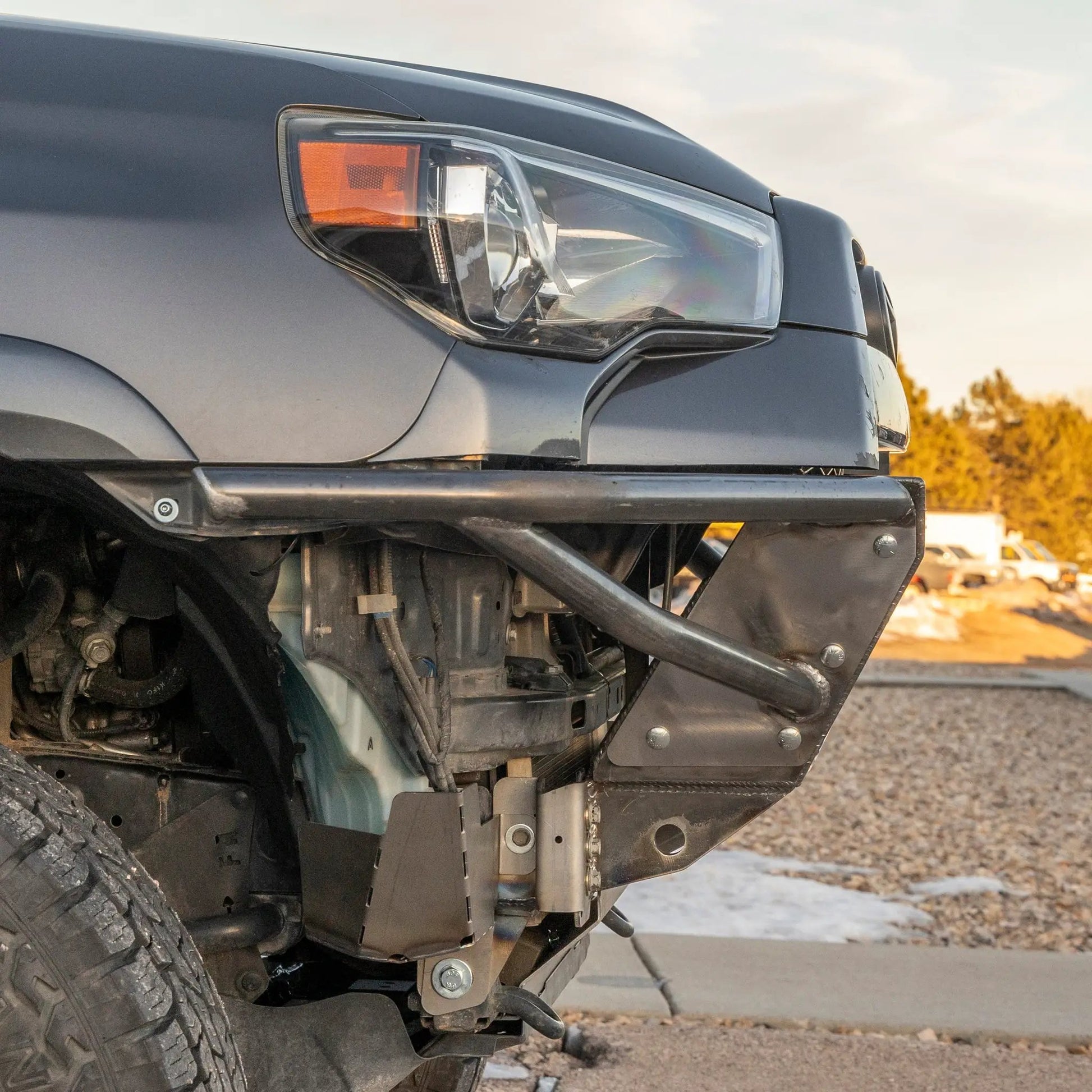

Tube sides include light mounts in wings; accommodates up to 1 Squadron, 1 S2, and 1 S1 light per side
TSS relocation bracket available for 2020+ models
Unless you choose the powder-coated option, painting or powder coating is required to prevent rust

Finish and protection

All components are designed for durability in demanding environments. To prevent rust, a finish (paint or powder coat) is recommended unless you opt for the powder-coated option.

Features

Requires cutting of the plastic bumper to install.
Weights: Front w/ Plate Sides: 100 lbs
Front w/ Plate Sides and Bull Bar: 106
Front w/ Tube Sides: 102 Front w/ Tube Sides and Bull Bar: 108 lbs.
Frame support brackets are INCLUDED with bumper.
Modular
3-piece design utilizing bolt-on wings.
Bumpers ship with winch cover plate and bridge skid that will connect to our current skid plates and factory cross member.
Fits most winches 8k-10k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (Smittybilt X20
Warn VR series are both ...
We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
Cutouts in front of bumper allow winch lever access.
Includes aluminum fill panel to complete the look of the bumper if you choose not to install a winch.
Bumper is made from 11 ga laser cut P&O steel with 3/16" thick mounting plates and winch plate.
3/4″ thick D-ring tabs fully welded front and back come standard.
1.5" x .120" tube is used on tube sides as well as bull bar.

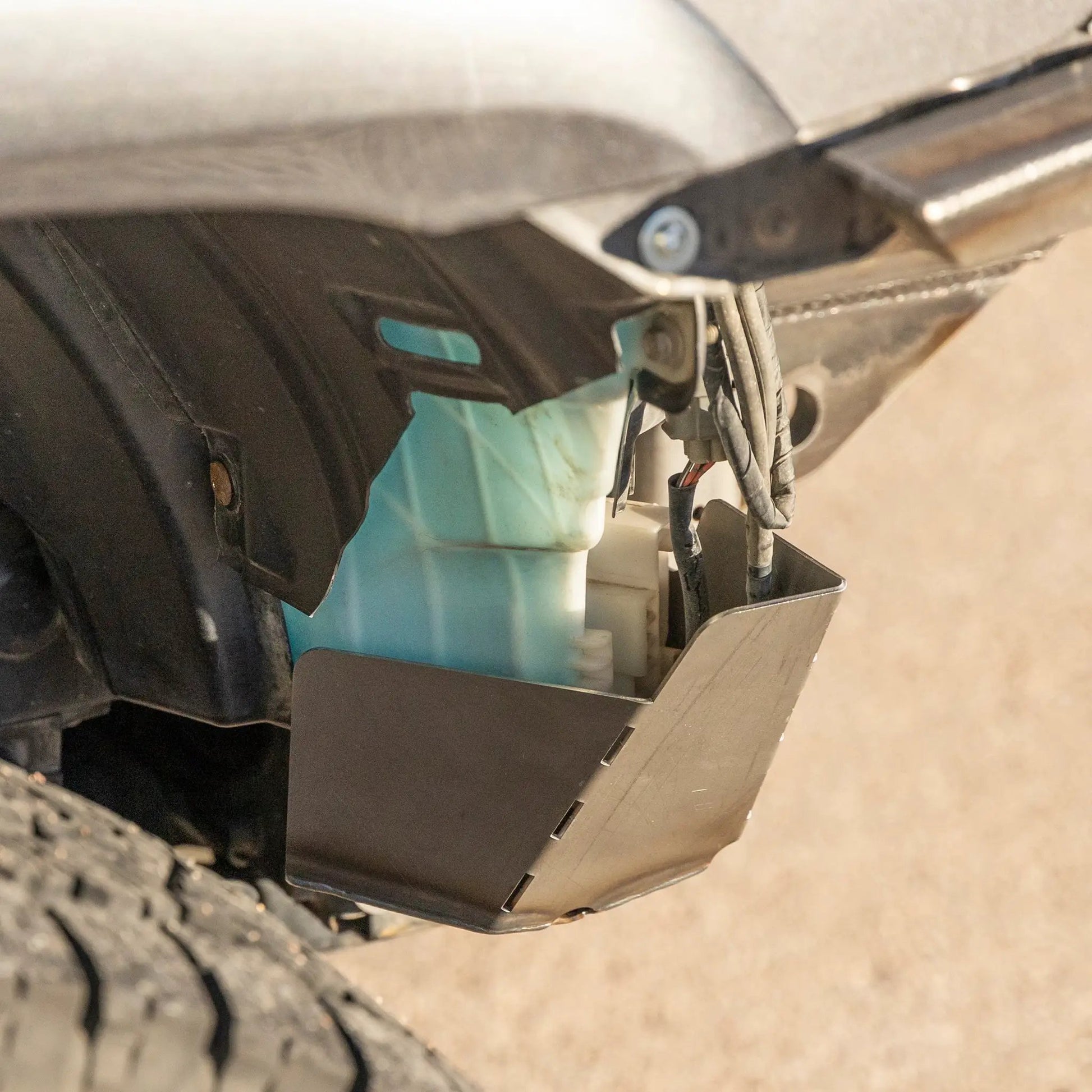

Washer tank skid can be added for additional protection.
Tube sides include light mounts in wings and are sized to allow fitment of up to 1 Squadron
1 S2 and 1 S1 light one each side.
TSS relocation bracket available for 2020+.
Unless you choose our powder coated option
this product will need to be painted or powder coated before installation to prevent rust
