C4 Fabrication 4Runner Rock Runner Front Bumper / 5th Gen / 2010+

The C4 Fabrication Rock Runner Front Bumper for the 5th Gen Toyota 4Runner (2010+) is a rugged, modular upgrade designed for serious off-road use. Built to accommodate large winches, protect the front end, and integrate with existing skid systems, this bumper delivers a strong, functional upgrade for Adventurous drivers. Requires cutting of the plastic bumper to install.

Key Features

• Modular, 3-piece design with bolt-on wings for flexible installation and customization
• Includes frame support brackets for solid mounting
• Ships with a winch cover plate and bridge skid that connects to current skid plates and factory cross member
• Made from 11 ga laser-cut P&O steel with 3/16" thick mounting plates and winch plate
• 3/4" thick D-ring tabs fully welded front and back
• 1.5" x.120" tubing used on tube sides and bull bar for added rigidity
• Washer tank skid can be added for additional protection
• Tube sides include light mounts and are sized to fit up to 1 Squadron, 1 S2, and 1 S1 light per side
• TSS relocation bracket available for 2020+ models

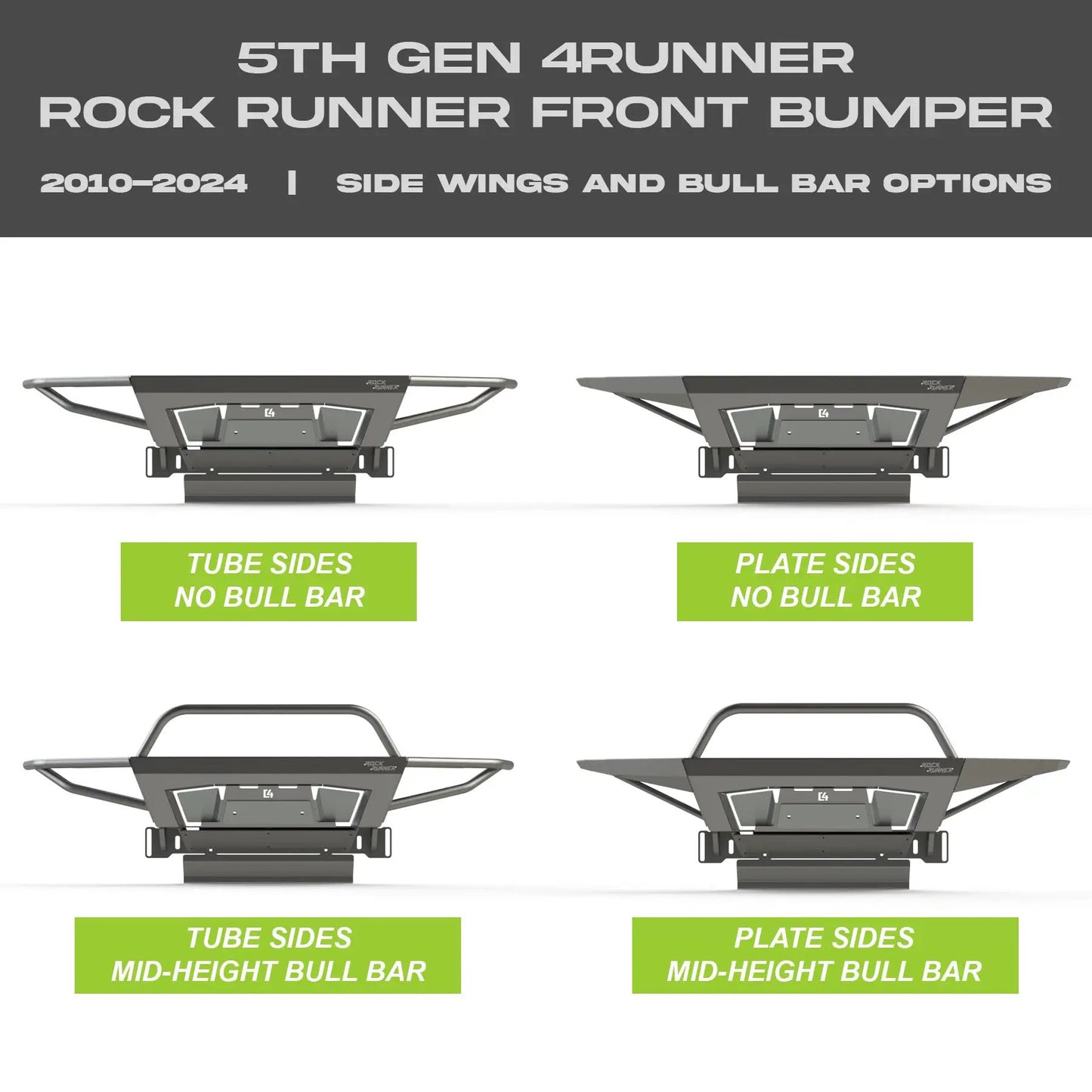

Weight by Configuration

• Front with Plate Sides: 100 lbs
• Front with Plate Sides and Bull Bar: 106 lbs
• Front with Tube Sides: 102 lbs
• Front with Tube Sides and Bull Bar: 108 lbs

Winch Compatibility & ACCESSORY Fit

• Fits most winches in the 8k–10k range
• Winches that can relocate the electrical control box are recommended
• Integrated control box winches may require some trimming of grille support brackets to fit
• (Smittybilt X20, Warn VR series are common winches that fit)
• Recommendation: use synthetic rope with a hawse-style fairlead for best fitment and function
• Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper
• Cutouts in the front of the bumper allow winch lever access
• Aluminum fill panel included to complete the look if a winch isn’t installed

Installation & Fitment Notes

• All mounting hardware and frame brackets are included; some trimming may be required depending on vehicle and accessory choices
• Unless you select the powder-coated option, the bumper will need painting or powder coating to prevent rust

Finish & Protection Options

• Bumper is designed for corrosion resistance and can be painted or powder coated to match your vehicle

Includes & Optional Upgrades

• Frame support brackets
• Winch cover plate
• Bridge skid compatible with current skid plates and factory cross member
• Aluminum fill panel to complete the look if not installing a winch
• Washer tank skid available for additional protection
• TSS relocation bracket available for 2020+ models
