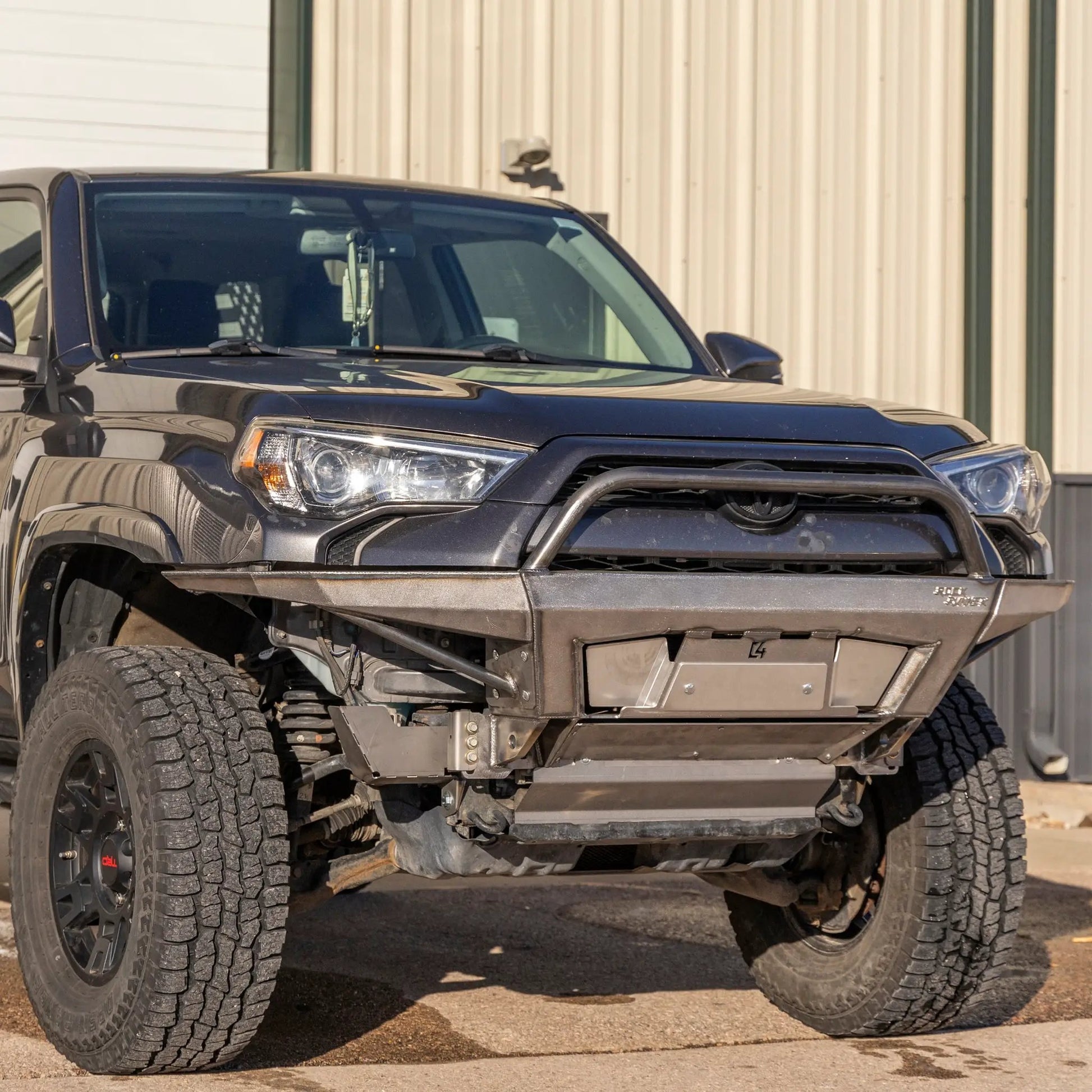

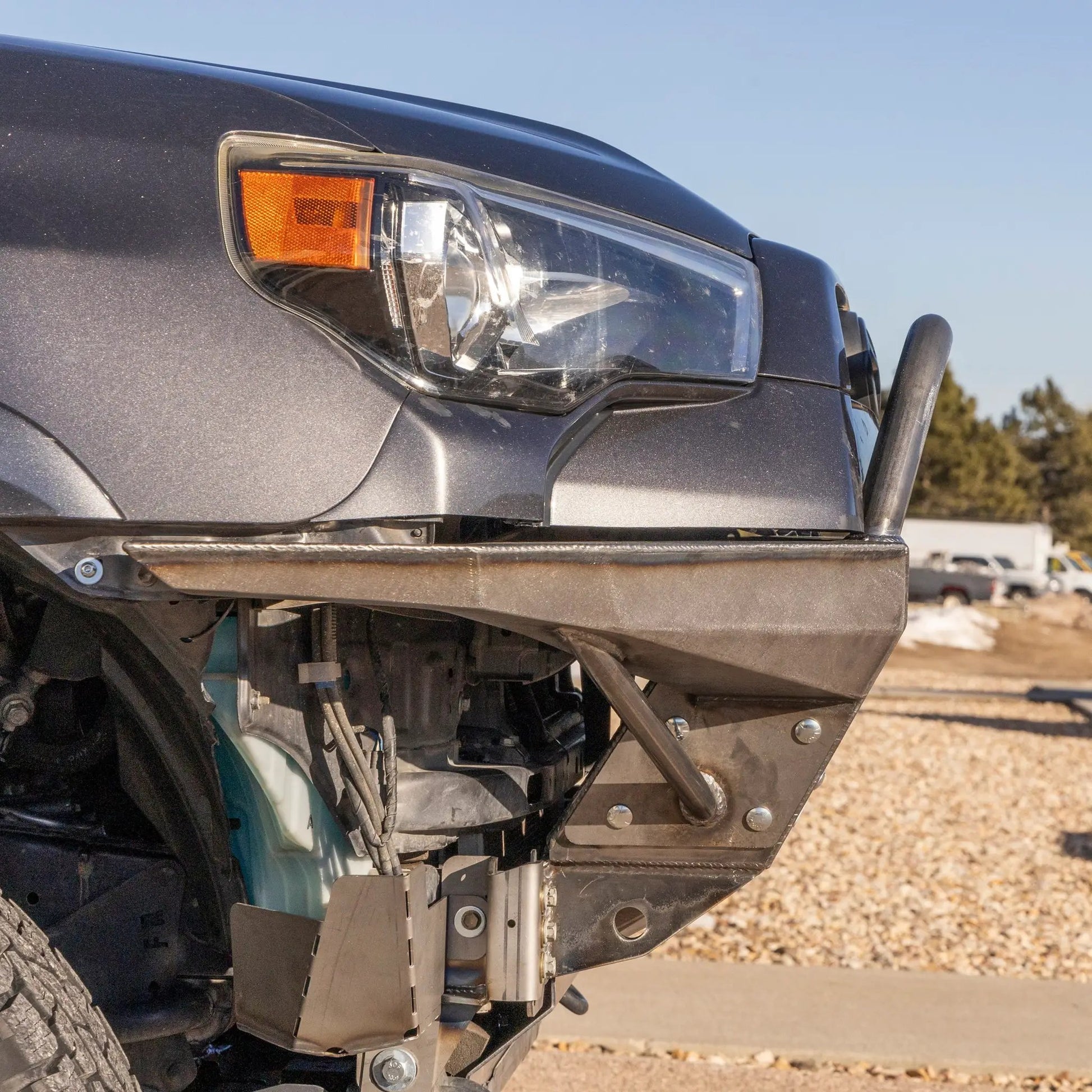

C4 Fabrication 4Runner Rock Runner Front Bumper / 5th Gen / 2010+

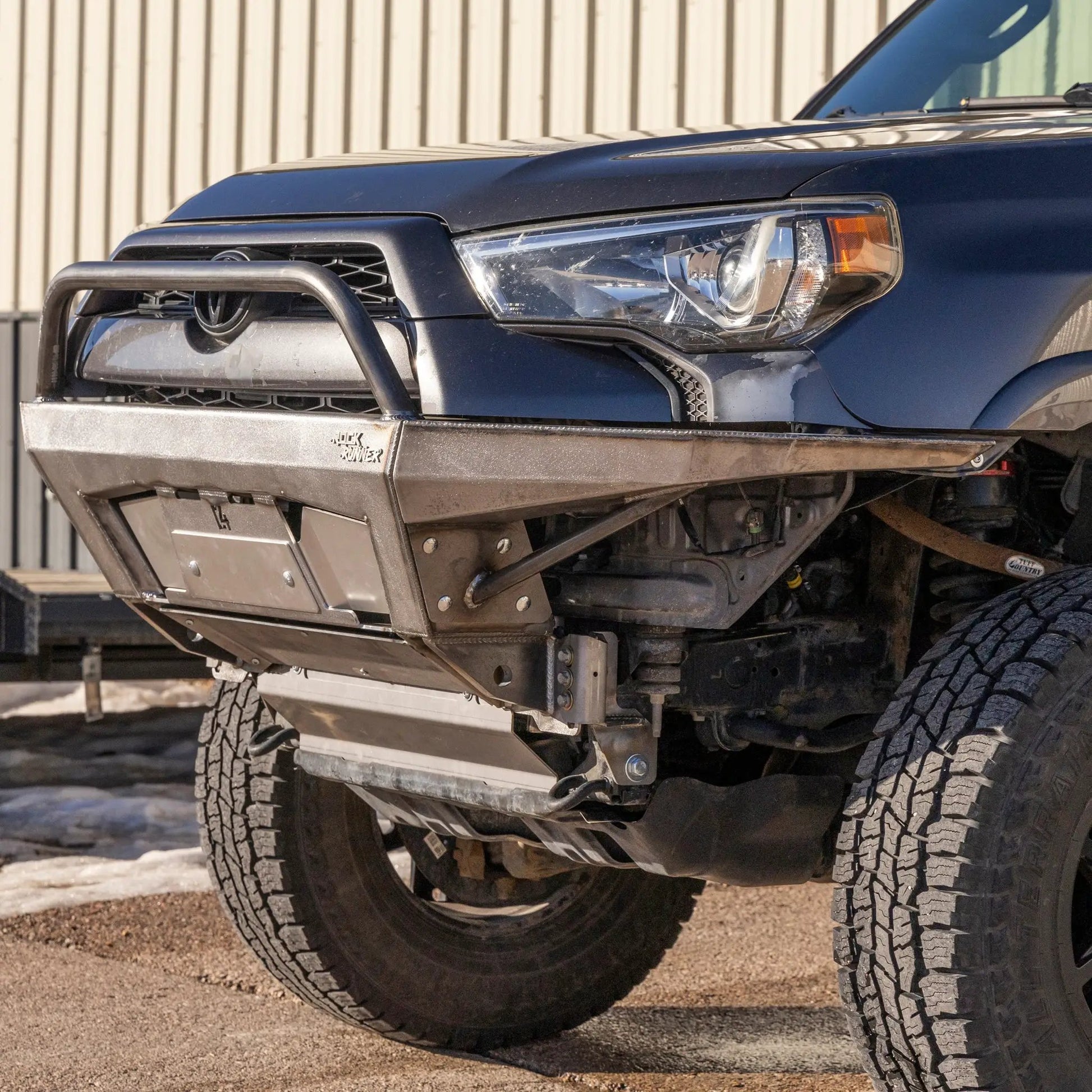

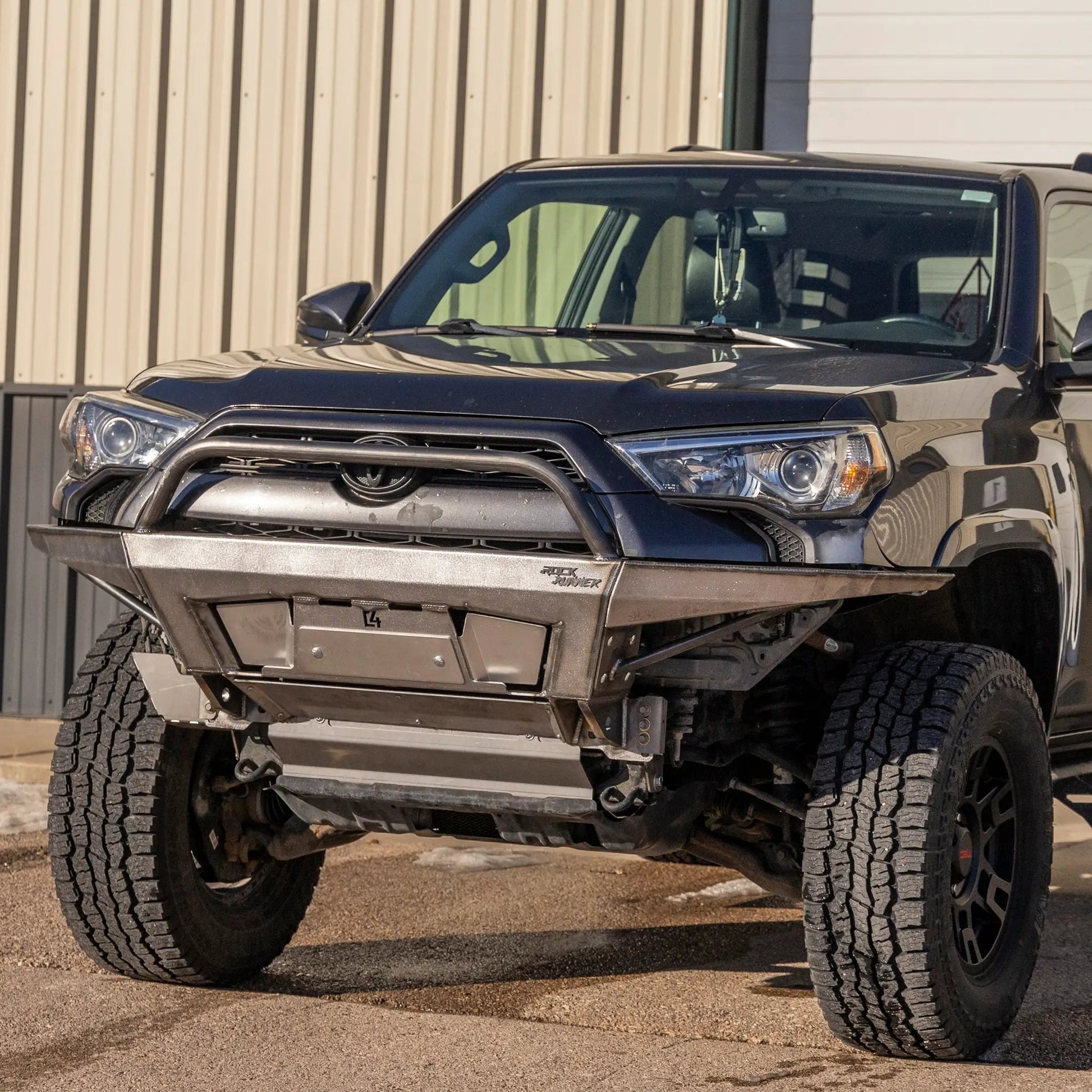

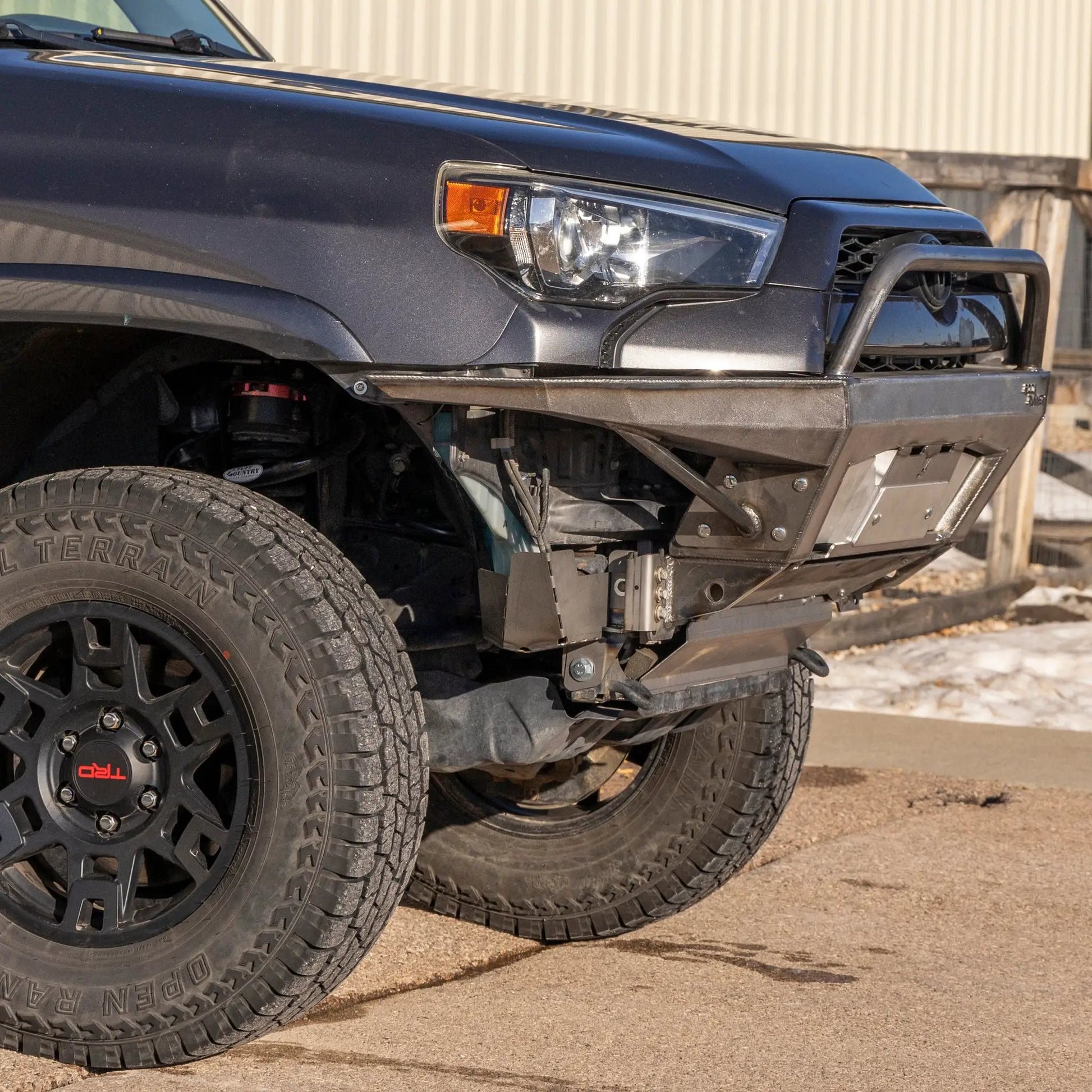

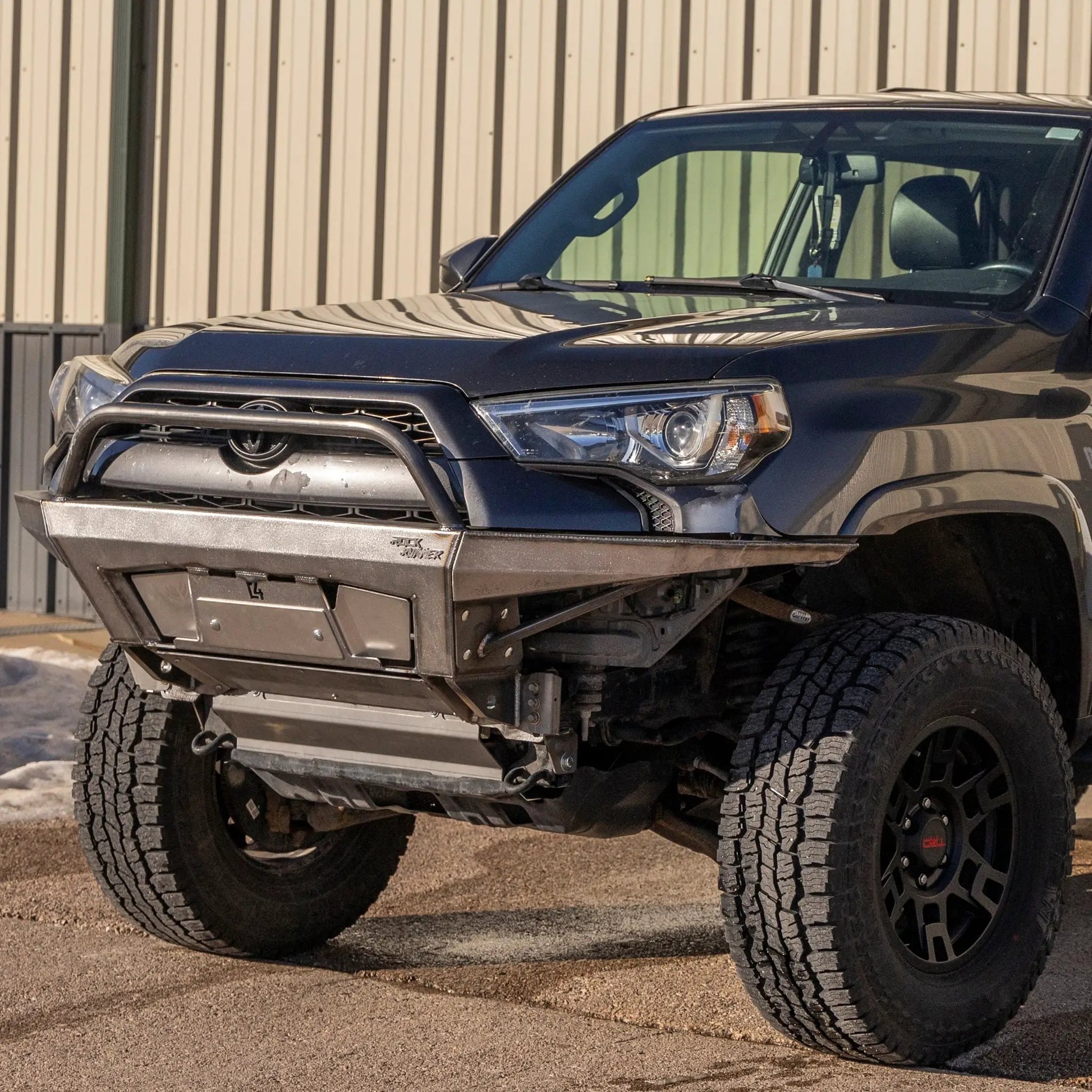

The C4 Fabrication Rock Runner Front Bumper is designed for the 5th generation Toyota 4Runner (2010+), delivering serious off-road protection with winch capability in a modular, bolt-on package. Built to endure rugged trails while keeping everyday use in mind, it pairs heavy‑duty steel construction with thoughtful fitment details and upgrade options. Frame brackets are included for a secure, factory-like install, and the bumper ships with components that integrate with your existing skid system for streamlined under-vehicle protection.

Key Features

• Modular, 3-piece design with bolt-on wings for flexible configuration

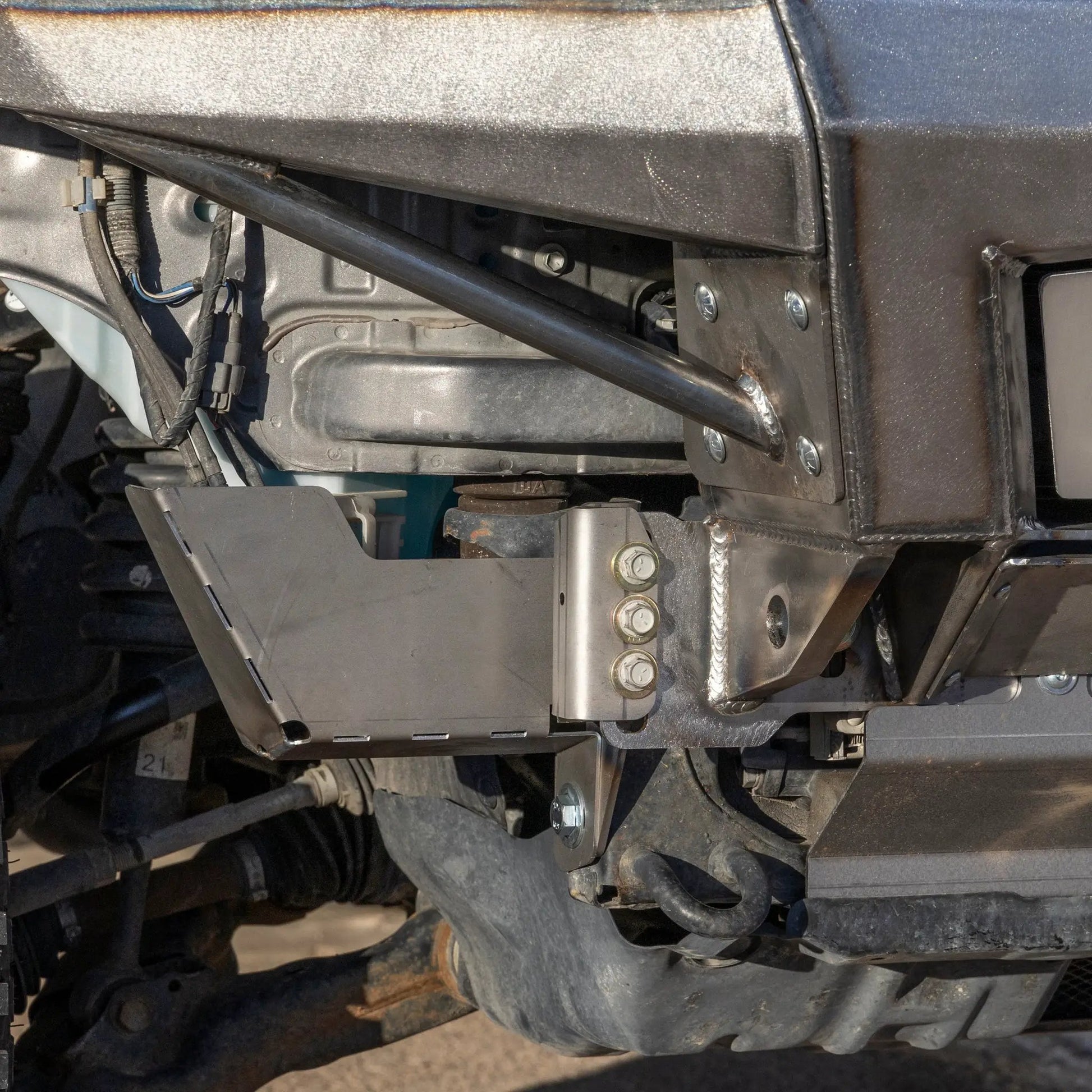

• Frame support brackets included for stable mounting
• Winch cover plate and bridge skid included to connect with current skid plates and factory cross member
• Constructed from 11 ga laser-cut P&O steel with 3/16" thick mounting plates and winch plate
• 3/4" thick D-ring tabs fully welded front and back
• 1.5" x.120" tube used on tube sides and bull bar for robust protection

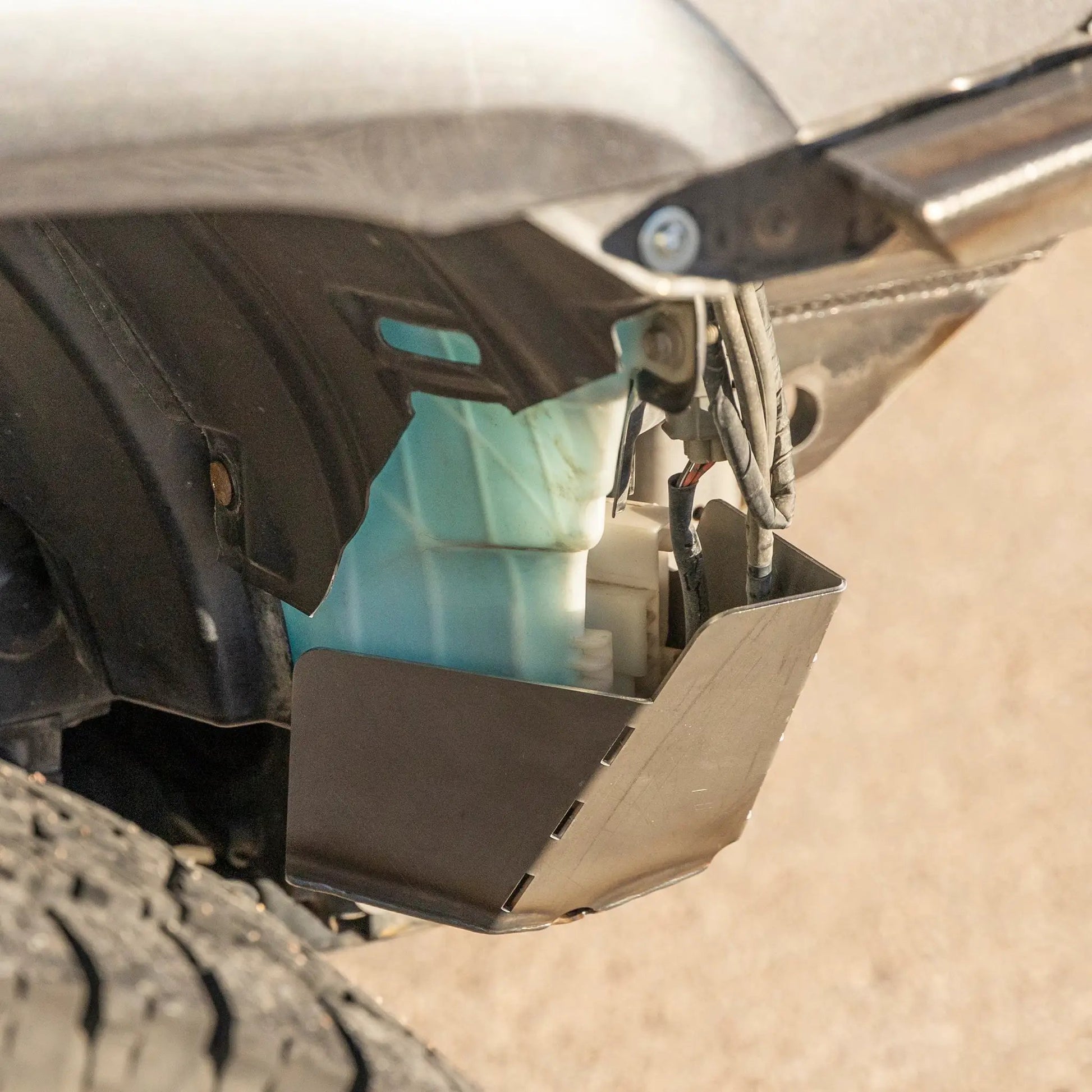

• Washer tank skid can be added for additional protection
• TSS relocation bracket available for 2020+ models
• Aluminum fill panel included to finish the look if you opt not to install a winch
• Powder coating option available; otherwise painting or powder coating is recommended before installation to prevent rust
• Tube sides include light mounts in wings, sized for up to 1 Squadron, 1 S2, and 1 S1 light per side

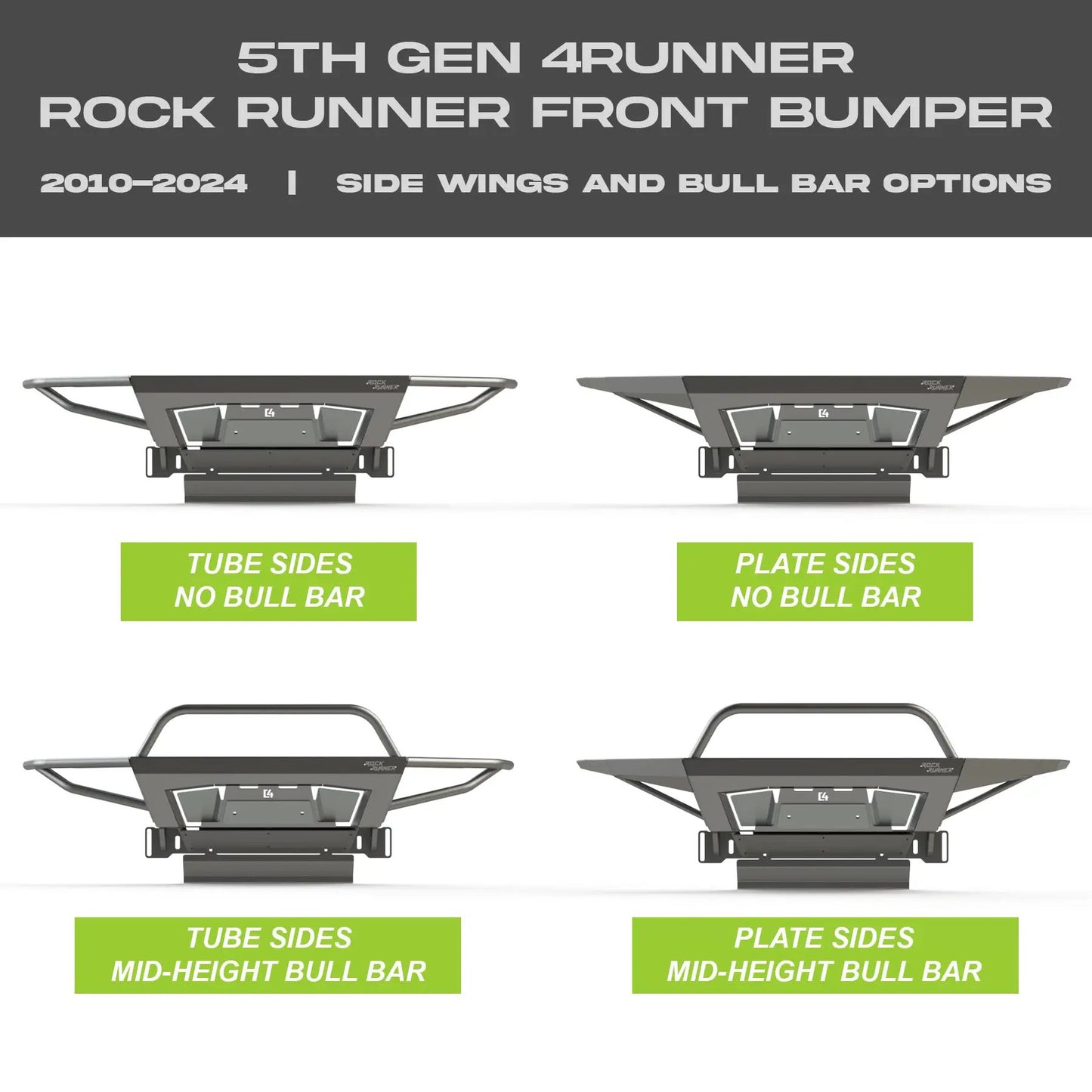

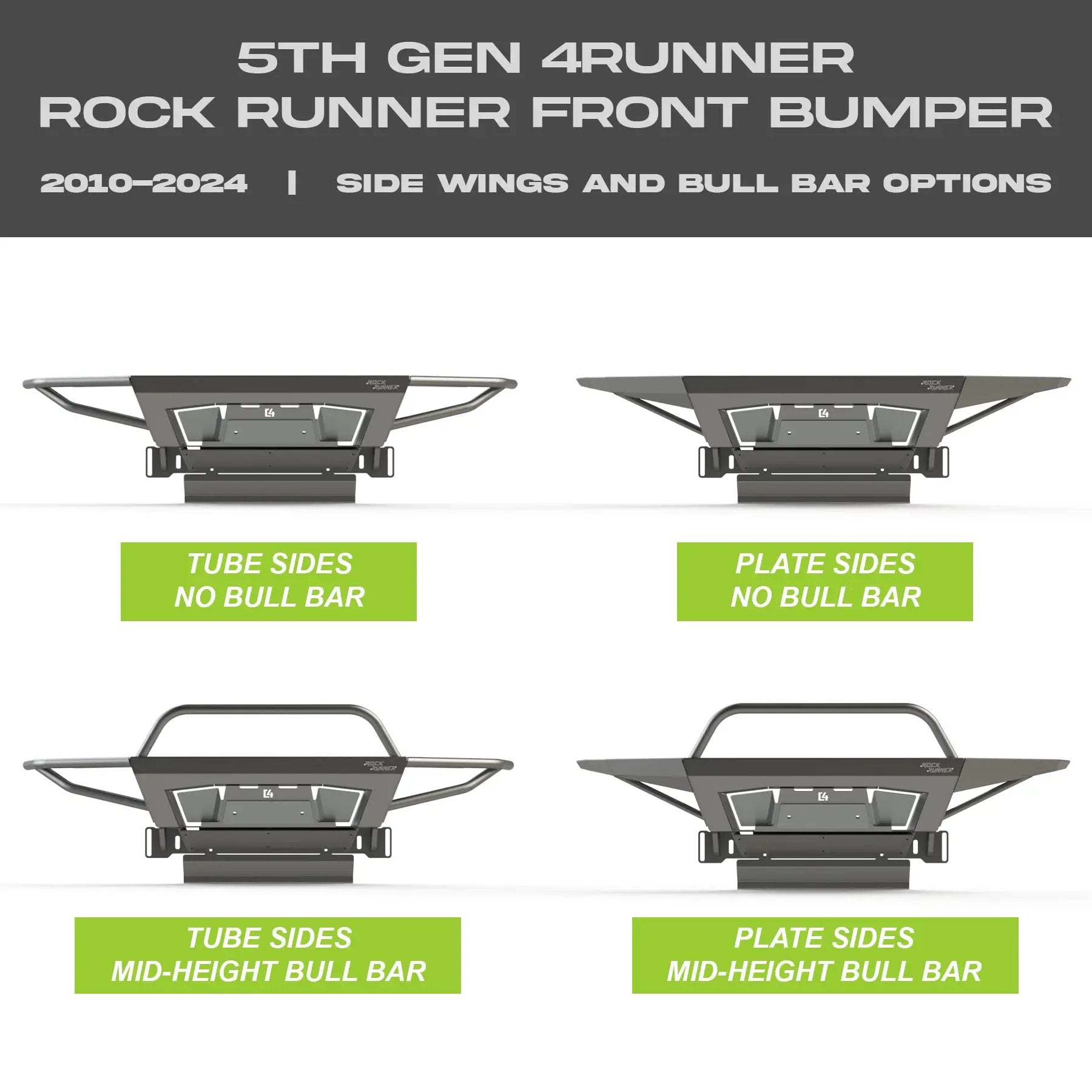

Weight & Configurations

• Front w/ Plate Sides: 100 lbs
• Front w/ Plate Sides and Bull Bar: 106 lbs
• Front w/ Tube Sides: 102 lbs
• Front w/ Tube Sides and Bull Bar: 108 lbs

Winch Compatibility & Installation Notes

• Fits most winches in the 8k–10k lbs range
• Winches with the ability to relocate the electrical control box are recommended
• Integrated control box winches may require trimming of grille support brackets to fit
• Common compatible models include Smittybilt X20 and Warn VR series
• We recommend synthetic rope and a hawse-style fairlead for optimal fitment; some roller fairleads may be too large for the recessed fairlead mounting plate
• Cutouts in front of the bumper provide winch lever access
• Aluminum fill panel is included if you choose not to install a winch

Installation & Fitment Considerations

• Requires cutting of the plastic bumper to install
• Washer tank skid can be added for additional protection
• Bridge skid connects to current skid plates and factory cross member for integrated protection

Materials, Build & Finish

• 11 gauge laser-cut P&O steel construction
• 3/16" thick mounting plates and winch plate
• 3/4" thick D-ring tabs fully welded front and back
• 1.5" x.120" tube used on tube sides and bull bar

Lighting & Accessories

• Tube sides include light mounts in wings, capable of accommodating up to one Squadron, one S2, and one S1 light per side

Finish & Maintenance

• Powder coating option available
• If you do not choose powder coating, painting or powder coating prior to installation is recommended to prevent rust
