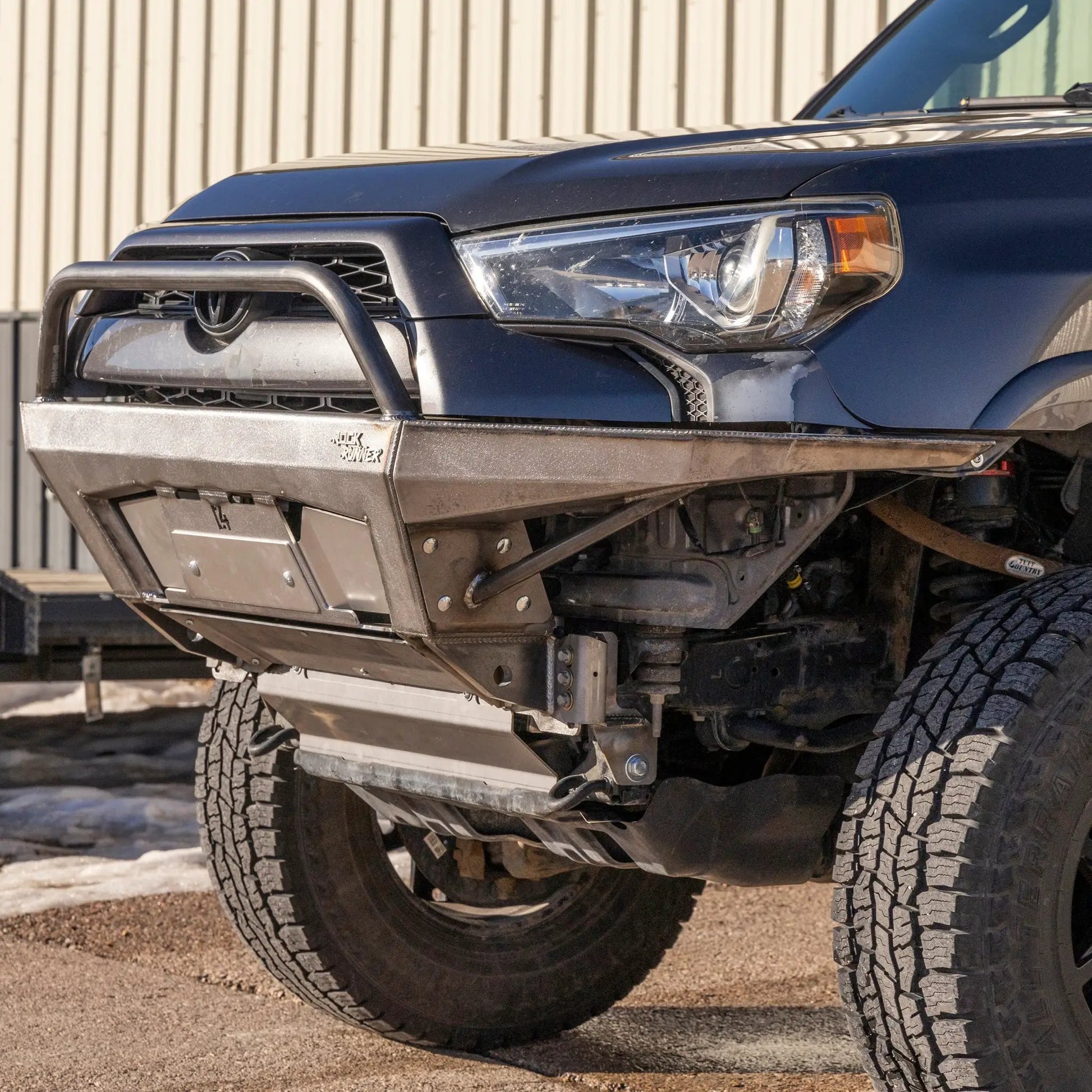

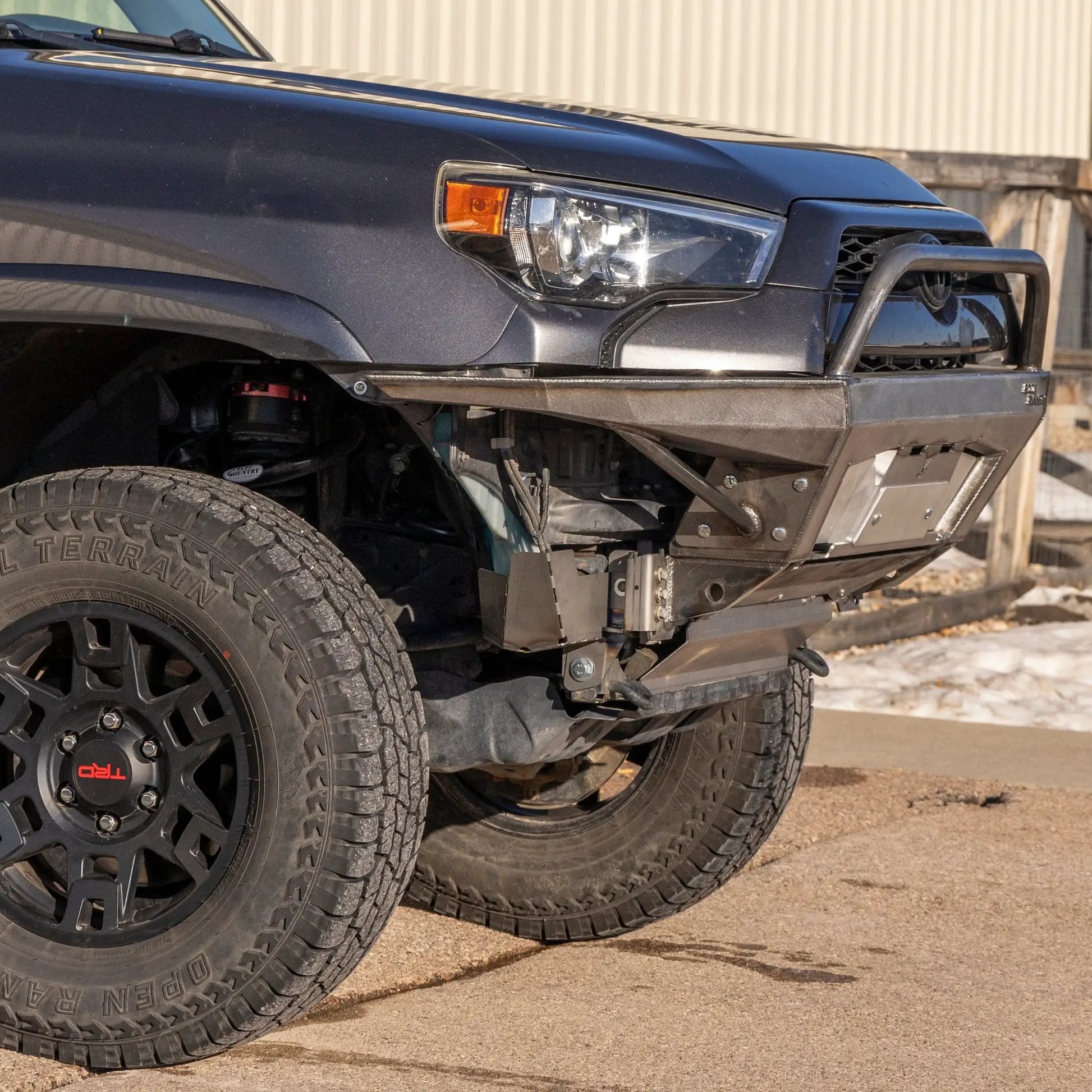

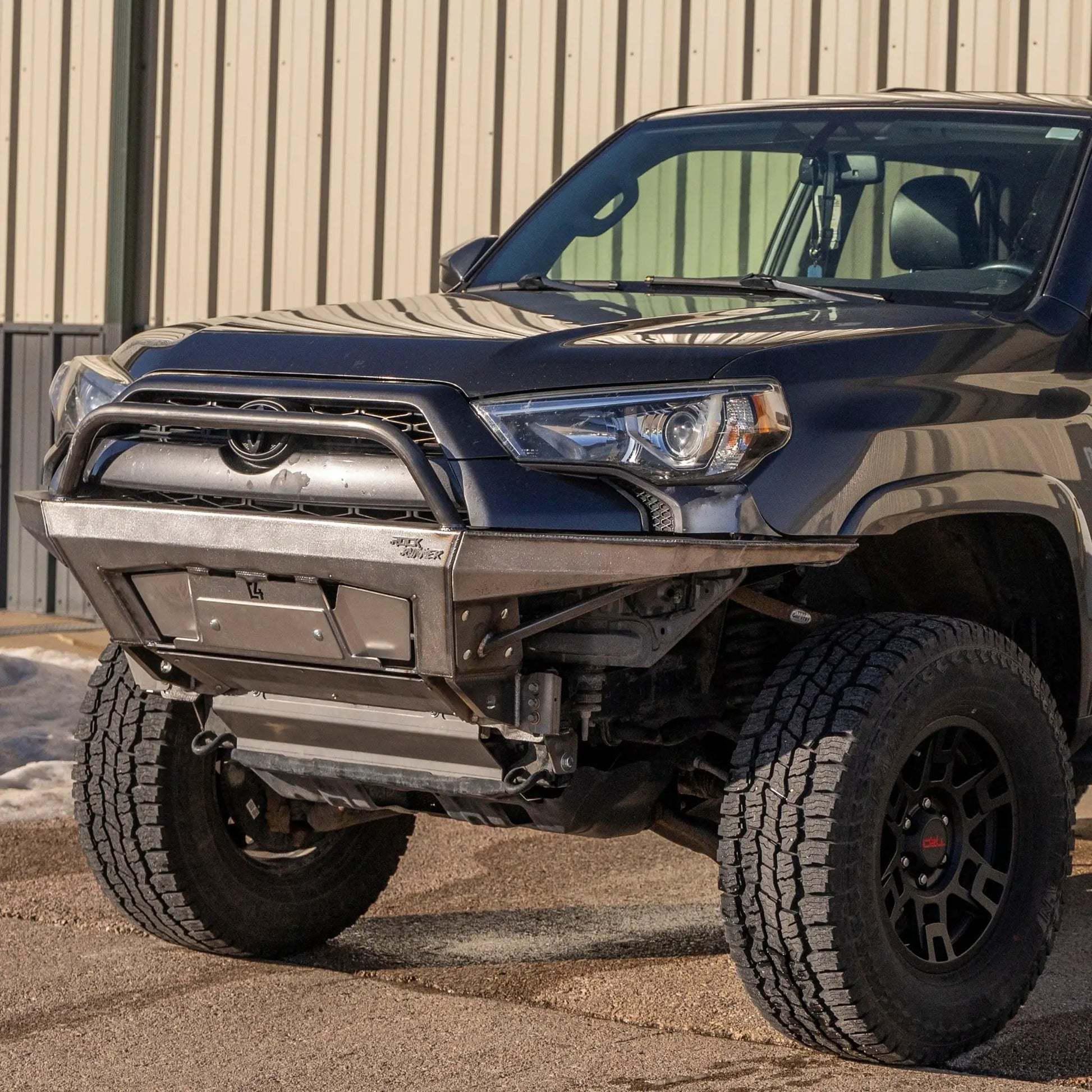

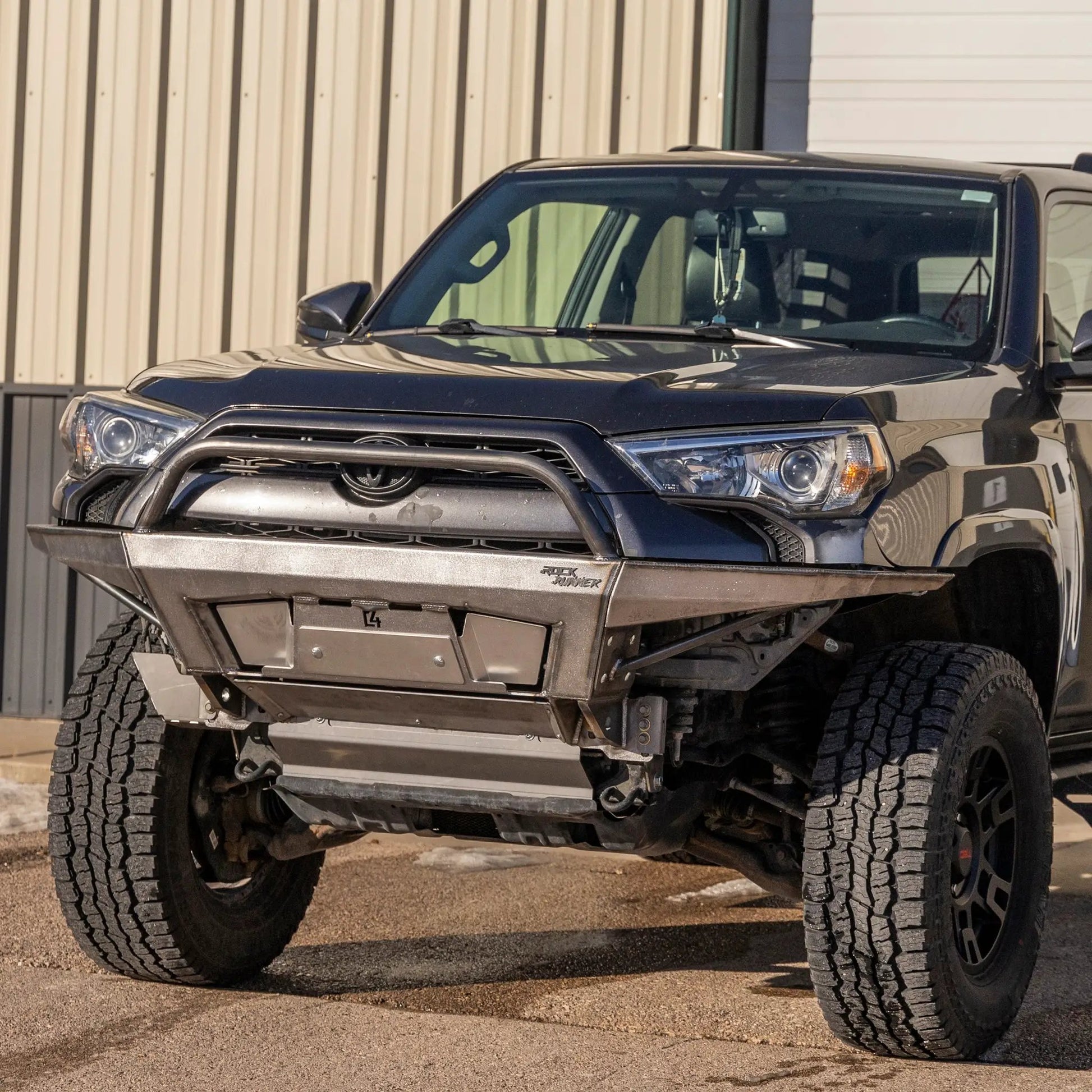

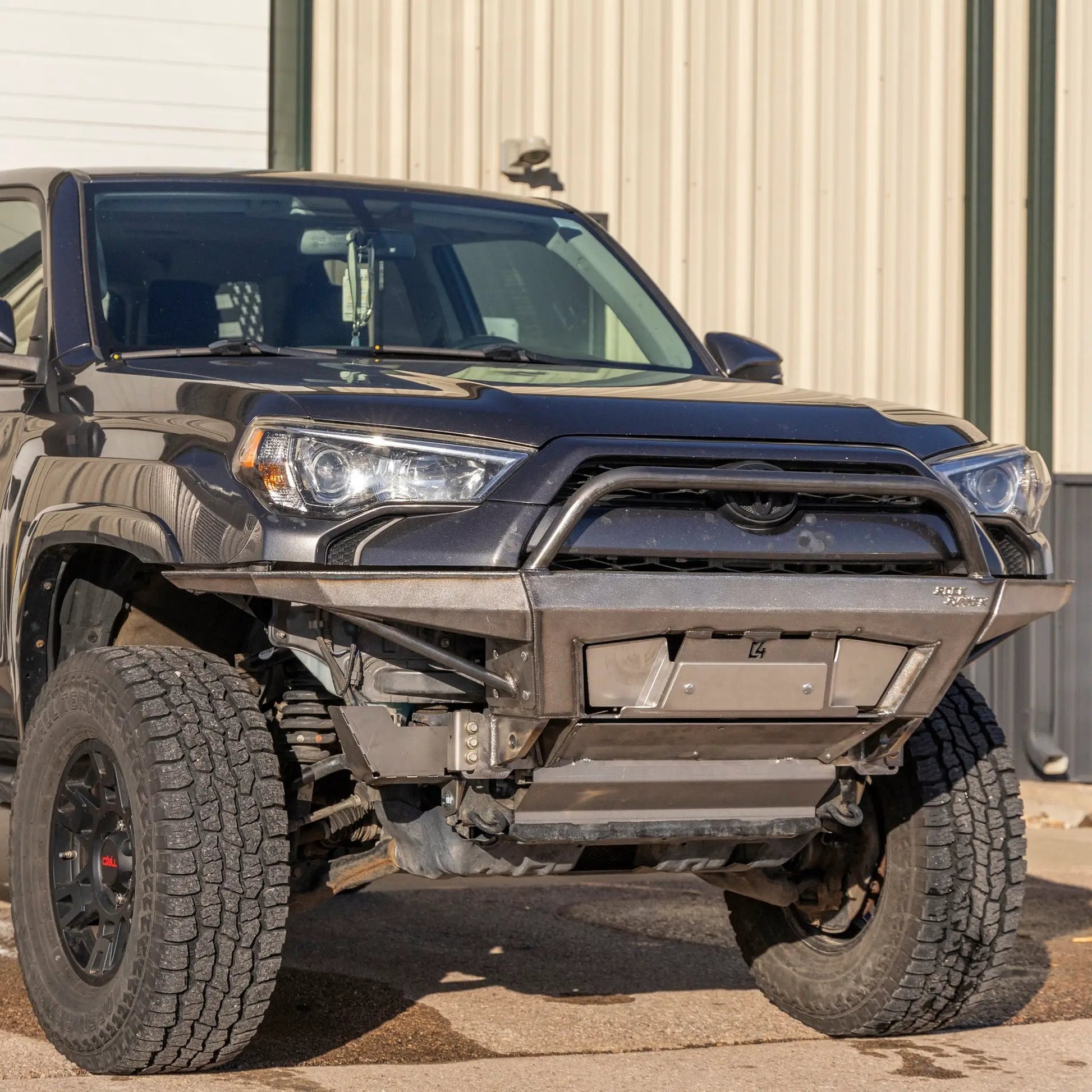

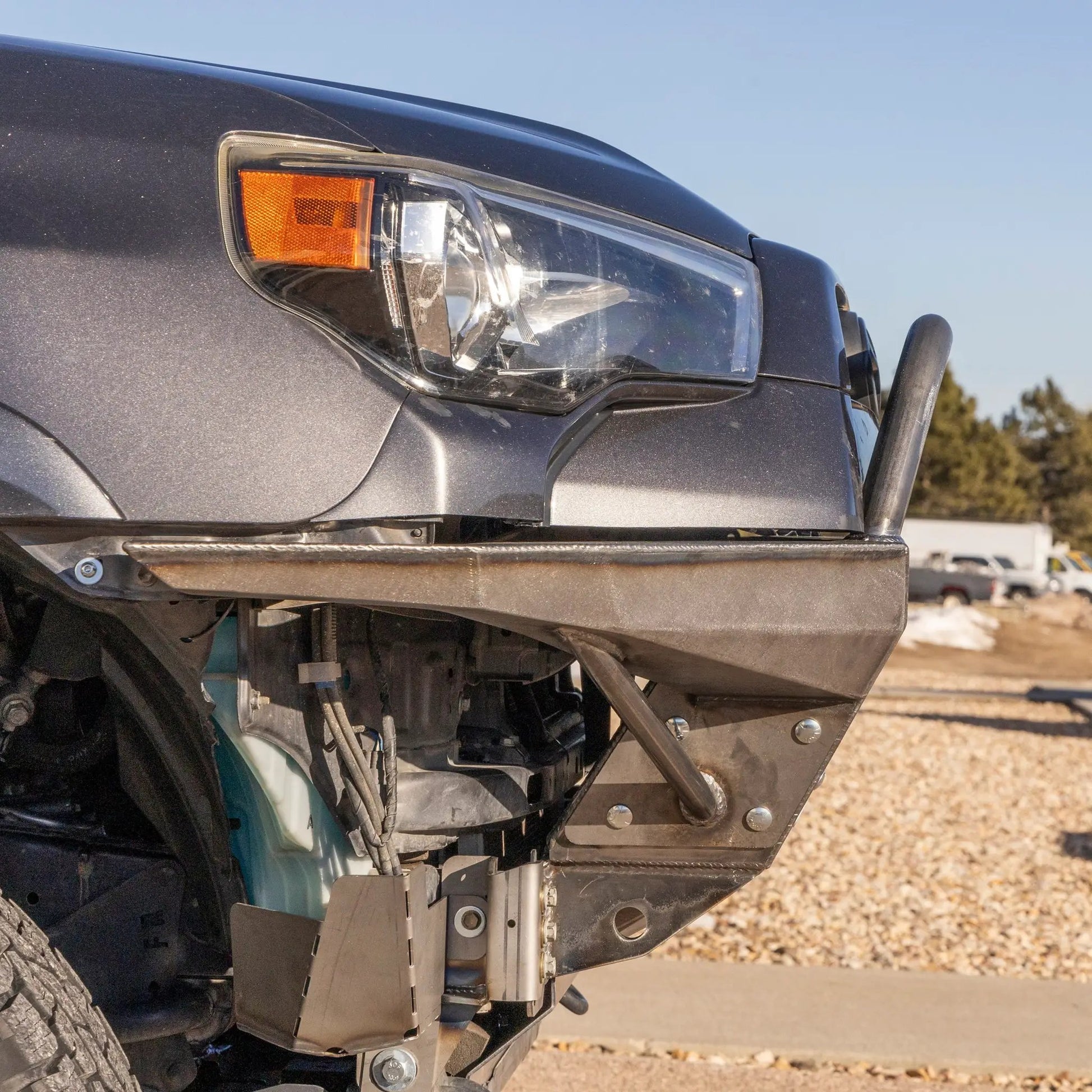

C4 Fabrication 4Runner Rock Runner Front Bumper / 5th Gen / 2010+

The C4 Fabrication Rock Runner Front Bumper for the 5th Gen Toyota 4Runner (2010+) delivers rugged off-road protection with a modular, bolt-on design. Specifically built for enthusiasts who want winch-ready capability, integrated mounting options, and a durable 11 ga steel construction, it’s designed to handle demanding trails and heavy use. Installation requires cutting of the plastic bumper to accommodate the bumper system.

Key features

• Modular, 3-piece design with bolt-on wings for flexible fitment and serviceability

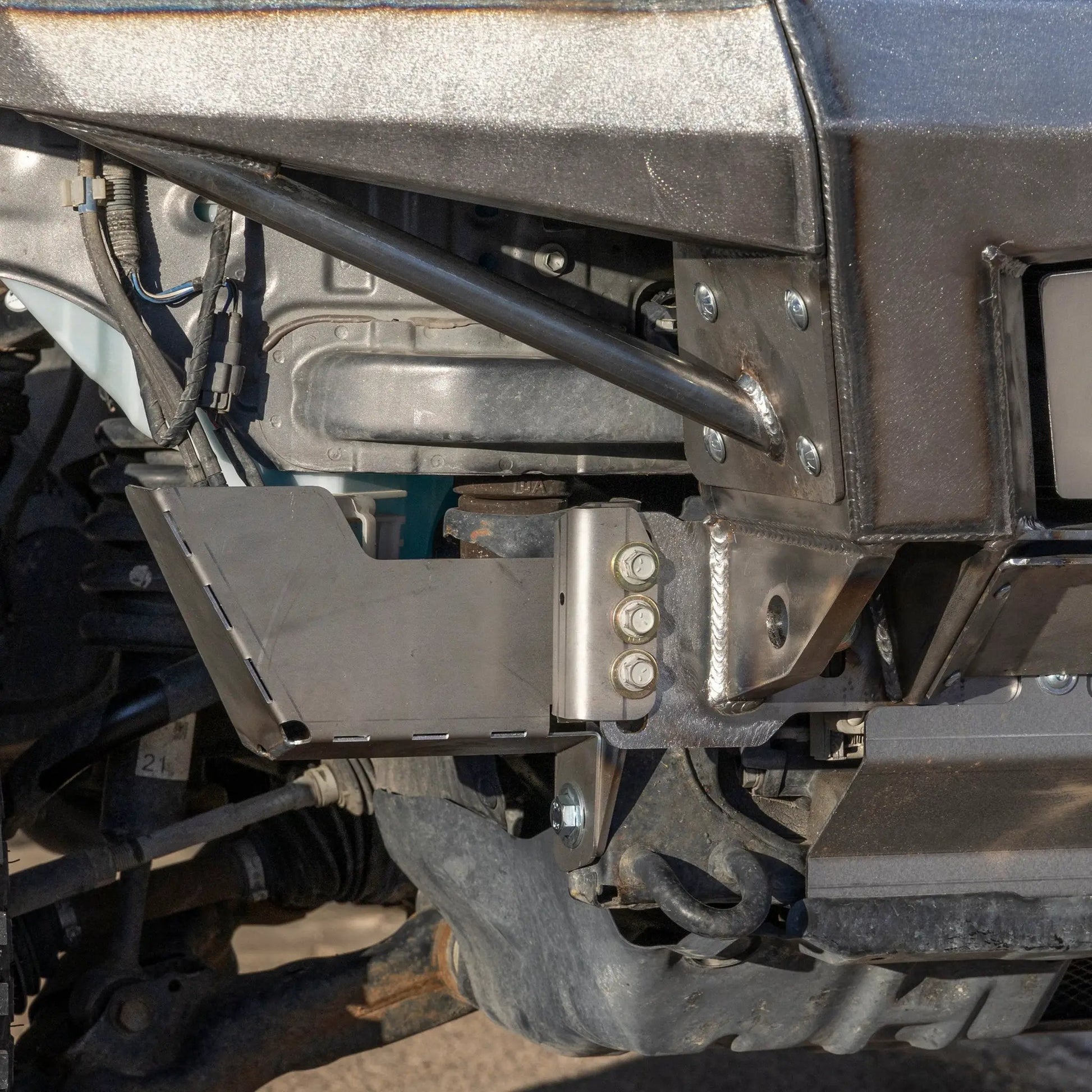

• Frame support brackets included with the bumper
• Ships with a winch cover plate and bridge skid that connects to current skid plates and factory cross member
• Integrated winch mounting area compatible with common 8k–10k winches
• Aluminum fill panel included to complete the look if you choose not to install a winch
• 11 ga laser-cut P&O steel construction with 3/16" mounting plates and winch plate
• 3/4" thick D-ring tabs fully welded front and back
• 1.5" x.120" tube used on tube sides and bull bar
• Tube sides include light mounts in wings, sized to fit up to 1 Squadron, 1 S2, and 1 S1 light per side
• TSS relocation bracket available for 2020+ models

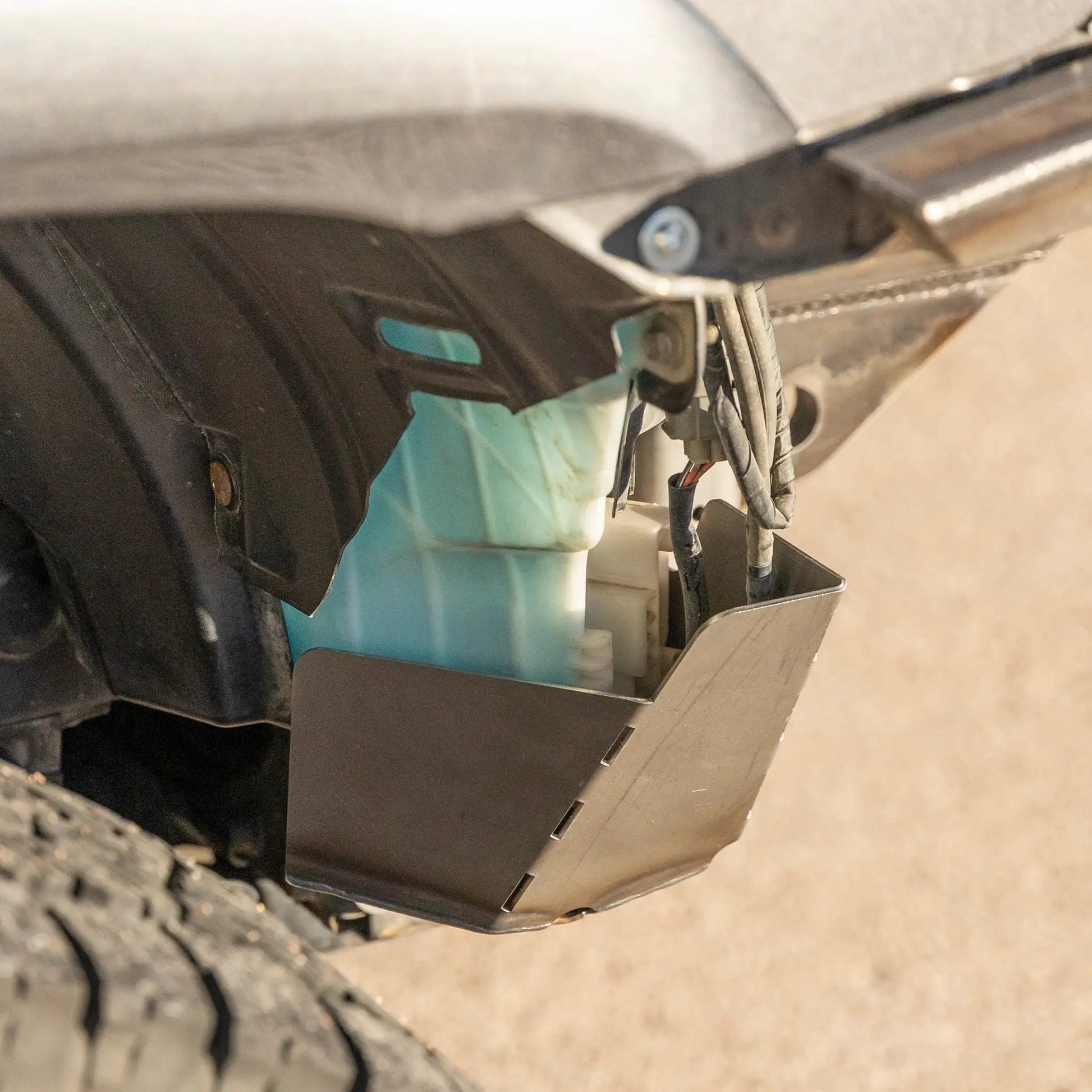

• Washer tank skid can be added for additional protection

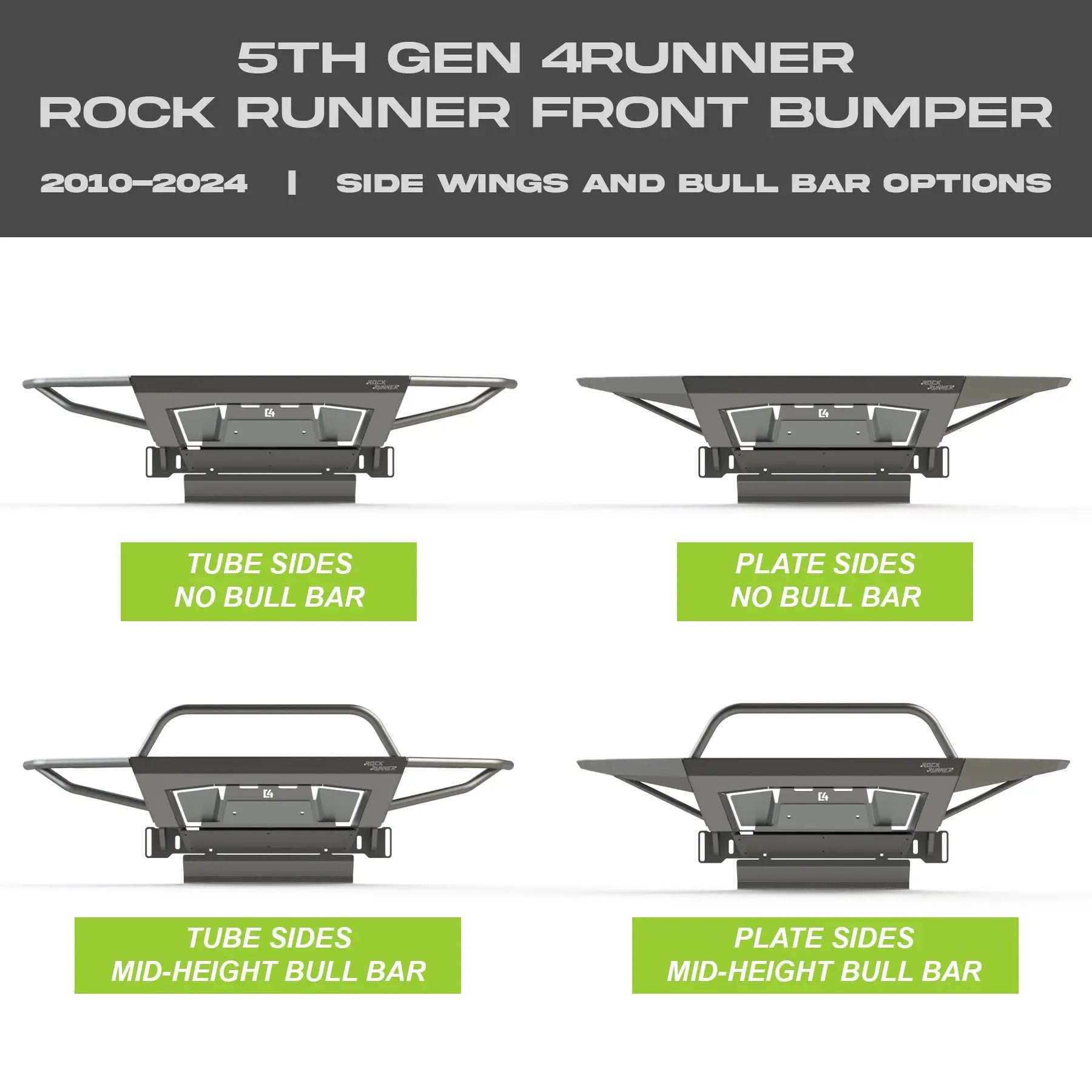

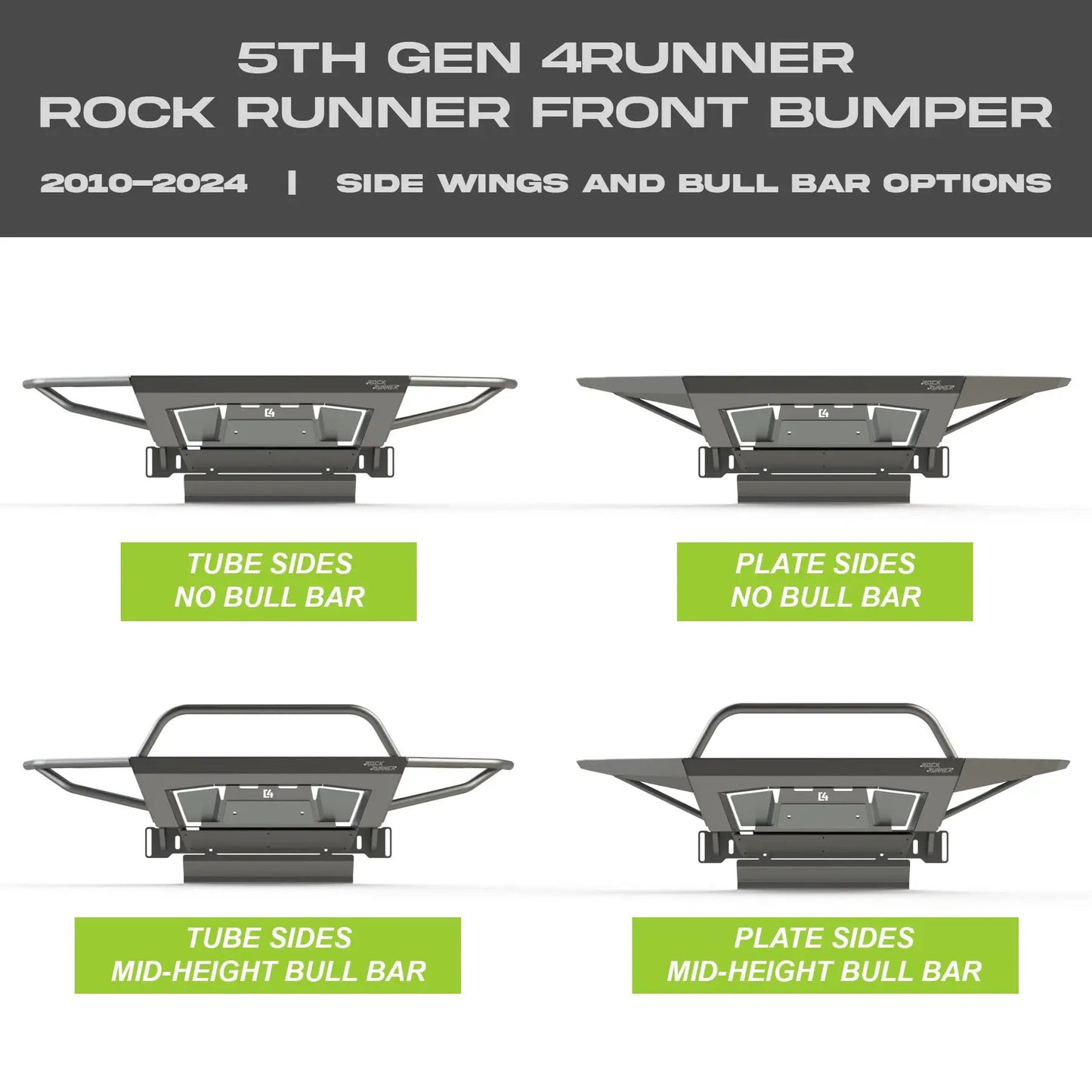

Weight and configurations

• Front w/ Plate Sides: 100 lbs
• Front w/ Plate Sides and Bull Bar: 106 lbs
• Front w/ Tube Sides: 102 lbs
• Front w/ Tube Sides and Bull Bar: 108 lbs

Winch compatibility and installation notes

• Fits most winches 8k–10k in size
• Smittybilt X20 and Warn VR series are common fitments
• Winches with the ability to relocate the electrical control box are recommended
• Integrated control box winches may require some trimming of the grille support brackets to fit
• Some roller fairleads may be too large to fit the recessed fairlead mounting plate
• Cutouts in front of bumper allow winch lever access
• For best fitment and function, use winches with synthetic rope and a hawse-style fairlead

Finish, protection, and maintenance

• Bumper is made from 11 ga laser-cut P&O steel with 3/16" thick mounting plates and winch plate
• Powder-coated option available; if not chosen, the bumper will need to be painted or powder coated before installation to prevent rust
• Washer tank skid can be added for additional protection

Installation and fitment notes

• Requires cutting of the plastic bumper to install
• Bumpers ship with a bridge skid that connects to existing skid plates and factory cross member
• Cutouts in front of bumper provide access for winch lever
• Includes aluminum fill panel to complete the look if you opt not to install a winch
