C4 Fabrication 4Runner Rock Runner Front Bumper / 5th Gen / 2010+

The C4 Fabrication Rock Runner Front Bumper for the Toyota 4Runner (5th Gen, 2010+) is built for serious off‑road use with a modular, bolt‑on design that accommodates winches, recovery gear, and a rugged bridge skid. Designed for 2010+ 4Runners, it delivers standout protection and a customizable setup—note that installation requires cutting the plastic bumper to fit.

What you get

• Frame support brackets included with the bumper.
• Bridge skid and winch cover plate that connect to current skid plates and factory cross member.
• Aluminum fill panel to complete the look if you choose not to install a winch.

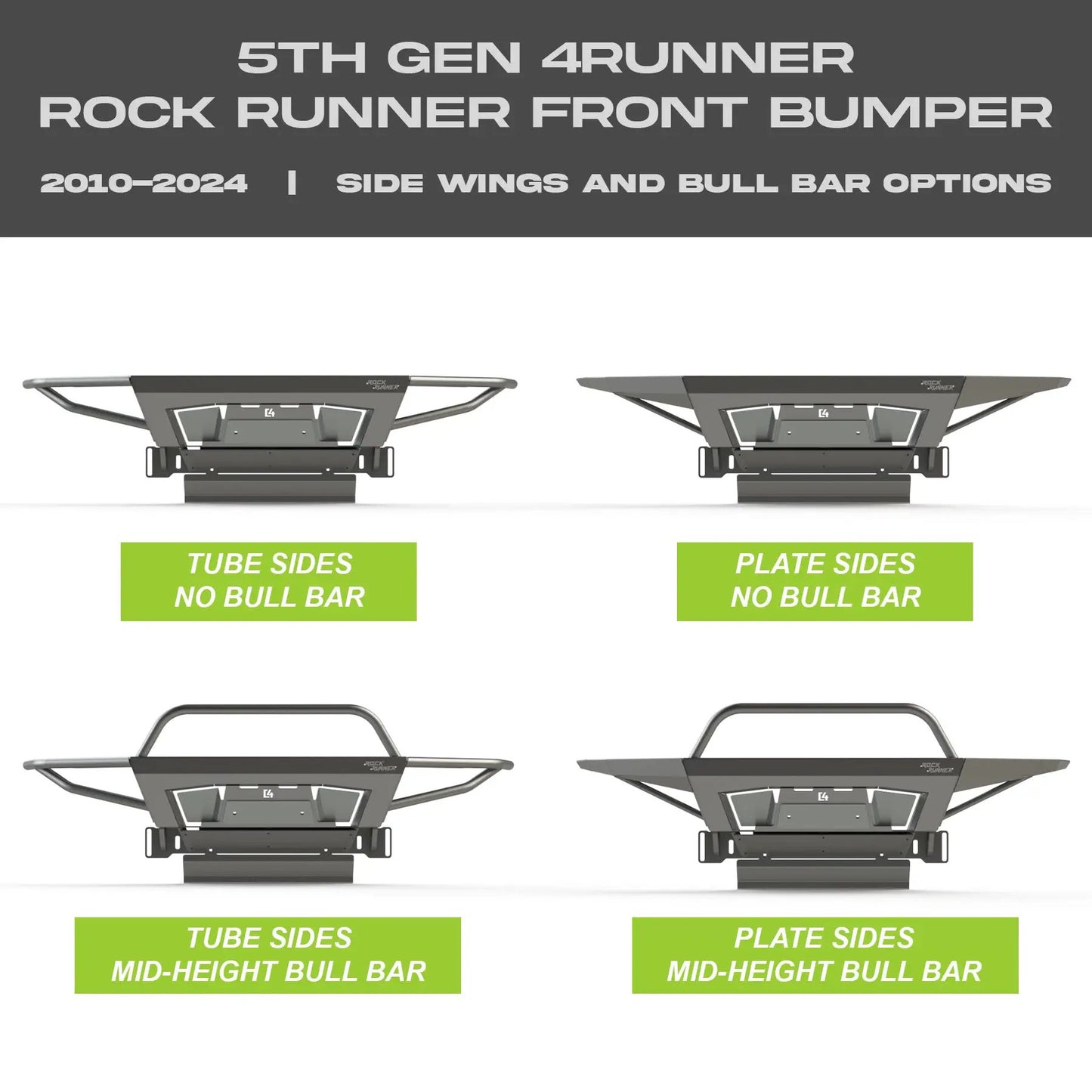

• Modular, 3-piece design with bolt‑on wings.
• 11 ga laser‑cut P&O steel construction with 3/16" thick mounting plates and winch plate.
• 3/4" thick D‑ring tabs fully welded front and back.
• 1.5" x.120" tube used on tube sides as well as bull bar.
• Washer tank skid can be added for additional protection.
• TSS relocation bracket available for 2020+.
• Powder coated option; otherwise paint or powder coat to prevent rust before installation.

Weight by configuration

• Front w/ Plate Sides: 100 lbs
• Front w/ Plate Sides and Bull Bar: 106 lbs
• Front w/ Tube Sides: 102 lbs
• Front w/ Tube Sides and Bull Bar: 108 lbs

Winch compatibility & installation notes

• Fits most winches in the 8,000–10,000 lb class.
• Winches with the ability to relocate the electrical control box are recommended.
• Integrated control box winches may require trimming of the grille support brackets to fit.
• Common fits include Smittybilt X20 and Warn VR series.
• Use winches with synthetic rope and a hawse style fairlead for best fitment and functionality.
• Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.
• Cutouts in front of the bumper allow winch lever access.

Lighting, mounting & fitment

• Tube sides include light mounts in wings and are sized to allow fitment of up to 1 Squadron, 1 S2 and 1 S1 light on each side.

Finish, maintenance & installation considerations

• Unless you choose the powder coated option, this product will need to be painted or powder coated before installation to prevent rust.

Additional notes

• Bumpers ship with a winch cover plate and bridge skid that connect to your current skid plates and factory cross member.
• Washer tank skid is an available add‑on for enhanced protection.
• Powder coating option and TSS relocation bracket for 2020+ provide additional customization and compatibility.
