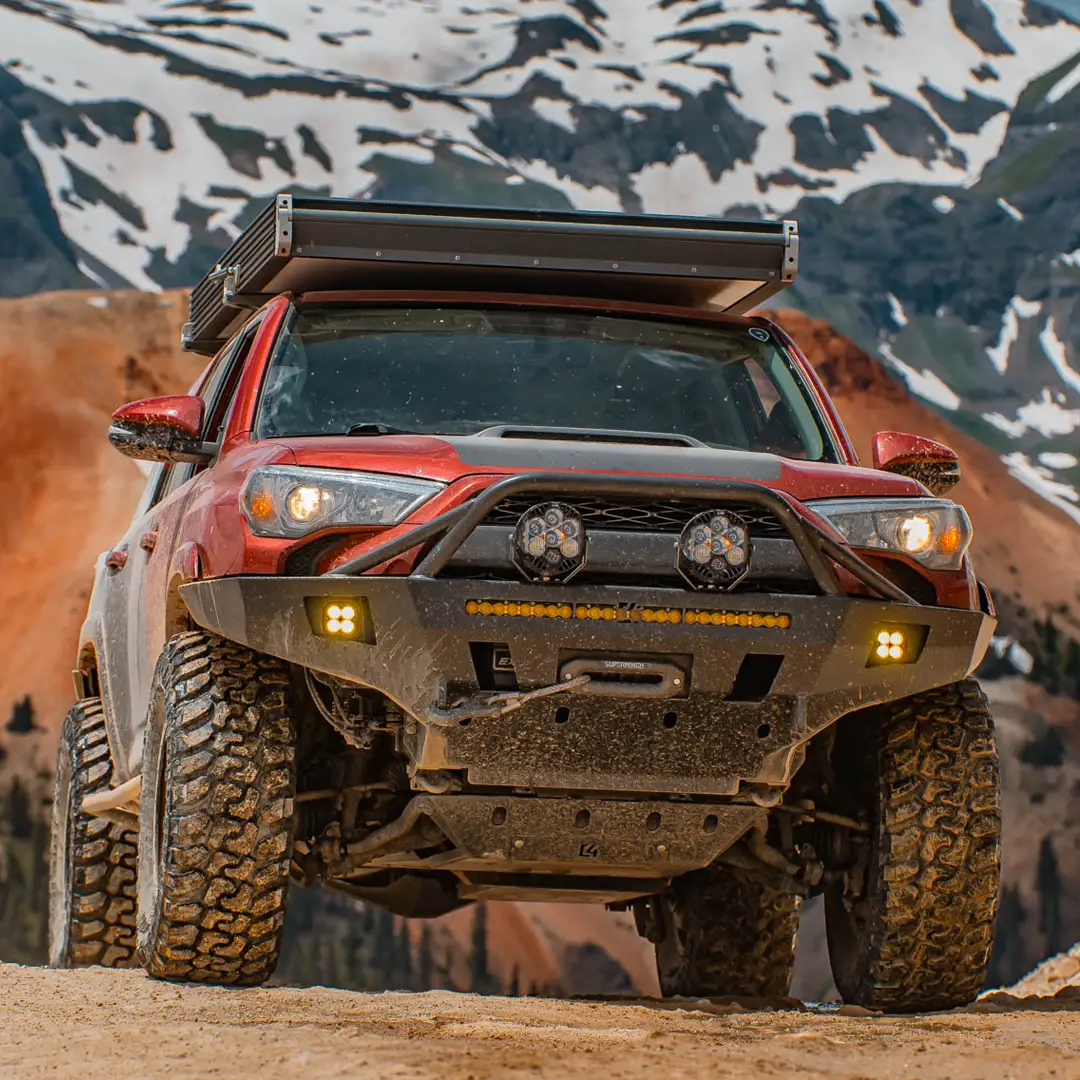

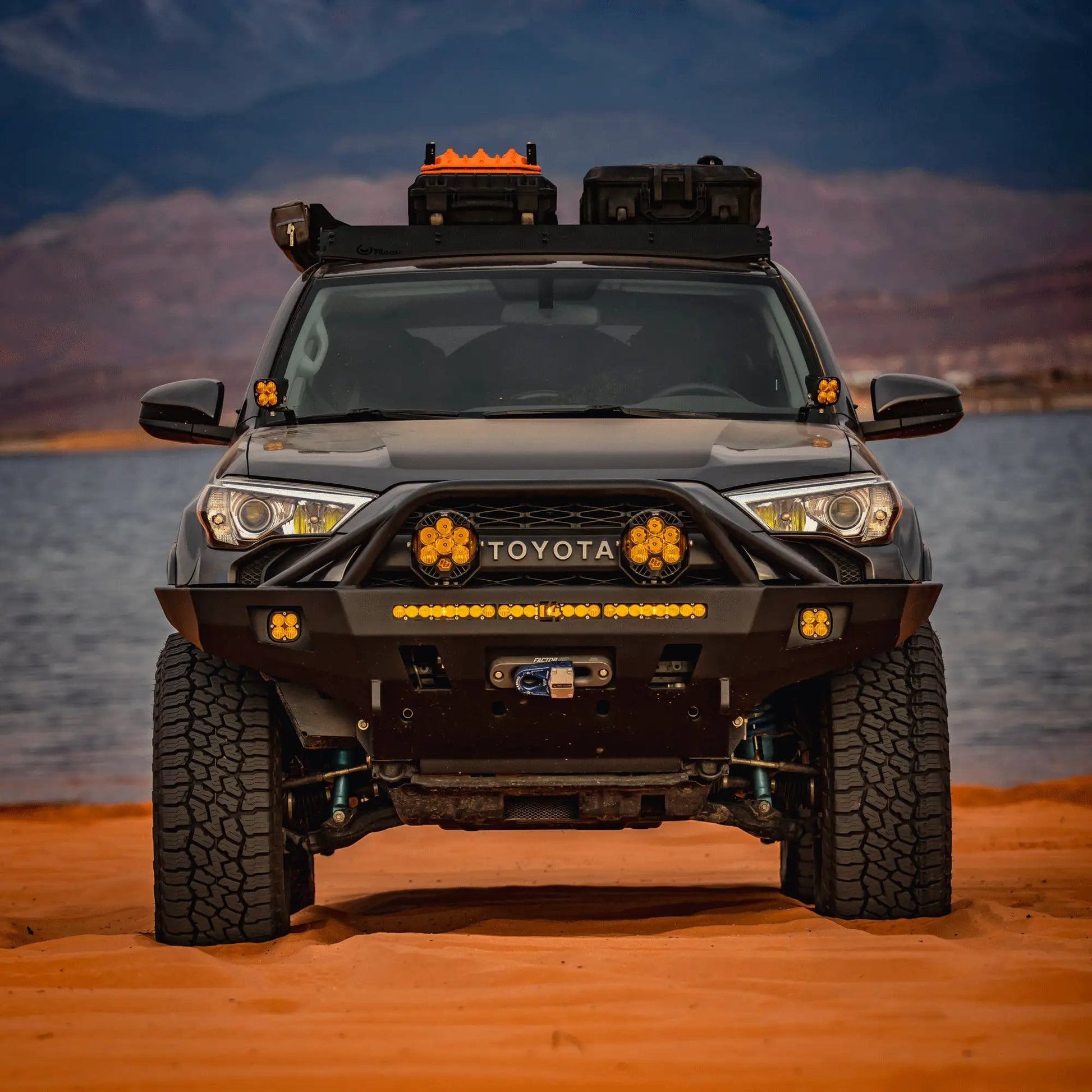

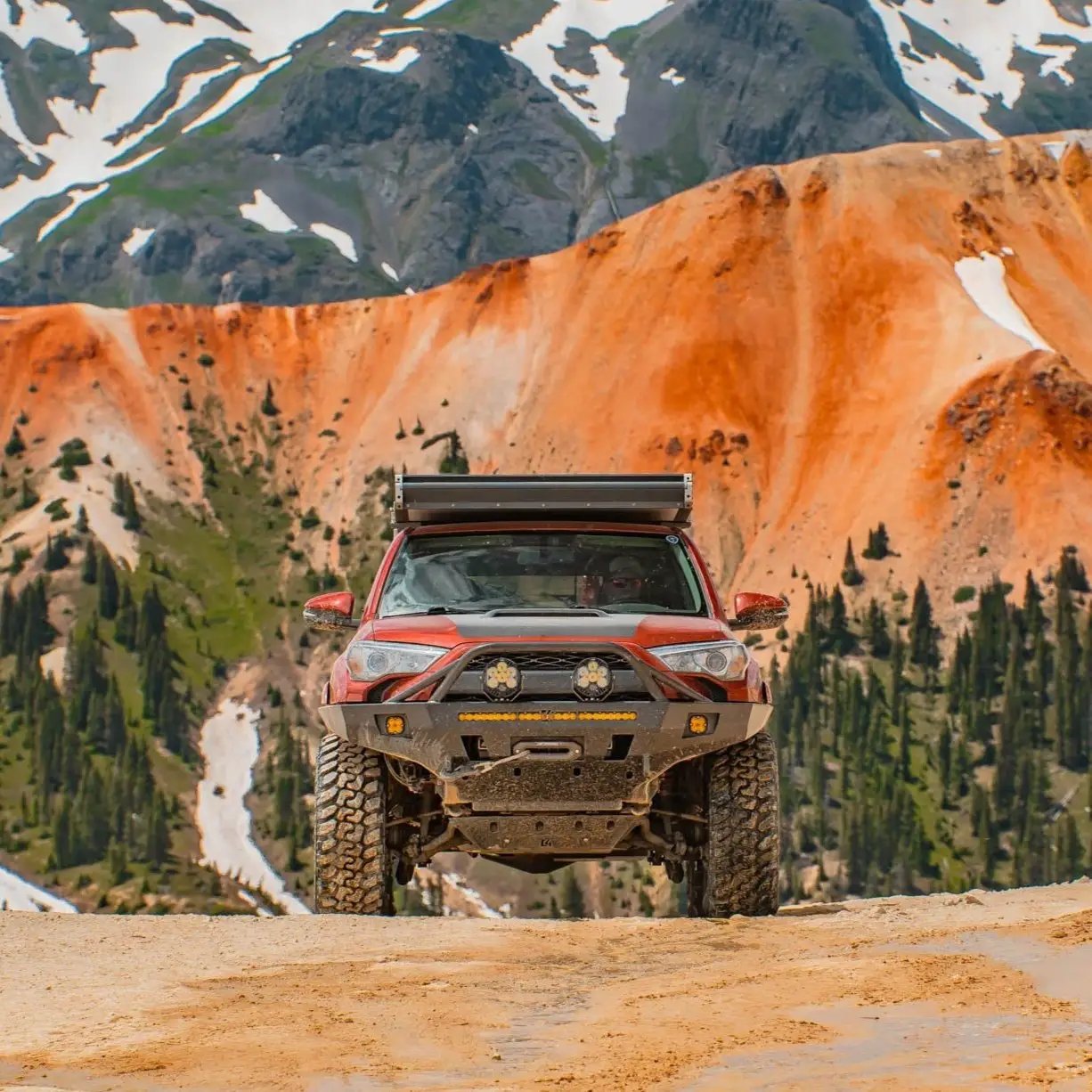

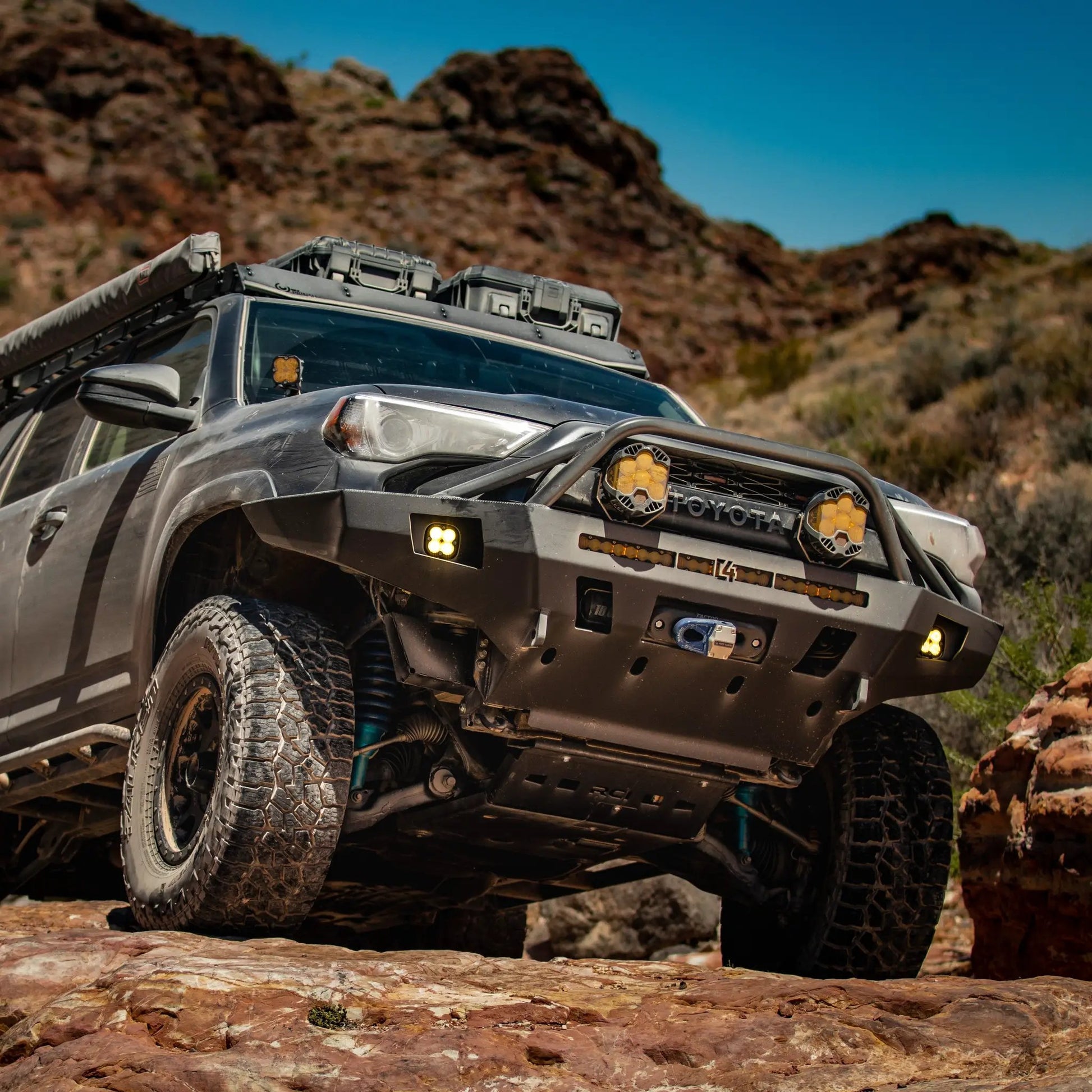

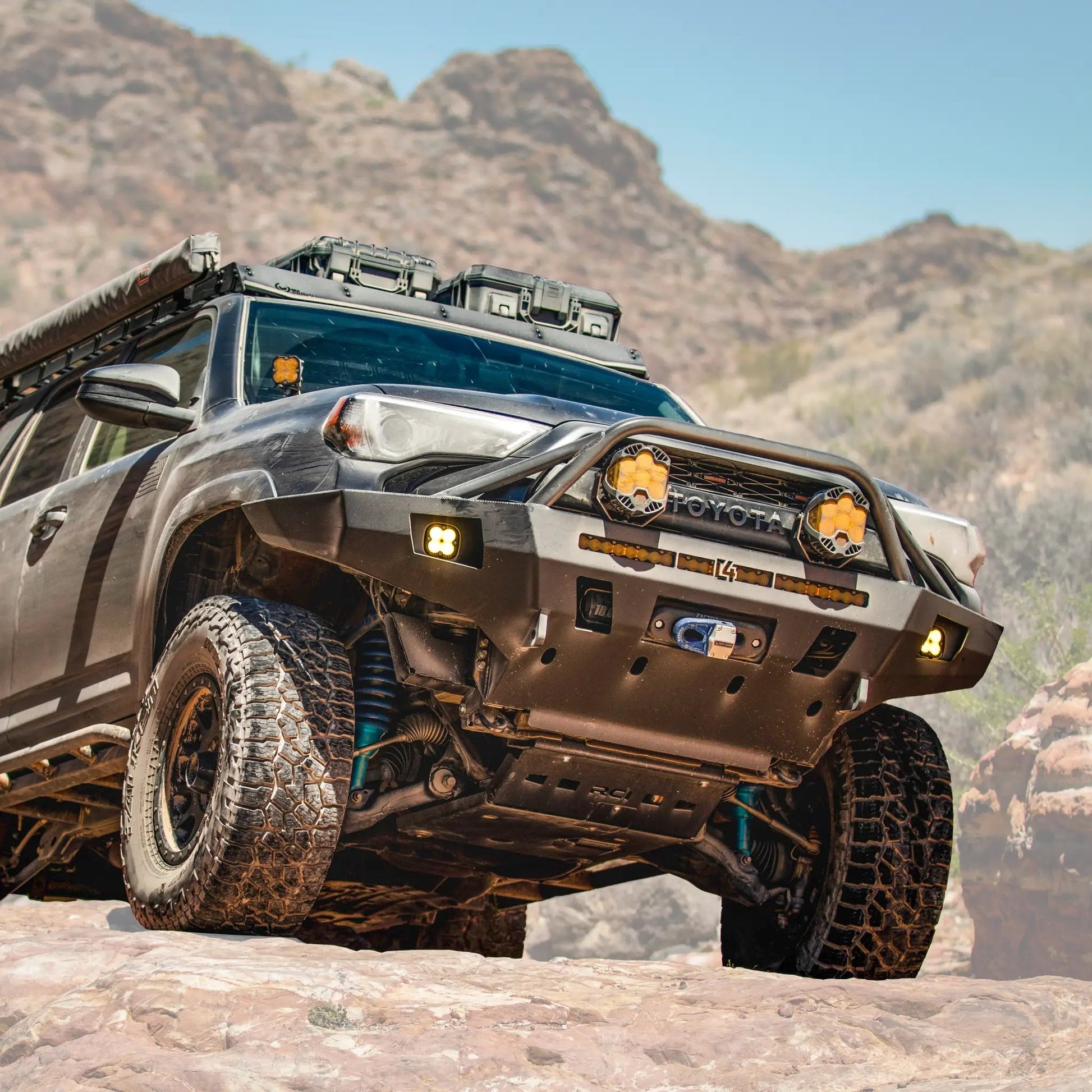

C4 Fabrication 4Runner Overland Series Front Bumper / 5th Gen / 2014-2024

The C4 Fabrication 4Runner Overland Series Front Bumper for the 5th Gen Toyota 4Runner (2014–2024) adds real off-road capability with increased clearance and easier room for larger tires. Built to endure tough trails, it combines heavy-duty construction with practical winch mounting and lighting options to enhance protection and versatility.

Key Features & Specifications

• Material and construction: 3/16" laser-cut P&O steel with 1/4" thick mounting plates
• Reinforced hardware: 3/4" thick D-Ring tabs standard on every bumper, fully welded front and back
• Bull bar:.120" wall, 1 3/4" diameter HREW tubing
• TSS relocation bracket: required if you have TSS (NOT compatible with mid-height bull bar)
• Winch compatibility: fits most 8k–12k winches; relocation of the electrical control box is recommended
• Installation notes for winches: Integrated control box winches may require trimming of grille support brackets to fit
• Compatible winches: ComeUp, Smittybilt X20, Warn Zeon, and VR series are common fits
• Fairlead compatibility: best results with synthetic rope and hawse fairlead; some roller fairleads may be too large for the recessed fairlead mounting plate
• Camera compatibility: not compatible with MTM front camera unless the camera is relocated above the bumper

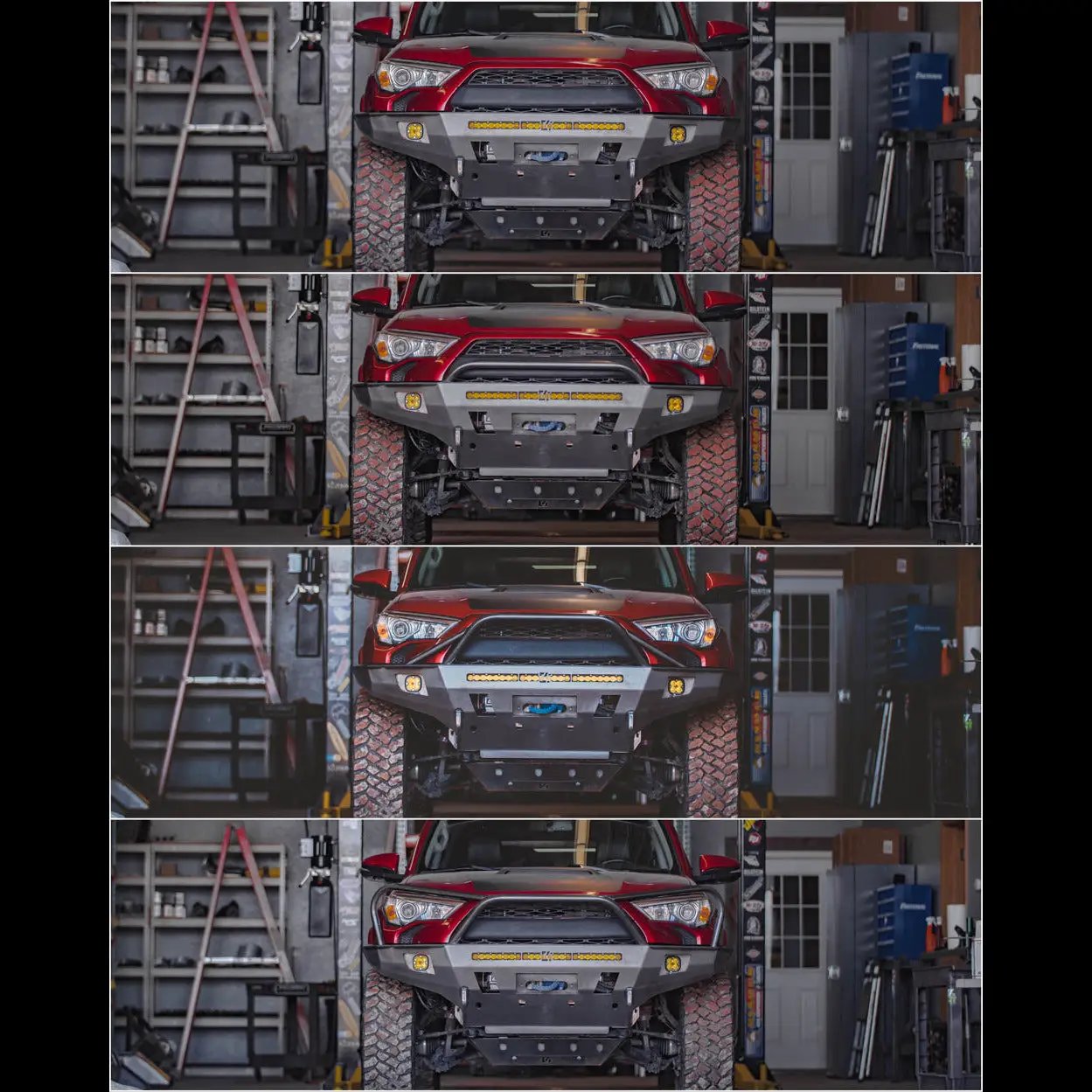

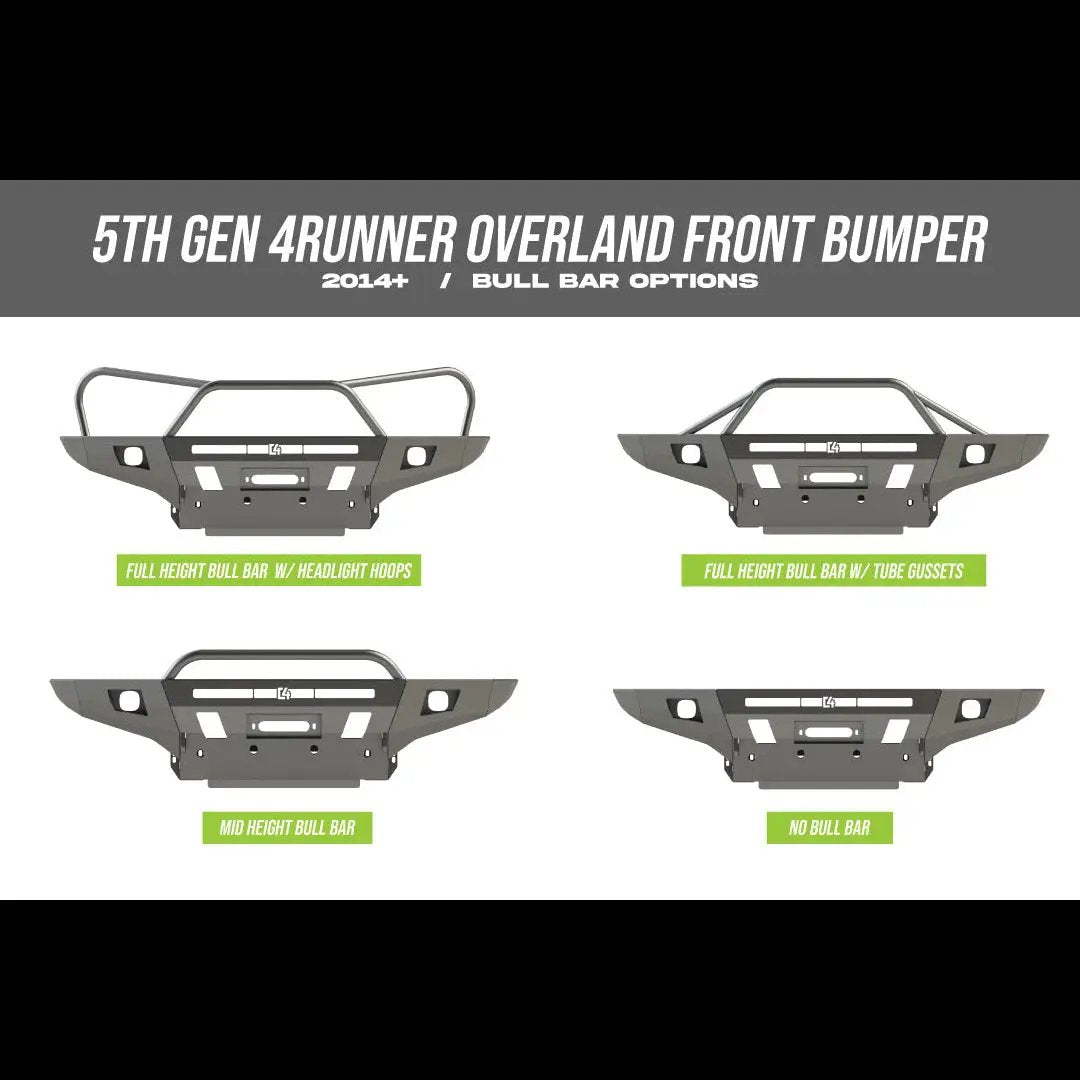

• Weight (approx., varies by bull bar configuration): 135 lbs (no bull bar); 140 lbs (mid-height bull bar); 150 lbs (full-height bull bar); 155 lbs (full-height bull bar with headlight hoops)
• Lighting: designed to accommodate a 30" single-row light bar (specifically Baja Designs S8); also fits Extreme LED 30" 5D and RIGID 30" SR series
• Installation requirements: requires cutting the original plastic bumper cover to install
• Power steering cooler kit: removes the original steel PS cooler lines and replaces them with the included cooler kit; installation is straightforward and does not require draining the PS system
• Line relocation benefits: swapping lines provides more room for the winch and removes the low-hanging “U” shaped portion near where the bumper bolts to the frame
• Finish note: unless you select the powder-coated option, painting or powder coating is required before installation to prevent rust

Why It’s Right for Your 4Runner

• Enhanced approach angles and tire clearance: engineered to give you more room to maneuver over obstacles and fit larger tire sizes on your 4Runner
• Rigid, proven protection: 3/16" steel construction and welded D-Ring tabs provide dependable recovery points and front-end protection on rugged trails
• Winch-ready performance: accommodates a wide range of 8k–12k winches with mounting flexibility and practical control box considerations
• Lighting versatility: designed to support 30" single-row light bars and a variety of popular 30" LED setups for night-time trail work
• Trail-ready integration: the included power steering cooler kit and line-relocation benefits streamline installation and improve system clearance when the bumper is installed
• Long-term durability: powder coat option available, or plan for paint/powder coat to prevent rust on exposed metal surfaces

Fitment & Installation Notes

• Required modifications: cutting the original plastic bumper cover is necessary to install
• Power steering cooling: remove the stock PS cooler lines and install the provided cooler kit; no PS system drain needed
• Line relocation benefits: after installation, the winch area gains additional clearance and line protection from debris
• Camera and auxiliary equipment: MTM front camera requires relocation above the bumper for compatibility
• Finish options: to prevent rust, apply paint or powder coat unless choosing the powder-coated option
